The fuel pump on a 2003 Chevy Suburban is located inside the fuel tank, a common placement for most modern vehicles to ensure safety and efficiency. Accessing it requires removing the fuel tank, which is typically situated beneath the rear passenger seats or the cargo area. This design protects the pump from external damage and maintains a stable fuel supply. To replace or inspect the fuel pump, you’ll need to safely lower the tank, disconnect the electrical and fuel lines, and then remove the pump assembly. It’s crucial to relieve fuel system pressure and work in a well-ventilated area to avoid hazards. Consulting the vehicle’s manual or a repair guide can provide specific steps tailored to the Suburban’s configuration.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the fuel tank or accessing through a service panel |
| Fuel Tank Location | Beneath the vehicle, near the rear axle |
| Tank Removal | Necessary in most cases for pump replacement |
| Service Panel Availability | Some models may have a service panel for easier access (check specific model) |
| Tools Required | Jack, jack stands, wrenches, and fuel line disconnect tools |
| Safety Precautions | Relieve fuel system pressure before removal; work in well-ventilated area |
| Replacement Difficulty | Moderate to difficult, depending on access and experience |
| Common Issues | Fuel pump failure, clogged fuel filter, or electrical issues |
| Replacement Interval | Typically lasts 100,000-150,000 miles, but varies based on usage |
Explore related products
What You'll Learn
Fuel pump location in 2003 Suburban

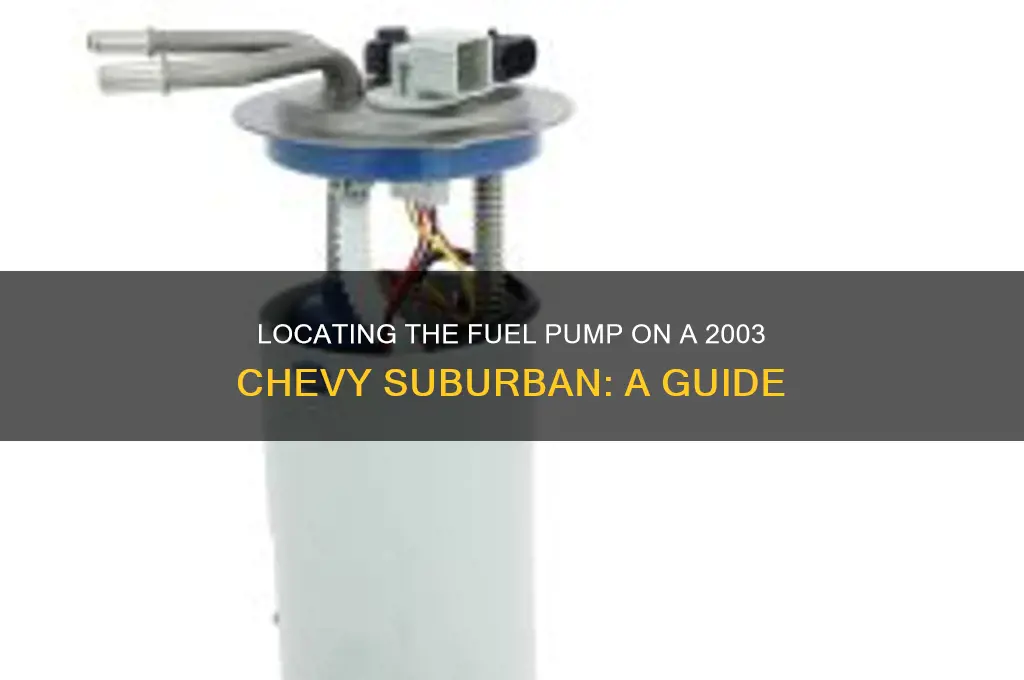

The fuel pump in a 2003 Chevy Suburban is located inside the fuel tank, a common placement for modern vehicles to ensure safety and efficiency. This in-tank design protects the pump from external damage and helps maintain a consistent fuel temperature, which is crucial for optimal engine performance. To access the fuel pump, you’ll need to remove the fuel tank, a task that requires careful preparation to avoid fuel spills or hazards. Always ensure the vehicle is on a level surface, the fuel tank is nearly empty, and the battery is disconnected before starting any work.
Analyzing the process, replacing the fuel pump on a 2003 Suburban is not a beginner-level task but is manageable with the right tools and precautions. The fuel tank is located beneath the vehicle, secured by straps and connected to fuel lines and electrical wiring. After lowering the tank, the pump assembly is typically held in place by a locking ring, which can be removed with a specialized tool. It’s critical to inspect the fuel tank for corrosion or damage while it’s exposed, as these issues can lead to future leaks or failures. Always replace the fuel filter and strainer when installing a new pump to ensure longevity.
From a practical standpoint, diagnosing a failing fuel pump before removal can save time and effort. Common symptoms include a sputtering engine, difficulty starting, or a whining noise from the fuel tank. Using a fuel pressure gauge to test the pump’s output is a reliable method to confirm its condition. If the pressure is below the manufacturer’s specifications (typically 55-60 PSI for this model), replacement is likely necessary. Keep in mind that a clogged fuel filter or faulty relay can mimic pump failure, so rule out these issues first.
Comparatively, the 2003 Suburban’s fuel pump design shares similarities with other GM trucks of the same era, such as the Silverado and Tahoe. However, the Suburban’s larger fuel tank (typically 29 gallons) makes the removal process slightly more cumbersome due to its weight and size. Unlike some European models, which place the pump in a separate module outside the tank, GM’s in-tank design simplifies the electrical connections but complicates physical access. This trade-off highlights the importance of following a step-by-step guide tailored to the Suburban’s specific layout.
Finally, a persuasive argument for addressing fuel pump issues promptly is the potential for secondary damage if ignored. A failing pump can starve the engine of fuel, leading to overheating or catalytic converter damage, both costly repairs. Additionally, a malfunctioning pump can cause erratic fuel delivery, increasing emissions and reducing fuel efficiency. Investing in a high-quality replacement pump and performing the job correctly the first time not only restores performance but also prevents future headaches. For DIY enthusiasts, this is an opportunity to save on labor costs while gaining valuable mechanical experience.
Does Your Computer Monitor and Control the Fuel Pump?
You may want to see also
Explore related products
Accessing the fuel pump on a Suburban
The fuel pump on a 2003 Chevy Suburban is located inside the fuel tank, a common placement for modern vehicles to protect the pump from external damage and maintain fuel pressure. This design, while advantageous for longevity, complicates access for maintenance or replacement. Unlike older models where fuel pumps were often external, this setup requires a more involved process to reach the component. Understanding this location is the first step in tackling any fuel pump-related issue on this vehicle.
To access the fuel pump, start by relieving the fuel system pressure to prevent accidental fuel spray or injury. This involves locating the pressure relief valve, typically found on the fuel rail, and using a specialized tool to depress it. Once pressure is relieved, disconnect the negative battery terminal to ensure electrical safety. These preliminary steps are critical for a safe and efficient repair process, as they minimize the risk of fuel-related accidents or electrical shorts.
Next, raise the vehicle securely on jack stands to access the fuel tank from underneath. The tank is located beneath the rear passenger seats, protected by a metal skid plate. Remove the skid plate using appropriate tools to expose the fuel tank. Drain the fuel tank to reduce weight and spillage risks, using a siphon pump or by loosening the drain valve if equipped. This step, while time-consuming, is essential for safe handling and easier tank removal.
With the tank drained, disconnect the fuel lines and electrical connectors attached to the top of the tank. Labeling these connections beforehand can simplify reassembly. Once disconnected, carefully lower the tank to access the fuel pump module. The module is secured by a locking ring, which requires a specialized tool to remove. After removing the ring, lift the module out of the tank, taking care not to damage the float or sender unit. This process demands patience and precision to avoid costly mistakes.
Finally, inspect the fuel pump and replace it if necessary, ensuring the new unit is compatible with the 2003 Suburban’s system. Reinstallation follows the reverse order of removal, with careful attention to sealing the tank to prevent leaks. While accessing the fuel pump is labor-intensive, understanding each step and using the right tools can make the task manageable for experienced DIYers. For those less confident, consulting a professional ensures the job is done safely and correctly.
Accessing Your Crosstour's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel pump tank removal steps
The fuel pump on a 2003 Chevy Suburban is located inside the fuel tank, a common design in modern vehicles to keep the pump cool and improve reliability. Removing the fuel pump requires careful preparation and execution to avoid hazards like fuel spills or electrical shorts. Begin by relieving the fuel system pressure using the Schrader valve on the fuel rail, typically located near the engine. This step is crucial to prevent fuel from spraying when the tank is opened.
Next, disconnect the negative battery terminal to eliminate the risk of accidental ignition during the removal process. Raise the vehicle securely on jack stands to access the fuel tank, which is positioned beneath the rear seat area. Remove the rear seat and the access panel to expose the fuel pump module. Carefully disconnect the electrical connector and fuel lines, noting their positions for reassembly. Use a line disconnect tool to avoid damaging the quick-connect fittings.
With the connections detached, lower the vehicle and remove the fuel tank retaining straps. Gently lower the tank to access the fuel pump module. The module is secured by a locking ring, which can be removed using a strap wrench or a specialized fuel pump locking ring tool. Once the ring is off, lift the module out of the tank, taking care not to spill residual fuel. Inspect the module and replace the pump or sender if necessary.
Reinstallation follows the reverse order, but ensure all seals and gaskets are intact to prevent leaks. Torque the locking ring to specifications, typically around 40-50 ft-lbs, to avoid over-tightening. Reconnect the electrical and fuel lines, ensuring they are securely seated. After reassembly, reconnect the battery and turn the ignition to the "on" position for a few seconds to pressurize the system, then check for leaks. This methodical approach ensures a safe and effective fuel pump replacement.
