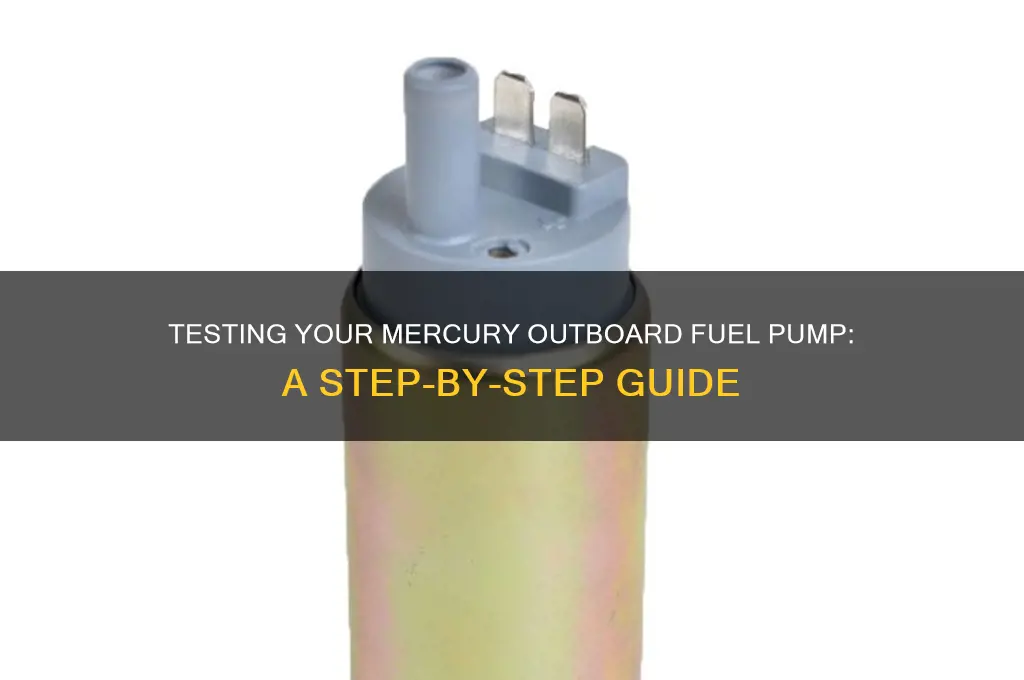

Testing the fuel pump on a Mercury outboard motor is a critical step in diagnosing fuel system issues and ensuring optimal engine performance. To begin, ensure the engine is off and the fuel supply is disconnected to prevent accidental starts or fuel spills. Locate the fuel pump, typically found along the fuel line, and inspect it for any visible damage or leaks. Using a multimeter, check the pump’s electrical connections for continuity to confirm it’s receiving power. Next, apply 12 volts directly to the pump’s terminals to test its operation; if it hums or primes, it’s functioning correctly. Additionally, measure fuel pressure using a gauge to ensure it meets the manufacturer’s specifications. If the pump fails any of these tests, it may need to be replaced or repaired. Always refer to the Mercury outboard manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Typically located near the fuel tank or carburetor, depending on the Mercury outboard model. |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, wrench, safety gloves, safety goggles. |
| Safety Precautions | Ensure engine is off, disconnect battery, work in well-ventilated area, avoid open flames or sparks. |
| Testing Method 1: Visual/Audible Check | Turn ignition to "ON" (do not start engine). Listen for a humming sound from the fuel pump for 2-3 seconds, indicating it’s priming. |
| Testing Method 2: Fuel Pressure Test | Connect a fuel pressure gauge to the fuel line. Turn ignition to "ON" and check for pressure within manufacturer’s specs (typically 3-5 PSI for carburetors, 40-60 PSI for EFI systems). |
| Testing Method 3: Multimeter Check | Disconnect fuel pump connector. Use a multimeter to test for voltage at the pump’s terminals when ignition is "ON" (should match battery voltage, ~12V). |
| Testing Method 4: Resistance Check | Disconnect fuel pump connector. Measure resistance across pump terminals using a multimeter. Compare to manufacturer’s specs (typically 0.5-3 ohms). |
| Testing Method 5: In-Line Fuel Flow Check | Disconnect fuel line before the pump and crank the engine briefly. Fuel should flow steadily if the pump is functioning. |
| Common Symptoms of Failure | Engine hard to start, loss of power, no fuel delivery, unusual noises from pump. |
| Replacement Considerations | If pump fails tests, replace with OEM Mercury fuel pump. Ensure proper installation and priming after replacement. |
| Model-Specific Variations | Testing procedures may vary slightly between Mercury outboard models (e.g., 2-stroke vs. 4-stroke, carbureted vs. EFI). Refer to service manual for exact specs. |
| Professional Assistance | If unsure, consult a certified Mercury outboard technician for accurate diagnosis and repair. |
