Wiring an electric fuel pump is a critical task for ensuring your vehicle’s fuel system operates efficiently and safely. It involves connecting the pump to the vehicle’s electrical system, typically using a relay to manage power delivery and protect the pump from overloading. Proper wiring includes grounding the pump securely, using the correct gauge wire to handle the current, and integrating a fuse for added safety. Additionally, understanding the pump’s polarity and connecting it to the ignition switch ensures it only operates when the engine is running. Following a detailed wiring diagram and adhering to best practices will help prevent issues like fuel delivery problems, electrical shorts, or pump failure, making this a vital skill for automotive enthusiasts and mechanics alike.
| Characteristics | Values |
|---|---|
| Power Source | 12V DC (Vehicle Battery) |
| Wiring Gauge | 10-14 AWG (Depending on current draw and length of wire) |
| Fuse Rating | 10-20 Amps (Matched to pump's current draw) |
| Relay Use | Recommended for high-current pumps to protect the switch |
| Switch Type | Ignition-triggered or manual toggle switch |
| Ground Connection | Securely grounded to the vehicle chassis |
| Wire Insulation | Heat and oil-resistant insulation |
| Pump Current Draw | 5-20 Amps (Varies by pump model) |
| Wiring Configuration | Positive wire to pump, negative wire to ground |
| Safety Features | Inline fuse, relay, and proper grounding |
| Installation Location | Away from heat sources and fuel lines |
| Compatibility | Ensure pump voltage matches vehicle electrical system (typically 12V) |
| Wiring Diagram | Available in pump manual or online resources |
| Testing Procedure | Check for proper operation before driving |
| Maintenance | Regularly inspect wires for damage or corrosion |
| Legal Compliance | Follow local vehicle modification regulations |
Explore related products
What You'll Learn

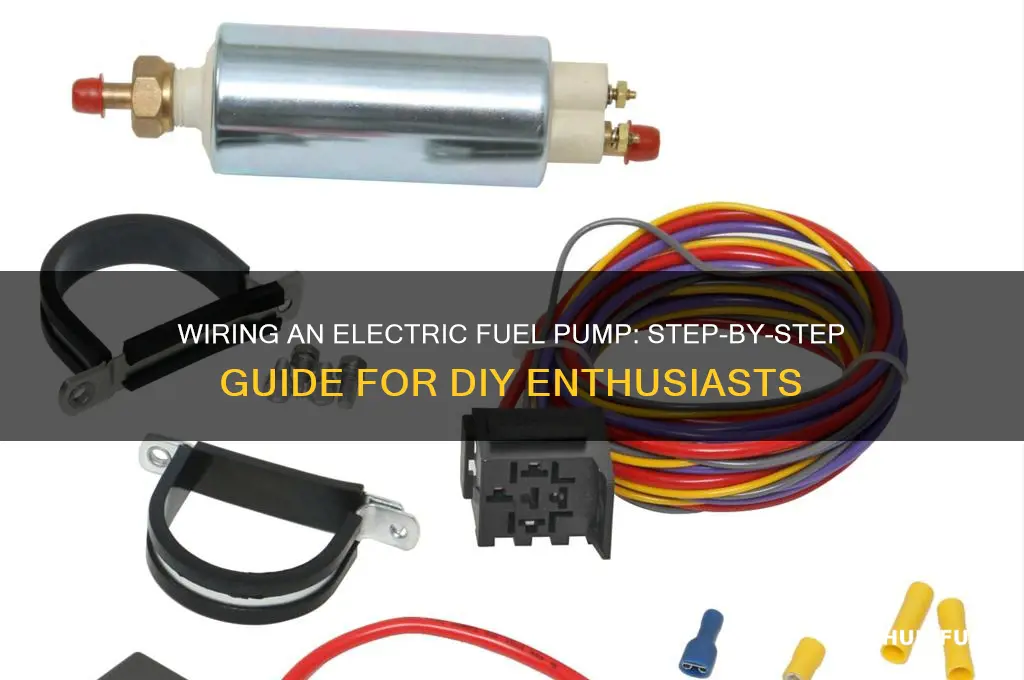

- Gather Tools and Materials: Wire, connectors, pump, relay, fuse, crimpers, multimeter, and wiring diagram
- Locate Power Source: Identify a switched 12V source, like the ignition or fuse box
- Install Relay: Connect relay to power, ground, and fuel pump for controlled operation
- Wire Fuel Pump: Run wires from relay to pump, ensuring proper gauge and insulation
- Test and Secure: Verify connections with multimeter, secure wires, and test pump functionality
Gather Tools and Materials: Wire, connectors, pump, relay, fuse, crimpers, multimeter, and wiring diagram
Before you begin wiring an electric fuel pump, ensure you have all the necessary tools and materials. This step is critical to avoid mid-project interruptions and ensure a safe, efficient installation. Start by gathering 12-14 gauge stranded copper wire, suitable for handling the pump’s current draw without overheating. Pair this with insulated connectors rated for automotive use to secure the wiring and prevent shorts. Your electric fuel pump should match your vehicle’s fuel system requirements—verify its flow rate and pressure specifications before proceeding. A relay is essential to protect the pump’s circuit and prevent overloading the switch; choose one with a minimum 30-amp rating. Include a fuse (typically 10-20 amps) to safeguard against electrical faults. Crimpers are indispensable for creating secure, professional connections, while a multimeter will help test continuity and voltage throughout the process. Finally, a wiring diagram specific to your vehicle or pump model is your roadmap—it ensures accuracy and compliance with safety standards.
Analyzing the tools and materials reveals their interconnected roles in a successful installation. The wire and connectors form the backbone of the electrical circuit, while the relay and fuse act as safeguards against potential hazards. Crimpers ensure the integrity of each connection, reducing the risk of loose wires or arcing. The multimeter serves as your diagnostic tool, verifying that power flows correctly and components function as intended. Without a wiring diagram, even the most skilled installer risks missteps, highlighting its importance as the project’s blueprint. Each item, though distinct, contributes to a cohesive system where reliability and safety are paramount.
Persuasively, investing in high-quality tools and materials upfront pays dividends in the long run. Cheap connectors or an undersized relay may save money initially but can lead to costly repairs or safety issues later. For instance, using a relay rated below the pump’s amperage can cause overheating and failure. Similarly, a multimeter with inaccurate readings may lead to misdiagnosis, prolonging troubleshooting. Opt for automotive-grade components and tools designed for durability in harsh environments. While the initial cost may be higher, the peace of mind and longevity of your fuel system justify the expense.
Comparatively, wiring an electric fuel pump differs from other automotive electrical projects in its emphasis on safety and precision. Unlike a simple LED installation, fuel systems operate under high pressure and near combustible materials, demanding meticulous attention to detail. The relay and fuse, for example, are non-negotiable components here but might be optional in less critical circuits. The wiring diagram’s role is also more pronounced, as deviations can lead to pump failure or fire hazards. This project underscores the importance of adhering to specifications and using the right tools, setting it apart from more forgiving electrical tasks.
Descriptively, imagine your workspace laid out with all the necessary components: rolls of wire coiled neatly beside the fuel pump, the relay’s sturdy casing gleaming under the light, and the multimeter’s digital display ready to provide real-time feedback. The crimpers sit within arm’s reach, their jaws poised to create tight, reliable connections. The wiring diagram, perhaps printed or displayed on a tablet, serves as your visual guide, its lines and symbols translating into actionable steps. This organized setup not only streamlines the installation process but also fosters confidence, turning a complex task into a manageable, methodical procedure.
Instructively, begin by verifying the compatibility of your fuel pump and relay with your vehicle’s fuel system. Use the multimeter to test the wire for continuity before cutting and stripping it, ensuring no breaks or damage. When crimping connectors, apply firm, even pressure to create a secure bond, and double-check each connection for tightness. Install the fuse in the appropriate slot in your fuse box, and mount the relay in a location with adequate airflow to prevent overheating. Refer to the wiring diagram at every step, cross-referencing each connection to avoid errors. Finally, test the system before starting the engine, using the multimeter to confirm proper voltage at the pump and relay. This methodical approach ensures a safe, functional installation.
