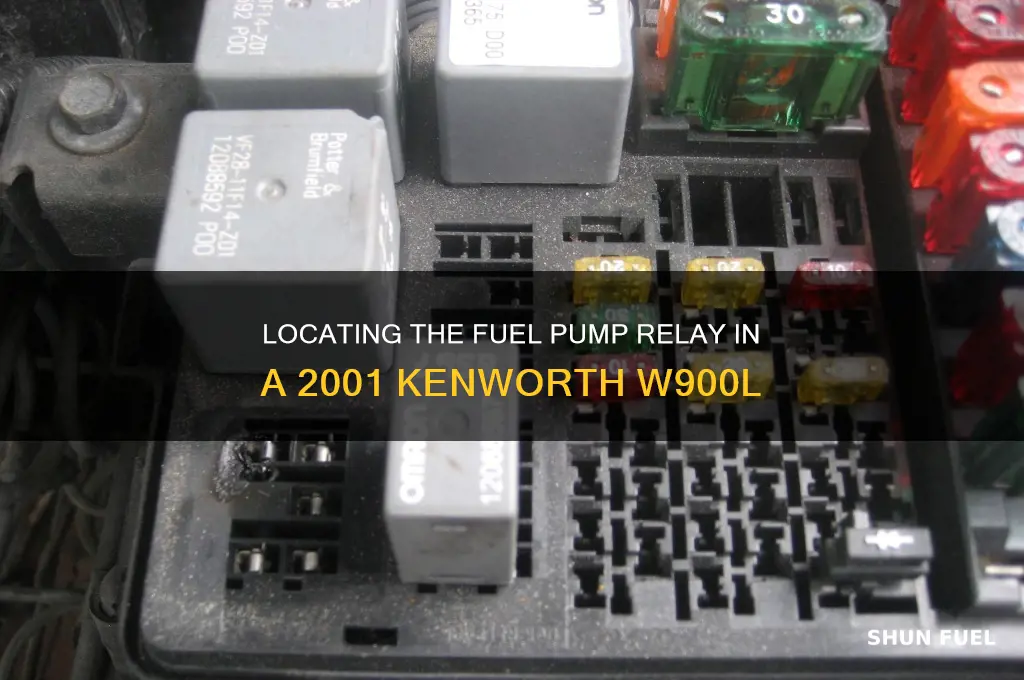

The fuel pump relay in a 2001 Kenworth W900L is a critical component responsible for controlling the fuel pump's operation, ensuring proper fuel delivery to the engine. Located typically within the fuse and relay panel, this relay can often be found under the dashboard, near the steering column, or in the engine compartment, depending on the specific model configuration. Identifying its exact location is essential for troubleshooting fuel system issues, such as starting difficulties or engine stalling, as a faulty relay can disrupt fuel flow. Consulting the vehicle’s service manual or wiring diagram can provide precise guidance for locating and replacing the fuel pump relay in this Kenworth model.
| Characteristics | Values |
|---|---|
| Location | Typically found in the fuse panel or relay box under the hood. |
| Vehicle Model | Kenworth W900L (2001 model year) |
| Relay Function | Controls the fuel pump operation. |
| Common Fuse Panel Location | Near the battery or on the driver's side fender apron. |
| Relay Identification | Often labeled as "Fuel Pump Relay" or "FPR" on the relay box cover. |
| Relay Pin Configuration | Usually a 4 or 5-pin relay depending on the specific model. |
| Replacement Part Number | Varies by manufacturer; check Kenworth service manual for exact part. |
| Diagnostic Tip | If fuel pump is not working, check relay for clicking sound when ignition is on. |
| Access Difficulty | Moderate; may require removing a cover or panel to access the relay box. |
| Related Components | Fuel pump, fuse, wiring harness, and ECU (Engine Control Unit). |
Explore related products
What You'll Learn
- Location in Engine Bay: Identifying the exact position of the fuel pump relay in a Kenworth W900L
- Relay Functionality: Understanding the role of the fuel pump relay in the vehicle's fuel system
- Symptoms of Failure: Common signs indicating a faulty fuel pump relay in the Kenworth W900L
- Replacement Process: Step-by-step guide to replacing the fuel pump relay in a Kenworth W900L
- Compatibility Check: Ensuring the correct fuel pump relay model for the 2001 Kenworth W900L
Location in Engine Bay: Identifying the exact position of the fuel pump relay in a Kenworth W900L
Locating the fuel pump relay in a Kenworth W900L can be a straightforward task if you know where to look. The relay is typically housed in the engine bay, but its exact position can vary depending on the model year and configuration of your truck. A common location is near the firewall, often on the driver’s side, mounted on a relay panel or fuse block. This area is accessible but may require you to remove a protective cover or panel to expose the relay. Familiarizing yourself with the layout of your engine bay beforehand can save time and frustration.
To identify the fuel pump relay, start by consulting your Kenworth W900L’s service manual. It provides a detailed diagram of the engine bay and highlights the relay’s position. If you don’t have the manual, online forums and repair guides specific to Kenworth trucks can offer visual references and step-by-step instructions. The relay itself is usually a small, rectangular component with a series of terminals and a labeling code, such as “FPR” or “Fuel Pump Relay,” to distinguish it from other relays.
Once you’ve located the relay panel, inspect it carefully. The fuel pump relay is often grouped with other engine management relays for convenience. If the panel is labeled, the fuel pump relay will be clearly marked. If not, you can test the relay by swapping it with a similar one in the panel while the ignition is off. If the fuel pump engages when you turn the key, you’ve found the correct relay. Always ensure the truck is off and cooled down before attempting any work in the engine bay to avoid injury or damage.
For those without prior experience, it’s helpful to note that the fuel pump relay is a critical component in the fuel delivery system. If your truck is experiencing starting issues or fuel delivery problems, the relay is one of the first items to check. Testing or replacing the relay is a cost-effective troubleshooting step before diving into more complex repairs. Keep a spare relay in your toolkit, as they are relatively inexpensive and can save you from being stranded on the road.
In summary, locating the fuel pump relay in a Kenworth W900L involves knowing where to look in the engine bay, using resources like service manuals or online guides, and understanding the relay’s role in the fuel system. With a bit of patience and the right approach, you can identify and address issues related to this component efficiently. Always prioritize safety and preparation when working on your truck’s electrical system.
Step-by-Step Guide: Removing Fuel Pump Relay in 1990 Honda Accord
You may want to see also
Explore related products
Relay Functionality: Understanding the role of the fuel pump relay in the vehicle's fuel system
The fuel pump relay in a Kenworth W900L is a critical component that bridges the gap between the vehicle’s electrical system and its fuel delivery mechanism. Located typically in the fuse panel under the hood or near the battery box, this relay acts as a high-current switch, enabling the fuel pump to operate without drawing excessive power directly from the ignition switch. When the ignition is turned on, the relay receives a low-current signal from the engine control module (ECM), which then activates the fuel pump by completing a high-amplitude circuit. This design prevents overheating of the ignition switch and ensures consistent fuel delivery, even under heavy loads or in demanding conditions.
Analyzing its functionality, the fuel pump relay operates on a principle of electromagnetic switching. Inside the relay, a coil generates a magnetic field when energized, pulling a set of contacts together to complete the circuit. This allows the fuel pump to receive power directly from the battery, bypassing the ignition switch. The relay’s role is twofold: it protects the vehicle’s electrical system by minimizing the load on the ignition switch, and it ensures the fuel pump operates only when necessary, conserving energy and reducing wear. In the Kenworth W900L, this relay is particularly vital due to the truck’s high-performance diesel engine, which demands precise and reliable fuel delivery for optimal performance.
To troubleshoot a malfunctioning fuel pump relay, start by verifying its location in the fuse panel or battery box area, as per the Kenworth W900L manual. Use a multimeter to test for continuity across the relay’s terminals when the ignition is on. If the relay fails this test, it may be stuck in the open or closed position, preventing the fuel pump from operating. A common issue is corrosion or loose connections at the relay terminals, which can disrupt the circuit. Replacing the relay is straightforward: disconnect the battery, remove the old relay by pulling it straight out of the socket, and insert a new one, ensuring it clicks into place. Always refer to the vehicle’s wiring diagram to confirm the correct relay orientation.
Comparing the fuel pump relay to other relays in the vehicle highlights its unique importance. While other relays, such as those for the cooling fan or headlights, manage auxiliary systems, the fuel pump relay directly impacts engine operation. Its failure can result in a no-start condition, whereas other relay failures might cause inconveniences rather than immobilization. This underscores the need for regular inspection, especially in long-haul trucks like the Kenworth W900L, where downtime can be costly. Keeping a spare relay in the tool kit is a practical tip for drivers, as it allows for quick replacement on the road, minimizing delays.
In conclusion, the fuel pump relay in a Kenworth W900L is a small but indispensable component that ensures the engine receives fuel efficiently and reliably. Its strategic placement in the electrical system protects both the ignition switch and the fuel pump, while its electromagnetic design allows for precise control of high-current circuits. Understanding its functionality, location, and troubleshooting steps empowers drivers and mechanics to maintain peak vehicle performance. Regular inspection and proactive replacement of this relay can prevent unexpected breakdowns, ensuring the truck remains operational in even the most demanding conditions.
Accessing the Fuel Pump in Your 2011 Jeep Grand Cherokee
You may want to see also
Explore related products
Symptoms of Failure: Common signs indicating a faulty fuel pump relay in the Kenworth W900L
A faulty fuel pump relay in the Kenworth W900L can manifest through several distinct symptoms, each pointing to potential issues with fuel delivery. One of the most immediate signs is difficulty starting the engine, especially after the vehicle has been sitting for extended periods. This occurs because the relay fails to send the necessary electrical signal to activate the fuel pump, leaving the engine starved for fuel during ignition. If the engine cranks but doesn't start, or starts inconsistently, the fuel pump relay should be among the first components to inspect.
Another telltale symptom is a sudden loss of power while driving, often accompanied by sputtering or stalling. This happens when the relay intermittently fails, causing the fuel pump to shut off momentarily, disrupting the fuel supply to the engine. In such cases, the vehicle may restart after a short period, only to stall again, creating a frustrating and potentially dangerous driving experience. Monitoring these intermittent failures can help pinpoint the relay as the culprit rather than other fuel system issues.
Unusual noises from the fuel tank area can also indicate a failing fuel pump relay. If the relay malfunctions, the fuel pump may not receive consistent power, leading to erratic operation. This can result in a whining or buzzing sound from the tank, particularly during startup or when the engine is under load. While this symptom alone doesn’t confirm a relay issue, it warrants further investigation, especially when paired with other signs of fuel delivery problems.
Lastly, a diagnostic trouble code (DTC) related to the fuel pump circuit can provide concrete evidence of a faulty relay. Modern Kenworth W900L models are equipped with onboard diagnostics that can detect issues in the fuel system. If a code such as P0230 (Fuel Pump Primary Circuit Malfunction) appears, it’s a strong indicator that the relay is not functioning properly. Using a scan tool to retrieve these codes can save time and effort in diagnosing the problem.
In summary, recognizing the symptoms of a failing fuel pump relay—difficulty starting, power loss, unusual noises, and diagnostic trouble codes—can help Kenworth W900L owners address the issue promptly. Ignoring these signs can lead to more severe engine problems or leave the vehicle stranded. Regular inspection and timely replacement of the relay are essential to maintaining reliable fuel delivery and overall vehicle performance.
Understanding Fuel Pump Control Modules: Functionality and Operation Explained
You may want to see also
Explore related products
Replacement Process: Step-by-step guide to replacing the fuel pump relay in a Kenworth W900L
The fuel pump relay in a 2001 Kenworth W900L is typically located in the fuse panel under the hood, near the driver’s side fender. Identifying its exact position is the first step in the replacement process, as this relay is critical for ensuring the fuel pump operates correctly. Before proceeding, ensure the ignition is off and the battery is disconnected to prevent electrical mishaps.
Begin by locating the fuse and relay panel, which is usually housed in a black plastic box secured with clips or screws. Remove the lid to expose the relays and fuses. The fuel pump relay is often labeled, but if not, consult the truck’s manual or a wiring diagram to confirm its position. Relays are generally interchangeable, so take note of the orientation of the existing relay before removing it to ensure the new one is installed correctly.
With the relay identified, use a flathead screwdriver or relay puller tool to carefully extract it from the panel. Insert the new relay, ensuring the prongs align with the slots. Apply firm, even pressure until it clicks into place. Reattach the panel lid and secure it with the original fasteners. Reconnect the battery and test the fuel pump by turning the ignition to the "on" position (without starting the engine) to listen for the pump’s hum, confirming proper functionality.
While the process is straightforward, caution is advised. Avoid forcing the relay out or in, as this can damage the panel. If the new relay doesn’t resolve the issue, inspect the wiring harness for corrosion or damage, as this could indicate a broader electrical problem. Regularly checking the relay during routine maintenance can prevent unexpected failures, ensuring the Kenworth W900L remains reliable on the road.
Step-by-Step Guide to Removing a 2006 Jackpot Fuel Pump
You may want to see also
Explore related products
Compatibility Check: Ensuring the correct fuel pump relay model for the 2001 Kenworth W900L
Locating the fuel pump relay in a 2001 Kenworth W900L is only half the battle. Ensuring you have the correct relay model is critical to avoid performance issues, fuel system failures, or even safety hazards. Compatibility isn’t just about physical fitment; it involves electrical specifications, voltage ratings, and manufacturer standards. A mismatched relay can lead to insufficient fuel delivery, engine stalling, or overheating, potentially causing costly repairs. Before purchasing, verify the relay’s part number, amperage rating, and compatibility with your specific engine model (e.g., Cummins, Caterpillar). Cross-referencing with Kenworth’s service manual or consulting a parts specialist can save time and prevent errors.
Analyzing Compatibility Factors
The 2001 Kenworth W900L’s fuel pump relay operates within a complex electrical system, demanding precision in compatibility. Key factors include the relay’s coil voltage (typically 12V or 24V), contact rating (e.g., 30A or 40A), and terminal configuration. For instance, a relay designed for a 12V system won’t function in a 24V setup, common in heavy-duty trucks. Additionally, the relay must match the fuel pump’s electrical requirements to ensure proper activation and sustained operation. Aftermarket relays may appear similar but lack the durability or specifications needed for commercial vehicles. Always compare OEM (Original Equipment Manufacturer) part numbers or consult a Kenworth dealer to confirm compatibility.
Practical Steps for Verification
Start by identifying the existing relay’s part number, often stamped on its body or listed in the truck’s service manual. If the relay is damaged or illegible, note the engine type (e.g., Cummins ISX) and electrical system voltage. Cross-reference this information with Kenworth’s parts catalog or online databases like TruckPartsInventory.com. For aftermarket options, ensure the relay meets SAE (Society of Automotive Engineers) standards and is rated for heavy-duty applications. Test the new relay before installation by checking continuity with a multimeter to ensure it switches correctly under load. This proactive approach minimizes downtime and ensures reliability on the road.
Cautions and Common Pitfalls
Avoid assuming that all relays labeled “universal” or “heavy-duty” are suitable for the W900L. Universal relays often lack the robustness required for long-haul trucking. Similarly, relying solely on visual inspection can be misleading, as relays may look identical but differ internally. Another pitfall is ignoring the fuel pump’s specific requirements; for example, high-pressure common rail systems demand relays with faster response times. Lastly, resist the temptation to bypass the relay as a temporary fix, as this can damage the fuel pump or wiring harness. Always prioritize precision over expediency in compatibility checks.
Ensuring the correct fuel pump relay for your 2001 Kenworth W900L is a blend of research, verification, and caution. By focusing on electrical specifications, OEM standards, and practical testing, you can avoid common pitfalls and maintain optimal performance. Remember, compatibility isn’t just about making it work—it’s about making it work safely and efficiently. Investing time in this check today can prevent costly breakdowns tomorrow, keeping your W900L running smoothly for years to come.
Does the Ford Ranger Have Two Fuel Pumps? Explained
You may want to see also
Frequently asked questions
The fuel pump relay on a 2001 Kenworth W900L is typically located in the fuse panel, which is often found under the dash on the driver's side or in the engine compartment.
The fuel pump relay is usually labeled or marked with "FUEL PUMP" or a similar designation. It is often a cube-shaped or rectangular component with several pins.
If you’re having trouble locating the relay, refer to the truck’s service manual or consult a Kenworth dealership or mechanic for assistance.
Yes, the relay can be tested using a multimeter to check for continuity or by swapping it with a known working relay to determine if it’s faulty.
