The 2009 Toyota Camry's fuel pump relay is a crucial component in the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located within the engine compartment, the relay is typically housed in the fuse and relay box, which is often situated near the battery or along the driver's side fender. Identifying the exact location of the fuel pump relay can be essential for troubleshooting fuel-related issues or performing maintenance tasks. In the 2009 Camry, the relay box usually has a diagram on its cover to help locate the specific relay, making it easier for owners or mechanics to access and replace it if necessary.
| Characteristics | Values |
|---|---|
| Location | Behind the glove compartment, inside the cabin fuse box (also known as the Junction Block). |
| Access Method | Remove the glove compartment by unscrewing it and lowering it down. |
| Relay Identification | Typically labeled as "EFI MAIN" or "FUEL PUMP" on the fuse box cover. |
| Relay Position | Usually located in the top row of the fuse box, near the center. |
| Relay Function | Controls power to the fuel pump, ensuring it operates when the engine is running. |
| Replacement Procedure | Disconnect the battery, remove the relay by pulling it straight out, and replace with a new one. |
| Common Issues | Relay failure can cause the fuel pump to stop working, leading to engine stalling or no-start conditions. |
| Diagnostic Tip | Check for power at the fuel pump connector; if power is absent, the relay may be faulty. |
| Part Number (Reference) | Varies by model; consult a Toyota parts catalog or repair manual for exact part number. |
| Year Applicability | Specific to 2009 Toyota Camry models. |
Explore related products
What You'll Learn

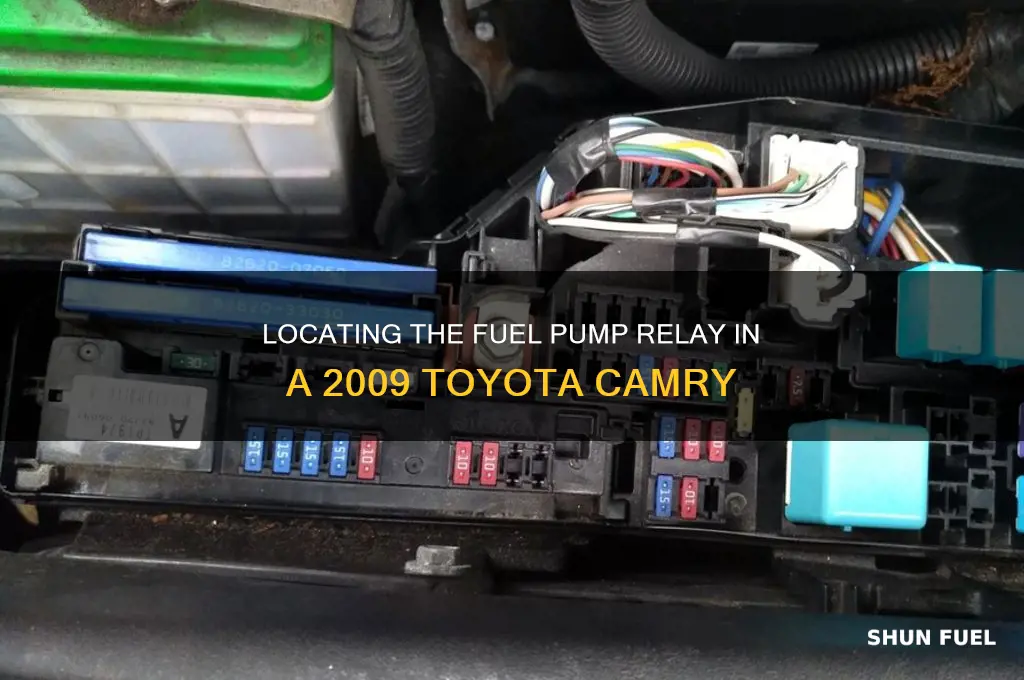

Location of fuel pump relay in 2009 Toyota Camry
The fuel pump relay in a 2009 Toyota Camry is a critical component that ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. Locating this relay is essential for troubleshooting or maintenance, but its position isn’t immediately obvious. In this model, the fuel pump relay is housed within the engine fuse box, also known as the under-hood fuse box. This box is typically located on the driver’s side of the engine compartment, near the battery or along the inner fender wall. It’s a black, rectangular unit with a removable lid that reveals a diagram labeling each fuse and relay.
To access the fuel pump relay, start by opening the hood and locating the fuse box. Remove the lid to expose the internal components. The fuel pump relay is usually labeled as “FUEL” or “FP” on the diagram, often found in the middle or lower section of the box. It’s a small, cube-shaped component with several pins connecting it to the circuit. If the diagram is unclear or missing, consult the vehicle’s owner’s manual or a repair guide for precise identification.
One practical tip for identifying the correct relay is to use a multimeter to test for continuity or power when the ignition is on. This ensures you’re replacing or inspecting the right component. Additionally, if the relay needs to be replaced, ensure the new part matches the original specifications, as using an incorrect relay can lead to fuel delivery issues or damage to the electrical system.
Comparing the 2009 Camry to other Toyota models, the fuel pump relay’s location remains consistent in many vehicles from the same era, often found in the under-hood fuse box. However, newer models may integrate the relay into the engine control unit (ECU) or place it closer to the fuel tank. This highlights the importance of model-specific research when working on different vehicles.
In summary, locating the fuel pump relay in a 2009 Toyota Camry involves identifying the under-hood fuse box, referencing the diagram, and verifying the correct component. This knowledge not only aids in troubleshooting but also empowers owners to perform basic maintenance with confidence. Always prioritize safety by disconnecting the battery before handling electrical components in the engine bay.
Mastering Fuel Pump Timing: Step-by-Step Adjustment Guide for Optimal Performance
You may want to see also
Explore related products
Identifying the fuel pump relay in 2009 Camry
The 2009 Toyota Camry's fuel pump relay is a critical component, often overlooked until it malfunctions. Located within the engine bay fuse box, it’s a small but vital part of the vehicle’s fuel delivery system. To identify it, start by consulting the fuse box diagram, typically found on the underside of the fuse box cover or in the owner’s manual. The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" and is often a black or gray rectangular module with four or five pins. Its position may vary slightly depending on the trim level or engine type, but it’s consistently housed in the main under-hood fuse box.
Analyzing the relay’s function provides insight into its importance. The fuel pump relay acts as a switch, allowing the fuel pump to draw high current only when the engine is running or being started. This prevents the pump from operating continuously, conserving energy and reducing wear. If the relay fails, symptoms like a no-start condition, engine stalling, or a whining noise from the fuel tank may occur. Testing the relay involves swapping it with another relay of the same type in the fuse box or using a multimeter to check for continuity.
For a hands-on approach, follow these steps to locate and inspect the fuel pump relay. First, open the hood and locate the fuse box, typically near the battery. Remove the fuse box cover and refer to the diagram to identify the fuel pump relay. Gently pull the relay straight out of its socket, ensuring not to damage the pins. Inspect the relay for signs of corrosion, melting, or physical damage. If in doubt, replace it with a known-good relay or a new one to confirm if it’s the source of the issue.
Comparing the 2009 Camry’s fuel pump relay to those in other vehicles highlights its accessibility. Unlike some models that bury the relay in hard-to-reach areas, Toyota designed the Camry’s relay to be easily accessible in the engine bay fuse box. This design choice simplifies diagnostics and replacement, making it a DIY-friendly task for most car owners. However, always exercise caution when working with electrical components, ensuring the ignition is off to avoid accidental activation of the fuel pump.
In conclusion, identifying the fuel pump relay in a 2009 Toyota Camry is straightforward with the right knowledge. By referencing the fuse box diagram, understanding its function, and following a systematic inspection process, you can diagnose and address issues efficiently. This component’s accessibility underscores Toyota’s emphasis on practicality, making it a manageable task even for those with limited mechanical experience.
Diagnosing Your 2006 Duramax CP Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Steps to access fuel pump relay in 2009 Camry
The fuel pump relay in a 2009 Toyota Camry is a critical component located within the engine bay fuse box, often referred to as the "under-hood fuse box." This relay controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. Accessing it requires a methodical approach to avoid damaging surrounding components or misidentifying the correct relay.
Step 1: Locate the Under-Hood Fuse Box
Open the hood and secure it with the support rod. The fuse box is typically positioned near the driver’s side strut tower, enclosed in a black plastic housing. It’s labeled as "Main Fuse Box" or "Engine Room Relay Block." Release the tabs on the sides or top of the cover to remove it, exposing the relays and fuses inside.
Step 2: Identify the Fuel Pump Relay
Consult the fuse box diagram, usually printed on the underside of the cover or in the owner’s manual, to pinpoint the fuel pump relay. In the 2009 Camry, it’s often labeled as "FPR" or "FUEL PM." The relay is a small, rectangular component with a plug-in base. If the diagram is unclear, cross-reference with online resources or a repair manual for confirmation.
Step 3: Remove the Relay
Grasp the relay firmly and pull it straight out of its socket. Avoid tilting or forcing it, as this can damage the pins. If the relay is stubborn, gently wiggle it side-to-side while pulling. Once removed, inspect it for signs of corrosion, melting, or loose connections, which could indicate a faulty relay.
Step 4: Test or Replace the Relay
If troubleshooting, test the relay using a multimeter or swap it with a known-good relay of the same type. If replacing, ensure the new relay matches the original part number and specifications. Reinsert the relay by aligning it with the socket and pushing it firmly until it clicks into place.
Cautionary Notes
Always disconnect the battery before working with electrical components to prevent short circuits. Avoid touching the relay’s terminals with bare hands or metal tools to prevent static discharge. If unsure about any step, consult a professional to avoid misdiagnosis or damage.
By following these steps, you can efficiently access and service the fuel pump relay in a 2009 Toyota Camry, ensuring your vehicle’s fuel system operates reliably.
Finding the Fuel Pump in a 1986 Mazda B2000
You may want to see also
Explore related products
Common issues with 2009 Camry fuel pump relay
The 2009 Toyota Camry’s fuel pump relay is a critical component located in the engine bay fuse box, often near the battery. While its placement is straightforward, owners frequently encounter issues that disrupt fuel delivery and engine performance. One common problem is relay failure due to overheating, which can cause the vehicle to stall or fail to start. This issue is exacerbated in high-temperature environments or after prolonged use, as the relay’s internal contacts degrade over time.
Another recurring issue is corrosion or loose connections within the relay socket. Moisture or dirt accumulation in the engine bay can lead to poor electrical contact, resulting in intermittent power supply to the fuel pump. Symptoms include sputtering during acceleration, difficulty starting the engine, or a complete loss of power. Regular inspection of the relay and its connections can prevent these problems, but many owners overlook this maintenance step until failure occurs.
Misdiagnosis is a third challenge, as fuel pump relay issues often mimic symptoms of a failing fuel pump or clogged fuel filter. Mechanics and DIY enthusiasts alike may replace more expensive components before testing the relay, which is a simpler and more cost-effective fix. Using a multimeter to check for continuity or swapping the relay with another of the same type in the fuse box (e.g., the horn relay) can quickly confirm if the relay is at fault.
Lastly, the 2009 Camry’s fuel pump relay is known to fail prematurely in vehicles with higher mileage or those used in stop-and-go traffic. The constant cycling of the fuel pump places additional stress on the relay, shortening its lifespan. Replacing the relay with a higher-quality aftermarket unit or ensuring the fuel pump is functioning efficiently can mitigate this issue. Proactive replacement at the 100,000-mile mark is a practical preventive measure for long-term reliability.
Signs Your Car Needs a Fuel Pump Relay Replacement
You may want to see also
Explore related products
Replacing the fuel pump relay in 2009 Toyota Camry
The fuel pump relay in a 2009 Toyota Camry is a critical component that ensures the fuel pump operates correctly, delivering fuel from the tank to the engine. Located in the engine bay fuse box, it’s often overlooked until symptoms like engine stalling or difficulty starting arise. Identifying and replacing this relay can save time and money, especially when compared to more complex fuel system repairs.
Locating the Relay: Begin by opening the hood and identifying the fuse box near the battery. The fuel pump relay is typically labeled as "FPR" or "FP" on the fuse box cover diagram. It’s a small, rectangular component with four or five pins. If the diagram is faded or missing, consult the vehicle’s manual or an online resource specific to the 2009 Camry. Pro tip: Take a photo of the fuse box layout before removing any components to ensure correct reassembly.
Replacement Process: Start by disconnecting the negative battery terminal to prevent electrical mishaps. Use a relay puller tool or pliers to carefully extract the old fuel pump relay, ensuring not to damage surrounding components. Insert the new relay, ensuring it clicks securely into place. Reconnect the battery and test the vehicle’s operation. If the issue persists, consider testing the fuel pump itself or checking for wiring faults.
Common Pitfalls to Avoid: One frequent mistake is misidentifying the relay due to similar-looking components in the fuse box. Always cross-reference the part number on the relay with the manufacturer’s specifications. Another error is neglecting to check the fuse associated with the fuel pump relay, which can mimic relay failure symptoms. Always inspect both the relay and its corresponding fuse before replacing parts.
Final Takeaway: Replacing the fuel pump relay in a 2009 Toyota Camry is a straightforward task that requires minimal tools and technical knowledge. By accurately locating the relay, following safety precautions, and avoiding common mistakes, you can restore your vehicle’s fuel system functionality efficiently. This DIY approach not only saves on repair costs but also empowers you to tackle similar automotive issues with confidence.
Step-by-Step Guide to Priming Your Ditch Witch RT45 Fuel Pump
You may want to see also
Frequently asked questions
The fuel pump relay in a 2009 Toyota Camry is located in the engine bay fuse box, often referred to as the "under-hood fuse box."
To access the fuel pump relay, open the hood, locate the fuse box on the driver’s side, remove the cover, and refer to the diagram on the lid to identify the correct relay.
The fuel pump relay controls the power supply to the fuel pump, ensuring it only operates when the engine is running or being started.
Yes, replacing the fuel pump relay is a straightforward DIY task. Simply locate the relay, pull it out, and insert the new one, ensuring it is the correct part for your vehicle.
Symptoms of a faulty fuel pump relay include difficulty starting the engine, stalling, or a complete failure to start, as the fuel pump may not receive power.
