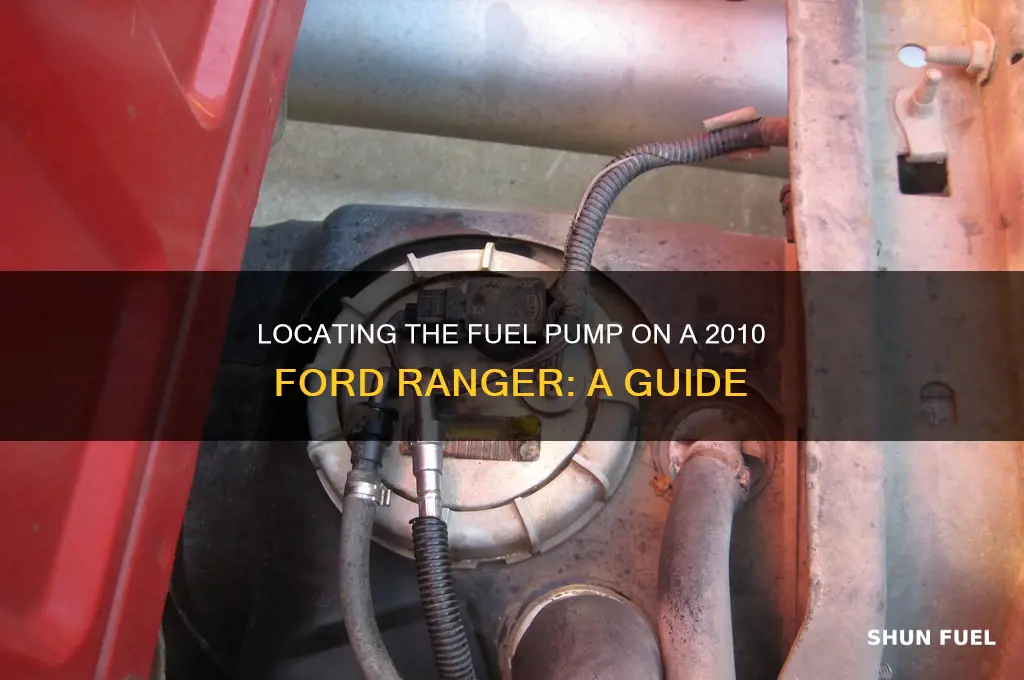

The fuel pump on a 2010 Ford Ranger is located inside the fuel tank, which is situated beneath the vehicle's rear seat area. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank or carefully extracting the pump assembly from the tank. This setup is typical for many vehicles to protect the fuel pump from external damage and maintain fuel system integrity. If you're experiencing fuel pump issues, it's recommended to consult the Ford Ranger service manual or seek professional assistance for accurate diagnosis and replacement.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the bed or accessing through a service panel (if available) |
| Fuel Tank Location | Beneath the truck bed, between the frame rails |
| Pump Type | In-tank electric fuel pump |
| Tools Required | Socket set, wrenches, screwdriver, jack, jack stands |
| Difficulty Level | Moderate to difficult (due to fuel tank removal or bed access) |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Common Issues | Pump failure, clogged fuel filter, electrical connection problems |
| Replacement Cost | $200-$500 (parts and labor, depending on location and mechanic rates) |
| DIY Feasibility | Possible but challenging for inexperienced mechanics |
| Model Specifics | Applies to 2010 Ford Ranger with in-tank fuel pump system |
Explore related products
What You'll Learn
Fuel Pump Location in 2010 Ford Ranger
The fuel pump in a 2010 Ford Ranger is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and temperature extremes. Accessing the fuel pump requires removing the fuel tank, which involves several steps and precautions to ensure safety and efficiency.
To locate and access the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the negative battery terminal to prevent accidental ignition. Raise the vehicle securely on jack stands to access the underside. The fuel tank is positioned beneath the rear seat area, and you’ll need to remove the bed or drop the tank for direct access. Ensure the tank is as empty as possible to reduce weight and spill risks.
Once the tank is removed, the fuel pump module is typically secured by a locking ring or bolts around the tank’s top. Use a specialized tool to release the locking ring if present. After removing the module, inspect the pump, sender unit, and filter for wear or damage. Replacement kits often include a new pump, strainer, and seal to ensure a complete repair.
Comparing this process to older Ford Ranger models, the 2010 design integrates the pump more deeply into the tank, requiring more disassembly but offering better protection. This contrasts with earlier models where the pump was sometimes external or more accessible. While the process is labor-intensive, it’s manageable with basic tools and careful planning.
For DIY enthusiasts, this task demands patience and attention to safety. Always work in a well-ventilated area, avoid open flames, and use non-sparking tools. If unsure, consult a professional to avoid fuel system damage or safety hazards. Understanding the fuel pump’s location and access procedure empowers owners to tackle maintenance or replacements confidently.
Step-by-Step Guide: Installing Walbro Fuel Pump on Your SRT4
You may want to see also
Explore related products
Accessing the Fuel Pump on a 2010 Ranger
The fuel pump on a 2010 Ford Ranger is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, means accessing the pump requires removing the tank—a task that demands careful planning and execution. Before starting, ensure the vehicle is on a level surface, the fuel tank is as empty as possible, and the battery is disconnected to prevent accidental ignition.
To begin the process, locate the fuel tank beneath the vehicle, typically near the rear passenger side. Start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, remove the fuel tank shield, if equipped, to expose the tank straps. Loosen and lower the straps to carefully drop the tank, taking care not to damage the fuel lines or wiring harness. Once the tank is accessible, disconnect the electrical connector and fuel lines, noting their positions for reassembly.
With the tank removed, the fuel pump module can be accessed by turning the locking ring counterclockwise with a strap wrench or appropriate tool. Lift the module out carefully, as it may still contain residual fuel. Inspect the pump and sender for wear or damage before replacing or reinstalling. When installing a new pump, ensure the O-ring is properly seated to prevent leaks. Reassembly follows the reverse order, with special attention to tightening the tank straps securely and reconnecting all lines and connectors.
While this process may seem straightforward, several cautions are critical. Always work in a well-ventilated area and avoid open flames or sparks. Use a drain pan to catch any residual fuel, and dispose of it according to local regulations. If the tank is difficult to lower due to rusted straps, consider using penetrating oil or replacing the straps entirely. Finally, test the system for leaks and verify proper operation before driving the vehicle. Accessing the fuel pump on a 2010 Ranger is a task that rewards patience and precision, ensuring the vehicle’s fuel system remains reliable.
Jumping Your E30 Fuel Pump Relay: A Quick DIY Guide
You may want to see also
Explore related products
Tools Needed to Replace 2010 Ranger Fuel Pump
The 2010 Ford Ranger's fuel pump is located inside the fuel tank, which means replacing it requires a specific set of tools to access and remove the pump safely. This task is not for the faint-hearted, as it involves working with fuel systems, but with the right tools and precautions, it can be accomplished efficiently.
Essential Tools for the Job
To replace the fuel pump on a 2010 Ranger, you’ll need a combination of hand tools and specialty equipment. Start with a floor jack and jack stands to safely lift the vehicle and access the fuel tank. A socket set with metric sizes (typically 8mm to 15mm) is essential for removing bolts and fasteners. A fuel line disconnect tool is critical for safely detaching the fuel lines without damaging them or causing leaks. Additionally, a flathead and Phillips screwdriver set will be needed for various components around the tank.
Specialty Tools and Safety Gear
A fuel pump module removal tool is highly recommended, as it simplifies the process of lowering and raising the pump assembly from the tank. A drain pan is necessary to catch any residual fuel when disconnecting the lines. Safety should never be overlooked—wear nitrile gloves and safety goggles to protect against fuel exposure. A non-sparking wrench or pliers is also advisable to minimize fire risks when working near fuel.
Optional but Helpful Tools
While not strictly necessary, a torque wrench ensures bolts are tightened to factory specifications, preventing leaks or damage. A trim removal tool can make accessing the fuel pump access panel easier without damaging interior components. For those with limited experience, a repair manual specific to the 2010 Ranger provides step-by-step guidance and torque values.
Practical Tips for Success
Before starting, relieve the fuel system pressure using the Schrader valve located near the fuel rail. Work in a well-ventilated area and avoid open flames or sparks. If the fuel tank is more than half full, consider siphoning some fuel to reduce weight and spill risks. Always double-check connections and seals before lowering the vehicle to ensure a leak-free repair.
By gathering these tools and following safety precautions, replacing the fuel pump on a 2010 Ford Ranger becomes a manageable task, saving time and money compared to a professional repair.
BMW 5 Series Fuel Pump Location Guide: Find It Easily
You may want to see also
Explore related products
Symptoms of a Failing 2010 Ranger Fuel Pump
The 2010 Ford Ranger's fuel pump is located inside the fuel tank, a common placement for modern vehicles to protect the pump from external damage and maintain fuel pressure. However, this location also means that diagnosing a failing fuel pump can be tricky, as symptoms often mimic other issues. Understanding these symptoms is crucial for timely repairs, as a failing fuel pump can lead to engine performance problems or even complete stalling.
One of the earliest signs of a failing fuel pump is reduced engine performance, particularly during acceleration. If your 2010 Ranger hesitates, sputters, or struggles to maintain speed when you press the gas pedal, the fuel pump may not be delivering enough fuel to the engine. This symptom often worsens under load, such as when towing or climbing hills. To test this, pay attention to how the vehicle responds when you demand sudden power, like merging onto a highway. If the engine feels weak or unresponsive, it’s worth inspecting the fuel pump.
Another telltale symptom is difficulty starting the engine, especially after the vehicle has been sitting for a while. A failing fuel pump may struggle to build pressure in the fuel lines, causing the engine to crank longer than usual before firing up. In severe cases, the engine may not start at all. If you notice that your Ranger starts fine when cold but struggles after it’s been running or sitting in the sun, the fuel pump could be overheating or losing pressure. A quick diagnostic tip: Turn the ignition key to the "on" position (without starting the engine) and listen for the fuel pump’s priming hum. If it’s faint or absent, the pump may be failing.
A less obvious but equally important symptom is unusual noises from the fuel tank. A healthy fuel pump operates quietly, but a failing one may produce whining, buzzing, or rattling sounds, especially when under load. These noises often indicate worn bearings, a clogged filter, or a pump that’s struggling to maintain pressure. If you hear these sounds, it’s a strong indicator that the fuel pump is on its way out. Ignoring these noises can lead to sudden failure, leaving you stranded.
Finally, erratic fuel gauge readings can signal a failing fuel pump, particularly if the pump’s sender unit is integrated. If your fuel gauge fluctuates wildly or reads inaccurately, the issue may not be the gauge itself but the pump’s inability to provide consistent fuel pressure. This symptom is often overlooked but can be a red flag for impending failure. Pair this with other symptoms, and you’ve got a strong case for inspecting or replacing the fuel pump.
In summary, a failing fuel pump in a 2010 Ford Ranger can manifest through reduced engine performance, difficulty starting, unusual noises, and erratic fuel gauge readings. Addressing these symptoms promptly can prevent costly repairs or roadside breakdowns. If you suspect your fuel pump is failing, consult a professional mechanic for a thorough diagnosis and replacement if necessary.
Where to Find the Inline Fuel Pump Fuse in a 98 Ram 1500
You may want to see also
Explore related products
Steps to Replace Fuel Pump on 2010 Ford Ranger
The fuel pump on a 2010 Ford Ranger is located inside the fuel tank, a common placement for modern vehicles to ensure fuel stays cool and reduce the risk of vapor lock. This internal location means replacing the pump involves more than just swapping out a part—it requires careful preparation and a systematic approach to avoid complications.
Preparation and Safety: Begin by relieving the fuel system pressure to prevent accidental fuel spray or fires. Locate the Schrader valve on the fuel rail, attach a pressure gauge, and depress the valve to release pressure. Disconnect the negative battery terminal to eliminate electrical hazards. Ensure you’re working in a well-ventilated area, and avoid open flames or sparks.
Accessing the Fuel Pump: With safety measures in place, remove the fuel tank to access the pump. Start by draining the tank using a siphon pump or by loosening the drain valve if equipped. Support the tank with a jack or stand, then unbolt the straps holding it in place. Carefully lower the tank to the ground, taking care not to damage fuel lines or wiring. The pump assembly is typically secured by a locking ring or bolts—use the appropriate tool to remove it, such as a fuel pump lock ring tool.
Replacing the Pump: Once the tank is accessible, disconnect the electrical connector and fuel lines from the old pump. Compare the new pump to the old one to ensure compatibility, especially if using an aftermarket part. Install the new pump by reversing the removal steps: attach fuel lines, secure the locking ring or bolts, and reattach the electrical connector. Test the pump for leaks by filling the tank partially and checking for drips.
Reinstallation and Testing: Reinstall the fuel tank, ensuring straps are tightened securely and all connections are properly seated. Reconnect the battery and turn the ignition to the "on" position (without starting the engine) to prime the fuel system. Check for leaks again, then start the engine to confirm the pump operates correctly. A smooth idle and responsive acceleration indicate a successful replacement.
By following these steps methodically, you can replace the fuel pump on a 2010 Ford Ranger efficiently and safely, restoring your vehicle’s fuel delivery system to optimal performance.
Can a Faulty Fuel Pump Relay Still Click? Find Out Here
You may want to see also
Frequently asked questions
The fuel pump on a 2010 Ford Ranger is located inside the fuel tank, which is situated beneath the vehicle's bed, near the driver's side.
To access the fuel pump, you’ll need to remove the fuel tank. First, relieve the fuel system pressure, then disconnect the battery, and lower the tank by removing the retaining straps.
Yes, always work in a well-ventilated area, avoid open flames or sparks, and relieve fuel system pressure before starting any work on the fuel pump.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and a whining noise coming from the fuel tank.
