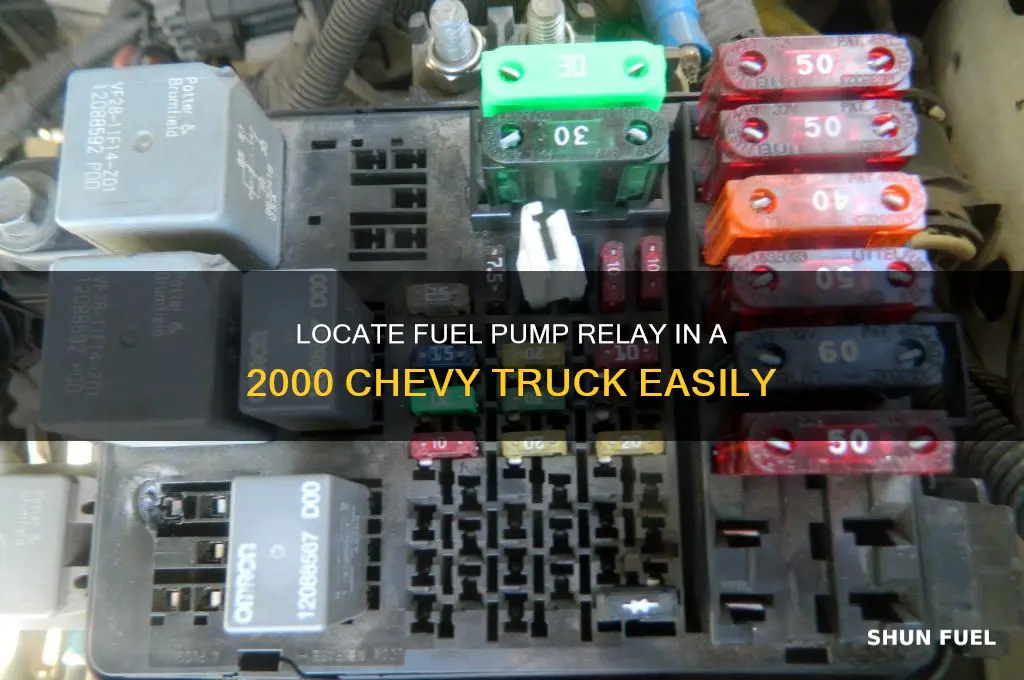

The fuel pump relay in a 2000 Chevy truck is a critical component responsible for controlling the fuel pump’s operation, ensuring the engine receives the necessary fuel for combustion. Located in the underhood fuse/relay center, typically near the battery or firewall, this relay is part of the vehicle’s electrical system and is often housed in a black plastic box labeled with a diagram indicating relay positions. Identifying and accessing the fuel pump relay is essential for troubleshooting fuel delivery issues, such as a no-start condition or inconsistent engine performance, making it a key area of focus for DIY mechanics or professional technicians working on this model.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the underhood fuse/relay center (near the battery). |
| Fuse/Relay Box Name | Underhood Fuse/Relay Center (also called Engine Compartment Fuse Block). |
| Relay Name | Fuel Pump Relay (may be labeled as "F/P" or "FP"). |
| Relay Position | Typically in the top row of the relay center (exact position varies by model). |
| Color | Black or dark-colored relay housing. |
| Function | Controls power to the fuel pump to ensure proper fuel delivery. |
| Related Fuse | Fuel Pump Fuse (usually located in the same fuse/relay center). |
| Vehicle Model | 2000 Chevrolet C/K Truck (Silverado, Tahoe, Suburban, etc.). |
| Year Range | Applies to most 1999-2002 Chevrolet trucks with similar fuse/relay layouts. |
| Diagnostic Tip | If the fuel pump is not working, check the relay and fuse for continuity. |
Explore related products
What You'll Learn
Location of Fuel Pump Relay
The fuel pump relay in a 2000 Chevy truck is a critical component, often tucked away in a location that requires some detective work to find. Unlike newer models with more standardized layouts, this truck’s relay is housed in the underhood fuse/relay center, a black box typically located near the driver’s side fender. To access it, you’ll need to remove the lid of the fuse box, which usually snaps off with gentle pressure. Inside, relays are labeled, but the fuel pump relay is often marked as "F/P" or "FUEL." If the label is faded or missing, consult the diagram on the underside of the fuse box lid or the truck’s manual for confirmation.
Identifying the correct relay is only half the battle; testing it requires a multimeter and a basic understanding of electrical circuits. Start by locating the fuel pump relay’s position in the fuse box. Swap it with a relay of the same type (e.g., another large relay in the box) to see if the fuel pump engages. If the pump works after swapping, the original relay is faulty. Alternatively, use a multimeter to check for continuity across the relay’s terminals when activated. A lack of continuity indicates a failed relay. Always ensure the ignition is off when handling electrical components to avoid short circuits.
For those who prefer a visual guide, online resources like forums and YouTube tutorials often provide step-by-step videos for locating and testing the fuel pump relay in a 2000 Chevy truck. These resources can be particularly helpful for beginners, as they show the exact process in real-time. However, be cautious of outdated or model-specific advice—always cross-reference with your truck’s manual or a trusted mechanic. If you’re unsure, replacing the relay is a low-cost fix that can save time and prevent misdiagnosis of other fuel system issues.
A common mistake when dealing with the fuel pump relay is assuming it’s the sole cause of fuel delivery problems. Before replacing the relay, rule out other potential issues like a faulty fuel pump, clogged fuel filter, or bad crankshaft position sensor. The relay is a simple component, but its failure can mimic symptoms of more complex problems. If the truck cranks but doesn’t start, and you’ve confirmed the relay is bad, replacing it is a straightforward repair that can be done in under 30 minutes with basic tools.
In summary, the fuel pump relay in a 2000 Chevy truck is located in the underhood fuse/relay center, typically near the driver’s side fender. Accessing it involves removing the fuse box lid and identifying the relay marked "F/P" or "FUEL." Testing it requires either a swap with another relay or a multimeter check for continuity. While online resources can provide visual guidance, always verify information against the truck’s manual. Remember, the relay is just one part of the fuel system, so diagnose methodically to avoid unnecessary repairs.
DIY Guide: Replacing the Fuel Pump on a 1995 Chevy Camaro
You may want to see also
Explore related products
How to Access Relay Panel
The relay panel in a 2000 Chevy truck is a critical component for managing electrical functions, including the fuel pump relay. Accessing it requires precision and awareness of the truck’s layout. Begin by locating the panel, typically found under the dashboard on the driver’s side. This placement is consistent with GM’s design philosophy for this era, prioritizing accessibility for diagnostics and repairs. Understanding this layout is the first step in troubleshooting or replacing relays efficiently.
To access the relay panel, start by adjusting your driver’s seat to its rearmost position and tilting the steering wheel downward. This creates the necessary space to work comfortably. Next, locate the lower dashboard panel, often secured by a combination of screws and clips. Use a Phillips-head screwdriver to remove the screws, then gently pry the panel loose with a trim removal tool to avoid damaging the plastic. Once removed, the relay panel will be exposed, typically housed in a black plastic box with a flip-up cover.
Upon opening the relay panel cover, you’ll find a grid of relays, each labeled for its function. The fuel pump relay is usually marked clearly, often with a diagram or text. Before handling any components, ensure the ignition is off to prevent electrical hazards. If replacing a relay, note its orientation before removal—relays are polarized and must be inserted correctly. A common mistake is forcing a relay into the wrong position, which can damage the panel.
For those unfamiliar with relay panels, a comparative approach can be helpful. Unlike newer vehicles with integrated fuse boxes, the 2000 Chevy truck’s relay panel is modular, allowing individual relays to be swapped out without replacing the entire unit. This design is both cost-effective and practical, though it requires careful handling. Always cross-reference the relay’s part number with the vehicle’s manual or a trusted parts database to ensure compatibility.
In conclusion, accessing the relay panel in a 2000 Chevy truck is a straightforward process when approached methodically. By understanding the panel’s location, using the right tools, and exercising caution, even novice mechanics can diagnose and address issues like a faulty fuel pump relay. This hands-on approach not only saves time and money but also deepens familiarity with the vehicle’s electrical system, fostering confidence in future repairs.
Lexus LS 400 Fuel Pump Location: 1992 Model Guide
You may want to see also
Explore related products
Identifying Correct Relay Slot
Locating the fuel pump relay in a 2000 Chevy truck can be a straightforward task if you know where to look. The relay is typically housed in the underhood fuse/relay box, which is usually located near the battery or on the driver's side fender. However, identifying the correct relay slot requires a bit more attention to detail. The underhood fuse/relay box often contains multiple relays, and each one serves a specific function. To pinpoint the fuel pump relay, you’ll need to consult the diagram on the box’s cover or the owner’s manual, which labels each slot with its corresponding component. For a 2000 Chevy truck, the fuel pump relay is commonly found in slot positions like "F13" or "F14," but this can vary depending on the model and trim.
Analyzing the layout of the fuse/relay box is crucial for accuracy. Relays are often grouped by function, with engine management components like the fuel pump relay clustered together. If the diagram is missing or unclear, you can use a multimeter to test each relay slot for continuity when the ignition is turned on. The fuel pump relay will show activity during this test, as it powers the pump when the engine is running. Another practical tip is to look for relays with a higher amperage rating, as the fuel pump typically requires more power than other components. This method, combined with the diagram, ensures you identify the correct slot without guesswork.
Persuasively, relying solely on visual inspection can lead to errors, especially if the box is dirty or labels are worn off. Instead, cross-referencing the diagram with physical testing provides a foolproof approach. For instance, if the diagram indicates the fuel pump relay is in slot "F13," use the multimeter to confirm it activates with the ignition. This dual-check method saves time and prevents misdiagnosis, which could lead to unnecessary part replacements. Additionally, understanding the relay’s function—controlling power to the fuel pump—helps you troubleshoot related issues like a no-start condition more effectively.
Comparatively, newer vehicles often integrate the fuel pump relay into the engine control module (ECM), making it less accessible. In contrast, the 2000 Chevy truck’s standalone relay design is more user-friendly for DIY repairs. However, this also means the relay is exposed to the elements, so corrosion or damage is more likely. Inspect the relay and its slot for signs of wear, such as burnt pins or melted plastic, which could indicate an electrical issue. Replacing a faulty relay is inexpensive and can resolve symptoms like intermittent starting or poor engine performance. Always use a relay with the same part number or specifications to ensure compatibility.
Descriptively, the fuel pump relay in a 2000 Chevy truck is a small but critical component, often rectangular in shape with a series of pins that connect to the wiring harness. It’s designed to handle the high current required to operate the fuel pump while protecting the circuit from overloads. When identifying the correct slot, note that the relay may have a distinct clicking sound when engaged, which can aid in verification. If you’re unsure, tracing the fuel pump’s wiring harness back to the relay box can provide a visual clue. Keeping the area clean and dry during inspection ensures a safe and accurate process, allowing you to confidently address fuel system issues.
Manually Activating Your Motorcycle's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
![Hot Wheels '83 Chevy Silverado [Blue], Hot Trucks 9/10, 157/250, 1:64 Scale Diecast Vehicle](https://m.media-amazon.com/images/I/71OhtMnRVLL._AC_UL320_.jpg)
$8.79
Testing Fuel Pump Relay
The fuel pump relay in a 2000 Chevy truck is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood in the fuse/relay box, it acts as a switch, controlling power to the fuel pump. Testing this relay is essential when diagnosing fuel delivery issues, as a faulty relay can mimic symptoms of a failing pump or clogged filter. Armed with a multimeter and basic knowledge, you can verify its functionality without unnecessary part replacements.
To test the fuel pump relay, start by locating the relay box, typically near the battery or firewall. Consult your truck’s manual for the exact position of the fuel pump relay within the box. Once identified, remove the relay by pulling it straight out. A multimeter set to the ohms or continuity setting will be your primary tool. Check the relay’s pins for continuity according to its schematic, usually found on the relay’s side or in the manual. If the relay fails to show continuity where expected, it’s likely defective and needs replacement.
A comparative approach can further validate the relay’s condition. Swap the fuel pump relay with another relay of the same type in the box (e.g., the horn relay) and observe if the issue persists. If the fuel pump operates after the swap, the original relay is faulty. Conversely, if the problem remains, the issue may lie elsewhere, such as with the fuel pump itself or the wiring harness. This method eliminates guesswork and narrows down potential causes.
Persuasive as it may seem to replace the relay immediately, caution is advised. Relays can fail intermittently, making diagnosis tricky. Perform the test multiple times under different conditions, such as when the engine is cold or warm, to ensure accuracy. Additionally, inspect the relay’s terminals for corrosion or damage, as these issues can mimic relay failure. A systematic approach not only saves time but also prevents unnecessary expenses.
In conclusion, testing the fuel pump relay in a 2000 Chevy truck is a straightforward yet powerful diagnostic step. By combining analytical checks with practical comparisons, you can confidently determine the relay’s condition. Armed with this knowledge, you’ll avoid misdiagnoses and address fuel system issues more effectively. Whether you’re a seasoned mechanic or a DIY enthusiast, mastering this test is a valuable skill for maintaining your truck’s performance.
Fuel Pump Leaking on JD LX178? Causes and Fixes Explained
You may want to see also
Explore related products
Common Relay Failure Symptoms
Relay failure in a 2000 Chevy truck, particularly the fuel pump relay, can manifest in subtle yet critical ways. One of the earliest signs is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay may not be sending consistent power to the fuel pump, causing it to operate intermittently or not at all. If you notice the engine cranks but doesn’t catch, or if it sputters before starting, the fuel pump relay could be the culprit. A quick diagnostic step is to listen for the fuel pump’s hum when turning the ignition to the "on" position; if it’s absent or inconsistent, the relay may be failing.
Another symptom of relay failure is sudden stalling or hesitation during driving. This happens when the relay momentarily loses contact, cutting power to the fuel pump and starving the engine of fuel. Such instances are not only frustrating but also dangerous, particularly at high speeds or in heavy traffic. If your truck stalls unexpectedly or hesitates under acceleration, inspect the fuel pump relay for signs of overheating, corrosion, or loose connections. A multimeter can be used to test the relay’s continuity, ensuring it’s functioning within the specified voltage range (typically 12-14 volts).
Over time, a failing relay may also cause the "Check Engine" light to illuminate. While this light can indicate numerous issues, a fuel pump relay problem often triggers codes related to fuel system pressure or delivery. Using an OBD-II scanner to read these codes can narrow down the issue. For example, codes like P0089 (Fuel Pressure Regulator 1 Performance) or P0191 (Fuel Rail Pressure Sensor Circuit Range/Performance) often point to fuel delivery issues tied to relay failure. Addressing these codes promptly can prevent further damage to the fuel system.
Lastly, a failing relay may emit a clicking or buzzing noise from the relay box, particularly under load. This sound indicates internal arcing or a failing contact point within the relay. If you hear such noises, especially when starting the engine or during acceleration, replace the relay immediately. The fuel pump relay in a 2000 Chevy truck is typically located in the underhood fuse/relay box, often labeled as "FUEL PUMP" or "FP." Replacing it is a straightforward task: disconnect the battery, locate the relay, swap it with a new one of the same part number, and reconnect the battery. Regularly inspecting relays during routine maintenance can prevent unexpected failures and ensure reliable vehicle performance.
How Fuel Pump Control Modules Fail: Causes and Solutions
You may want to see also
Frequently asked questions
The fuel pump relay in a 2000 Chevy truck is typically located in the underhood fuse/relay box, often near the battery or on the driver’s side fender.
The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" on the underside of the fuse box lid. It’s a small, rectangular component with several pins.
Yes, you can test the relay by swapping it with another relay of the same type in the fuse box (e.g., the horn relay) or using a multimeter to check for continuity and proper switching.
Common symptoms include the engine not starting, stalling, or difficulty starting, especially after the engine has warmed up. You may also hear no fuel pump humming noise when turning the key to the "ON" position.
