The fuel pump on a 1997 Chevy truck is typically located inside the fuel tank, a common design in many vehicles of that era to help maintain fuel pressure and reduce the risk of vapor lock. To access the fuel pump, you'll need to safely lower the fuel tank, which involves relieving the fuel system pressure, disconnecting the battery, and removing the tank straps. This process requires basic automotive tools and safety precautions, such as working in a well-ventilated area and avoiding open flames. If you're unsure about any step, consulting a repair manual or seeking professional assistance is recommended to ensure the job is done correctly and safely.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank or using an access panel (if equipped) |
| Tank Removal | Necessary in most cases due to lack of access panel |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, fuel line disconnect tools |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Fuel Pump Type | In-tank electric fuel pump |
| Common Issues | Pump failure, clogged fuel filter, corroded wiring connections |
| Replacement Difficulty | Moderate to difficult due to tank removal |
| Estimated Time | 2-4 hours depending on experience and tools |
| Year/Model Specific | 1997 Chevrolet C/K 1500, 2500, 3500 trucks |
Explore related products
What You'll Learn
Fuel pump location in 97 Chevy truck
The fuel pump in a 1997 Chevy truck is located inside the fuel tank, a common placement for in-tank fuel pumps in many vehicles of that era. This design helps maintain fuel pressure and reduces the risk of vapor lock, especially in hotter climates. To access the fuel pump, you’ll need to remove the fuel tank, which involves disconnecting the fuel lines, electrical connector, and tank straps. This process requires basic tools like wrenches, screwdrivers, and a jack to safely lower the tank. Always ensure the fuel tank is as empty as possible to minimize spillage and hazards during removal.
Analyzing the design, the in-tank fuel pump in the 97 Chevy truck serves a dual purpose: it both pumps fuel to the engine and cools itself by being submerged in the fuel. This setup is more efficient than external pumps but complicates replacement. If you’re experiencing symptoms like engine sputtering or difficulty starting, the fuel pump is a likely culprit. However, before assuming the pump is faulty, check the fuel filter, relay, and fuse, as these components can cause similar issues. Diagnosing the problem accurately saves time and money, especially since accessing the pump requires significant disassembly.
For a step-by-step replacement, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the battery to prevent accidental sparks. Raise the truck securely and remove the fuel tank shield, if equipped. Loosen the tank straps and lower the tank to access the pump assembly. Disconnect the electrical connector and fuel lines, then remove the retaining ring or bolts securing the pump to the tank. Install the new pump, ensuring the seal is intact, and reassemble in reverse order. Always test for leaks and verify proper operation before driving.
Comparing the 97 Chevy truck’s fuel pump to newer models highlights advancements in accessibility. Modern vehicles often feature access panels or quick-disconnect systems, reducing the need to remove the entire tank. However, the 97 model’s design is robust and reliable, with fewer electronic components to fail. If you’re not comfortable tackling this repair, hiring a professional is advisable, as improper installation can lead to leaks or system damage. For DIYers, investing in a repair manual specific to your truck can provide detailed diagrams and torque specifications.
Finally, a practical tip for extending the life of your fuel pump is to keep the fuel tank at least a quarter full. This helps prevent the pump from overheating by ensuring it remains submerged in fuel. Additionally, using high-quality fuel and regularly replacing the fuel filter reduces contaminants that can damage the pump. While the location of the fuel pump in the 97 Chevy truck makes replacement labor-intensive, understanding the process and taking preventive measures can save you from unexpected breakdowns and costly repairs.
Are Electronic Fuel Pump Kits a Worthwhile Upgrade for Your Vehicle?
You may want to see also
Explore related products
Accessing the fuel pump on a 97 Chevy
The fuel pump on a 1997 Chevy truck is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and reduce the risk of vapor lock, but it also means that accessing the pump requires removing the fuel tank. This task is not for the faint of heart, as it involves working with fuel lines and electrical connections, but with the right tools and precautions, it can be accomplished by a determined DIYer.
Before starting, ensure you have the necessary tools: a jack and jack stands or ramps, a wrench set, screwdrivers, a fuel line disconnect tool, and a new fuel pump if you're planning to replace it. Safety should be your top priority; work in a well-ventilated area, and avoid any sources of ignition, such as open flames or sparks. Start by relieving the fuel system pressure, typically done by locating the Schrader valve on the fuel rail and pressing the valve stem with a rag to catch any fuel that escapes.
With the pressure relieved, disconnect the battery to prevent accidental activation of the fuel pump. Then, raise the vehicle and secure it on jack stands or ramps to access the fuel tank. The tank is usually held in place by straps and may have additional brackets or shields that need to be removed. Carefully lower the tank and place it on a secure surface. You’ll find the fuel pump module on the top of the tank, often protected by a cover or shield. Remove any retaining screws or clips to access the pump.
Once the pump is exposed, disconnect the electrical connector and fuel lines. Be cautious with the fuel lines, as residual fuel may still be present. Use a fuel line disconnect tool to avoid damaging the lines. After removing the old pump, install the new one, ensuring all connections are secure and properly aligned. Reinstall the tank, reconnect the battery, and check for leaks before starting the engine. This process, while labor-intensive, can save you significant costs compared to professional repair.
A comparative analysis shows that accessing the fuel pump on a 97 Chevy truck is more involved than on some modern vehicles, where the pump may be accessible without removing the tank. However, the durability of these older trucks often justifies the effort. For those who prefer not to tackle this task themselves, professional mechanics typically charge between $400 and $700 for fuel pump replacement, depending on labor rates and parts costs. Whether you choose the DIY route or hire a pro, understanding the process ensures you’re prepared for this critical repair.
Step-by-Step Guide: Safely Removing a Fuel Pump from Your Vehicle
You may want to see also
Explore related products
Fuel tank removal for pump replacement
The fuel pump on a 1997 Chevy truck is located inside the fuel tank, a common design in many vehicles of that era. This placement protects the pump from external damage and helps maintain a consistent fuel temperature. However, it also means that replacing the pump requires removing the entire fuel tank, a task that demands careful planning and execution to avoid safety hazards and costly mistakes.
Steps for Fuel Tank Removal:
- Prepare the Work Area: Park the truck on a flat, stable surface and engage the parking brake. Disconnect the battery to prevent accidental sparks. Relieve fuel system pressure by locating the Schrader valve on the fuel rail and pressing it with the ignition off.
- Drain the Fuel Tank: Place a drain pan under the tank and loosen the drain valve or use a siphon pump to remove as much fuel as possible. This reduces weight and minimizes spillage during removal.
- Disconnect Components: Locate the fuel lines, electrical connectors, and straps securing the tank. Use appropriate tools to disconnect the lines (a fuel line disconnect tool is recommended) and unplug the electrical connectors. Loosen the straps holding the tank in place.
- Remove the Tank: Carefully lower the tank using a jack or assistance from a helper. Place it on a stable surface, ensuring it’s secure to avoid tipping and spills.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks. Wear safety goggles and gloves to protect against fuel exposure. If the tank is rusty or corroded, inspect the straps and mounting points for structural integrity before proceeding. For stubborn fuel lines, apply gentle heat with a heat gun to soften the plastic, but avoid overheating to prevent damage.
Removing the fuel tank on a 1997 Chevy truck to replace the pump is a straightforward but meticulous process. By following these steps and exercising caution, you can complete the task safely and efficiently, ensuring your truck’s fuel system operates reliably for years to come.
Does the BCM Control the Fuel Pump? Exploring the Connection
You may want to see also
Explore related products
Identifying fuel pump components in 97 Chevy
The fuel pump in a 1997 Chevy truck is a critical component nestled within the fuel tank, a design choice that keeps it cool and submerged in fuel to prevent overheating. This in-tank location, while advantageous for longevity, can make identification and access challenging for the uninitiated. To begin identifying the fuel pump components, start by locating the fuel tank itself, typically found beneath the rear seat or bed of the truck. Understanding the layout of the tank and its associated parts is the first step in a successful diagnosis or replacement.

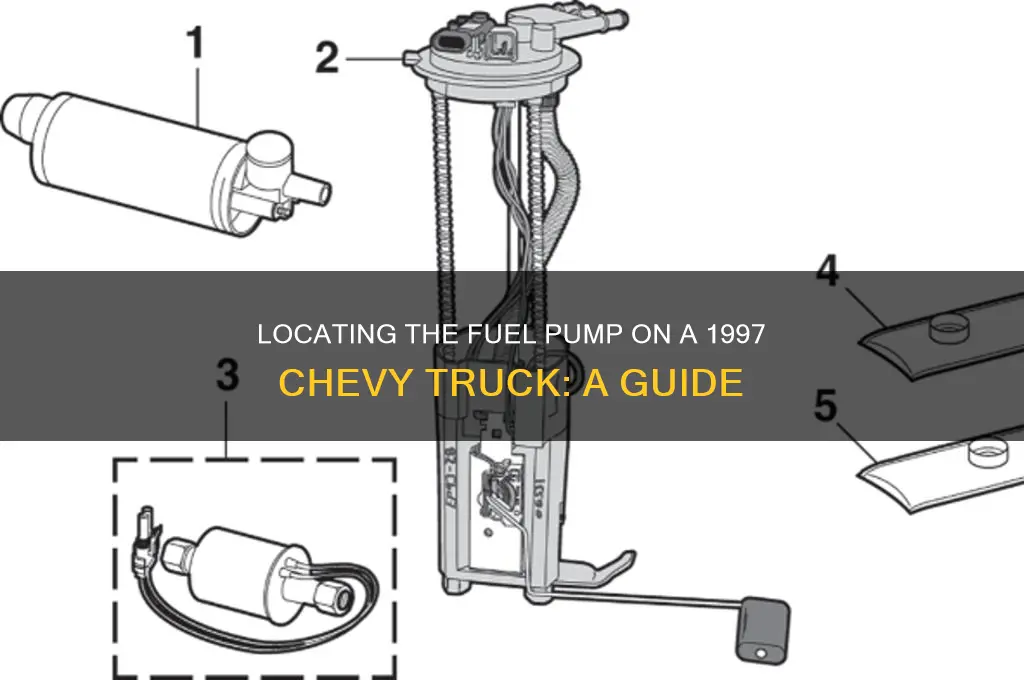

Once the fuel tank is located, the fuel pump module becomes the focal point. This assembly typically includes the electric fuel pump, a sending unit for the fuel gauge, and a filter sock to prevent debris from entering the system. The sending unit is a float mechanism that measures fuel levels, while the filter sock is a cylindrical mesh designed to trap contaminants. These components are often integrated into a single unit, which is secured to the top of the fuel tank. Familiarizing yourself with these parts will streamline the process of identifying issues or replacing the pump.
Accessing the fuel pump module requires removing the fuel tank or dropping it enough to reach the top plate. Before doing so, relieve the fuel system pressure and disconnect the battery to prevent accidents. Once accessed, the module is usually held in place by a locking ring or retaining mechanism. Carefully inspect the electrical connector, fuel lines, and vapor lines attached to the module, as these are crucial for proper operation. A systematic approach to disassembly ensures that no component is overlooked or damaged during the process.
For those troubleshooting fuel delivery issues, testing individual components can pinpoint the problem. The fuel pump’s operation can be checked by listening for the whirring sound it makes during the initial key-on position. If silent, the pump or its relay may be faulty. The sending unit’s functionality can be verified using a multimeter to test resistance against the fuel level. The filter sock should be inspected for clogging, as this can restrict fuel flow. Each component plays a distinct role, and understanding their functions aids in accurate diagnosis.
In conclusion, identifying fuel pump components in a 1997 Chevy truck involves recognizing the integrated module within the fuel tank, understanding its individual parts, and knowing how to access and test them. This knowledge not only facilitates repairs but also ensures that the fuel system operates efficiently. By focusing on these specifics, even novice mechanics can approach fuel pump issues with confidence and precision.
When to Use Electric Fuel Pumps in Aircraft: A Comprehensive Guide
You may want to see also
Explore related products
![A-Premium Enginie Water Pump [8Cyl 4.8 5.3 6.0L DOHC] w/Thermostat Compatible with GM Cars Chevy, GMC, Cadillac, Hummer, H2, Workhorse - Silverado, Express, Escalade, Tahoe, Sierra, Yukon, 9-7x More](https://m.media-amazon.com/images/I/71noUfOFmtL._AC_UY218_.jpg)
Tools needed to replace 97 Chevy fuel pump
The fuel pump on a 1997 Chevy truck is located inside the fuel tank, which means replacing it requires a combination of mechanical tools and safety precautions. Before diving into the tools needed, it’s crucial to understand that this job involves working with fuel systems, so ensure you’re in a well-ventilated area, away from open flames, and wearing safety goggles and gloves. Now, let’s break down the essential tools you’ll need for this task.
Step 1: Gathering the Tools
To replace the fuel pump, you’ll need a basic set of hand tools, including a socket set (metric and standard), wrenches, and screwdrivers. Specifically, a 10mm and 12mm socket are commonly required for removing bolts and lines. Additionally, a fuel line disconnect tool is essential for safely detaching the fuel lines without damaging them. A pair of pliers and a flathead screwdriver will also come in handy for prying and adjusting components. For accessing the fuel tank, a floor jack and jack stands are necessary to safely lift the truck and provide enough clearance to work.
Cautions and Specialized Tools
One often overlooked tool is a fuel pump module removal tool, which is designed to safely extract the pump assembly from the tank. Attempting this without the proper tool can damage the locking ring or the tank itself. Another critical item is a battery memory saver or a 9-volt battery connector to preserve radio presets and other electronic settings while the battery is disconnected. If you’re not comfortable with electrical systems, consider using a multimeter to test for power and ground before assuming the pump is faulty.
Practical Tips for Efficiency
To streamline the process, organize your tools in a logical order based on the steps of the job. Start with the jack and jack stands, then move to the socket set for removing the fuel tank straps. Keep the fuel line disconnect tool and pliers within reach for when you’re ready to detach the lines. A small parts tray can help keep bolts and washers organized, preventing them from getting lost. Finally, have a drain pan ready to catch any residual fuel when you disconnect the lines.
While the list of tools may seem extensive, most are common in a basic mechanic’s toolkit. The specialized tools, like the fuel pump module removal tool, can often be rented from auto parts stores if you don’t plan to use them frequently. By having everything prepared beforehand, you’ll minimize downtime and ensure a smoother replacement process. Remember, working on fuel systems requires precision and caution—the right tools not only make the job easier but also safer.
Locating Your Vehicle's Fuel Pump Fuse: A Quick Guide
You may want to see also
Frequently asked questions
The fuel pump on a 1997 Chevy truck is located inside the fuel tank.
To access the fuel pump, you need to remove the fuel tank. This involves draining the fuel, lowering the tank, and disconnecting the fuel lines and electrical connectors.
Yes, always relieve fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards. Use proper safety equipment and follow a repair manual for detailed instructions.
