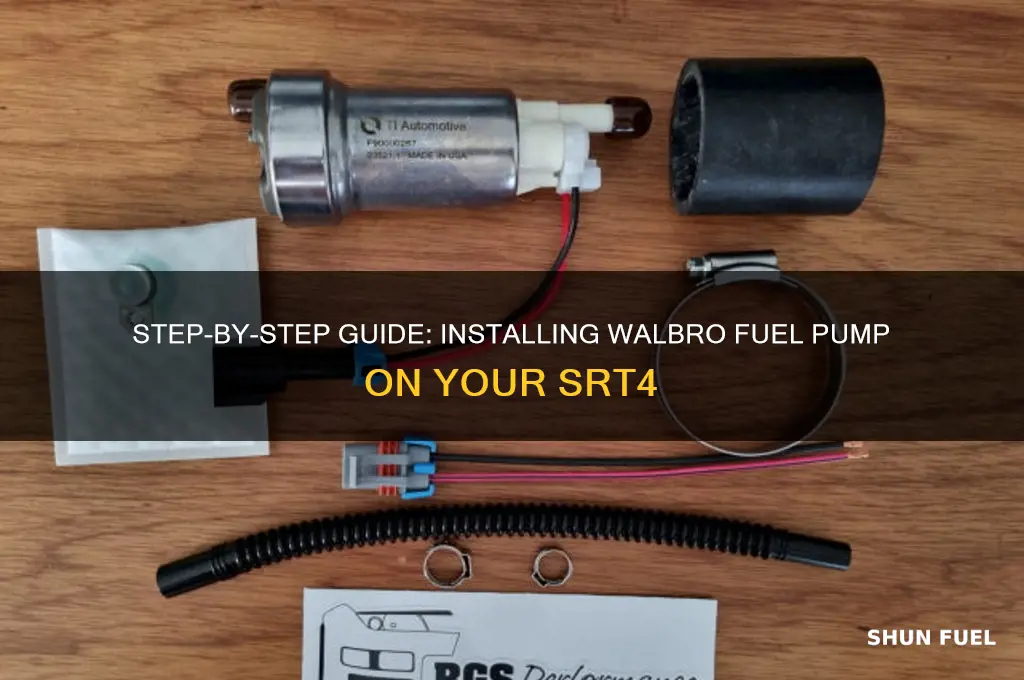

Installing a Walbro fuel pump in an SRT4 is a popular upgrade for enhancing fuel delivery and supporting higher horsepower levels. The process begins with gathering the necessary tools and ensuring the vehicle is safely lifted and secured. Start by disconnecting the battery and relieving fuel system pressure to prevent accidents. Locate the fuel pump assembly in the fuel tank, which requires removing the rear seat and accessing the tank’s service panel. Carefully lower the fuel pump module, disconnect the electrical connectors and fuel lines, and replace the stock pump with the Walbro unit, ensuring compatibility with the SRT4’s wiring harness. Reinstall the module, reassemble the components, and test the system for leaks and proper operation. This upgrade improves fuel flow, making it ideal for turbocharged or high-performance SRT4 builds.
| Characteristics | Values |
|---|---|
| Vehicle Compatibility | Dodge Neon SRT-4 (2003-2005) |
| Fuel Pump Model | Walbro 255lph (e.g., Walbro F90000265, F90000274, or equivalent) |
| Tools Required | Socket set, wrenches, screwdrivers, fuel line disconnect tool, safety gear |
| Installation Time | 2-4 hours (depending on experience) |
| Difficulty Level | Intermediate |
| Key Steps | 1. Relieve fuel system pressure 2. Remove rear seat and fuel pump access panel 3. Disconnect fuel lines and electrical connectors 4. Remove old fuel pump 5. Install Walbro fuel pump with new gasket 6. Reconnect fuel lines and electrical connectors 7. Test for leaks and functionality |
| Additional Parts Needed | New fuel pump gasket, fuel filter (optional), fuel line quick disconnects |
| Safety Precautions | Work in well-ventilated area, avoid sparks, use safety goggles and gloves |
| Performance Benefits | Increased fuel flow for high-performance or turbocharged applications |
| Warranty Considerations | Check if installation affects vehicle warranty |
| Technical Notes | Ensure proper grounding and polarity for electrical connections |
| Post-Installation | Check for leaks, reset fuel system, and test drive |
Explore related products
What You'll Learn
- Gather Tools and Parts: Ensure you have all necessary tools and replacement parts before starting installation
- Disconnect Battery: Safely disconnect the car battery to prevent electrical accidents during installation
- Remove Fuel Tank: Lower and remove the fuel tank to access the fuel pump assembly
- Install Walbro Pump: Replace the old pump with the Walbro unit, ensuring proper alignment and connections
- Reassemble and Test: Reinstall the fuel tank, reconnect the battery, and test the pump for leaks and function
Gather Tools and Parts: Ensure you have all necessary tools and replacement parts before starting installation
Before diving into the installation of a Walbro fuel pump on your SRT4, it's crucial to assemble all the necessary tools and parts. This preparatory step is often overlooked but can save you significant time and frustration. Imagine getting halfway through the installation only to realize you’re missing a critical component or tool. To avoid this, start by verifying you have the Walbro fuel pump kit, which typically includes the pump, wiring harness, and mounting hardware. Additionally, ensure you have a fuel line disconnect tool, wrenches or sockets (commonly 10mm and 12mm), a flathead screwdriver, and a torque wrench for precise tightening. A fuel pressure gauge is also recommended for testing the system post-installation.
Analyzing the specific requirements of the SRT4, it’s important to note that this vehicle often uses a high-pressure fuel system, so compatibility with the Walbro pump is essential. Double-check that the pump’s flow rate (typically 255 LPH for most Walbro models) matches your engine’s demands, especially if you’ve made performance upgrades. For instance, turbocharged SRT4 engines may require a higher-capacity pump to support increased fuel needs. If you’re replacing an older pump, inspect the fuel tank for debris or contamination, as this could damage the new pump. Having a fuel filter and fresh fuel hose on hand is a proactive measure to ensure optimal performance.
From a practical standpoint, organizing your workspace and tools can streamline the installation process. Lay out all parts and tools in a logical order, starting with those needed for the initial steps, such as removing the fuel tank or accessing the pump assembly. Labeling components or taking photos before disassembly can help during reassembly, particularly when dealing with complex wiring harnesses. If you’re working in a garage, ensure proper ventilation and have a fire extinguisher nearby, as you’ll be dealing with flammable fuel. A drip pan or absorbent mat is also useful to catch any spilled fuel during the process.
Comparing the DIY approach to professional installation, gathering the right tools and parts is where the cost-effectiveness of doing it yourself becomes evident. While a professional might have all the necessary equipment on hand, purchasing specialized tools like a fuel line disconnect or torque wrench can be a worthwhile investment for future projects. However, if you’re unsure about any step, renting tools or consulting a mechanic for guidance can prevent costly mistakes. The key takeaway here is that thorough preparation not only ensures a smoother installation but also enhances safety and long-term reliability.
In conclusion, the success of installing a Walbro fuel pump on your SRT4 hinges on meticulous preparation. By gathering all necessary tools and parts beforehand, you’ll avoid unnecessary delays and potential errors. This step is not just about having the right components but also about understanding their role in the installation process. Whether you’re a seasoned DIY enthusiast or a first-time installer, taking the time to prepare will make the task more manageable and rewarding. With everything in place, you’ll be ready to tackle the installation with confidence and precision.
Step-by-Step Guide: Replacing the Fuel Pump on a 1980 Buick Regal V6
You may want to see also
Explore related products
Disconnect Battery: Safely disconnect the car battery to prevent electrical accidents during installation
Before diving into the installation of a Walbro fuel pump on your SRT4, it's crucial to prioritize safety. One of the most critical steps in this process is disconnecting the car battery. This simple action can prevent electrical accidents, short circuits, and potential damage to your vehicle's sensitive electronic components. Always start by locating your car’s battery, typically found in the engine bay or trunk, depending on your SRT4 model. Use a wrench or socket to loosen the nut on the negative terminal (marked with a "-" symbol) and carefully remove the cable. Wrap the disconnected cable with electrical tape or secure it away from the battery to prevent accidental reconnection.
Analyzing the importance of this step reveals its dual purpose: protecting both you and your vehicle. Modern cars, including the SRT4, are equipped with complex electrical systems that remain active even when the engine is off. By disconnecting the battery, you eliminate the risk of accidental activation of fuel pumps, relays, or other components that could interfere with the installation process. Additionally, it safeguards against sparks or electrical surges that might occur during the installation, especially when working near fuel lines or the fuel tank.
From a practical standpoint, the process is straightforward but requires attention to detail. Ensure you’re wearing insulated gloves and using non-conductive tools to minimize the risk of electrical shock. If your SRT4 has a high-performance audio system or other memory-dependent features, note that disconnecting the battery will reset these settings. To avoid inconvenience, consider using a memory saver device or reconnecting the battery promptly after installation. It’s also a good practice to clean the battery terminals while they’re exposed to ensure a secure connection once the installation is complete.
Comparing this step to other safety measures in automotive work highlights its simplicity and effectiveness. While wearing safety goggles or using jack stands are equally important, disconnecting the battery directly addresses the electrical hazards unique to fuel pump installations. Skipping this step could lead to costly mistakes, such as damaging the new fuel pump or triggering error codes in the vehicle’s ECU. By taking a few minutes to disconnect the battery, you create a safer, more controlled environment for the task ahead.
In conclusion, disconnecting the car battery is a non-negotiable step in installing a Walbro fuel pump on your SRT4. It’s a small action with significant implications for safety and success. Treat it as the foundation of your installation process, ensuring that every subsequent step is performed without the looming risk of electrical mishaps. With the battery safely disconnected, you’re ready to proceed with confidence, knowing you’ve taken a critical measure to protect both yourself and your vehicle.
Locate Fuel Pump Relay in 2001 Sonoma: Step-by-Step Guide
You may want to see also
Explore related products
Remove Fuel Tank: Lower and remove the fuel tank to access the fuel pump assembly
Lowering and removing the fuel tank is a critical step in accessing the fuel pump assembly for your SRT4 Walbro fuel pump installation. This process requires precision and caution to avoid fuel spills, electrical hazards, or damage to components. Begin by ensuring your vehicle is on a level surface, with the fuel tank as empty as possible to minimize weight and spill risks. Use a floor jack and jack stands to safely elevate the vehicle, providing ample clearance to work beneath it.
Next, locate the fuel tank straps, typically found on either side of the tank. These straps secure the tank to the vehicle’s undercarriage. Using a suitable wrench or socket, loosen and remove the bolts holding the straps in place. Be mindful of rust or corrosion, which may require penetrating oil or additional force. Once the straps are free, carefully lower the tank using a transmission jack or a secure support system. Avoid letting the fuel lines or electrical connectors bear the weight, as this can cause damage or disconnection.
With the tank lowered, inspect the fuel pump assembly access point, usually located at the top of the tank. Disconnect the electrical connector and fuel lines, taking note of their routing for reassembly. Use a fuel line disconnect tool if necessary to avoid damaging the quick-connect fittings. If the tank is still heavy or awkward to handle, enlist a helper to ensure safe removal. Place the tank on a stable surface, away from open flames or sparks, as residual fuel vapors pose a fire risk.
Before proceeding with the fuel pump installation, clean the tank’s access point and inspect the sealing gasket for wear or damage. Replacing the gasket is recommended to ensure a leak-free seal. This step, though often overlooked, is crucial for long-term reliability. By methodically lowering and removing the fuel tank, you create a safe and accessible workspace to install the Walbro fuel pump, setting the stage for a successful upgrade.
DIY Guide: Replacing the Fuel Pump on a 2003 Hyundai Elantra
You may want to see also
Explore related products
Install Walbro Pump: Replace the old pump with the Walbro unit, ensuring proper alignment and connections
Upgrading your SRT4's fuel pump to a Walbro unit is a popular modification for enthusiasts seeking improved performance and reliability. This installation process demands precision, as improper alignment or connections can lead to fuel delivery issues and potential safety hazards. Before beginning, ensure you have the correct Walbro pump model for your SRT4, as compatibility is crucial.
The Replacement Process: Begin by locating your vehicle's existing fuel pump, typically situated within the fuel tank. Drain the fuel tank to minimize spillage and ensure a safe working environment. Once the tank is accessible, carefully disconnect the electrical connector and fuel lines from the old pump. Take note of the pump's orientation and mounting configuration, as this will guide the installation of the Walbro unit.
Alignment and Installation: The Walbro pump's success hinges on precise alignment. Position the new pump, ensuring the inlet and outlet ports align perfectly with the fuel lines. Secure the pump using the provided mounting hardware, tightening it to the manufacturer's specified torque values. Over-tightening can damage the pump, while under-tightening may lead to leaks.
Electrical Connections and Testing: Reconnect the electrical connector, ensuring a secure fit. Double-check all connections, as loose wires can cause intermittent issues. With the pump installed, refill the fuel tank and turn the ignition to the 'on' position without starting the engine. Listen for the pump's priming cycle, confirming it engages correctly. This initial test is vital to identify any immediate issues before starting the engine.
Final Checks and Benefits: After installation, inspect for leaks and verify that the pump operates smoothly. The Walbro pump's superior flow rate and pressure regulation will enhance your SRT4's performance, especially under high-demand conditions. This upgrade is particularly beneficial for turbocharged engines, ensuring adequate fuel supply during aggressive driving. Proper installation guarantees the pump's longevity and optimal performance, making it a worthwhile investment for SRT4 owners seeking a reliable fuel system upgrade.
This process requires attention to detail, but the rewards are significant, offering both peace of mind and improved engine responsiveness.
Locate Your Fuel Pump Switch: A Quick and Easy Guide
You may want to see also
Explore related products
Reassemble and Test: Reinstall the fuel tank, reconnect the battery, and test the pump for leaks and function
With the Walbro fuel pump installed, the final steps are critical to ensure your SRT4’s fuel system operates safely and efficiently. Reassembling the components and testing the pump’s functionality is where attention to detail pays off. Start by carefully reinstalling the fuel tank, ensuring all mounting bolts are tightened to the manufacturer’s torque specifications—typically 15 to 20 foot-pounds for most SRT4 models. Misalignment or overtightening can damage the tank or its seals, leading to leaks or structural issues. Use a torque wrench to avoid guesswork and ensure uniformity.
Once the tank is secure, reconnect the battery, making sure the terminals are clean and tightly fastened. A loose connection can cause electrical issues or prevent the pump from priming correctly. With the battery reconnected, turn the ignition to the "on" position (without starting the engine) to activate the pump. Listen for the characteristic hum, which should last 2-3 seconds as the system pressurizes. If the pump fails to engage or makes unusual noises, double-check the electrical connections and ground points.
Testing for leaks is a non-negotiable step. Inspect all fuel lines, fittings, and the pump itself for signs of leakage. Use a spray bottle with soapy water to detect even minor leaks, as fuel vapor can be invisible to the naked eye. Pay special attention to areas where components were disconnected or reassembled, as these are common failure points. If a leak is detected, address it immediately—loosened fittings should be tightened, and damaged lines replaced.
Finally, start the engine and monitor the fuel pressure gauge (if equipped) to ensure the pump is delivering the correct pressure, typically 45-50 PSI for the SRT4. If the gauge reads low or fluctuates, the pump may not be functioning optimally. Allow the engine to run for a few minutes, then recheck for leaks, as pressure changes can reveal issues not apparent during static testing. A properly installed and tested Walbro fuel pump will not only enhance performance but also provide peace of mind, knowing your SRT4’s fuel system is reliable and safe.
Understanding the Weight: How Heavy is a Fuel Pump?
You may want to see also
Frequently asked questions
You will need a socket set, wrenches, a flathead screwdriver, pliers, a fuel line disconnect tool, and a new fuel pump gasket.
Yes, the fuel tank must be removed to access and replace the fuel pump assembly.
Locate the fuel pressure relief valve or disconnect the fuel pump relay and run the engine until it stalls to relieve pressure.
No, it is recommended to use a new fuel pump gasket to ensure a proper seal and prevent leaks.
The Walbro fuel pump typically comes with a plug-and-play harness for the SRT4, but always verify compatibility and connections before installation.
