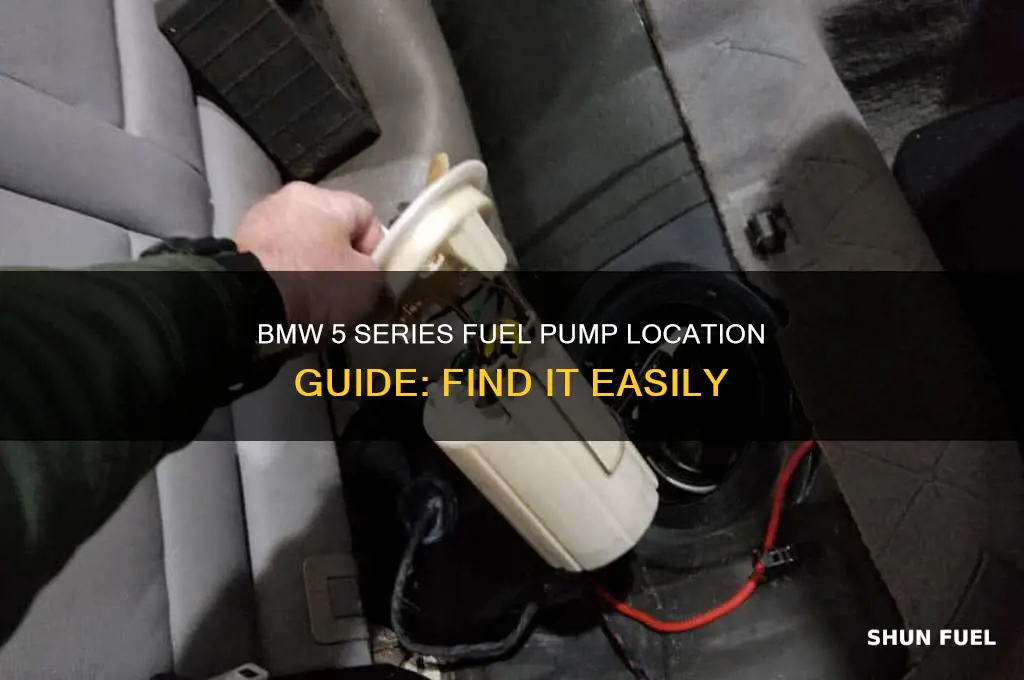

The BMW 5 Series, a benchmark in luxury and performance, relies on a well-engineered fuel delivery system to ensure optimal engine operation. A critical component of this system is the fuel pump, which is responsible for delivering fuel from the tank to the engine at the required pressure. In most BMW 5 Series models, the fuel pump is located inside the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. This in-tank placement also contributes to a quieter operation and better protection from external elements. Understanding the location of the fuel pump is essential for maintenance, troubleshooting, or replacement, ensuring the vehicle continues to deliver the smooth and efficient performance expected from a BMW.
| Characteristics | Values |
|---|---|
| Location | Typically located inside the fuel tank (in-tank fuel pump) |
| Models Affected | BMW 5 Series (E39, E60, E61, F10, F11, G30, G31) |
| Fuel Pump Type | Electric in-tank fuel pump |
| Function | Delivers fuel from the tank to the engine under required pressure |
| Access for Replacement | Requires removing the rear seat or accessing the fuel tank from underneath |
| Common Issues | Fuel pump failure, whining noise, engine stalling, difficulty starting |
| Replacement Cost | $300 - $800 (parts and labor, depending on model and location) |
| Lifespan | Typically 100,000 - 150,000 miles, but varies based on usage and maintenance |
| Diagnostic Codes | P0087, P0190, P0191, P0192, P0193 (related to fuel pressure issues) |
| Compatibility | Specific to BMW 5 Series models and engine types (e.g., N52, N62, B58) |
| OEM Part Number | Varies by model (e.g., 6767838 for E60, 16147396671 for F10) |
| Aftermarket Availability | Widely available from brands like Walbro, Airtex, and Pierburg |
Explore related products
What You'll Learn
Location of BMW 5 Series fuel pump in different model years
The BMW 5 Series, a staple of luxury and performance, has seen its fuel pump location evolve across different model years, reflecting advancements in engineering and design. In earlier models, such as the E39 (1995–2003), the fuel pump is typically located inside the fuel tank, a common placement for many vehicles of that era. This design ensures the pump remains cooled by the fuel, enhancing its longevity. Accessing the pump requires removing the rear seat and the fuel tank cover, a process that, while straightforward, demands caution to avoid fuel spills or electrical hazards.
Transitioning to the E60 generation (2003–2010), BMW maintained the fuel pump’s in-tank location but introduced more sophisticated fuel delivery systems to accommodate the increased power demands of newer engines. For instance, the 535i models often feature a high-pressure fuel pump in addition to the standard in-tank pump. Mechanics and DIY enthusiasts should note that accessing the fuel pump in these models may require specialized tools to depressurize the fuel system safely before removal.
The F10 generation (2010–2017) continued the trend of in-tank fuel pumps but with further refinements. Models like the 528i and 535i incorporated more efficient pumps to support turbocharging and direct injection technologies. One notable change is the integration of the fuel pump with the fuel level sender unit, simplifying diagnostics but complicating replacement. Owners should be aware that replacing the pump often necessitates replacing the entire sender assembly, increasing repair costs.
In the G30 generation (2017–present), BMW has retained the in-tank fuel pump design but with an emphasis on modularity and ease of access. For example, the fuel pump module in the 540i is designed for quicker removal, reducing downtime during maintenance. However, the increased complexity of modern fuel systems means that DIY repairs are less feasible, and professional diagnostic tools are often required to identify pump-related issues accurately.
Across these generations, the consistent placement of the fuel pump inside the tank highlights BMW’s commitment to reliability and efficiency. However, the evolving design and integration with other components underscore the importance of model-specific knowledge when addressing fuel pump issues. Whether you’re working on an E39 or a G30, understanding these nuances ensures accurate diagnosis and efficient repairs.
Is Your Motorcycle Fuel Pump Failing? Signs to Watch For
You may want to see also
Explore related products
Identifying fuel pump placement in BMW 5 Series E60 models
The BMW 5 Series E60, produced from 2003 to 2010, houses its fuel pump within the fuel tank, a common design in modern vehicles to reduce noise and improve safety. This placement is both strategic and functional, ensuring the pump operates in a fuel-cooled environment, which prolongs its lifespan. Unlike older models where the pump might be external, the E60’s in-tank design requires accessing the fuel tank for maintenance or replacement. This setup is shared across most E60 variants, regardless of engine type, though diesel models may have additional components integrated into the tank assembly.
To locate the fuel pump in a BMW 5 Series E60, start by identifying the fuel tank, typically positioned beneath the rear seats. Accessing the pump involves removing the rear seat bottom and the fuel tank access panel, a process that requires basic tools like a screwdriver and socket set. Safety is paramount; ensure the vehicle is on a level surface, the engine is off, and the fuel system is depressurized before proceeding. This step-by-step approach minimizes risks and ensures a systematic inspection or replacement process.
Comparing the E60’s fuel pump placement to earlier BMW models highlights a clear evolution in design. For instance, the E39 5 Series often featured an external fuel pump, which was more accessible but prone to heat damage and noise. The E60’s in-tank design addresses these issues, though it complicates replacement. This shift underscores BMW’s focus on refinement and efficiency, even if it means trade-offs in maintenance convenience.
When replacing the fuel pump in an E60, consider the vehicle’s age and mileage. Pumps typically last 100,000 to 150,000 miles, but symptoms like sputtering, stalling, or difficulty starting may indicate premature failure. Opt for OEM or high-quality aftermarket parts to ensure compatibility and longevity. Additionally, inspect the fuel filter and tank for contamination during replacement, as debris can accelerate pump wear. This proactive approach saves time and prevents recurring issues.
In conclusion, identifying the fuel pump placement in a BMW 5 Series E60 involves understanding its in-tank location and the steps required to access it. While the design offers advantages in performance and safety, it demands careful attention during maintenance. By following a structured process and considering the vehicle’s specific needs, owners can effectively address fuel pump issues and maintain the E60’s reliability.
Efficient Fuel Pumping Strategies for ICBM Helldivers 2 Operations
You may want to see also
Explore related products
Accessing the fuel pump in BMW 5 Series G30 variants
The BMW 5 Series G30, introduced in 2017, houses its fuel pump within the fuel tank, a common design in modern vehicles to reduce noise and improve efficiency. Accessing this component requires careful steps due to its location and the complexity of the vehicle’s underbody. Unlike older models, the G30’s fuel pump is not directly accessible from the top of the engine bay, necessitating a more involved process. This design choice, while beneficial for performance, poses challenges for DIY repairs or inspections.
To access the fuel pump in a BMW 5 Series G30, start by ensuring the vehicle is on a level surface and the fuel tank is no more than half full to minimize spillage risks. Disconnect the battery to prevent electrical hazards, then locate the fuel tank access panel, typically found beneath the rear seat. Remove the rear seat by pulling the release levers and lifting it upward, exposing the insulation and access panel. Use a trim removal tool to carefully pry off the insulation, revealing the fuel pump module cover. This process demands precision to avoid damaging interior components.
Once the access panel is exposed, remove the cover by unscrewing the retaining bolts using a torque wrench set to the manufacturer’s specifications (typically 10-15 Nm). Beneath the cover, you’ll find the fuel pump module, which includes the pump, sender unit, and associated wiring. Disconnect the electrical connector and fuel lines, noting their positions for reassembly. A fuel line disconnect tool may be required to safely release the lines without causing leaks. Always work in a well-ventilated area and avoid open flames or sparks due to the flammable nature of fuel vapors.
After accessing the fuel pump, inspect it for signs of wear, such as cracks or leaks, and test its functionality using a multimeter if necessary. Replacement should only be performed with OEM parts to ensure compatibility and reliability. Reassembly follows the reverse order of disassembly, with careful attention to torque settings and proper sealing of the fuel lines. Failure to secure components correctly can lead to fuel leaks or system malfunctions, compromising safety and performance.
In summary, accessing the fuel pump in a BMW 5 Series G30 requires a methodical approach, combining interior disassembly with careful handling of fuel system components. While the process is more involved than in previous models, it is manageable with the right tools and precautions. Always consult the vehicle’s service manual for model-specific details and adhere to safety guidelines to ensure a successful repair or inspection.
Locate Your Fuel Pump Switch: A Quick and Easy Guide
You may want to see also
Explore related products
Fuel pump location differences in BMW 5 Series diesel vs. petrol
The BMW 5 Series, a staple of luxury and performance, houses its fuel pump in different locations depending on whether it’s a diesel or petrol variant. In petrol models, the fuel pump is typically integrated into the fuel tank, a design choice that ensures consistent fuel delivery under high-pressure demands. This in-tank placement also reduces noise and protects the pump from external damage. Diesel models, however, often feature a fuel pump mounted externally, closer to the engine bay. This external setup accommodates the higher pressures required for diesel injection systems, which can exceed 25,000 psi compared to petrol’s 3,000–6,000 psi.
For DIY enthusiasts or mechanics, locating the fuel pump in a BMW 5 Series diesel involves accessing the engine compartment, where the pump is usually mounted near the fuel filter or along the fuel line. This external placement simplifies maintenance but requires careful handling due to the high-pressure environment. In contrast, petrol models demand dropping the fuel tank for pump access, a more labor-intensive process that often requires specialized tools and safety precautions to avoid fuel spills or electrical hazards.
The design differences reflect the distinct operational needs of diesel and petrol engines. Diesel engines rely on compression ignition, necessitating a robust, high-pressure fuel delivery system that an external pump can better support. Petrol engines, with their spark ignition, prioritize a quieter, more compact setup, making the in-tank pump ideal. Understanding these variations is crucial for troubleshooting, maintenance, or upgrades, ensuring the right approach for each fuel type.
A practical tip for BMW 5 Series owners: if you notice symptoms like engine sputtering, reduced power, or difficulty starting, the fuel pump may be the culprit. For diesel models, inspect the external pump and fuel lines for leaks or damage. For petrol models, listen for unusual noises from the fuel tank area, which could indicate pump failure. Always consult the vehicle’s manual or a professional for specific diagnostic steps, as improper handling can lead to costly repairs or safety risks.
In summary, the fuel pump location in BMW 5 Series vehicles is tailored to the unique demands of diesel and petrol engines. Diesel models favor external pumps for high-pressure needs, while petrol models integrate the pump into the fuel tank for efficiency and noise reduction. Recognizing these differences streamlines maintenance and ensures optimal performance, whether you’re a seasoned mechanic or a BMW owner looking to understand your vehicle better.
Mobile Fuel Pump Gas Costs: Understanding Pricing and Convenience
You may want to see also
Explore related products
![Car Phone Holder for BMW 5 Series Auto Accessories [Only for 2011-2016 5 Series，Not Applicable to Other Cars] [Auto Lock Hands Free Cell Phone Mount Car fits for iPhone & All Smartphones]](https://m.media-amazon.com/images/I/61iJ+n78PWL._AC_UL320_.jpg)
Steps to locate and replace BMW 5 Series fuel pump
The BMW 5 Series fuel pump is typically located inside the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. This placement, while advantageous for performance, complicates access and replacement. Before diving into the process, ensure you have the necessary tools: a jack, jack stands, a wrench set, a new fuel pump module, and a drain pan. Safety first—work in a well-ventilated area, and disconnect the battery to prevent accidental ignition.
Locating the fuel pump begins with identifying the fuel tank. On most BMW 5 Series models, the tank is positioned beneath the rear seat. Start by removing the rear seat bottom cushion, which typically lifts out after releasing the retaining clips. Beneath the carpet, you’ll find the fuel pump access panel, secured by several screws. Remove these screws and set the panel aside. At this point, you’ll see the fuel pump module, which includes the pump, sender unit, and float.
Replacing the fuel pump requires draining the fuel tank to avoid spills and hazards. Use a siphon pump to transfer fuel into a safe container. Once the tank is empty, disconnect the electrical connector and fuel lines from the pump module. These connections are often tight, so use a wrench carefully to avoid damaging the lines. With the module free, lift it out of the tank and replace it with the new unit, ensuring all seals are intact. Reattach the fuel lines and electrical connector, then reinstall the access panel and rear seat.
One critical step often overlooked is testing the new fuel pump before fully reassembling the vehicle. Reconnect the battery and turn the ignition to the "on" position (without starting the engine). Listen for the pump’s priming cycle, a humming sound that confirms it’s functioning. If the pump doesn’t engage, double-check connections and fuses. Once confirmed, complete the reassembly and refill the fuel tank. This methodical approach ensures a successful replacement and minimizes the risk of errors.
Finally, consider the long-term implications of fuel pump maintenance. Regularly inspect fuel lines and filters to prevent debris from reaching the pump, which can cause premature failure. For BMW 5 Series owners, understanding the fuel system’s intricacies not only saves on repair costs but also enhances the vehicle’s reliability. By following these steps, you’ll confidently tackle this task, preserving the performance and longevity of your BMW.
Does the King Air Use a Vane-Type Fuel Pump?
You may want to see also
Frequently asked questions
The fuel pump in a BMW 5 Series is typically located inside the fuel tank. It is an in-tank fuel pump, which is a common design in modern vehicles to ensure better cooling and protection.
To access the fuel pump, you need to remove the fuel tank. This involves draining the fuel, lowering the tank, and then removing the pump assembly from the top of the tank. It’s recommended to consult a repair manual or seek professional assistance for this task.
Yes, common signs include difficulty starting the engine, stalling, reduced power, or a whining noise from the fuel tank area. If you suspect a problem, it’s best to have it diagnosed by a mechanic.
