Choosing the right size fuel line for your vehicle is important to ensure optimal performance and fuel efficiency. The diameter of the fuel line impacts the amount of fuel that can flow to the engine, and the return line is crucial for effective fuel pressure regulation. While a larger diameter is generally better, using a line that is too big can slow down fuel flow and cause issues. Conversely, a fuel line that is too small may not be able to support your horsepower goal. The type of fuel also plays a role in determining the required fuel line size, with E85 Ethanol and Methanol fuels demanding larger lines compared to gasoline.

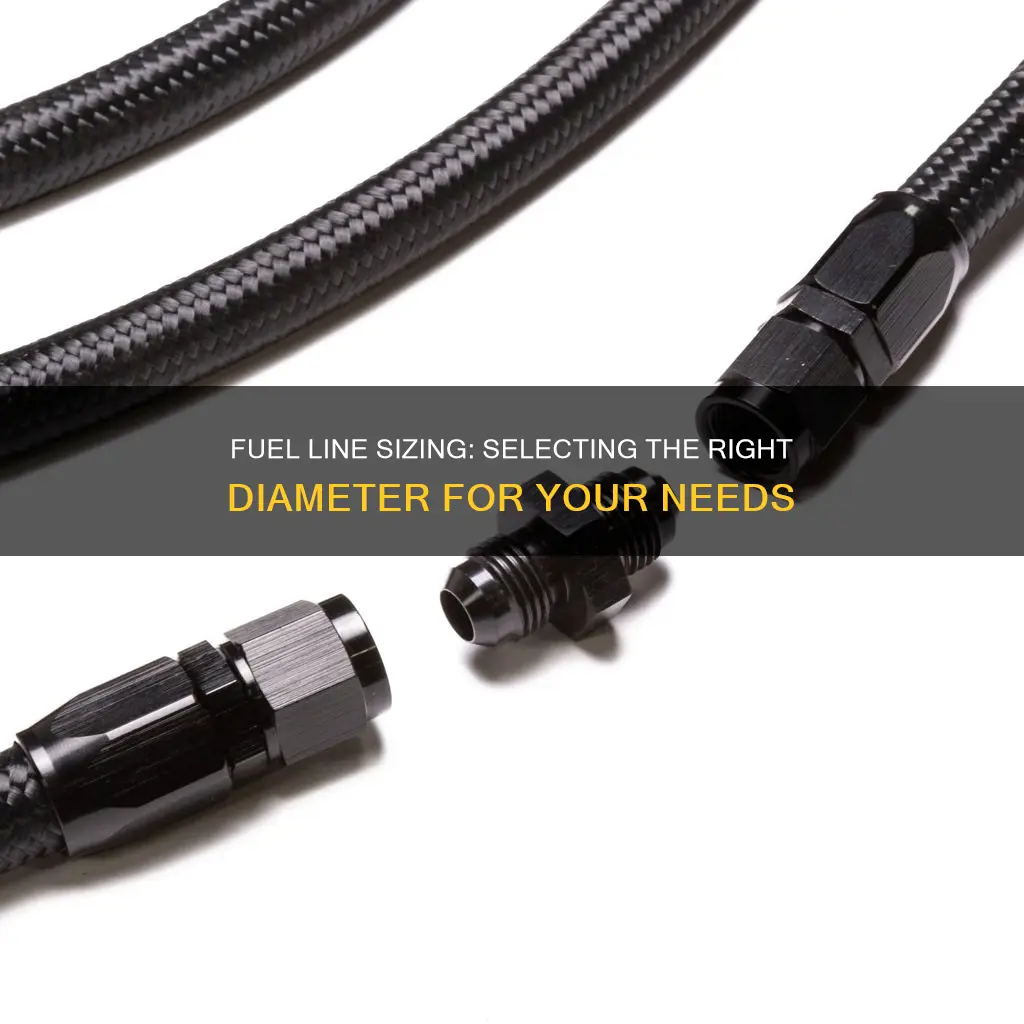

Fuel Line Size
| Characteristics | Values |
|---|---|
| Fuel line diameter | A larger diameter is generally better, but the correct diameter is the best choice. If the diameter is too small, it won't be able to support horsepower goals. |
| Fuel type | The fuel line size depends on the type of fuel being used. For instance, E85 Ethanol fuel uses 30% more fuel than gasoline, and Methanol fuels use approximately double the amount of fuel of gasoline to reach a target power level. |
| Engine type | The size of the fuel line may depend on the type of engine and its horsepower. For example, a 3/8 line is enough for EFI, and a 512 stroker engine with 600-700 HP may require a -6 or -8 line. |
| Pump type | The type of pump being used can determine the size of the fuel line. For instance, a Holley 12-454-13 130 gph pump is recommended for a 3/8" supply line. |
| Flow requirements | The fuel line size should be able to meet the flow requirements of the engine. The return line should be large enough to flow the required amount of fuel and allow a fuel pressure regulator to work effectively. |
| Future goals | When choosing a fuel line size, it is important to consider future goals and requirements to ensure the fuel line can accommodate any changes or upgrades. |
Explore related products
What You'll Learn
Fuel line diameter
There are a few factors that determine the ideal fuel line diameter. Firstly, the type of fuel being used is important. For example, E85 Ethanol fuel requires approximately 30% more fuel than gasoline to reach the same power level, and Methanol fuels require approximately double the amount. This means that the fuel lines and pumps must be larger to deliver the required amount of fuel.
The pressure at which the fuel injectors are run is another factor. Some setups use a very high base pressure on injectors to make a smaller injector flow more. The setup of the fuel system, including the type of pump and regulator being used, will also impact the ideal fuel line diameter.
For example, a 3/8" supply line is commonly used and is often sufficient, even for high-performance engines. However, in some cases, a larger diameter, such as a 1/2" supply line, may be recommended to support higher horsepower goals. It is also important to consider the return line, which must be large enough to allow unused fuel to flow back to the fuel tank and support the fuel pressure regulator.
Overall, while a larger diameter is generally better, the most important factor is choosing the correct diameter for the specific setup and performance goals. Consulting with specialists and using resources such as flow rate calculators and charts can help determine the ideal fuel line diameter for a given application.
Repairing the Fuel Line on Your 1998 Suburban: A Step-by-Step Guide
You may want to see also
Explore related products
$13.59
Fuel type
The size of the fuel line you need will depend on the type of fuel being used. The United States Environmental Protection Agency defines a fuel line as "all hoses or tubing designed to contain liquid fuel or fuel vapour".
Gasoline
A 3/8" fuel line can support 600 HP with sufficient "pump head". A bigger pump, higher pump voltage, and/or increasing the line size can help if the pressure falls as the engine RPM increases.
Ethanol
Ethanol requires about 30% more fuel than gasoline to generate the same HP. When designing a fuel line system for ethanol, it is recommended to go one size larger than the gasoline requirement. The R9 hose is a good option for ethanol as it reduces the chance of fuel leaks and the risk of fuel fires. It is available in 6mm (1/4"), 7.3mm, and 8mm (5/16") sizes.
Methanol
Methanol requires double the amount of fuel than gasoline. It is recommended to go two sizes larger than the gasoline requirement when designing a fuel line system for methanol.
Alcohol
If using alcohol, about double the flow is needed compared to gasoline.
Other Fuels
Some fuel hoses are compatible with a wide range of petroleum-based fuels, including av gas, biodiesel, diesel, jet fuel, and more. These hoses are available in a diverse range of pressures, sizes, and temperature capabilities.
It is important to note that the fuel line diameter recommended by in-line fuel pump manufacturers may be different from the size of the outlet line to prevent starving the pump. Additionally, the return lines (the fuel line after the regulator) can generally be one size smaller than the feed line.
Fuel Line Returns: Why and How to Prevent Them
You may want to see also
Explore related products
Fuel pressure
The diameter and length of the fuel line play a crucial role in maintaining the correct flow rate and pressure. A larger diameter fuel line can help reduce pressure loss, as seen in the example of increasing the line size to 1/2" resulting in a nominal 5-foot pressure drop compared to a 35-foot drop for a 3/8" line. Additionally, the type of fuel can also influence the required fuel line size. For instance, ethanol requires 30% more fuel than gasoline to generate the same horsepower, while methanol requires double the amount. As a result, it is recommended to use one or two larger sizes than the gasoline requirement when designing fuel lines for these alternative fuels.
The sensitivity to pressure drop varies between carbureted and EFI (electronic fuel injection) systems. Carbureted systems are more susceptible to fuel line size changes, with even a slight increase in PSI leading to a significant drop in flow rate. On the other hand, EFI systems do not experience the same pressure loss issues due to their higher-pressure capabilities.
To ensure optimal performance, it is essential to consider the specific requirements of the fuel pump and engine. In-line fuel pump manufacturers often recommend fuel line diameters that work best with their pumps to prevent starving the pump. Additionally, factors such as the viscosity and surface tension of the fuel can also impact pressure loss, and these variables need to be taken into account when designing the fuel system.
The materials and fittings used in the fuel lines can also affect fuel pressure. For example, the use of Teflon or PTFE-lined hoses can prevent the escape of fuel vapour, making them suitable for both inside and outside the car. The pressure rating of the tubing is another important consideration, especially when choosing between rubber or plastic hoses.
Testing Fuel Lines: Signs of Wear and Damage
You may want to see also
Explore related products
Engine type
The size of the fuel line you need depends on several factors, including the engine type, fuel type, and flow requirements.
For a Turbo or Boosted LS Engine, the fuel line size will depend on the fuel type and the desired horsepower. For example, an 8AN feed line and 6AN return line are sufficient for a 1000 horsepower gasoline or race gas-powered LS engine with 30 psi. However, if you're using E85 Ethanol fuel, a larger feed line, such as a 10AN, is recommended to accommodate the approximately 30% increase in fuel consumption compared to gasoline.
The size of the fuel line can also depend on the pressure you intend to run your fuel injectors at. Some people use a very high base pressure on their injectors to make a smaller injector flow more. In this case, you may need a larger fuel line to accommodate the increased pressure.
It's important to note that using a fuel line that is too large can cause issues. On the pressure side (feed line), a very large fuel line without enough volume can slow down fuel flow. On the other hand, using a fuel line that is too small can lead to insufficient fuel delivery and potential engine damage during times of high demand.
When in doubt, it's best to consult a professional or refer to manufacturer recommendations for your specific engine and fuel type.
Cooling Fuel: The Lines to Keep Temperatures Down
You may want to see also
Explore related products
Future goals
The future goals for fuel line sizing are focused on improving efficiency, performance, and safety. Here are some key aspects to consider:
Standardization and Compatibility: With the variety of fuel types and engine configurations available, a future goal is to standardize fuel line sizing to ensure compatibility across different systems. This includes establishing clear guidelines and standards for fuel lines used with gasoline, E85 ethanol, and methanol fuels. Standardization will make it easier for consumers to select the appropriate fuel lines for their vehicles and reduce the risk of incorrect sizing.
Performance Optimization: Future developments aim to optimize fuel line sizing for different engine setups. This includes considering factors such as horsepower, fuel pressure, and flow rate requirements. By tailoring fuel line sizes to specific engine configurations, performance can be enhanced while ensuring fuel delivery is efficient and effective.
Safety Enhancements: Safety is a critical aspect of future goals. Efforts are directed towards enhancing the safety features associated with fuel lines. This includes developing advanced materials and construction methods to prevent leaks, improve durability, and minimize the risk of failures. Additionally, safety protocols and regulations will be established to guide the selection, installation, and maintenance of fuel lines to mitigate potential hazards.
Innovative Materials and Manufacturing Techniques: Future innovations in materials science and manufacturing techniques will play a significant role in fuel line sizing. The development of lightweight, durable, and flexible materials can improve fuel line performance and longevity. This includes exploring options such as advanced polymers, composites, or metallic alloys that offer enhanced corrosion resistance, temperature stability, and fuel compatibility.
Sustainability and Environmental Impact: With a growing focus on sustainability, future goals aim to reduce the environmental impact of fuel lines. This includes exploring eco-friendly materials, minimizing waste, and optimizing fuel efficiency. By selecting the right fuel line sizes and materials, fuel consumption can be optimized, contributing to a more sustainable transportation industry.
In conclusion, the future goals for fuel line sizing are centered around standardization, performance optimization, safety enhancements, innovative materials, and sustainability. By addressing these aspects, the industry aims to improve efficiency, enhance performance, and ensure the safe and responsible use of fuel lines in various applications.
Fuel Injector Lines: 04 Jetta TDI BEW Installation Guide
You may want to see also
Frequently asked questions
The size of the fuel line you need depends on several factors, including the engine's horsepower, the type of fuel used, and the fuel system's pressure and flow rate. As a general rule, a larger diameter is better, but it is crucial to ensure that the line is not too big or too small for your specific application.
Yes, it is possible to undersize a fuel line. However, it is essential to ensure that the return line is large enough to flow the required amount of fuel back to the engine and allow the fuel pressure regulator to function effectively.
Using a fuel line that is too small can result in insufficient fuel delivery to the engine, leading to poor performance or failure to meet horsepower goals. On the other hand, a fuel line that is too big can slow down fuel flow and cause issues with the fuel system.
For high-performance engines, a common fuel line size is 3/8" for the supply line and 1/4" or 1/2" for the return line. Some applications may require larger sizes, such as a 1/2" supply line, to accommodate higher flow rates or specific fuel system configurations.
