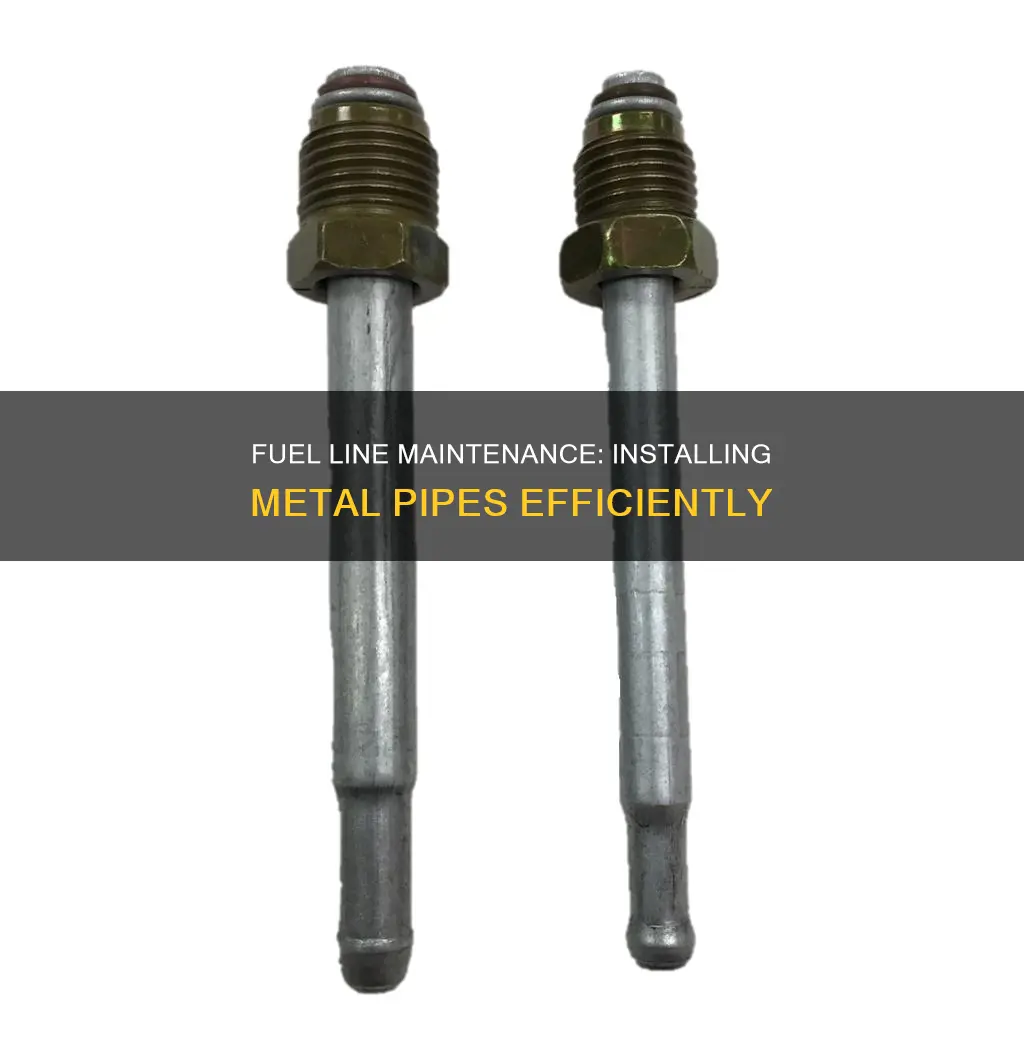

Metal fuel lines are a crucial part of modern vehicles, which have high-pressure fuel injection systems. They are superior to rubber fuel lines, which are more susceptible to damage and unsuitable for high-pressure fuel-injected systems. Metal fuel lines are more durable, but they can still fail over time and may need to be replaced. Installing a metal fuel line can be a complex process, and it is important to use the correct tools and materials to ensure a proper fit and avoid leaks.
Characteristics and Values Table for Installing Metal Fuel Lines
| Characteristics | Values |
|---|---|
| Materials | Metal, nylon, rubber, stainless steel, braided steel, Galfan-coated steel, Teflon |
| Tools | Wood screw, wire cutters, small hacksaw, nylon line cutter, drain pan, compression fittings |
| Techniques | Weaving the line through the frame, splicing, cutting, tightening, leak checking |
| Challenges | Complexity, high pressure, leaks, rust, damage, cost, fabrication difficulty |
Explore related products
What You'll Learn
Repairing a leaking fuel line
A leaking fuel line can cause a decrease in fuel pressure, which can cause engine issues such as misfires and delays. It can also cause the engine to jerk or run roughly. More importantly, a leaking fuel line can expose the driver and passengers to dangerous levels of carbon monoxide, which can cause serious illness. Therefore, it is essential to repair a leaking fuel line as soon as it is discovered.
If the leak is at the connection between the hose and the metal line, the flare on the end of the fuel line may be damaged. These fittings do not respond well to being separated and joined multiple times, making it difficult to form a seal. If the flare is damaged, the easiest fix is to remove it, slide on a new fitting, and re-flare the end using a flaring tool.
To repair a leaking metal fuel line connector, first, place a drain pan under the area to catch any fuel that may leak out. Then, use wire cutters or a small hacksaw to remove the damaged section of the fuel line. If the fuel line is nylon, you can install a wood screw in the line to prevent further draining before removing the damaged section.
Once the damaged section has been removed, take it to a store to purchase the correct size line or fitting needed, along with a tapered fuel line connector. Hold the replacement line in position and mark where to cut the line. Use a nylon line cutter to remove the correct amount of line, allowing 1/4 inch to protrude. Place a small amount of oil on the tapered connector and insert it into one side of the fuel line.
Squeeze the handle on the tool to bring the blocks together, and align the connector with the opposing fuel line. Install the compression fitting, making sure that the outside diameter of the tube is clean. Do not forget to put the new fitting on before flaring the end of the line, or the fitting will not fit properly. Then, tighten the connection, being careful not to over-tighten, as this can crack the flare and ruin the seal.
Finally, turn on your system and check for leaks. If you still see a leak, slowly tighten the connection until the leak stops, then add a little more tightening to be safe.
