There are several options available when it comes to choosing a fuel line, including metal, rubber, braided, and PTFE-lined. While metal fuel lines are generally more durable and hold up better than any soft material, rubber fuel lines are typically less expensive and easier to install. However, rubber fuel lines can become hard and brittle over time, and special techniques may be required to bend them into the desired shape.
Rubber Fuel Lines
| Characteristics | Values |
|---|---|
| Ease of Installation | Easy to install |
| Durability | Becomes hard and brittle over time; susceptible to cuts, nicks, and other abrasions |
| Cost | Less expensive than braided fuel lines |
| Maintenance | Requires replacement after prolonged use |
| Compatibility | Compatible with fuel injection systems; must be rated for fuel or meet SAE grades |
| Flexibility | More flexible than braided or PTFE-lined hoses |
| Vapour Control | Prone to leaking fuel vapours, leading to odour issues |
| Performance | SAE J30R7 grade suitable for carburetor and limited runs up to 50 psi; SAE J30R9 grade suitable for fuel injection up to 100 psi |
Explore related products
What You'll Learn
Rubber fuel lines are easy to install but have downsides
Rubber fuel lines are easy to install and are typically connected using standard barbed fittings and fuel line hose clamps. However, they have certain downsides. Firstly, rubber hoses start degrading as soon as they come in contact with fuel. This degradation leads to cracks or leaks in the hose material. With the exception of J30R9-rated hoses, rubber fuel lines can cause fuel vapors to leak, leaving your garage or vehicle with a strong raw fuel smell.
Rubber fuel lines are also susceptible to cuts, nicks, and other abrasions. They have varying degrees of durability depending on environmental exposure. For instance, over time, they can deteriorate due to exposure to UV light or ozone. Additionally, the occasional driving of a car can accelerate the aging process of a rubber fuel line as the fuel line experiences multiple cycles of wetting and drying.
While rubber fuel lines offer flexibility and lower costs, they may not be suitable for high-performance applications or extreme temperature conditions. For example, they are not as resistant to chemicals and high temperatures as PTFE (Polytetrafluoroethylene) hoses, which can handle temperatures ranging from \-100°F to 500°F (-73°C to 260°C) and are known for their resistance to chemicals.
Furthermore, for fuel line repairs, nylon tubing or braided hose (rubber hose with a braided stainless or nylon exterior) might be more cost-effective options than plain rubber fuel hose. However, these alternatives still have similar issues with long-term durability and fuel vapors. Therefore, while rubber fuel lines have their advantages in terms of ease of installation and cost, they also present several drawbacks that should be carefully considered before making a purchase decision.
Trimmer Fuel Line: Understanding the Smaller Line's Purpose
You may want to see also
Explore related products
Metal fuel lines are more durable but harder to fabricate
Metal fuel lines are generally more durable than rubber or braided fuel lines. They are resistant to wear and tear and are not prone to cracking or deterioration. Rubber fuel lines can become hard and brittle over time, while braided fuel lines can leak if the braid is damaged. Metal fuel lines are also compatible with all types of fuel, whereas rubber fuel lines may not be suitable for certain fuels or chemicals. Metal lines are usually made from stainless steel, coated steel tube, or aluminium.
However, metal fuel lines are harder to fabricate. They are more difficult to bend and route than traditional braided hoses, and they cost more. Rubber fuel lines, on the other hand, are easy to install and are a low-budget option. They are typically connected using standard barbed fittings and fuel line hose clamps. Nevertheless, rubber hoses have some downsides. They start degrading as soon as they come into contact with fuel and can leak fuel vapours, leaving a smell of raw fuel.
For those seeking a middle ground, braided hoses are a good option. They are more durable than plain rubber hoses, but they still have issues with long-term durability and fuel vapours. PTFE-lined braided hoses are the best soft hoses available. They have a braided stainless or nylon exterior, and the PTFE liner blocks fuel vapours and slows degradation. However, they require special fittings and are less flexible than standard braided or rubber hoses.
Ultimately, the choice of fuel line material depends on various factors, including durability, flexibility, compatibility, and cost. Metal fuel lines may be harder to fabricate, but their superior durability and compatibility with all fuel types make them a popular choice for many vehicles.
Best Fuel Lines for Toyota T100: Materials and Sizes
You may want to see also
Explore related products

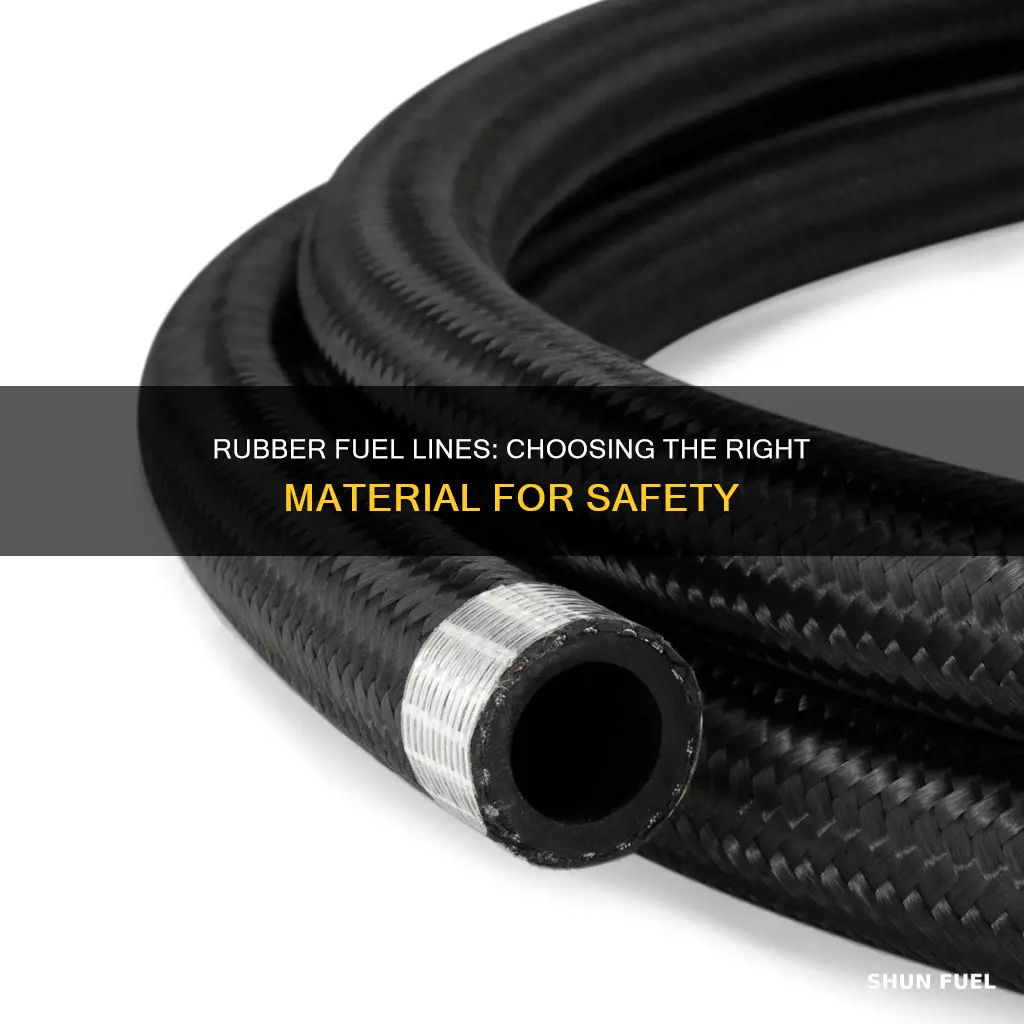

Braided fuel lines are an upgrade but can be prone to leaks
Braided fuel lines are an upgrade to rubber hoses, but they can be prone to leaks. Braided hoses are made of rubber with a braided stainless or nylon exterior. They are more durable than plain rubber hoses but have similar issues with long-term durability and fuel vapors. Braided fuel lines can be prone to deterioration of the hose liner, and leaks can occur if the hose is not high quality.
In some cases, leaks in braided fuel lines may be due to improper installation or minor shortcomings in technique, such as not making a perfectly flush cut or not cutting the braid perfectly. This can result in areas in the fitting attachment that are weaker and more susceptible to failure. Additionally, braided fuel lines may be prone to cuts, nicks, and other abrasions, which can also lead to leaks.
To prevent leaks in braided fuel lines, it is essential to use high-quality hoses with an elastomer lining, such as Viton, which is found in Aeroquip AQP hoses. These hoses have a reputation for not degrading and have been used successfully in race cars and other gasoline applications without failure. Proper installation techniques and ensuring that all connections are secure are also crucial steps in preventing leaks.
If a leak occurs in a braided fuel line, it is important to identify the location of the leak and determine the cause. In some cases, it may be possible to fix the leak by cutting off the old metal crimp and installing new ring crimps or SS band clamps. However, if the leak is due to a defect or improper installation, it may be necessary to replace the entire fuel line.
To summarize, braided fuel lines offer improved durability over plain rubber hoses, but they can still be prone to leaks. Proper hose selection, high-quality materials, and careful installation techniques are essential to preventing leaks and ensuring the reliable performance of braided fuel lines.
Outboard Motor Maintenance: Fuel Line Disconnection
You may want to see also
Explore related products
PTFE-lined fuel lines are the best soft hose option
When it comes to choosing the right material for fuel lines, several options are available, including metal and rubber. While metal fuel lines, typically made from stainless steel, aluminium, or coated steel tube, are known for their durability, they can be challenging to fabricate. On the other hand, rubber fuel hoses offer ease of installation and are commonly used with standard barbed fittings and fuel line hose clamps. However, it's important to select a rubber hose specifically rated for fuel or meeting SAE grades like SAE J30R7 for carbureted engines and SAE J30R9 for fuel injection systems.
Despite the convenience of rubber fuel hoses, they are not ideal for plumbing an entire fuel system due to degradation issues. This is where PTFE-lined fuel lines come into play, offering several advantages that make them the best soft hose option available. PTFE, also known as polytetrafluoroethylene, is a synthetic material renowned for its exceptional chemical resistance and durability. PTFE-lined fuel hoses combine the flexibility of a soft hose with the superior fuel resistance of PTFE, making them an excellent choice for automotive fuel systems.
One of the biggest advantages of PTFE-lined fuel lines is their ability to block fuel vapours and significantly slow down the degradation process. Unlike standard rubber hoses, which can emit fuel vapours and degrade over time, PTFE-lined hoses maintain their integrity, ensuring a safer and more reliable fuel system. This feature is especially important for those seeking a long-lasting solution that minimises fuel odours and the risk of fuel leakage.
PTFE-lined fuel lines are also a popular choice for performance automotive applications. They are designed to handle high-pressure fuel systems and are commonly used in racing and high-performance vehicles. The PTFE liner provides superior resistance to high temperatures and pressures, ensuring that the fuel line remains intact and functional even under demanding conditions. This makes them a preferred option for those seeking a reliable fuel line solution for their high-performance cars.
While PTFE-lined fuel lines offer numerous benefits, it's important to note that they require specific PTFE hose end fittings, which differ from standard AN fittings used with rubber hoses. Additionally, PTFE-lined hoses tend to be less flexible than standard rubber hoses, which is a trade-off for their superior durability and fuel resistance. Nevertheless, for those seeking a soft hose option that combines flexibility with exceptional fuel resistance, PTFE-lined fuel lines are the optimal choice, providing peace of mind and reliable performance.
Torque Fuel Line and Audi Fuel Pump: What's the Link?
You may want to see also
Explore related products
Nylon Tubing is a good budget option
Nylon tubing is known for its durability and resistance to cuts, nicks, and abrasions, which is an improvement over plain rubber fuel hoses. It provides a safer option as it does not leak fuel vapors, a common issue with rubber hoses. The leakage of fuel vapors can not only cause an unpleasant smell but also pose safety hazards.
Additionally, nylon tubing is easier to work with than metal fuel lines. Metal, although considered the best material for fuel lines due to its superior durability, can be challenging to fabricate and may require specialized skills and tools for installation. Nylon tubing, on the other hand, offers a more accessible and user-friendly option for those on a budget.
Nylon fuel lines are commonly found in newer cars, indicating their reliability and widespread adoption by automobile manufacturers. They provide a balance between performance and cost, making them a popular choice for those seeking an economical solution without sacrificing quality.
When considering nylon tubing for fuel lines, it is important to keep in mind the specific requirements of your vehicle and local regulations. While nylon tubing offers a budget-friendly solution, ensuring compatibility and adhering to safety standards should always be a priority. Consult with professionals or refer to manufacturer guidelines to make an informed decision that aligns with your vehicle's needs and your financial constraints.
