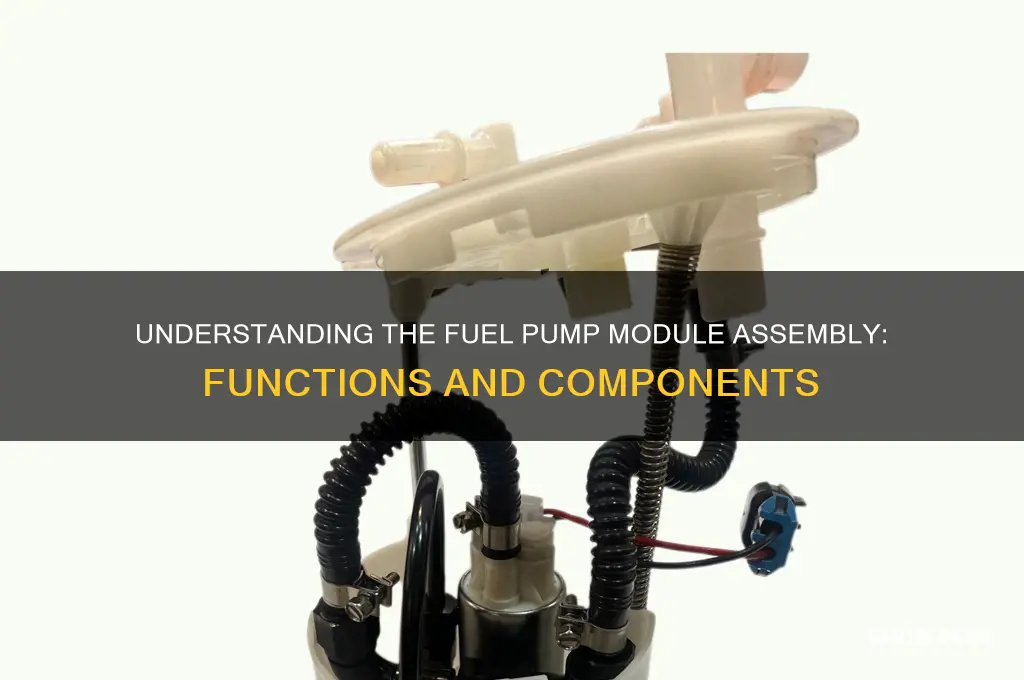

A fuel pump module assembly is a critical component in modern vehicles, responsible for delivering fuel from the tank to the engine with precision and efficiency. It typically consists of an electric fuel pump, a sending unit to monitor fuel levels, a pressure regulator, and a filter, all integrated into a single unit mounted inside the fuel tank. This assembly ensures consistent fuel supply, maintains optimal pressure, and prevents contaminants from reaching the engine, thereby enhancing performance, fuel efficiency, and overall reliability. Its compact design and functionality make it a vital part of a vehicle's fuel system, ensuring smooth operation and longevity.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump module assembly is an integrated system that houses the electric fuel pump, sending unit, fuel filter, and other components necessary for delivering fuel from the tank to the engine. |
| Location | Typically mounted inside the fuel tank. |
| Components | Electric fuel pump, fuel level sender, fuel filter, pressure regulator, float, reservoir (in some designs), wiring harness, and mounting hardware. |
| Function | Supplies fuel at the required pressure and flow rate to the engine, monitors fuel level, and ensures consistent fuel delivery. |
| Types | In-tank (most common), external (less common in modern vehicles). |
| Fuel Compatibility | Designed for specific fuel types (e.g., gasoline, diesel, ethanol blends). |
| Pressure Output | Varies by vehicle; typically 40-60 PSI for gasoline engines, higher for diesel. |
| Lifespan | 100,000 to 200,000 miles, depending on usage and maintenance. |
| Failure Symptoms | Engine stalling, hard starting, reduced power, whining noise from the fuel tank, or "check engine" light. |
| Replacement Cost | $200 to $800 (parts and labor), depending on vehicle make and model. |
| Maintenance | Generally maintenance-free; regular fuel filter replacement may be required in some vehicles. |
| Advantages | Compact design, reduced noise, improved fuel efficiency, and better reliability compared to older systems. |
| Disadvantages | Higher replacement cost, in-tank location makes repairs more complex. |
Explore related products
What You'll Learn
- Fuel Pump Module Components: Includes pump, sender, float, filter, and electrical connectors
- Function of Fuel Pump: Delivers fuel from tank to engine under pressure
- Types of Fuel Pumps: In-tank, external, mechanical, and electric fuel pump designs
- Symptoms of Failure: Engine sputtering, stalling, or difficulty starting due to pump issues
- Replacement and Maintenance: Requires tank removal, careful installation, and periodic inspection for longevity
Fuel Pump Module Components: Includes pump, sender, float, filter, and electrical connectors
The fuel pump module assembly is the unsung hero of your vehicle's fuel system, a compact yet intricate unit responsible for delivering fuel from the tank to the engine with precision and reliability. At its core, this assembly comprises several critical components, each playing a unique role in ensuring your vehicle runs smoothly. Let’s dissect these components: the pump, sender, float, filter, and electrical connectors, to understand their functions and importance.
The Pump: The Heart of the System
The fuel pump is the powerhouse of the module, responsible for generating the pressure needed to move fuel from the tank to the engine. Typically located inside the fuel tank, it operates silently but efficiently, ensuring a consistent flow of fuel. Modern pumps are often electric, designed to handle the demands of high-performance engines while minimizing energy consumption. A failing pump can lead to sputtering, stalling, or even complete engine failure, making it a critical component to monitor. Regular maintenance, such as checking for unusual noises or performance issues, can help prevent unexpected breakdowns.
Sender and Float: The Fuel Level Guardians
The sender unit and float work in tandem to provide accurate fuel level readings to your dashboard. The float, usually made of foam or plastic, sits on the fuel surface and moves up or down with the fuel level. Connected to the sender, it translates this movement into an electrical signal, which the sender transmits to the fuel gauge. Without these components, you’d be driving blind, unsure of how much fuel remains. Over time, the float can degrade or the sender can malfunction, leading to inaccurate readings. If your fuel gauge behaves erratically, these are the first components to inspect.
Filter: The Unseen Protector
The fuel filter is a small but vital component that safeguards your engine from contaminants. Integrated into the module, it traps dirt, rust, and debris present in the fuel, preventing them from reaching the injectors or carburetor. A clogged filter can restrict fuel flow, leading to poor performance or engine damage. Most filters are designed to last 30,000 to 50,000 miles, but driving conditions can affect their lifespan. If you notice reduced power or rough idling, a filter replacement might be in order.
Electrical Connectors: The Nervous System
Electrical connectors are the unsung heroes that ensure seamless communication between the fuel pump module and the vehicle’s electrical system. These connectors supply power to the pump, relay signals from the sender, and ensure the entire assembly operates harmoniously. Corrosion, loose connections, or damage to these connectors can disrupt the fuel system’s functionality. Regular inspections, especially in older vehicles, can prevent issues like intermittent starting or sudden power loss. Keeping these connectors clean and secure is a simple yet effective maintenance tip.
Together, these components form a cohesive unit that is indispensable to your vehicle’s performance. Understanding their roles not only demystifies the fuel pump module assembly but also empowers you to diagnose and address issues before they escalate. Whether you’re a DIY enthusiast or a professional mechanic, knowing how these parts interact ensures your vehicle remains reliable, efficient, and ready for the road.
Regular Gasoline and Fuel Pumps: Preventing Clogs and Ensuring Longevity
You may want to see also
Explore related products
Function of Fuel Pump: Delivers fuel from tank to engine under pressure
The fuel pump module assembly is a critical component in modern vehicles, ensuring the engine receives a consistent and pressurized supply of fuel. At its core, the fuel pump’s primary function is to deliver fuel from the tank to the engine under precise pressure, a task essential for combustion. Without this pressurized delivery, the engine would either fail to start or run inefficiently, highlighting the pump’s role as the heart of the fuel system. This process is not merely about moving fuel but doing so with the exact pressure required for optimal engine performance, typically ranging between 30 to 80 psi depending on the vehicle’s design.
Consider the fuel pump as the unsung hero of your vehicle’s efficiency. It operates submerged in the fuel tank, preventing fuel from vaporizing due to heat, a common issue in older carbureted systems. Modern fuel pump modules integrate additional components like a sender unit for the fuel gauge, a filter to trap contaminants, and a pressure regulator to maintain consistent fuel delivery. This all-in-one design simplifies installation and reduces the risk of leaks, making it a cornerstone of contemporary fuel systems. For DIY enthusiasts, understanding this assembly is crucial when diagnosing issues like sputtering engines or sudden stalls, which often stem from pump failure.
From a comparative standpoint, the evolution of fuel pump technology underscores its importance. Early mechanical pumps, driven by the camshaft, were external to the tank and prone to overheating. In contrast, today’s electric fuel pumps are immersed in fuel, which cools and lubricates them, extending their lifespan. This shift not only improved reliability but also enabled the development of fuel injection systems, which demand higher pressures than carburetors. For instance, a fuel-injected engine may require 60 psi, a pressure level unattainable with older pump designs. This comparison highlights how the fuel pump’s function has adapted to meet the demands of modern engines.
For vehicle owners, recognizing the signs of a failing fuel pump can prevent costly repairs. Symptoms include a whining noise from the tank, difficulty starting, or reduced power during acceleration. Regular maintenance, such as replacing the fuel filter every 30,000 miles, can prolong the pump’s life. If replacement is necessary, opt for OEM or high-quality aftermarket parts to ensure compatibility and performance. Installing a new pump typically involves draining the tank, lowering it, and swapping the module—a task requiring basic mechanical skills and safety precautions, such as working in a well-ventilated area to avoid fuel fumes.
In conclusion, the fuel pump’s role in delivering pressurized fuel is indispensable for engine operation. Its integration into the module assembly reflects advancements in automotive engineering, combining efficiency, reliability, and ease of maintenance. Whether you’re a car owner or a mechanic, understanding this function empowers you to address issues proactively, ensuring your vehicle runs smoothly for years to come.
Does a Faulty Fuel Pump Increase Gas Consumption? Explained
You may want to see also
Explore related products
Types of Fuel Pumps: In-tank, external, mechanical, and electric fuel pump designs
Fuel pump module assemblies are the unsung heroes of modern vehicles, ensuring a consistent and precise fuel supply to the engine. At the heart of these assemblies lie different types of fuel pumps, each designed to meet specific engineering and performance requirements. Understanding the distinctions between in-tank, external, mechanical, and electric fuel pump designs is crucial for diagnosing issues, selecting replacements, or upgrading systems. Let’s dissect these types to reveal their unique characteristics and applications.
In-tank fuel pumps are the most common design in modern vehicles, integrated directly into the fuel tank. This placement immerses the pump in fuel, which serves as a coolant and prevents overheating during operation. In-tank pumps are typically electric, powered by a motor that draws fuel from the tank and delivers it to the engine under pressure. This design reduces the risk of vapor lock, a condition where fuel vaporizes in the lines, causing engine stalls. For example, most passenger cars and SUVs use in-tank pumps due to their efficiency and compactness. However, accessing these pumps for maintenance requires draining the fuel tank, making repairs more labor-intensive.
External fuel pumps, in contrast, are mounted outside the fuel tank, often along the chassis or near the engine bay. These pumps are commonly found in older vehicles or specialized applications like racing cars. External pumps can be mechanical or electric, with mechanical designs often driven by the engine’s camshaft or a dedicated pulley system. While external pumps are easier to access for maintenance, they are more susceptible to fuel line leaks and vapor lock due to their exposure to heat. For instance, classic muscle cars frequently use external mechanical pumps, but modern upgrades often replace them with electric versions for reliability.
Mechanical fuel pumps rely on the engine’s motion to operate, typically driven by a lobe on the camshaft or a belt system. These pumps are simple, durable, and cost-effective, making them a staple in carbureted engines. However, their performance is directly tied to engine speed, which can lead to inadequate fuel delivery at low RPMs or excessive fuel pressure at high RPMs. Mechanical pumps are less common today but remain relevant in restoration projects or vehicles with carburetors. A practical tip: when replacing a mechanical pump, ensure the diaphragm and valves are intact to prevent fuel leaks.
Electric fuel pumps dominate contemporary vehicles due to their precision, adaptability, and compatibility with electronic fuel injection systems. These pumps operate independently of engine speed, allowing for consistent fuel delivery across all RPM ranges. Electric pumps can be in-tank or external, with in-tank designs being more prevalent. They are controlled by the vehicle’s ECU, which adjusts fuel pressure based on engine load, temperature, and other factors. For example, high-performance vehicles often use high-pressure electric pumps to meet the demands of turbocharged or supercharged engines. When upgrading to an electric pump, verify the system’s pressure requirements and ensure compatibility with the fuel lines and filters.
In summary, the choice of fuel pump design depends on the vehicle’s age, engine type, and performance needs. In-tank pumps offer efficiency and cooling, while external pumps provide accessibility. Mechanical pumps excel in simplicity, and electric pumps deliver precision and control. By understanding these differences, you can make informed decisions about maintenance, repairs, or upgrades, ensuring your vehicle’s fuel system operates at its best.
Finding the Fuel Pump Location on a 1992 Ford Taurus
You may want to see also
Explore related products
Symptoms of Failure: Engine sputtering, stalling, or difficulty starting due to pump issues
A fuel pump module assembly is a critical component in modern vehicles, responsible for delivering fuel from the tank to the engine at the correct pressure and flow rate. When this assembly fails, the engine can exhibit specific symptoms that signal trouble. Among these, engine sputtering, stalling, or difficulty starting are telltale signs of pump-related issues. These symptoms often arise due to insufficient fuel delivery, which disrupts the engine’s combustion process. Understanding these signs can help vehicle owners diagnose problems early and prevent costly repairs.
Engine sputtering, for instance, occurs when the fuel pump fails to maintain consistent fuel pressure, causing the engine to misfire. This can feel like a rough, uneven idle or a hesitation during acceleration. The root cause may be a worn-out pump motor, a clogged fuel filter within the module, or a failing pressure regulator. For example, a fuel pump operating at less than 60% of its rated pressure can lead to sputtering, especially under load. Regularly checking fuel pressure with a gauge (typically between 30–60 psi, depending on the vehicle) can help identify this issue before it worsens.
Stalling is another symptom that often accompanies pump failure. When the fuel pump cannot deliver enough fuel to sustain combustion, the engine may shut off abruptly, particularly at low speeds or when idling. This is dangerous, especially in traffic or on highways. A common culprit is a failing check valve within the pump module, which allows fuel to drain back into the tank when the engine is off, causing extended crank times or stalling upon startup. Replacing the check valve or the entire module is usually the solution, but diagnosing the issue requires inspecting fuel pressure and flow during operation.
Difficulty starting the engine is perhaps the most noticeable symptom of a failing fuel pump module. If the pump struggles to build pressure or deliver fuel, the engine may crank but fail to start, or it may take multiple attempts to ignite. This is often mistaken for a dead battery or starter issue, but the problem lies in the fuel system. Listening for the pump’s priming noise (a brief hum when the key is turned to the "on" position) can help determine if the pump is functioning. If the noise is absent or weak, the pump may be failing. Testing the pump’s output with a multimeter or pressure gauge can confirm the diagnosis.
Preventive maintenance is key to avoiding these symptoms. Replacing the fuel filter every 30,000–50,000 miles, depending on the vehicle, can reduce strain on the pump. Additionally, using high-quality fuel and additives can prevent contaminants from damaging the module. If symptoms arise, addressing them promptly can prevent further damage to the engine or catalytic converter, which can result from running lean due to inadequate fuel delivery. Ignoring these signs can lead to complete pump failure, leaving the vehicle stranded and requiring a tow.
In summary, engine sputtering, stalling, and difficulty starting are clear indicators of fuel pump module issues. Diagnosing these symptoms involves checking fuel pressure, listening for pump operation, and inspecting related components. Early intervention, such as replacing worn parts or the entire module, can save time and money while ensuring vehicle reliability. By staying vigilant and performing regular maintenance, drivers can avoid the inconvenience and safety risks associated with pump failure.
Resetting Your Fuel Pump Control Module: A Step-by-Step Guide
You may want to see also
Explore related products
Replacement and Maintenance: Requires tank removal, careful installation, and periodic inspection for longevity
Replacing a fuel pump module assembly is not a task for the faint-hearted. It demands precision, patience, and a methodical approach. The process begins with the removal of the fuel tank, a step that requires draining the tank completely to avoid spills and ensure safety. This is not merely a mechanical task but a critical procedure that, if mishandled, can lead to fuel leaks, fire hazards, or damage to the vehicle’s undercarriage. Once the tank is removed, the old module must be carefully disconnected, paying close attention to electrical connectors and fuel lines to prevent contamination or damage.
Installation of the new fuel pump module assembly is equally demanding. It involves aligning the module precisely within the tank, securing it with the correct torque specifications, and reattaching all connections without kinking or damaging lines. Even a minor misalignment can lead to premature failure or inefficient fuel delivery. For instance, overtightening the locking ring can warp the module’s housing, while undertightening can cause leaks. Manufacturers often recommend using a torque wrench set to 12–15 foot-pounds for locking rings, though this can vary by vehicle make and model. Always consult the vehicle’s service manual for specific instructions.
Periodic inspection is the unsung hero of fuel pump module longevity. Over time, debris, moisture, or fuel contaminants can accumulate, leading to reduced performance or failure. Inspecting the module every 30,000–50,000 miles, depending on driving conditions, can catch issues early. Look for signs of corrosion on electrical terminals, cracks in the module housing, or unusual noise during operation. A simple visual check during routine maintenance can save hundreds in repair costs. For vehicles frequently driven in dusty or humid environments, more frequent inspections are advisable.
Comparing the DIY approach to professional replacement highlights the complexity of this task. While experienced enthusiasts may tackle it with the right tools and knowledge, most vehicle owners opt for professional service. Mechanics have access to specialized equipment, such as fuel tank supports and pressure testers, which ensure a flawless installation. Additionally, professionals can diagnose related issues, like a faulty fuel pressure regulator or clogged fuel filter, that might otherwise go unnoticed. The cost of professional replacement typically ranges from $500 to $1,000, depending on the vehicle and labor rates, but it often includes a warranty that DIY repairs lack.
In conclusion, the replacement and maintenance of a fuel pump module assembly are not tasks to be taken lightly. From the meticulous removal of the fuel tank to the precise installation of the new module and the importance of regular inspections, each step plays a vital role in ensuring the system’s longevity and reliability. Whether you choose the DIY route or rely on professional expertise, understanding these processes empowers vehicle owners to make informed decisions, ultimately safeguarding their investment and safety on the road.
EFI Fuel Pump Orientation: Does Vertical Positioning Matter?
You may want to see also
Frequently asked questions
A fuel pump module assembly is a critical component in a vehicle's fuel system that houses the electric fuel pump, fuel level sender, and other components necessary for delivering fuel from the tank to the engine.
The main components include the electric fuel pump, fuel level sender (which measures the amount of fuel in the tank), fuel filter, pressure regulator, and the module housing that holds everything together.
Common signs include difficulty starting the engine, sputtering or stalling while driving, reduced fuel efficiency, and unusual noises coming from the fuel tank area, such as whining or humming sounds.
