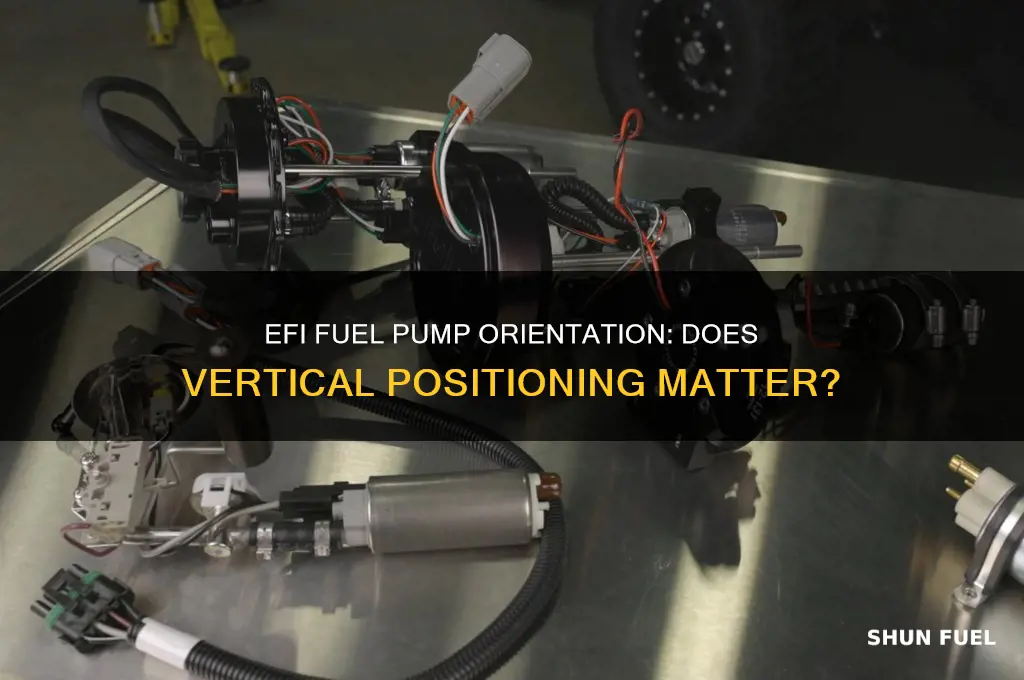

When considering the installation of an EFI (Electronic Fuel Injection) fuel pump, one common question arises: does it need to be mounted vertically? The orientation of an EFI fuel pump is crucial for its optimal performance and longevity. While many EFI fuel pumps are designed to operate in a vertical position, some models can function effectively when mounted horizontally or at an angle. However, vertical mounting is generally recommended to ensure proper fuel flow, minimize the risk of air pockets, and maintain the pump's internal components in their intended alignment. Deviating from the manufacturer's specified orientation may lead to reduced efficiency, increased wear, or even pump failure. Therefore, it is essential to consult the pump's documentation or manufacturer guidelines to determine the correct installation orientation for your specific EFI fuel pump.
| Characteristics | Values |
|---|---|
| Orientation Requirement | EFI fuel pumps do not necessarily need to be vertical. |
| Optimal Positioning | Most EFI fuel pumps are designed to work in any orientation. |
| Manufacturer Recommendations | Always check the manufacturer's guidelines for specific requirements. |
| In-Tank vs. External Pumps | In-tank pumps are typically submerged and orientation-independent. |
| External Pump Considerations | External pumps may have specific mounting requirements. |
| Performance Impact | Orientation rarely affects performance if the pump is designed for it. |
| Common Misconception | Vertical orientation is often assumed necessary but is not always true. |
| Installation Flexibility | Many EFI pumps offer flexibility in mounting angles. |
| Gravity and Fuel Flow | Proper fuel flow is maintained regardless of orientation in most cases. |
| Safety and Reliability | Correct installation following manufacturer guidelines ensures safety. |
Explore related products
$62.69 $65.99
What You'll Learn
EFI Pump Orientation Basics
EFI fuel pumps are often assumed to require vertical mounting for optimal performance, but this isn’t universally true. Most EFI pumps are designed to operate in multiple orientations, including horizontal, as long as the inlet and outlet ports align with the fuel system’s flow direction. The key lies in understanding the pump’s internal design: turbine or gerotor pumps, for instance, can handle varied angles because they rely on mechanical rotation rather than gravity. However, always consult the manufacturer’s specifications, as some high-performance pumps may have orientation restrictions to prevent cavitation or fuel starvation.
Mounting an EFI pump vertically isn’t inherently superior; it’s about ensuring consistent fuel delivery. Vertical placement can simplify installation by aligning with the tank’s natural shape, but horizontal mounting may be preferable in tight spaces or custom setups. For example, in a race car with a low-profile fuel cell, a horizontal pump reduces height constraints while maintaining efficiency. The critical factor is avoiding air pockets near the inlet, which can lead to pump starvation. Use baffled fuel tanks or anti-slosh foam to mitigate this risk, regardless of pump orientation.
When installing an EFI pump, prioritize stability and vibration resistance over orientation dogma. Secure the pump firmly to the tank or mounting plate using rubber isolators to dampen engine vibrations, which can shorten pump life. If mounting horizontally, ensure the inlet is at the lowest point to maximize fuel pickup. For vertical setups, position the outlet at the top to prevent air bubbles from entering the system. Always test the system post-installation by priming the pump and checking for leaks or unusual noises, which could indicate improper orientation or mounting.
A common misconception is that EFI pumps fail when mounted horizontally, but this is rarely the case with modern designs. Pumps like the Walbro 255 or Aeromotive A1000 are engineered to operate in any orientation, provided the fuel system is properly designed. The real challenge lies in maintaining fuel pressure and flow under varying conditions, such as hard cornering or acceleration. For off-road or track applications, consider a pump with a higher flow rate and pair it with a surge tank to ensure uninterrupted fuel delivery, regardless of orientation. Practical tip: If unsure, mock up the pump in both orientations and measure fuel pressure at idle and full throttle to determine the best fit for your setup.
