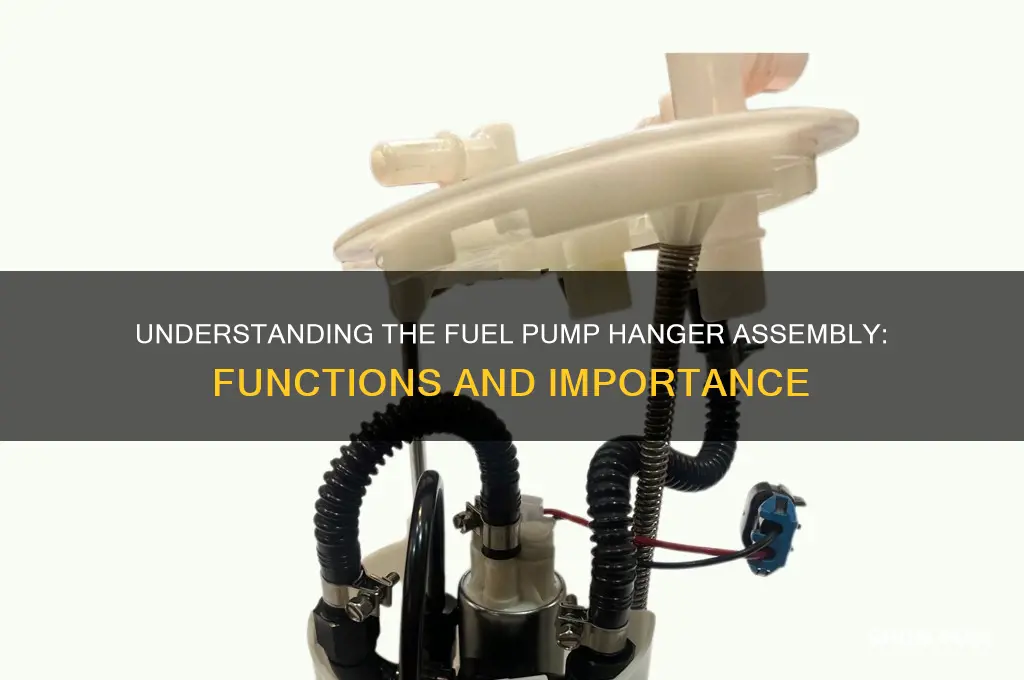

A fuel pump hanger assembly is a critical component in modern vehicles, responsible for housing and supporting the fuel pump within the fuel tank. This assembly typically includes the electric fuel pump, a sending unit that monitors fuel levels, and a float mechanism that relays this information to the fuel gauge. Additionally, it often incorporates a filter to ensure clean fuel delivery to the engine. The hanger assembly is designed to securely mount the fuel pump in place, allowing it to draw fuel efficiently while minimizing noise and vibration. Its proper functioning is essential for maintaining optimal fuel system performance, ensuring reliable vehicle operation, and preventing issues such as fuel starvation or engine misfires.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump hanger assembly is a component in a vehicle's fuel tank that houses and supports the fuel pump, sending unit, and other related components. |
| Primary Function | To deliver fuel from the tank to the engine efficiently while maintaining proper fuel pressure and level monitoring. |
| Components | Includes the fuel pump, fuel level sender, float, filter, pressure regulator, and electrical connectors. |
| Material | Typically made of durable plastics, metals, or composites to withstand fuel exposure and tank conditions. |
| Location | Mounted inside the fuel tank, often attached to the top or side of the tank. |
| Compatibility | Vehicle-specific; designed to fit particular makes, models, and years. |
| Maintenance | Generally not serviceable individually; the entire assembly is replaced if faulty. |
| Common Issues | Fuel pump failure, sender unit malfunction, leaks, or electrical connector corrosion. |
| Replacement Cost | Varies widely ($100-$500+), depending on vehicle type and part quality. |
| Lifespan | Typically lasts the life of the vehicle if maintained properly, but can fail prematurely due to contamination or wear. |
| Importance | Critical for engine operation; failure can lead to stalling, poor performance, or inability to start the vehicle. |
Explore related products
What You'll Learn
Fuel Pump Hanger Assembly Components
The fuel pump hanger assembly is a critical component in modern vehicles, serving as the backbone of the fuel delivery system. At its core, this assembly houses the electric fuel pump, which is responsible for drawing fuel from the tank and delivering it to the engine. However, the hanger assembly is more than just a mounting point; it integrates several essential components that ensure efficient and reliable fuel management. Understanding these components is key to diagnosing issues and maintaining optimal vehicle performance.
One of the primary components is the fuel pump module, which includes the electric pump, a filter, and often a pressure regulator. The pump itself is typically a turbine or gerotor design, capable of generating the necessary pressure to push fuel through the system. The integrated filter prevents contaminants from reaching the engine, while the pressure regulator ensures fuel is delivered at the correct pressure, typically between 40 and 60 psi for most gasoline engines. Regular inspection of the filter is crucial, as a clogged filter can lead to poor engine performance or even stalling.
Another critical component is the float and sender unit, which monitors fuel levels and sends this information to the vehicle’s fuel gauge. The float, usually made of foam or plastic, rises and falls with the fuel level, moving a variable resistor that adjusts the gauge reading. Over time, the float can degrade or become misaligned, leading to inaccurate fuel level readings. If your fuel gauge behaves erratically, this component is often the culprit and may require replacement.
The wiring harness and connectors are equally important, as they supply power to the fuel pump and transmit signals from the sender unit. These components are exposed to harsh conditions, including fuel vapors and temperature fluctuations, which can cause corrosion or damage. A faulty connection can result in intermittent pump operation or a complete loss of power. When inspecting the hanger assembly, always check for frayed wires, loose connections, or signs of corrosion, and clean or replace them as needed.
Lastly, the hanger itself is a structural component that secures the entire assembly to the fuel tank. Made of durable materials like steel or high-strength plastic, it must withstand the weight of the module and the sloshing motion of fuel during driving. A cracked or broken hanger can cause the assembly to drop, potentially damaging the pump or other components. During installation or removal, handle the hanger with care to avoid bending or stress fractures.
In summary, the fuel pump hanger assembly is a complex system where each component plays a vital role in fuel delivery and monitoring. Regular maintenance and understanding of these parts can prevent costly repairs and ensure your vehicle runs smoothly. Whether you’re a DIY enthusiast or a professional mechanic, familiarity with these components is essential for effective troubleshooting and upkeep.
Understanding the Functionality of Evinrude Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
$189
Function of the Hanger Assembly
The fuel pump hanger assembly is a critical component in modern vehicles, serving as the backbone of the fuel delivery system. At its core, this assembly houses the electric fuel pump, which is responsible for drawing fuel from the tank and delivering it to the engine at the required pressure. But its function extends far beyond mere fuel conveyance. The hanger assembly also integrates other essential components, such as the fuel level sender, pressure regulator, and, in some designs, the fuel filter. This consolidation of parts into a single unit simplifies installation, reduces potential leak points, and ensures consistent fuel supply under varying driving conditions.
Consider the engineering behind its design. The hanger assembly is strategically mounted inside the fuel tank, often suspended from the tank’s upper surface. This placement keeps the fuel pump submerged in fuel, preventing it from overheating and ensuring a steady supply, even when fuel levels are low. For instance, in vehicles with saddle-style tanks (split tanks), the hanger assembly may include dual pumps or a single high-capacity pump to manage fuel from both sides. This design adaptability highlights its role in optimizing fuel system efficiency across different vehicle architectures.
From a maintenance perspective, understanding the hanger assembly’s function is crucial for diagnosing fuel system issues. Symptoms like engine sputtering, poor acceleration, or a "check engine" light often trace back to a failing fuel pump or related components within the assembly. Replacing the entire hanger assembly, rather than individual parts, is typically recommended due to its integrated design. However, this task requires precision: the fuel tank must be safely lowered, and electrical connections must be handled carefully to avoid damage. DIY enthusiasts should note that working on fuel systems carries risks, including fire hazards, so adhering to safety protocols is non-negotiable.
A comparative analysis reveals the evolution of hanger assemblies in response to automotive advancements. Early designs often featured separate fuel pumps and level senders, leading to complex installations and higher failure rates. Modern assemblies, however, are engineered for durability and efficiency, with materials like corrosion-resistant plastics and advanced sealing technologies. For example, some assemblies now incorporate turbine-style pumps for quieter operation and higher flow rates, catering to the demands of high-performance engines. This progression underscores the hanger assembly’s role as a silent enabler of vehicle performance.
Finally, the hanger assembly’s function extends to environmental and safety considerations. By maintaining precise fuel pressure and flow, it ensures optimal combustion, reducing emissions and improving fuel economy. Additionally, its design minimizes the risk of fuel leaks, a critical safety feature in preventing fires or explosions. For electric vehicles (EVs), while the hanger assembly is obsolete, its legacy in internal combustion engines (ICEs) remains a testament to its importance in automotive engineering. Whether you’re a mechanic, engineer, or car owner, appreciating the hanger assembly’s multifaceted role provides valuable insights into the intricacies of modern fuel systems.
Best Places to Buy Fuel Pumps in Singapore: A Comprehensive Guide
You may want to see also
Explore related products
Common Signs of Failure
A fuel pump hanger assembly is a critical component in modern vehicles, housing the fuel pump, level sensor, and often the fuel filter within the fuel tank. Its failure can lead to drivability issues, safety hazards, or even engine damage. Recognizing early signs of failure is essential for timely intervention.
Symptoms of a Failing Assembly: The Diagnostic Checklist
One of the first indicators is a whining noise from the fuel tank, especially during acceleration or when the fuel level is low. This sound often signals a worn pump motor or damaged internal components. Another red flag is erratic engine behavior, such as stalling, misfiring, or difficulty starting, particularly in hot weather when fuel vaporization increases. These symptoms arise from inconsistent fuel delivery, a direct consequence of a failing assembly.
The Role of Fuel Pressure and Flow: A Comparative Analysis
Compare a healthy system to a failing one by testing fuel pressure and flow. A functioning assembly maintains pressure between 45–75 psi (depending on the vehicle), ensuring optimal engine performance. A failing unit may drop below this range, causing hesitation or power loss, especially under load. For instance, if a vehicle struggles to climb hills or accelerates sluggishly, test the pressure using a gauge at the fuel rail—a reading 10–15 psi below spec indicates potential assembly failure.
Visual and Functional Clues: What to Inspect
During routine maintenance, inspect the fuel tank area for leaks or corrosion, which can compromise the assembly’s seal. Contaminated fuel, often caused by a failing filter within the assembly, may leave debris in the fuel lines or injectors. If the check engine light illuminates with codes related to fuel system lean conditions (e.g., P0171), this could point to a failing pump or sender unit. Always cross-reference these codes with a scan tool for accuracy.
Preventive Measures: Extending Assembly Lifespan
To mitigate premature failure, avoid running the tank below ¼ full, as this deprives the pump of cooling fuel, accelerating wear. Use high-quality fuel to prevent internal contamination, and replace the assembly every 100,000–150,000 miles or as recommended by the manufacturer. For DIYers, ensure the new assembly is properly sealed and grounded during installation to prevent electrical shorts or leaks. Ignoring these signs can lead to costly repairs, including fuel injector or catalytic converter damage, making proactive maintenance a smarter choice.
Step-by-Step Guide to Replacing the Fuel Pump in a 2008 Escalade
You may want to see also
Explore related products
Replacement Process Overview
The fuel pump hanger assembly is a critical component in modern vehicles, housing the fuel pump, level sender, and often the fuel filter within the fuel tank. When this assembly fails, it can lead to poor engine performance, stalling, or even a no-start condition. Replacing it requires precision and care to avoid fuel system contamination or damage. Here’s a detailed overview of the replacement process, structured to guide both DIY enthusiasts and professionals.
Step-by-Step Replacement Process: Begin by relieving fuel system pressure to prevent accidental fuel spray. Locate the fuel pump access panel, typically beneath the rear seat or trunk, depending on the vehicle. Disconnect the negative battery terminal to eliminate electrical hazards. Remove the fuel tank access cover and unplug the electrical connectors from the fuel pump assembly. Carefully lower the tank to access the assembly, ensuring the tank is as empty as possible to reduce weight and spillage risk. Use a specialized tool to release the locking ring securing the assembly, then gently extract it from the tank.
Cautions and Best Practices: Always work in a well-ventilated area and avoid open flames or sparks due to fuel vapors. Inspect the tank for debris or rust before installing the new assembly, as contaminants can cause premature failure. When installing the new assembly, ensure the rubber gasket is properly seated to prevent leaks. Torque the locking ring to manufacturer specifications—overtightening can damage the tank, while undertightening may cause leaks. Reassemble the fuel tank and reconnect all electrical components, ensuring a secure fit.
Post-Installation Verification: After reassembly, reconnect the battery and turn the ignition to the "on" position (without starting the engine) to pressurize the fuel system. Check for leaks around the tank and assembly. If no leaks are detected, start the engine and monitor for unusual noises or performance issues. A fuel pressure gauge can be used to verify the pump operates within the manufacturer’s specified range, typically between 30–60 psi for most vehicles.
Practical Tips for Success: For vehicles with in-tank fuel filters, consider replacing the filter as part of the assembly to ensure optimal fuel flow. Use a drain pan to catch residual fuel during tank removal, and have absorbent materials on hand for spills. If the locking ring is stubborn, apply gentle heat with a heat gun to expand the metal, but avoid overheating. Finally, consult the vehicle’s service manual for model-specific instructions, as designs vary across makes and models.
By following these steps and precautions, the replacement of a fuel pump hanger assembly can be completed efficiently and safely, restoring the vehicle’s fuel system to optimal functionality.
Diagnosing Your Vehicle: How to Check if a Fuel Pump is Working
You may want to see also
Explore related products
Compatibility with Vehicle Models
A fuel pump hanger assembly is a critical component in modern vehicles, housing the fuel pump, sending unit, and other parts essential for fuel delivery. Its compatibility with specific vehicle models is paramount, as even slight variations in design can lead to inefficiency or failure. Manufacturers often engineer these assemblies to fit precise makes and models, ensuring optimal performance and safety. For instance, a fuel pump hanger designed for a 2015 Toyota Camry may not align with the fuel tank contours of a 2016 Honda Civic, despite superficial similarities.
When replacing a fuel pump hanger assembly, verifying compatibility is the first step. Start by consulting the vehicle’s service manual or using a VIN decoder tool to identify the exact part number required. Aftermarket parts may offer cost savings, but they must meet OEM (Original Equipment Manufacturer) specifications to ensure proper fit and function. For example, a universal fuel pump hanger might seem versatile, but it could lack the precise fuel level sensor calibration needed for a 2020 Ford F-150, leading to inaccurate fuel gauge readings.
Compatibility issues often arise from generational changes within the same model. For instance, a fuel pump hanger assembly for a 2010 Chevrolet Malibu may not fit a 2015 version due to redesigned fuel tank dimensions or electrical connector configurations. Always cross-reference the part number with the vehicle’s year, make, model, and engine type. Online databases like Parts.com or RockAuto can assist in this process, but double-checking with a trusted mechanic or dealership is advisable for high-stakes components like fuel systems.
In some cases, minor modifications can make an incompatible assembly work, but this is risky. For example, altering the wiring harness to fit a non-compatible fuel pump hanger could void warranties or compromise safety. Instead, prioritize parts specifically engineered for your vehicle. If budget is a concern, consider remanufactured assemblies, which are rebuilt to OEM standards and often come with warranties. Always ensure the replacement part includes all necessary components, such as the fuel level sensor and pressure regulator, to avoid additional labor costs.
Finally, compatibility extends beyond physical fitment to include performance metrics. A fuel pump hanger assembly must deliver the correct fuel pressure and flow rate for the engine’s requirements. For high-performance vehicles like a 2018 BMW M3, an assembly designed for a standard sedan may not meet the increased fuel demands, leading to engine misfires or reduced power. Always match the part to the vehicle’s intended use, whether it’s daily commuting or track racing, to ensure longevity and reliability.
Identifying Your External Fuel Pump: A Step-by-Step Guide for Car Owners
You may want to see also
Frequently asked questions
A fuel pump hanger assembly is a component in a vehicle's fuel system that houses the fuel pump, sending unit, and other related parts. It is typically mounted inside the fuel tank and ensures proper fuel delivery to the engine.
The main components include the fuel pump, fuel level sender (sending unit), fuel filter, pressure regulator, and the hanger itself, which holds the assembly in place within the fuel tank.
Common signs include difficulty starting the engine, sputtering or stalling during acceleration, reduced fuel efficiency, and illumination of the check engine light. Unusual noises from the fuel tank area may also indicate a problem.
