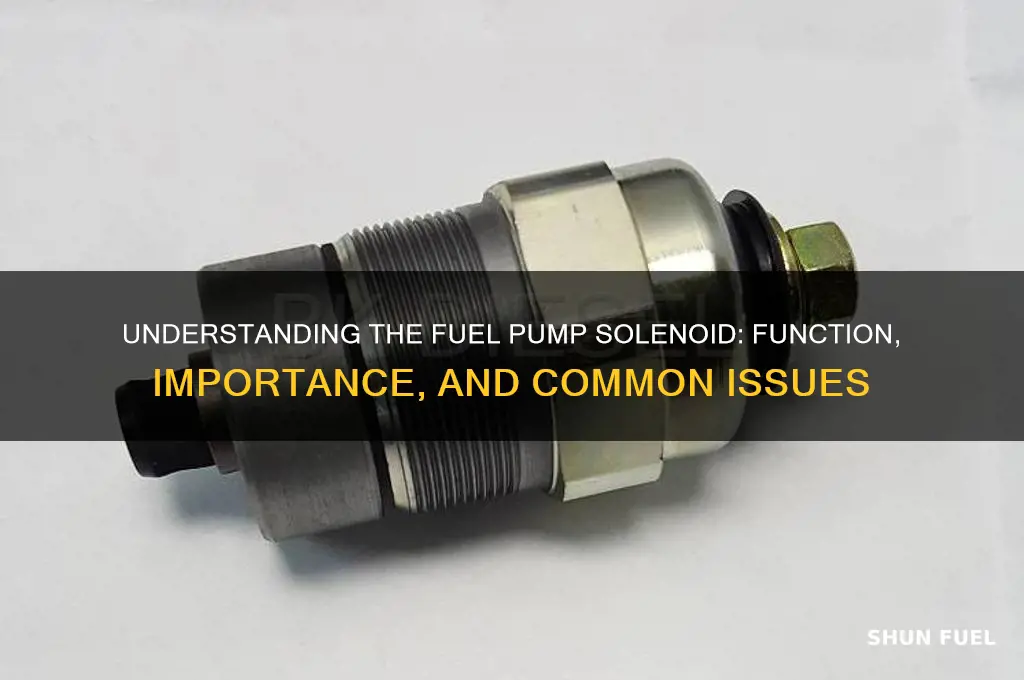

A fuel pump solenoid is a critical component in modern vehicle fuel systems, responsible for controlling the operation of the fuel pump. Typically located within the fuel tank or near the fuel pump assembly, the solenoid acts as an electromagnetic switch that activates or deactivates the fuel pump based on signals from the vehicle’s engine control unit (ECU). When the ignition is turned on, the ECU sends an electrical signal to the solenoid, which then allows the fuel pump to pressurize the fuel system and deliver fuel to the engine. This mechanism ensures efficient fuel delivery while preventing unnecessary pump operation, thereby conserving energy and reducing wear on the system. Malfunctioning solenoids can lead to issues such as engine stalling, difficulty starting, or poor performance, making them essential to diagnose and maintain for optimal vehicle functionality.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump solenoid is an electromagnetic component that controls the operation of the fuel pump in modern vehicles. |
| Function | Regulates fuel pressure, activates the fuel pump, and ensures proper fuel delivery to the engine. |
| Location | Typically located inside or near the fuel pump module, often in the fuel tank. |
| Operation | Uses an electromagnetic coil to open or close a valve, controlling fuel flow. |
| Power Source | Powered by the vehicle's electrical system (12V or 24V depending on the vehicle). |
| Material | Constructed from durable materials like steel, aluminum, or plastic to withstand fuel exposure. |
| Failure Symptoms | Engine stalling, difficulty starting, reduced fuel efficiency, or a whining noise from the fuel tank. |
| Maintenance | Generally maintenance-free, but may require replacement if faulty. |
| Compatibility | Specific to vehicle make, model, and engine type; not universally interchangeable. |
| Cost | Replacement costs vary, typically ranging from $50 to $200 depending on the vehicle and brand. |
| Lifespan | Designed to last the lifetime of the vehicle, but can fail prematurely due to wear or contamination. |
| Diagnostic Codes | A faulty solenoid may trigger error codes related to fuel system pressure or pump operation (e.g., P0087, P0088). |
Explore related products
What You'll Learn
- Fuel Pump Solenoid Function: Controls fuel pump operation, ensuring proper fuel delivery to the engine
- Solenoid Components: Includes coil, plunger, and spring for precise fuel pump activation
- Common Failure Symptoms: Engine stalling, hard starting, or no fuel pressure due to solenoid issues
- Testing the Solenoid: Use a multimeter to check resistance and ensure proper functionality
- Replacement Process: Locate, disconnect, and replace the faulty solenoid with a new unit
Fuel Pump Solenoid Function: Controls fuel pump operation, ensuring proper fuel delivery to the engine
The fuel pump solenoid is a critical component in modern fuel systems, acting as the gatekeeper for fuel delivery to the engine. Its primary function is to control the operation of the fuel pump, ensuring that the engine receives the precise amount of fuel it needs at any given moment. This is achieved through a sophisticated interplay of electrical signals and mechanical responses. When the ignition is turned on, the solenoid receives a signal from the engine control unit (ECU), activating the fuel pump to begin delivering fuel. Conversely, when the engine is off, the solenoid deactivates the pump to prevent unnecessary fuel flow, reducing the risk of leaks and improving safety.
Consider the solenoid as the conductor of an orchestra, where the fuel pump is the lead instrument. Without precise timing and control, the performance—or in this case, engine operation—would be chaotic. For instance, during cold starts, the solenoid ensures the fuel pump operates at a higher pressure to deliver extra fuel, aiding in smooth ignition. Once the engine warms up, the solenoid adjusts the pump’s operation to maintain optimal fuel delivery, balancing performance and efficiency. This dynamic control is essential for modern vehicles, which demand both power and fuel economy.
From a maintenance perspective, understanding the fuel pump solenoid’s role is crucial for diagnosing fuel system issues. Symptoms of a failing solenoid include hard starting, stalling, or erratic engine performance. If you suspect a problem, start by checking for error codes using an OBD-II scanner, as many solenoid malfunctions trigger diagnostic trouble codes (DTCs). Common causes of failure include electrical shorts, corrosion, or wear due to age. Replacement typically involves accessing the solenoid, often located near the fuel pump or within the fuel tank, and ensuring compatibility with your vehicle’s make and model. Always consult the manufacturer’s guidelines for specific instructions.
Comparing the fuel pump solenoid to other fuel system components highlights its unique importance. While the fuel pump itself generates pressure, and the fuel pressure regulator maintains consistency, the solenoid is the decision-maker, dictating when and how the pump operates. This distinction is particularly evident in returnless fuel systems, where the solenoid’s role is even more critical, as it directly controls fuel flow without a return line. In contrast, older carbureted systems lacked such precision, relying on mechanical pumps and simpler mechanisms.
Finally, for DIY enthusiasts, testing a fuel pump solenoid requires a multimeter and basic electrical knowledge. Start by disconnecting the solenoid’s wiring harness and measuring resistance across its terminals. A reading outside the manufacturer’s specified range (typically 10–30 ohms) indicates a faulty solenoid. Additionally, apply 12 volts directly to the solenoid to check for mechanical activation. If it fails to engage, replacement is necessary. Always prioritize safety by working in a well-ventilated area and disconnecting the battery before handling fuel system components. This hands-on approach not only saves on repair costs but also deepens your understanding of your vehicle’s inner workings.
Who Manufactures O'Reilly Auto Parts Precision Fuel Pumps?
You may want to see also
Explore related products
Solenoid Components: Includes coil, plunger, and spring for precise fuel pump activation
A fuel pump solenoid is a critical component in modern fuel systems, ensuring precise fuel delivery to the engine. At its core, the solenoid operates through the interplay of three essential components: the coil, plunger, and spring. Each part plays a distinct role in achieving accurate and reliable fuel pump activation. Understanding these components not only sheds light on the solenoid’s functionality but also highlights its importance in maintaining engine efficiency and performance.
The coil is the heart of the solenoid, generating a magnetic field when an electric current passes through it. This magnetic field is the driving force behind the solenoid’s operation. When the engine control unit (ECU) sends a signal, the coil energizes, creating a pull that activates the plunger. The coil’s efficiency depends on its material quality and the precision of its windings. For instance, copper coils are preferred for their high conductivity, ensuring minimal energy loss during operation. Proper maintenance, such as checking for corrosion or damage, is crucial to prevent coil failure, which can lead to erratic fuel delivery.
The plunger, typically made of ferromagnetic materials like iron or steel, responds to the magnetic field generated by the coil. When the coil energizes, the plunger moves linearly, opening or closing the fuel pump’s valve. This movement must be swift and precise to ensure the correct amount of fuel is delivered to the engine. Wear and tear on the plunger, such as scoring or deformation, can compromise its ability to move freely, leading to inefficient fuel delivery. Regular inspection and replacement of the plunger, especially in high-mileage vehicles, can prevent such issues.
The spring is often overlooked but is equally vital in the solenoid’s operation. It provides the counterforce necessary to return the plunger to its resting position once the coil is de-energized. The spring’s tension must be carefully calibrated to balance responsiveness and durability. A spring that is too weak may fail to return the plunger promptly, while one that is too strong can cause unnecessary strain on the system. For optimal performance, springs should be replaced every 50,000 to 70,000 miles, depending on driving conditions and vehicle usage.
Together, these components form a harmonious system that ensures precise fuel pump activation. The coil’s magnetic field drives the plunger, while the spring ensures a reliable return to the starting position. This synergy is essential for maintaining fuel efficiency, reducing emissions, and prolonging engine life. For DIY enthusiasts, understanding these components can aid in troubleshooting common issues, such as a failing fuel pump or inconsistent engine performance. By focusing on the coil, plunger, and spring, one can appreciate the intricate engineering behind the fuel pump solenoid and its role in modern automotive systems.
Driving with a Failing Fuel Pump: Tips to Safely Reach Your Destination
You may want to see also
Explore related products
Common Failure Symptoms: Engine stalling, hard starting, or no fuel pressure due to solenoid issues
A fuel pump solenoid is a critical component in modern fuel systems, acting as the switch that controls the fuel pump's operation. When it malfunctions, the symptoms can be both immediate and alarming. One of the most common signs of a failing fuel pump solenoid is engine stalling, often occurring without warning while driving. This happens because the solenoid fails to maintain the necessary electrical connection to keep the fuel pump running, cutting off fuel supply to the engine. If you notice your vehicle suddenly losing power and coming to a halt, especially under load or at high speeds, the solenoid could be the culprit.
Another telltale symptom is hard starting, where the engine cranks but struggles to ignite. This issue arises when the solenoid fails to activate the fuel pump properly during the initial startup sequence. In some cases, the engine may start briefly before dying, or it may require multiple attempts to turn over. This can be particularly frustrating in cold weather or after the vehicle has been sitting for extended periods. A diagnostic tip: If you hear the fuel pump priming (a brief humming sound) when turning the key to the "on" position but the engine still won’t start, the solenoid may be partially engaged but failing to sustain operation.
No fuel pressure is a more severe symptom, often indicating a completely failed solenoid. Without fuel pressure, the engine cannot receive the necessary fuel to combust, resulting in a no-start condition. To test for this, use a fuel pressure gauge to check the pressure at the fuel rail. If the reading is zero or significantly below specifications (typically 30–60 psi for most vehicles), the solenoid is likely at fault. This symptom is often accompanied by a lack of humming from the fuel pump when the ignition is turned on, confirming the electrical circuit to the pump is disrupted.
Addressing these issues promptly is crucial, as prolonged solenoid failure can lead to further damage, such as a burned-out fuel pump or contaminated fuel injectors. A practical tip: If you suspect solenoid failure, check the fuse and relay associated with the fuel pump first, as these are easier and cheaper to replace. If those components are intact, the solenoid itself may need replacement. Always consult your vehicle’s manual for specific diagnostic procedures and torque specifications when working on the fuel system. Ignoring these symptoms can leave you stranded, so act at the first sign of trouble.
Diagnosing a Faulty Fuel Pump: Signs and Testing Methods
You may want to see also
Explore related products
Testing the Solenoid: Use a multimeter to check resistance and ensure proper functionality
A fuel pump solenoid is a critical component in modern fuel systems, acting as a valve that controls the flow of fuel from the tank to the engine. When it malfunctions, your vehicle may experience poor performance, stalling, or even failure to start. Testing the solenoid’s functionality is a straightforward process that can save you time and money by pinpointing the issue before replacing parts unnecessarily. Using a multimeter to check resistance is the most reliable method to ensure the solenoid is operating within specifications.
To begin testing, locate the fuel pump solenoid, typically found near the fuel tank or within the fuel pump module. Disconnect the electrical connector to access the solenoid’s terminals. Set your multimeter to the resistance (ohms) setting and touch the probes to the terminals. A properly functioning solenoid should display a resistance value within the manufacturer’s specified range, often between 10 and 30 ohms, depending on the vehicle. If the reading is significantly higher or lower, the solenoid may be faulty and require replacement. Always consult your vehicle’s service manual for the exact resistance range.
While testing, ensure the solenoid is at operating temperature, as resistance can vary with temperature. If the vehicle has been running, allow the solenoid to cool for a few minutes before testing to avoid inaccurate readings. Additionally, inspect the wiring harness for damage or corrosion, as these issues can mimic a faulty solenoid. A clean, secure connection is essential for accurate testing. If the resistance is within range but the vehicle still exhibits fuel delivery issues, consider testing the solenoid’s operation under voltage using a battery or power supply, though this requires caution to avoid electrical hazards.
Comparing the solenoid’s resistance to known benchmarks can provide valuable insights. For instance, a solenoid with infinite resistance indicates an open circuit, while zero resistance suggests a short circuit. Both scenarios render the solenoid inoperable. If you’re unsure about the results, test a known-good solenoid for reference. This comparative approach helps eliminate doubt and ensures you’re not misinterpreting the readings. Remember, consistency is key—repeat the test multiple times to confirm the results.
In conclusion, testing a fuel pump solenoid with a multimeter is a practical skill that empowers vehicle owners to diagnose fuel system issues accurately. By focusing on resistance values and following precise steps, you can determine whether the solenoid is the culprit or if the problem lies elsewhere. This method not only saves on diagnostic costs but also fosters a deeper understanding of your vehicle’s mechanics. With the right tools and knowledge, you can tackle fuel system troubleshooting with confidence.
DIY Fuel Pump Repair: Step-by-Step Guide to Fix It at Home
You may want to see also
Explore related products
Replacement Process: Locate, disconnect, and replace the faulty solenoid with a new unit
A fuel pump solenoid is a critical component in modern fuel systems, controlling the operation of the fuel pump to ensure optimal engine performance. When this solenoid fails, it can lead to poor fuel efficiency, engine stalling, or even complete vehicle breakdown. Replacing a faulty fuel pump solenoid is a task that requires precision and attention to detail. Here’s a step-by-step guide to locating, disconnecting, and replacing the faulty unit with a new one.
Locating the Solenoid: The First Step to Resolution
Begin by consulting your vehicle’s service manual to identify the exact location of the fuel pump solenoid. In most vehicles, it is integrated into the fuel pump module, often located in the fuel tank. For some models, like the Toyota Camry or Ford F-150, the solenoid may be accessible without removing the tank, but this varies. If the solenoid is tank-mounted, you’ll need to depressurize the fuel system by relieving the pressure via the Schrader valve (typically located near the fuel rail). Safety is paramount—work in a well-ventilated area and avoid open flames or sparks.
Disconnecting the Faulty Unit: Precision and Care
Once located, disconnect the electrical connector from the solenoid. This usually involves pressing a tab or squeezing a clip to release the connector. Next, remove any retaining clips or bolts securing the solenoid to the fuel pump assembly. Be cautious not to damage surrounding components, especially if the solenoid is part of a larger module. For example, in a GM vehicle, the solenoid may be part of a sender unit, requiring careful disassembly to avoid damaging the float mechanism. Always use the appropriate tools to avoid stripping screws or breaking plastic components.
Replacing with a New Unit: Ensuring Compatibility and Functionality
Install the new solenoid by reversing the removal process. Ensure the replacement unit is compatible with your vehicle’s make, model, and year. For instance, a solenoid for a 2015 Honda Civic may differ from one for a 2010 model due to changes in fuel system design. Secure the solenoid with the retaining clips or bolts, then reconnect the electrical connector. If the solenoid is tank-mounted, reassemble the fuel pump module and reinstall it into the tank. Double-check all connections and ensure the fuel system is properly sealed to prevent leaks.
Post-Replacement Checks: Confirming Success
After replacement, repressurize the fuel system and start the engine to verify the solenoid’s functionality. Monitor for unusual noises, leaks, or performance issues. A scan tool can be used to check for error codes related to the fuel pump or solenoid. If the vehicle runs smoothly and no codes appear, the replacement was successful. For added assurance, perform a test drive to ensure the solenoid operates correctly under various driving conditions.
By following these steps, you can effectively replace a faulty fuel pump solenoid, restoring your vehicle’s fuel system to optimal performance. While the process may seem daunting, careful preparation and attention to detail make it manageable, even for intermediate DIY mechanics. Always prioritize safety and consult your vehicle’s manual for model-specific instructions.
Does the 175 Model Include a Fuel Pump? Find Out Here
You may want to see also
Frequently asked questions
A fuel pump solenoid is an electromechanical device used in vehicles to control the operation of the fuel pump. It acts as a switch, allowing or restricting the flow of current to the fuel pump, thereby regulating fuel delivery to the engine.
The fuel pump solenoid works by receiving an electrical signal from the vehicle's engine control unit (ECU). When activated, it opens a valve or completes a circuit, enabling the fuel pump to operate. This ensures that fuel is supplied to the engine only when needed, optimizing efficiency and performance.
Common symptoms of a failing fuel pump solenoid include difficulty starting the engine, stalling, reduced fuel pressure, or a complete lack of fuel delivery. You may also notice error codes related to the fuel system when diagnosed with a scan tool.
