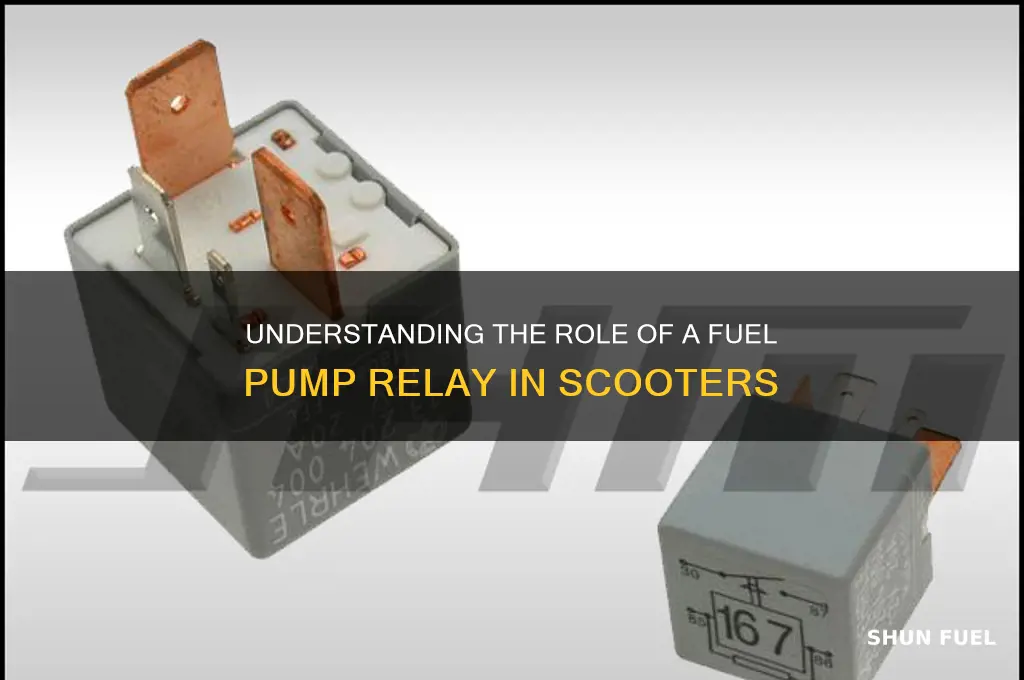

A fuel pump relay on a scooter is a crucial component of the vehicle's fuel system, acting as an electrical switch that controls the power supply to the fuel pump. Typically located in the fuse box or under the seat, this relay ensures that the fuel pump operates only when the engine is running or being started, conserving energy and preventing unnecessary fuel flow. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU), allowing current to flow to the fuel pump, which then delivers fuel from the tank to the engine. If the fuel pump relay malfunctions, it can lead to issues such as difficulty starting the scooter, stalling, or a complete failure of the fuel system, making it an essential part to maintain for optimal scooter performance.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump relay on a scooter is an electrical switch that controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. |
| Function | Acts as an intermediary between the ignition switch and the fuel pump, preventing the pump from running continuously and conserving energy. |
| Location | Typically found in the scooter's fuse box or relay panel, often near the battery or under the seat. |
| Voltage | Operates on the scooter's standard electrical system voltage, usually 12V DC. |
| Activation | Activated by the ignition switch or engine control unit (ECU) when the scooter is turned on. |
| Failure Symptoms | Engine not starting, stalling, or difficulty starting; fuel pump not running; or continuous fuel pump operation. |
| Replacement | Requires replacement if faulty; ensure compatibility with the scooter's make and model. |
| Safety Feature | Prevents fuel pump operation during accidents or when the engine is off, reducing fire risk. |
| Type | Typically a solid-state or electromagnetic relay, depending on the scooter's design. |
| Maintenance | Generally maintenance-free, but should be inspected during routine electrical system checks. |
Explore related products
What You'll Learn
- Fuel Pump Relay Function: Controls power to the fuel pump, ensuring proper fuel delivery to the engine
- Location on Scooter: Typically found near the battery or under the seat for easy access
- Common Symptoms of Failure: Engine stalling, difficulty starting, or no fuel pump operation
- Testing the Relay: Use a multimeter to check for continuity and proper switching
- Replacement Process: Disconnect battery, remove old relay, and install new one securely
Fuel Pump Relay Function: Controls power to the fuel pump, ensuring proper fuel delivery to the engine
The fuel pump relay in a scooter is a critical component that acts as a switch, managing the electrical power supply to the fuel pump. Without this relay, the fuel pump would either run continuously, draining the battery, or not run at all, leaving the engine starved for fuel. By controlling the power flow, the relay ensures the fuel pump operates only when the engine is running or about to start, optimizing both fuel efficiency and battery life. This mechanism is particularly vital in scooters, where space and energy efficiency are paramount.
Consider the relay as a gatekeeper, activated by the ignition system. When you turn the key, the relay receives a signal, closes the circuit, and allows electricity to reach the fuel pump. This process is timed to coincide with the engine’s needs, ensuring fuel is delivered precisely when required. For instance, in a 50cc scooter, the relay might engage within milliseconds of ignition, supplying power to a fuel pump that delivers fuel at a rate of 2–3 liters per hour, sufficient for the engine’s modest demands. This synchronization prevents fuel wastage and reduces wear on the pump.
One practical tip for scooter owners is to listen for unusual noises during startup. If the fuel pump fails to engage, you may hear sputtering or hesitation as the engine struggles for fuel. This could indicate a faulty relay, which is often located near the battery or fuse box. Testing the relay involves checking for continuity with a multimeter; a broken circuit suggests replacement is necessary. Relays are typically inexpensive, costing between $10 and $30, and replacing them can restore proper fuel delivery without the need for extensive repairs.
Comparing the fuel pump relay to other electrical components highlights its unique role. Unlike a fuse, which protects against overcurrent, the relay actively manages power delivery based on operational needs. Similarly, while a fuel pump is a mechanical device, the relay is an electromechanical switch, combining the precision of electronics with the durability of mechanical parts. This hybrid design ensures reliability in the harsh conditions scooters often face, such as vibrations and temperature fluctuations.
In summary, the fuel pump relay is a small but indispensable part of a scooter’s fuel system. By controlling power to the fuel pump, it ensures the engine receives fuel at the right time and in the right amount. Regular maintenance, such as checking for relay functionality, can prevent unexpected breakdowns. Understanding its role not only helps diagnose issues but also underscores the importance of this unassuming component in keeping your scooter running smoothly.
Can a Faulty Fuel Pump Control Module Prevent Spark Ignition?
You may want to see also
Explore related products
Location on Scooter: Typically found near the battery or under the seat for easy access
The fuel pump relay on a scooter is a critical component that ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. Its location is strategically chosen for both functionality and convenience. Typically, you’ll find it near the battery or under the seat, areas that are easily accessible for maintenance or troubleshooting. This placement is no accident—it’s designed to simplify repairs and reduce the risk of damage during routine checks. For instance, if your scooter stalls and you suspect a fuel pump issue, knowing the relay’s location can save you time and frustration.
When locating the fuel pump relay, start by consulting your scooter’s manual, as manufacturers often include diagrams or descriptions. Near the battery is a common spot because it’s a centralized electrical hub, minimizing wiring complexity. Under the seat is another popular location, especially on models with limited storage space, as it keeps the relay protected from the elements while remaining reachable. For example, on a Honda Dio, the relay is often tucked under the seat panel, while some Yamaha models place it in the battery compartment. Understanding these patterns can streamline your search.
Accessibility isn’t just about convenience—it’s also a safety consideration. Placing the relay in these areas reduces the need to disassemble complex parts of the scooter, lowering the risk of accidental damage or injury. For DIY enthusiasts, this means fewer tools and less time spent diagnosing issues. However, always disconnect the battery before handling the relay to avoid electrical mishaps. A practical tip: keep a small flashlight handy, as these areas can be dimly lit, especially under the seat.
Comparing scooter designs reveals why these locations are preferred. Scooters prioritize compactness and efficiency, so components like the fuel pump relay must fit into tight spaces without compromising performance. Near the battery, the relay benefits from proximity to the power source, reducing energy loss. Under the seat, it’s shielded from dirt, water, and debris, extending its lifespan. This dual focus on accessibility and protection highlights thoughtful engineering, ensuring the relay remains functional even in harsh conditions.
In conclusion, the fuel pump relay’s location near the battery or under the seat is a deliberate choice that balances practicality and protection. Whether you’re a seasoned mechanic or a novice rider, knowing where to find it empowers you to address fuel system issues confidently. Keep this guide in mind the next time your scooter acts up—it might just be the key to a quick fix.
Activating Aircraft Fuel Pump Switches: Functions and Critical Role in Flight
You may want to see also
Explore related products
Common Symptoms of Failure: Engine stalling, difficulty starting, or no fuel pump operation
A scooter's fuel pump relay is a critical component that ensures the fuel pump operates efficiently, delivering the necessary fuel to the engine. When this relay fails, the symptoms can be both immediate and frustrating, often leaving riders stranded or struggling with performance issues. Among the most common indicators of a failing fuel pump relay are engine stalling, difficulty starting, and a complete lack of fuel pump operation. These symptoms not only disrupt your ride but also signal deeper mechanical issues that require prompt attention.
Engine stalling is perhaps the most noticeable symptom of a failing fuel pump relay. This occurs when the relay intermittently fails to supply power to the fuel pump, causing the engine to cut out unexpectedly. For instance, you might notice the engine stalls during acceleration, while idling, or under load, such as when climbing a hill. This inconsistency can be dangerous, especially in traffic or at high speeds. To diagnose this issue, pay attention to whether the stalling is accompanied by a sputtering sound or a sudden loss of power, which often points to fuel delivery problems.
Difficulty starting the scooter is another red flag. A failing fuel pump relay may not engage the fuel pump when you turn the ignition, resulting in a lack of fuel pressure in the system. This can manifest as prolonged cranking, a weak start, or no start at all. If you hear the starter motor spinning but the engine doesn’t catch, it’s likely a fuel delivery issue. A quick test is to listen for the fuel pump’s hum when you turn the key to the "on" position; if it’s absent, the relay or pump itself may be at fault.
The most straightforward symptom is no fuel pump operation whatsoever. When the relay fails completely, the fuel pump receives no power, and the engine is starved of fuel. This results in a scooter that won’t start, regardless of how long you crank the engine. In such cases, checking the relay for continuity with a multimeter can confirm if it’s the culprit. If the relay is faulty, replacing it is a straightforward fix that can restore functionality immediately.
To address these symptoms, start by inspecting the fuel pump relay for signs of damage, such as corrosion or burnt pins. If the relay appears intact, test it using a multimeter to check for continuity. If the relay fails the test, replace it with a compatible unit. Additionally, ensure the fuel pump itself is functioning by checking the fuel pressure or listening for its operation. Regular maintenance, such as cleaning electrical connections and using high-quality fuel, can prevent premature relay failure. Ignoring these symptoms can lead to more severe engine damage, so addressing them promptly is essential for keeping your scooter reliable and safe.
Direct Start Fuel Pump on 01 Mustang: Step-by-Step Guide
You may want to see also
Explore related products
Testing the Relay: Use a multimeter to check for continuity and proper switching
A fuel pump relay on a scooter is a critical component that controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. If the relay fails, the fuel pump may not engage, leading to engine stalling or failure to start. Testing the relay using a multimeter is a straightforward way to diagnose issues before replacing parts unnecessarily.
Steps to Test the Relay:
- Locate the Relay: Consult your scooter’s manual to identify the fuel pump relay, typically found in the fuse box or under the seat.
- Remove the Relay: Disconnect the relay by pulling it straight out of its socket. Inspect the pins for corrosion or damage.
- Set the Multimeter: Switch the multimeter to the continuity (beep) or resistance (ohms) setting.
- Test for Continuity: Place the probes on the relay’s input and output pins (refer to the relay’s diagram for pin identification). A functioning relay should show continuity (beep or low resistance) when energized and no continuity when de-energized.
- Simulate Switching: Apply power to the relay’s control pin (usually pin 85 or 86) to simulate activation. The multimeter should indicate continuity between the power (pin 30) and ground (pin 87) pins. If not, the relay is faulty.
Cautions:
- Ensure the scooter is turned off and the ignition is disengaged before testing to avoid electrical hazards.
- Avoid touching the multimeter probes to adjacent pins simultaneously, as this can short-circuit the relay.
- If the relay has a diode (common in modern relays), test it separately by checking for continuity in one direction only.
Testing the fuel pump relay with a multimeter is a cost-effective and precise method to diagnose electrical issues. By verifying continuity and proper switching, you can determine whether the relay is functioning correctly or needs replacement. This process saves time and prevents misdiagnosis, ensuring your scooter’s fuel system operates reliably.
Exploring 1994 Vehicles: Did They Feature Fuel Pump Driver Modules?
You may want to see also
Explore related products
$7.99 $8.49
Replacement Process: Disconnect battery, remove old relay, and install new one securely
The fuel pump relay on a scooter is a critical component that controls the power supply to the fuel pump, ensuring it operates only when the engine is running. A faulty relay can lead to starting issues, stalling, or even complete engine failure. Replacing it is a straightforward task that requires basic tools and attention to detail. Begin by disconnecting the battery to prevent electrical mishaps, then locate the relay—often found in the fuse box or near the fuel pump—and remove it carefully. Installing the new relay securely is essential to restore proper fuel system functionality.
Step-by-Step Replacement Process
Start by turning off the scooter’s ignition and disconnecting the battery’s negative terminal using a 10mm wrench. This step is non-negotiable, as it prevents accidental short circuits or damage to the electrical system. Next, locate the fuel pump relay, typically housed in the under-seat compartment or near the engine bay. Relays are usually labeled, but consult your scooter’s manual if unsure. Once identified, press the retaining tab (if present) or gently pry the relay out of its socket using a flathead screwdriver. Avoid forcing it, as this can damage the surrounding components.
Cautions and Practical Tips
When removing the old relay, inspect the socket for corrosion or debris. Clean it with a contact cleaner and a soft brush if necessary, ensuring a reliable connection for the new relay. Avoid touching the relay’s terminals with bare hands to prevent oil residue from causing poor conductivity. If the relay is difficult to remove, use a relay puller tool to extract it safely. Always handle the new relay by its edges to maintain its integrity.
Installing the New Relay
Align the new relay with the socket, ensuring the orientation matches the old one. Most relays have a notch or marking to guide proper insertion. Press it firmly into place until it clicks securely. Reattach the battery, ensuring the terminal is tightened to the manufacturer’s torque specifications (typically 8-10 Nm). Test the scooter’s ignition to confirm the fuel pump engages, listening for the characteristic whirring sound. If the issue persists, verify the relay’s compatibility or check for other fuel system faults.
Replacing a fuel pump relay is a cost-effective repair that can save you from unnecessary trips to the mechanic. By following these steps—disconnecting the battery, removing the old relay carefully, and installing the new one securely—you ensure the scooter’s fuel system operates reliably. Regularly inspect the relay during routine maintenance to catch potential issues early. With this knowledge, you’re equipped to tackle one of the most common electrical faults on scooters efficiently.
Mini Cooper 2009 Fuel Pump Fuse Check: Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel pump relay on a scooter is an electrical switch that controls the power supply to the fuel pump. It ensures the fuel pump operates only when the engine is running or being started, conserving energy and preventing unnecessary fuel flow.
The fuel pump relay works by receiving a signal from the ignition system or engine control unit (ECU). When activated, it completes the circuit, allowing electricity to flow to the fuel pump. Once the engine is off, the relay opens the circuit, stopping the fuel pump.
Symptoms of a faulty fuel pump relay include the scooter not starting, stalling, or running poorly due to insufficient fuel delivery. You may also hear the fuel pump not engaging when the ignition is turned on or notice the engine cranks but doesn’t start.
