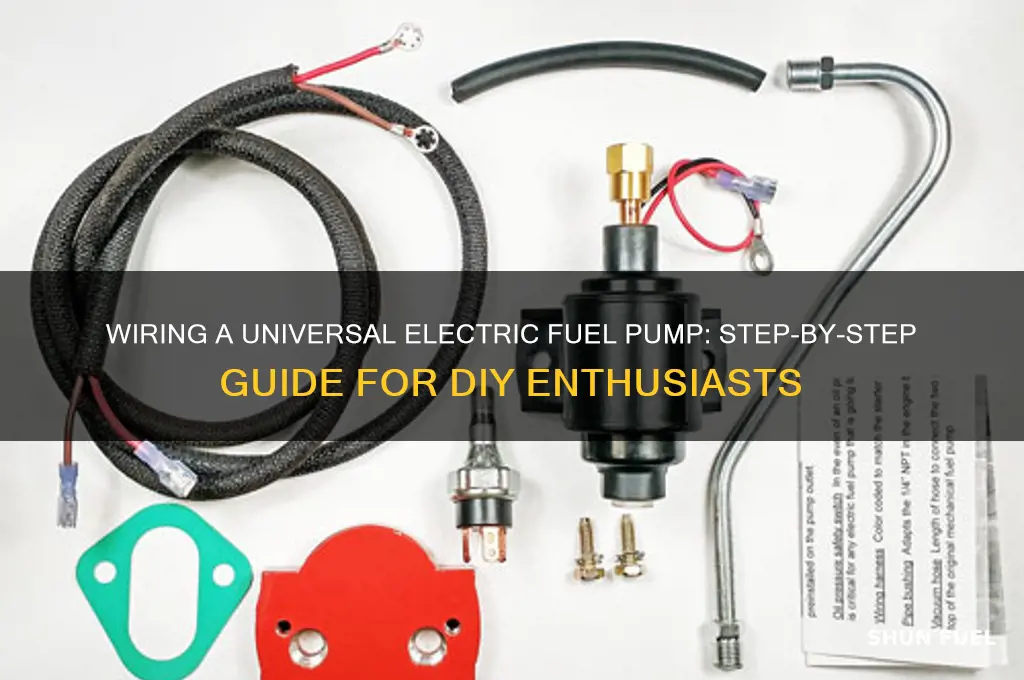

Wiring a universal electric fuel pump is a critical task for ensuring proper fuel delivery in vehicles, especially in custom builds or when upgrading from a mechanical pump. The process involves connecting the pump to a power source, typically the vehicle’s battery, and integrating it with the ignition system for controlled operation. Key components include a relay to manage high current flow, an inline fuse for safety, and a switch or trigger to activate the pump when the engine is running. Proper grounding and wiring gauge selection are essential to prevent electrical issues, while a pressure regulator ensures optimal fuel delivery to the engine. Following a systematic approach and adhering to safety guidelines will guarantee a reliable and efficient fuel pump installation.
| Characteristics | Values |
|---|---|
| Power Source | 12V DC (Vehicle Battery) |
| Wiring Configuration | Typically requires a switched power source (ignition-controlled) |
| Relay Use | Recommended for high-current draw; protects wiring and switches |
| Fuse Protection | Inline fuse (10-20A) required to prevent electrical fires |
| Ground Connection | Securely grounded to the vehicle chassis (clean, rust-free metal surface) |
| Wiring Gauge | 10-14 AWG depending on pump current draw and length of wire |
| Pump Activation | Activated by ignition switch or relay controlled by ignition |
| Pressure Regulator | Required to maintain consistent fuel pressure (typically 3-7 PSI) |
| Fuel Line Connections | Inlet and outlet ports (ensure correct orientation and secure fittings) |
| Mounting Location | Away from heat sources and exhaust; preferably in a cool, dry area |
| Safety Precautions | Avoid sparks near fuel lines; use proper tools and disconnect battery |
| Compatibility | Universal fit for most vehicles; check pump specifications for flow rate |
| Additional Components | Fuel filter, fuel pressure gauge (optional), and wiring connectors |
| Testing Procedure | Test pump operation before final installation; check for leaks and proper flow |
| Maintenance | Regularly inspect wiring, connections, and fuel lines for wear or damage |
Explore related products
What You'll Learn
- Gather Tools and Materials: Wire, connectors, relay, fuse, pump, power source, grounding kit, and safety gear
- Locate Power Source: Identify a switched 12V power source, like the ignition or accessory wire
- Install Relay and Fuse: Connect relay to protect the pump and add an inline fuse for safety
- Wire the Pump: Run power from the relay to the pump and ground it securely to the chassis
- Test and Verify: Check connections, ensure the pump primes, and verify proper operation before driving
Gather Tools and Materials: Wire, connectors, relay, fuse, pump, power source, grounding kit, and safety gear
Before you embark on wiring a universal electric fuel pump, it’s critical to assemble the right tools and materials. This isn’t just about having everything at hand—it’s about ensuring safety, efficiency, and reliability. Start with the essentials: wire rated for automotive use (typically 10-14 gauge for fuel pumps), connectors that match your vehicle’s wiring harness, and a relay to handle the pump’s current draw without overloading the ignition switch. A fuse (usually 10-20 amps) is non-negotiable to protect the circuit from shorts. The pump itself should be compatible with your vehicle’s fuel system, and a power source—often the battery—must be accessible. A grounding kit ensures a solid electrical connection, while safety gear like gloves and goggles protects you from sparks or fuel spills. Skipping any of these items risks failure or danger.
Consider the wire and connectors as the circulatory system of your fuel pump installation. Automotive-grade wire is designed to withstand heat, vibration, and chemical exposure, unlike household wiring, which would degrade quickly. When selecting connectors, opt for weatherproof or heat-shrink varieties to prevent corrosion or disconnection. The relay acts as a middleman, allowing the pump to draw power directly from the battery while the ignition switch merely triggers the circuit. This setup prevents voltage drop and extends the life of your switch. A fuse, placed between the battery and relay, is your last line of defense against electrical fires. Always match the fuse rating to the pump’s amperage draw, typically found in the manufacturer’s specs.
The fuel pump and power source are the heart and lungs of this system. Universal pumps vary widely in flow rate and pressure, so choose one that matches your engine’s demands—too little flow starves the engine, while excessive pressure can damage injectors. When connecting to the power source, use a fused link or circuit breaker to protect the battery. Grounding is equally vital; a poor ground can cause erratic pump operation or even damage the ECU. A grounding kit typically includes a heavy-gauge wire and a self-tapping screw to ensure a clean, low-resistance connection to the chassis. Never rely on painted surfaces for grounding—scrape them clean first.
Safety gear isn’t optional—it’s mandatory. Fuel is flammable, and electrical work carries a risk of sparks. Nitrile gloves resist chemicals and provide insulation, while safety goggles protect against accidental splashes. A fire extinguisher should be nearby, rated for Class B (flammable liquid) fires. Work in a well-ventilated area to avoid inhaling fuel vapors, and never smoke or use open flames during installation. If you’re unsure about any step, consult a professional—a small mistake here can have catastrophic consequences.
Finally, treat this gathering phase as a checklist, not a suggestion. Lay out all materials before starting to avoid mid-project delays. Label wires and connectors to avoid confusion, especially if your vehicle has multiple accessory circuits. Test the pump and relay on a bench before installation to ensure they function correctly. By investing time in preparation, you’ll save hours of troubleshooting later. This isn’t just about wiring a pump—it’s about building a system that’s safe, efficient, and built to last.
