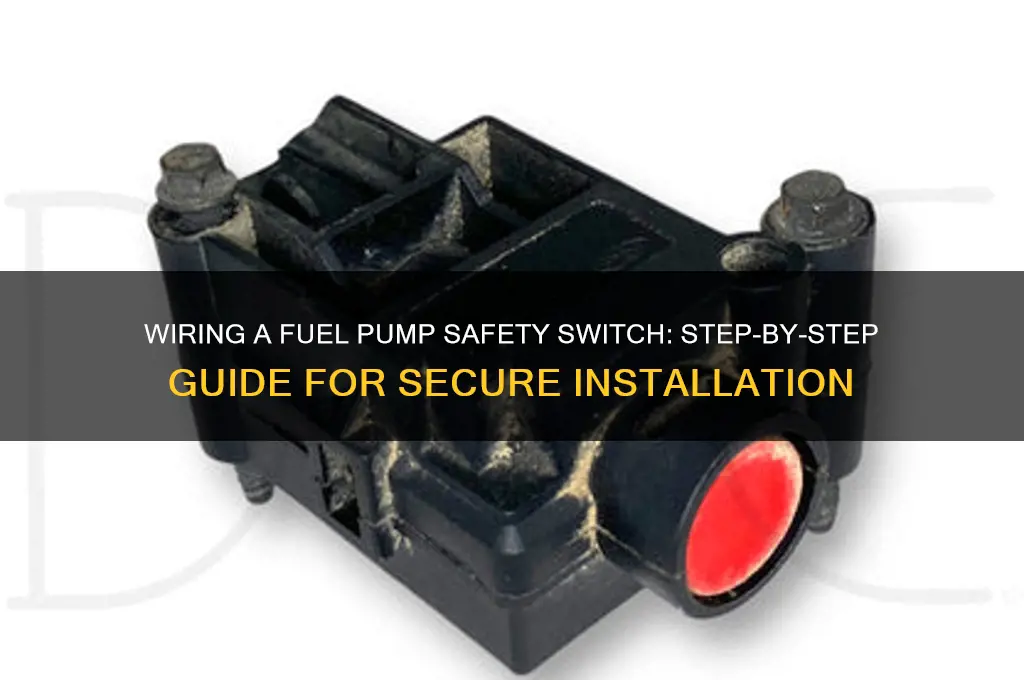

Wiring a fuel pump safety switch is a critical step in ensuring the safety and reliability of your vehicle's fuel system. This switch acts as a safeguard, automatically cutting power to the fuel pump in the event of an accident or rollover, thereby reducing the risk of fire or explosion. To wire it correctly, you’ll need to locate the fuel pump relay or wiring harness, identify the appropriate circuit, and connect the safety switch in series with the fuel pump’s power supply. Ensure the switch is mounted securely in a location that triggers during a collision or rollover, such as near the vehicle’s frame or roll cage. Proper grounding and use of high-quality wiring are essential to prevent malfunctions. Always consult your vehicle’s manual or a professional for specific instructions tailored to your make and model.
| Characteristics | Values |
|---|---|
| Purpose | Ensures fuel pump shuts off in case of accident or rollover to prevent fire. |
| Location | Typically installed in the vehicle's cabin or near the fuel pump. |
| Switch Type | Inertia-based or electronic (e.g., mercury switch or accelerometer). |
| Activation Threshold | Typically 1-3 G-forces (gravity) for inertia switches. |
| Wiring Configuration | Normally closed (NC) circuit that opens upon activation. |
| Power Source | Connected in series with the fuel pump relay or power supply. |
| Ground Connection | Requires a secure ground to the vehicle chassis. |
| Reset Mechanism | Manual reset for inertia switches; automatic reset for electronic types. |
| Compatibility | Must match vehicle's electrical system (12V or 24V). |
| Installation | Mounted securely in a vertical position, away from heat sources. |
| Testing | Simulate impact or use a multimeter to check circuit continuity. |
| Legal Requirement | Mandatory in many racing and off-road applications. |
| Common Brands | Painless Wiring, Holley, Aeromotive, etc. |
| Cost Range | $10 - $50 USD depending on type and brand. |
| Maintenance | Periodic inspection for corrosion or damage. |
Explore related products
What You'll Learn
- Location Selection: Choose a secure, accessible spot near the fuel tank for the switch installation
- Wiring Connections: Connect the switch to the fuel pump circuit using proper gauge wires
- Grounding Requirements: Ensure the switch is grounded to the vehicle’s chassis for safety
- Inertia Activation: Install the switch to activate during sudden deceleration or impact
- Testing Procedure: Verify the switch functions correctly by simulating a collision or tilt
Location Selection: Choose a secure, accessible spot near the fuel tank for the switch installation
Selecting the right location for your fuel pump safety switch is a critical step that balances safety, functionality, and accessibility. The ideal spot should be within 12 inches of the fuel tank to minimize voltage drop and ensure reliable operation, as longer wire runs can introduce resistance and compromise performance. This proximity also aligns with most vehicle manufacturer guidelines, which prioritize safety by keeping the switch close to the potential hazard. Avoid areas prone to extreme heat, moisture, or vibration, as these conditions can degrade the switch’s integrity over time.
From a practical standpoint, the switch should be mounted in a secure, yet easily reachable location. For example, placing it behind the fuel tank on the chassis rail offers protection from debris and accidental impact while allowing quick access for maintenance or emergency shutoff. Ensure the mounting surface is clean, flat, and free of sharp edges to prevent damage to the switch housing. If your vehicle has a plastic fuel tank, consider using a non-conductive mounting bracket to avoid electrical shorts.
A comparative analysis of common installation mistakes reveals that placing the switch too far from the tank or in high-traffic areas can lead to inefficiency and potential hazards. For instance, mounting it under the hood may seem convenient but exposes the switch to engine heat and chemical spills, reducing its lifespan. Conversely, installing it in the trunk or cargo area can make it difficult to access in an emergency. Striking the right balance requires evaluating your vehicle’s layout and typical use cases.
Persuasively, the argument for accessibility cannot be overstated. In an emergency, every second counts, and fumbling to locate the switch could exacerbate a dangerous situation. Opt for a location that is intuitive and unobstructed, such as along the frame rail near the tank or inside the rear wheel well. If your vehicle has limited space, consider using a remote-mounted switch with a pull cable, ensuring the activation point remains within arm’s reach of the driver’s seat.
Finally, a descriptive approach highlights the importance of visual inspection during installation. Before drilling or securing the switch, verify that the chosen location does not interfere with other components, such as brake lines, exhaust systems, or suspension parts. Use a template or mark the spot with a pencil to ensure precise placement. Once installed, test the switch’s operation by simulating a fault condition (e.g., grounding the fuel pump circuit) to confirm it activates as intended. This meticulous approach ensures both safety and peace of mind.
Testing Your F4I Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Wiring Connections: Connect the switch to the fuel pump circuit using proper gauge wires
Selecting the correct wire gauge is critical when connecting a fuel pump safety switch to the circuit. Underestimating the current draw can lead to overheating, melting insulation, or even fire. For most automotive fuel pumps, a 12- to 14-gauge wire is suitable, as it can handle the typical 10-20 amp load. Always consult the pump’s specifications or a wiring diagram to confirm the appropriate gauge, as high-performance pumps may require thicker wires. Using a wire that’s too thin risks failure under load, while overly thick wire is unnecessary and adds bulk to the installation.
The wiring process begins with stripping the ends of the wires and connecting them securely. Use a wire stripper to remove approximately 1/2 inch of insulation from each end, ensuring no damage to the conductive strands. Connect the switch’s input wire to the power source (usually the battery or ignition switch) and the output wire to the fuel pump’s positive terminal. Ground the switch and pump separately to the vehicle’s chassis using a clean, unpainted metal surface. Secure all connections with solder or crimped terminals and cover them with heat-shrink tubing for insulation and durability.
A common mistake is neglecting to fuse the circuit, which is essential for safety. Install an inline fuse holder with the appropriate amp rating (typically 15-20 amps for standard pumps) within 12 inches of the power source. This protects the wiring and pump from short circuits or overcurrent conditions. Without a fuse, a fault in the system could lead to catastrophic failure or fire. Always double-check the fuse rating against the pump’s maximum current draw to ensure compatibility.
Testing the circuit before finalizing the installation is a crucial step often overlooked. With the ignition off, verify continuity between the switch and pump using a multimeter. Then, activate the switch and check for proper voltage at the pump’s terminals. If the pump fails to engage, inspect connections for looseness or incorrect polarity. Once confirmed functional, secure all wires with zip ties or conduit to prevent chafing or interference with moving parts. Proper routing ensures longevity and reliability in the harsh automotive environment.
Finally, consider the environmental factors that impact wiring longevity. Fuel pumps are often located in areas exposed to heat, moisture, and vibration. Use high-temperature wire rated for automotive applications and avoid routing wires near exhaust components or sharp edges. Applying a protective coating or wrapping wires in heat-resistant sleeving adds an extra layer of defense. Regularly inspect the wiring during routine maintenance to catch wear or damage early, ensuring the safety switch performs its critical role without fail.
Diagnosing a Faulty Fuel Pump in Your 1995 Geo Metro
You may want to see also
Explore related products
Grounding Requirements: Ensure the switch is grounded to the vehicle’s chassis for safety
Grounding the fuel pump safety switch to the vehicle's chassis is a critical step that bridges electrical safety with mechanical integrity. Without a proper ground, the switch may fail to operate reliably, leaving the fuel pump vulnerable to continuous operation or sudden shutdowns. The chassis acts as a low-resistance path for electrical current, ensuring the switch functions as intended during faults or accidents. Skipping this step can lead to electrical fires, fuel leaks, or system malfunctions, making it a non-negotiable requirement in any installation.
To ground the switch effectively, start by identifying a clean, unpainted metal surface on the chassis near the switch location. Use a wire brush or sandpaper to remove any rust, paint, or debris, ensuring a solid metal-to-metal connection. Connect the grounding wire from the switch to this spot using a ring terminal and a self-tapping screw or bolt. The wire gauge should match the switch’s specifications, typically 14-16 AWG for most automotive applications. Double-check the connection with a multimeter to confirm continuity between the switch and chassis, ensuring resistance is less than 0.1 ohms.
A common mistake is using existing ground points, such as those shared with other components, which can introduce voltage drops or interference. Always dedicate a separate ground for the safety switch to avoid compromising its function. Additionally, inspect the grounding wire for damage or wear periodically, especially in off-road or high-vibration environments. A frayed or loose ground connection can render the safety switch ineffective, defeating its purpose.
Comparing grounding methods, direct chassis grounding outperforms alternatives like grounding through the mounting bracket or nearby components. While the latter may seem convenient, it introduces variables that can affect reliability. Direct grounding ensures a consistent, low-resistance path, minimizing the risk of electrical anomalies. Think of it as anchoring the switch’s safety function to the vehicle’s structural backbone—a simple yet indispensable measure.
In conclusion, grounding the fuel pump safety switch to the chassis is more than a technicality; it’s a safeguard against catastrophic failures. By following precise steps and avoiding shortcuts, you ensure the switch operates as a reliable fail-safe, protecting both the vehicle and its occupants. Treat this step with the same care as any critical automotive installation, and the system will serve its purpose without compromise.
Mastering Fuel Pump Scoping: Essential Steps for Accurate Diagnosis
You may want to see also
Explore related products
Inertia Activation: Install the switch to activate during sudden deceleration or impact
Sudden deceleration or impact can turn a routine drive into a hazardous situation, especially if fuel continues to pump unchecked. Inertia activation in a fuel pump safety switch addresses this risk by cutting power to the pump during such events, minimizing the chance of fuel-fed fires. This mechanism relies on a simple yet ingenious principle: a weighted component within the switch moves in response to rapid changes in motion, triggering the circuit to open and halt fuel delivery.
To install an inertia-activated switch, begin by selecting a unit rated for your vehicle’s voltage and fuel system demands. Position the switch in a location where it remains secure yet accessible for inspection, such as near the fuel pump or within the cabin. Ensure the switch is mounted vertically to allow the internal inertia mass to move freely. Connect the switch in series with the fuel pump’s power circuit, typically between the pump relay and the pump itself. Use high-temperature wire rated for automotive applications and secure connections with heat-shrink tubing or weatherproof connectors to prevent corrosion.
A critical consideration is the switch’s sensitivity, often adjustable via a calibration screw or internal spring tension. For daily drivers, set the threshold to activate at approximately 3–5 G-forces, sufficient to respond to hard braking or minor collisions without false triggering. Racing applications may require higher thresholds, such as 7–10 G-forces, to avoid activation during aggressive cornering. Always test the switch post-installation by simulating deceleration (e.g., firm braking) to confirm it operates as intended.
While inertia switches are effective, they are not infallible. Pairing them with thermal or pressure-activated switches provides redundant safety layers. Additionally, inspect the switch annually for physical damage or corrosion, particularly in off-road or marine vehicles exposed to harsh conditions. Proper installation and maintenance ensure this device functions when needed, transforming a potential disaster into a manageable incident.
Installing a 1966 Oldsmobile Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Testing Procedure: Verify the switch functions correctly by simulating a collision or tilt
A critical step in ensuring vehicle safety is verifying the functionality of a fuel pump safety switch through simulated collision or tilt tests. This procedure is not just a regulatory requirement but a practical measure to prevent fuel-related hazards in the event of an accident. By mimicking real-world scenarios, you can confirm that the switch will deactivate the fuel pump as intended, minimizing the risk of fire or explosion.
Simulating a Collision: Practical Steps
To test the switch under collision conditions, begin by disconnecting the fuel pump relay to ensure the pump is inactive during the test. Use a multimeter to check the switch’s continuity in its normal position, confirming it allows current flow. Next, apply a controlled force to simulate an impact—a sudden jolt or strike to the vehicle’s frame near the switch. Immediately retest the continuity. If the switch functions correctly, it should break the circuit, indicating it has tripped. Reset the switch manually or by returning it to its original position, then verify it restores continuity. Repeat this process from multiple angles to ensure reliability under varied impact scenarios.
Tilt Testing: Precision and Angles
For tilt simulations, focus on the switch’s mercury or ball-and-tube mechanism, common in many designs. Secure the vehicle on a tilt table or use jacks to raise one side, gradually increasing the angle until the switch’s threshold is reached (typically 30–45 degrees). Monitor the fuel pump’s operation using a voltage tester or by listening for the pump’s activation. At the critical angle, the switch should deactivate the pump. Record the exact angle at which this occurs and compare it to the manufacturer’s specifications. Reverse the tilt and confirm the pump reactivates once the vehicle returns to a stable position.
Analyzing Results: What to Look For
During both tests, inconsistencies such as delayed response, failure to trip, or inability to reset are red flags. A switch that does not activate at the specified angle or impact force compromises safety and requires immediate replacement. Similarly, a switch that remains open after resetting can lead to fuel starvation. Document all findings, including the force applied, tilt angles, and switch behavior, to identify patterns or weaknesses in the system.
Best Practices and Safety Tips
Always conduct these tests in a well-ventilated area, away from open flames or sparks, due to the presence of fuel vapors. Use personal protective equipment, including gloves and safety goggles, to guard against accidental spills or debris. For tilt tests, ensure the vehicle is securely anchored to prevent tipping beyond control. If using mechanical tools to simulate impact, apply force gradually to avoid damaging surrounding components. Regularly inspect the switch for corrosion or physical damage, as these can impair its sensitivity and response time.
By rigorously testing the fuel pump safety switch through simulated collisions and tilts, you not only comply with safety standards but also gain peace of mind knowing the system will perform when it matters most. This proactive approach is essential for both personal and commercial vehicles, where the consequences of failure can be catastrophic.
Stock STI Fuel Pump LPH: Understanding Its Flow Rate and Performance
You may want to see also
Frequently asked questions
A fuel pump safety switch is a device designed to shut off the fuel pump in the event of an accident or rollover, reducing the risk of fire or explosion. It is crucial for safety, especially in vehicles where fuel lines could be compromised during a collision.
The safety switch should be installed in a location where it can detect a rollover or severe impact, such as near the vehicle’s roll cage or frame. Ensure it is easily accessible for maintenance and testing.
Wire the safety switch in series with the fuel pump relay or power supply. Connect one side of the switch to the fuel pump’s power source and the other side to the fuel pump itself. This ensures the pump is disabled when the switch is triggered.
Yes, you can test the switch by simulating a rollover or impact (if it’s a mercury or inertia switch) or by manually activating it (if it’s a push-button or automatic type). Verify that the fuel pump stops running when the switch is triggered. Always test in a safe environment.
