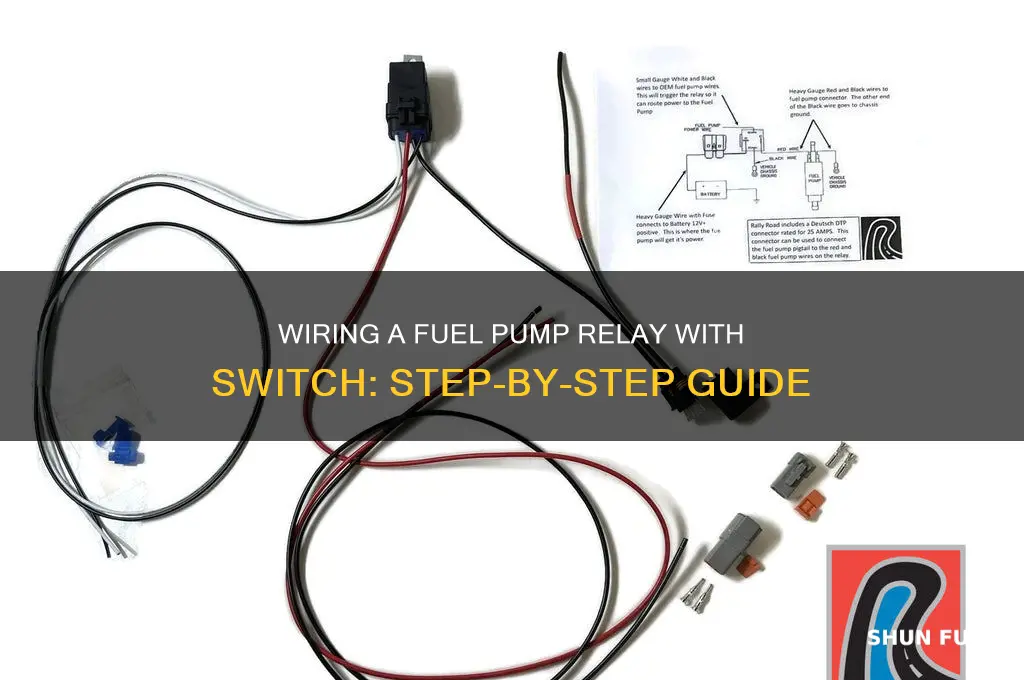

Wiring a fuel pump relay with a switch is a crucial task for ensuring proper fuel delivery and safety in automotive systems. This setup allows the fuel pump to be controlled manually, providing an additional layer of security and functionality, especially in performance or custom builds. By using a relay, the electrical load is managed efficiently, preventing excessive current from flowing through the switch and reducing the risk of overheating or damage. The process involves connecting the relay to the fuel pump, power source, and a dedicated switch, typically mounted in the cabin for easy access. Proper wiring ensures that the fuel pump operates only when needed, conserving energy and extending the pump's lifespan. Understanding the correct wiring diagram and using the right components is essential to achieve a reliable and safe installation.
| Characteristics | Values |
|---|---|
| Purpose | To control the fuel pump using a relay and a switch, ensuring safe and efficient operation. |
| Components Needed | 12V Relay, SPST Switch, Fuse, Wiring, Fuel Pump, Power Source, Ground, ECU (Optional) |
| Relay Type | 30/40 Amp SPST (Single Pole Single Throw) or SPDT (Single Pole Double Throw) |
| Switch Type | SPST (On/Off) |
| Fuse Rating | Match or exceed the fuel pump's current draw (typically 10-20A) |
| Wiring Gauge | 12-14 AWG for low-current circuits, 10-12 AWG for high-current circuits |
| Power Source | 12V Battery or Alternator |
| Ground Connection | Securely connected to vehicle chassis or engine block |
| Relay Pinout | 85 (Coil Ground), 86 (Coil Power), 30 (Battery +12V), 87 (Switched Output to Fuel Pump) |
| Switch Wiring | Connect to relay pin 86 (Coil Power) through a fuse |
| Fuel Pump Connection | Relay pin 87 (Switched Output) to fuel pump +12V, pump ground to chassis |
| ECU Integration | Optional: Connect ECU signal to relay pin 86 for controlled activation |
| Safety Features | Inline fuse, relay for high-current protection, switch for manual control |
| Testing | Verify connections, check for proper operation, and ensure no shorts |
| Common Mistakes | Incorrect relay pinout, insufficient wiring gauge, poor grounding |
| Applications | Automotive, marine, and custom fuel system setups |
Explore related products
What You'll Learn
- Gather Materials: Relay, switch, wire, connectors, fuse, power source, multimeter, wire strippers, and electrical tape
- Connect Power Source: Attach the relay’s power terminal to the battery’s positive terminal with a fuse
- Wire the Switch: Link the switch to the relay’s activation terminal using a 12V trigger wire
- Ground the System: Securely ground the relay and switch to the vehicle’s chassis for safety
- Test the Setup: Verify connections with a multimeter and test the fuel pump’s operation with the switch
Gather Materials: Relay, switch, wire, connectors, fuse, power source, multimeter, wire strippers, and electrical tape
Before you begin wiring a fuel pump relay with a switch, it’s critical to gather all necessary materials to ensure a smooth and safe installation. Start with the relay, the heart of the circuit, which acts as a switch to control high-current loads like the fuel pump. Choose a relay rated for your vehicle’s fuel pump amperage, typically 30–40 amps. Next, select a switch—toggle or push-button—to activate the relay. Ensure it’s rated for the voltage of your system, usually 12V. Wire is the backbone of your circuit; use 14–16 gauge for the relay coil and 10–12 gauge for the high-current side to handle the fuel pump’s load. Connectors such as spade terminals or butt connectors simplify connections and ensure reliability. A fuse is non-negotiable—place a 20–30 amp fuse inline with the power source to protect against shorts. Speaking of the power source, identify a switched 12V source (e.g., ignition wire) to power the relay coil. A multimeter is essential for testing continuity, voltage, and ensuring proper connections. Wire strippers make clean cuts without damaging conductors, while electrical tape provides insulation for exposed wires. Each component plays a specific role, and skimping on quality can lead to failure or safety hazards.
Analyzing the materials, the relay and switch are often misunderstood. The relay isolates the high-current fuel pump circuit from the low-current switch, preventing overheating. A common mistake is using a switch not rated for the load, which can melt or fail. The wire gauge is equally critical; too thin, and it’ll overheat; too thick, and it’s unnecessary. For instance, 12-gauge wire is ideal for most fuel pumps, balancing amperage capacity and flexibility. Connectors like weatherproof butt connectors are superior for outdoor installations, preventing corrosion. The fuse should be placed as close to the power source as possible to protect the entire circuit. A multimeter isn’t just for testing—use it to verify the relay’s pinout if the diagram is unclear. Wire strippers with adjustable depth prevent nicking wires, while electrical tape should only be used as a secondary insulation layer, not a primary fix.
From a practical standpoint, sourcing these materials requires attention to detail. Automotive relays and switches are widely available at auto parts stores or online, but verify compatibility with your vehicle’s voltage and amperage. For wire, opt for stranded copper for flexibility and durability. Connectors should match the wire gauge and be crimped securely—poor connections are a leading cause of failure. A fuse holder with a cover adds safety and ease of replacement. If your vehicle lacks a suitable power source, tap into the ignition wire near the fuse box. A multimeter with a continuity beeper simplifies troubleshooting, especially for beginners. Wire strippers with a built-in cutter save time, while electrical tape should be high-temperature rated for engine bays.
Comparatively, DIY enthusiasts often overlook the importance of quality materials. A cheap relay might fail under load, while a poorly rated switch can cause fires. Using the wrong wire gauge can lead to voltage drop or overheating. Connectors that aren’t properly crimped or soldered will loosen over time, causing intermittent issues. A missing or undersized fuse turns a minor short into a major hazard. Relying on guesswork without a multimeter increases the risk of miswiring. Wire strippers that damage wires compromise the circuit’s integrity, and electrical tape alone won’t protect against moisture or heat. Investing in quality materials and tools not only ensures reliability but also saves time and frustration in the long run.
Persuasively, gathering the right materials isn’t just about functionality—it’s about safety and longevity. A well-executed fuel pump relay circuit improves fuel delivery reliability, especially in performance or modified vehicles. The relay acts as a safeguard, preventing the switch from handling high currents directly. The switch provides user control, ensuring the pump only runs when needed. Proper wire and connectors minimize resistance and heat buildup, while a correctly sized fuse prevents catastrophic failures. A multimeter ensures every connection is secure, and wire strippers guarantee clean, professional work. Electrical tape, though simple, adds an extra layer of protection against environmental factors. By prioritizing quality and precision in your material selection, you’re not just wiring a circuit—you’re building a system that performs reliably under any condition.
