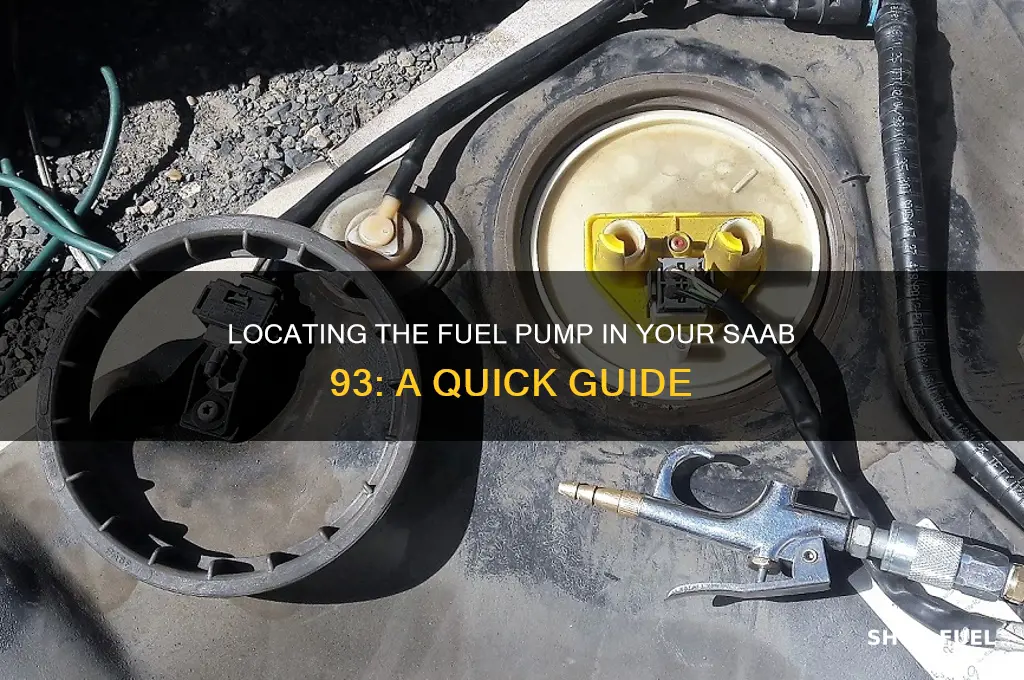

The fuel pump on a Saab 93 is typically located inside the fuel tank, a common design in modern vehicles to maintain fuel pressure and reduce the risk of vapor lock. To access it, you’ll need to remove the rear seat or a dedicated access panel in the trunk, depending on the model year. Once the access point is exposed, you can disconnect the electrical connector and fuel lines before lowering the fuel pump assembly out of the tank. It’s crucial to relieve fuel system pressure and ensure the vehicle is on a level surface before starting any work. If you’re unsure, consulting the Saab 93 service manual or seeking professional assistance is recommended.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access | Through the service hatch in the trunk floor or by removing the rear seat |
| Tank Removal | Required for some models (e.g., 2003-2011 Saab 9-3) |
| Pump Type | Electric, in-tank |
| Common Issues | Fuel pump failure, clogged fuel filter, faulty relay |
| Replacement Difficulty | Moderate to difficult (due to tank removal in some cases) |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, fuel line disconnect tools |
| Safety Precautions | Work in a well-ventilated area, relieve fuel system pressure, disconnect battery |
| Model Variations | Location may vary slightly between Saab 9-3 generations (e.g., 1998-2003 vs. 2003-2011) |
| Diagnostic Codes | P0087, P0191 (low fuel pressure), P0230 (fuel pump circuit malfunction) |
Explore related products
What You'll Learn
Location of fuel pump in Saab 93
The fuel pump in a Saab 9-3 is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and temperature fluctuations, ensuring reliability. Accessing the fuel pump requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline. Always work in a well-ventilated area and disconnect the battery before starting any work on the fuel system.
For Saab 9-3 models produced between 2003 and 2011, the fuel tank is typically located beneath the rear seat. To access it, start by relieving the fuel system pressure using the appropriate valve, usually found near the fuel rail. Next, remove the rear seat by releasing the retaining clips and lifting it out. This exposes the fuel pump module, which is secured by a locking ring or bolts. Use the correct tools to avoid damaging the tank or surrounding components. Once the module is removed, inspect the pump and filter for signs of wear or contamination.
Comparing the Saab 9-3 to other vehicles, its fuel pump location is standard for front-wheel-drive cars with transverse engines. However, the Saab’s design includes a unique locking mechanism for the fuel pump module, which may require a specialized tool for removal. Unlike some vehicles where the pump is accessible without dropping the tank, the Saab 9-3’s in-tank design necessitates more extensive disassembly. This approach, while more labor-intensive, enhances safety and longevity by shielding the pump from external elements.
When replacing the fuel pump, ensure the new unit matches the original specifications, including flow rate and pressure. For Saab 9-3 models, the fuel pump typically operates at 3–5 bar (43.5–72.5 psi) to meet the engine’s demands. Always replace the fuel filter simultaneously to prevent contaminants from damaging the new pump. After installation, check for leaks and verify proper operation by cycling the ignition and listening for the pump’s priming sound. Proper maintenance and accurate installation are critical to avoiding fuel system issues and ensuring optimal vehicle performance.
Low Fuel Pump Voltage: Causes, Diagnosis, and Effective Solutions Explained
You may want to see also
Explore related products
Accessing the fuel pump in Saab 93
The fuel pump in a Saab 93 is located within the fuel tank, a design choice that enhances safety and efficiency by keeping fuel under pressure and reducing the risk of vapor lock. This placement, while advantageous, complicates access for maintenance or replacement. Unlike external fuel pumps, which can often be reached without major disassembly, the Saab 93’s pump requires removing the fuel tank itself. This process demands careful planning and adherence to safety protocols to avoid fuel spills, fires, or damage to the vehicle.
To access the fuel pump, begin by relieving the fuel system pressure using the appropriate valve, typically located near the fuel rail. Disconnect the battery to prevent accidental ignition during the process. Next, raise the vehicle securely on jack stands to gain access to the underside. Locate the fuel tank, which is positioned beneath the rear seat area, and disconnect the fuel lines and electrical connectors. Use a wrench or line disconnect tool to ensure no residual pressure remains in the lines. Always work in a well-ventilated area and avoid open flames or sparks.
Removing the fuel tank involves unbolting the straps that secure it to the chassis. These straps are often corroded or tight, so apply penetrating oil and use the correct-sized tools to avoid stripping bolts. Once the tank is free, lower it carefully to a stable surface. The fuel pump module is typically secured to the top of the tank with a locking ring or screws. Remove these fasteners and lift the module out, taking care not to damage the float or sender unit. Inspect the pump for signs of wear or contamination before proceeding with replacement or repair.
Reinstallation follows the reverse order but requires additional steps to ensure a leak-free system. Clean the tank’s sealing surface and replace the O-ring or gasket on the pump module. Reattach the module securely and reassemble the tank, ensuring all connections are tight and properly aligned. Refill the tank with fresh fuel and check for leaks before starting the engine. This meticulous approach not only ensures the fuel pump functions correctly but also prolongs the life of the fuel system components.
While accessing the fuel pump in a Saab 93 is labor-intensive, it is a manageable task with the right tools and precautions. DIY enthusiasts should weigh the complexity against the cost of professional service, especially if specialized equipment is lacking. For those proceeding independently, investing in a repair manual specific to the Saab 93 model year can provide invaluable guidance. Proper execution of this task not only resolves fuel delivery issues but also reinforces the vehicle’s reliability for years to come.
Why Briggs Fuel Pumps Fail: Common Causes and Prevention Tips
You may want to see also
Explore related products
Fuel pump replacement steps for Saab 93
The fuel pump in a Saab 93 is located inside the fuel tank, a common placement in modern vehicles to keep fuel cool and reduce vapor lock. This design, while efficient, complicates replacement, requiring tank removal. Before starting, ensure you have the necessary tools: a jack, jack stands, wrenches, screwdrivers, and a new fuel pump assembly. Safety first—work in a well-ventilated area, relieve fuel system pressure, and disconnect the battery to prevent accidents.
Begin by relieving the fuel system pressure via the Schrader valve on the fuel rail. Next, raise the vehicle securely on jack stands and remove the rear passenger-side wheel for better access. Locate the fuel tank, typically beneath the rear seat, and disconnect the fuel lines and electrical connectors. Use a wrench to loosen the fuel tank straps, then carefully lower the tank to access the pump assembly. Take note of the pump’s orientation and any locking mechanisms for reassembly.
With the tank removed, detach the pump assembly by unscrewing the retaining ring or lock ring, depending on the model year. Saab 93s from 2003–2011 often use a modular design, making pump removal straightforward. Clean the tank opening before installing the new pump, ensuring no debris enters the tank. Reinstall the pump assembly, securing it firmly, and reattach the fuel lines and electrical connectors. Test for leaks by filling the tank partially and inspecting for drips.
Reassembly follows the reverse order of removal. Reattach the fuel tank straps, reconnect the battery, and lower the vehicle. Start the engine to check for proper fuel pump operation and monitor for leaks. A faulty fuel pump can cause poor performance or stalling, so timely replacement is crucial. While the process is labor-intensive, it’s manageable with patience and the right tools, saving on costly professional repairs. Always refer to your Saab 93’s manual for model-specific details.
Effective Tips to Extend the Lifespan of Your Fuel Pump
You may want to see also
Explore related products
Identifying fuel pump issues in Saab 93
The fuel pump in a Saab 93 is located in the fuel tank, a design choice that offers protection and cooling but complicates access for diagnostics and repairs. This placement means that identifying fuel pump issues often requires a systematic approach, as symptoms can mimic other fuel system problems. Understanding these symptoms and their nuances is crucial for accurate diagnosis.
One of the most common indicators of a failing fuel pump is a sputtering engine, particularly during acceleration or under load. This occurs when the pump struggles to maintain consistent fuel pressure, leading to an inadequate fuel supply to the engine. Another telltale sign is difficulty starting the vehicle, especially after it has been sitting for a while. If the fuel pump is failing, it may take longer than usual for the engine to turn over, or it may not start at all. In some cases, the engine may stall unexpectedly while driving, a dangerous situation that demands immediate attention.
To confirm a fuel pump issue, start by checking the fuel pressure using a gauge. Connect the gauge to the fuel rail and compare the reading to the manufacturer’s specifications for the Saab 93, typically around 40–60 psi. If the pressure is low, the pump may be failing. Additionally, listen for unusual noises coming from the fuel tank area when the ignition is turned on but the engine is not running. A whining or buzzing sound could indicate a worn pump motor or internal damage.
For DIY enthusiasts, accessing the fuel pump involves dropping the fuel tank, a task that requires caution due to the presence of flammable fuel. Ensure the tank is as empty as possible and work in a well-ventilated area away from open flames. Once the tank is removed, inspect the pump for physical damage, such as cracked lines or a corroded electrical connector. If the pump appears intact, testing the electrical circuit with a multimeter can help determine if the issue lies with the pump itself or the wiring harness.
Preventive maintenance can extend the life of the fuel pump. Regularly replacing the fuel filter and using high-quality fuel reduces contaminants that can clog or damage the pump. For Saab 93 owners, keeping an eye on these symptoms and performing routine checks can save time and money, ensuring the vehicle remains reliable and safe on the road.
Understanding the Functionality of an Evinrude Fuel Pump Bladder
You may want to see also
Explore related products
Tools needed for Saab 93 fuel pump repair
The Saab 93's fuel pump is located in the fuel tank, a design common in many modern vehicles to keep the fuel cool and reduce vapor lock. This placement, while advantageous for performance, complicates repair and replacement tasks, necessitating specific tools and precautions. Understanding the tools required is crucial for a successful and safe repair process.
Essential Tools for Accessing the Fuel Pump
To begin, you’ll need a floor jack and jack stands to safely lift the vehicle and access the underside. A 10mm socket and wrench are essential for removing the fuel tank shield, which protects the tank and pump assembly. A fuel line disconnect tool is critical for safely detaching the fuel lines without causing leaks or damage. Additionally, a flathead screwdriver or trim removal tool will help pry off any plastic clips or panels obstructing access to the tank.
Specialized Tools for Fuel Pump Removal
Once the tank is accessible, a locking fuel line disconnect tool becomes indispensable for Saab’s specific fuel line fittings. A strap wrench or large channel locks may be needed to loosen the fuel tank’s retaining ring, which secures the pump assembly. For electrical connections, a small flathead screwdriver or terminal release tool ensures safe disconnection of the pump’s wiring harness without damaging the connectors.
Safety and Diagnostic Equipment
Safety should never be overlooked. Nitrile gloves and safety goggles protect against fuel exposure, while a fire extinguisher should be nearby as a precaution. A fuel pressure gauge or scanner tool can diagnose pump issues before removal, ensuring the repair is necessary. For post-installation testing, a multimeter verifies proper electrical connections and pump functionality.
Optional but Helpful Tools
While not mandatory, a fuel pump module removal tool simplifies extracting the pump from the tank, reducing the risk of damage. A drain pan and hand siphon pump make fuel transfer cleaner and safer if the tank isn’t empty. Finally, a torque wrench ensures all components are reinstalled to factory specifications, preventing leaks or premature failure.
By assembling these tools beforehand, you streamline the repair process, minimize risks, and ensure a professional-grade outcome. Each tool serves a specific purpose, reflecting the Saab 93’s engineering and the intricacies of its fuel system.
Troubleshooting the 2005 Volvo S60 Fuel Pump: Silent Symptoms Explained
You may want to see also
Frequently asked questions
The fuel pump on a Saab 9-3 is located inside the fuel tank, which is situated in the rear of the vehicle, typically under the rear seats.
To access the fuel pump, you need to remove the rear seats, lift the carpet, and then remove the fuel pump access panel. This will expose the fuel pump assembly.
Yes, the fuel pump module is designed to be replaced without removing the entire fuel tank. However, you will need to relieve the fuel system pressure and disconnect the fuel lines before removing the pump.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and a whining noise from the fuel tank area.
Replacing the fuel pump is a moderately challenging task that requires basic mechanical skills. It involves working with fuel lines and electrical connections, so caution is advised to avoid fuel spills or electrical issues.
