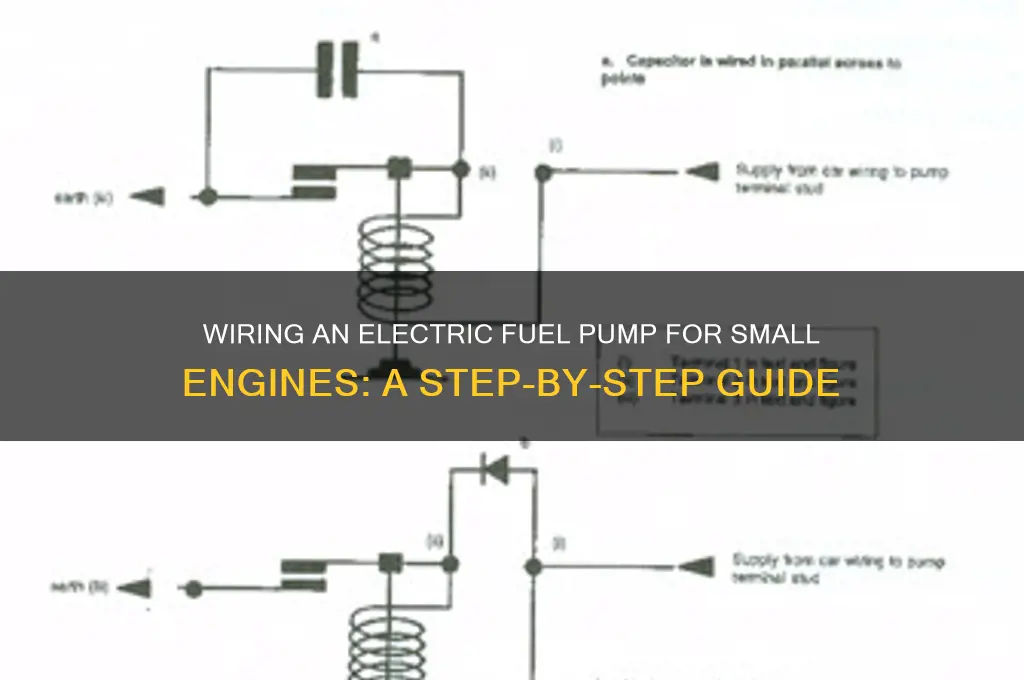

Wiring an electric fuel pump on a small engine is a crucial task for ensuring efficient fuel delivery and optimal engine performance. This process involves connecting the pump to the engine’s electrical system, typically powered by the battery or ignition switch, while ensuring proper grounding and safety measures. Key steps include selecting the correct fuel pump for your engine, identifying the power source, installing a relay to protect the wiring, and using appropriate gauge wires to handle the current. Additionally, integrating a fuel pump switch or trigger, such as a pressure switch or ignition-controlled circuit, ensures the pump operates only when needed. Proper wiring not only enhances reliability but also prevents potential hazards like overheating or fuel leaks, making it essential for DIY enthusiasts and mechanics alike to follow a systematic approach.
Explore related products
What You'll Learn
- Gather Tools and Materials: Wire, connectors, pump, relay, fuse, switches, and basic electrical tools
- Locate Power Source: Identify 12V source, like battery or alternator, for pump connection
- Install Relay and Fuse: Protect circuit with relay and fuse near power source
- Connect Pump to Relay: Wire pump to relay, ensuring proper polarity and secure connections
- Test and Troubleshoot: Verify pump operation, check for shorts, and ensure correct grounding
Gather Tools and Materials: Wire, connectors, pump, relay, fuse, switches, and basic electrical tools
Before diving into wiring an electric fuel pump on a small engine, it’s critical to assemble the right tools and materials. Skipping this step can lead to frustration, wasted time, or even safety hazards. Start by gathering 14-16 gauge stranded copper wire, which balances flexibility and current-carrying capacity for most small engines. Ensure the wire is rated for automotive use to withstand heat and vibration. Pair this with weatherproof connectors like Deutsch or Packcon to protect against moisture and corrosion, a common issue in outdoor engines.
Next, select a fuel pump compatible with your engine’s fuel delivery requirements. For small engines, a 3-5 psi pump typically suffices, but verify the engine’s specifications to avoid under- or over-performance. Include a relay rated for the pump’s amperage (usually 20-30 amps) to prevent overloading the ignition switch. A 30-amp fuse is standard for this application, safeguarding the circuit from short circuits. Don’t overlook switches—a simple SPST (single-pole, single-throw) toggle switch works well for manual control, while a pressure switch can automate pump operation based on fuel demand.
Basic electrical tools are non-negotiable. A wire stripper with gauge markings ensures clean cuts without damaging conductors. A multimeter is essential for testing continuity, voltage, and resistance, helping diagnose issues before they escalate. Electrical tape and heat shrink tubing provide insulation and durability, while a crimping tool ensures secure connections. If soldering, use a soldering iron and rosin-core solder for professional-grade joints, though crimping is often sufficient for this application.
Consider the environment where the engine operates. For outdoor or marine use, invest in marine-grade wire and waterproof fuse holders. Label wires with heat-shrink labels or vinyl tape to avoid confusion during installation and future maintenance. Keep a parts organizer handy to store screws, washers, and small components, preventing loss in cluttered workspaces.
Finally, safety should guide your material choices. Avoid cheap, low-quality components that may fail under load or temperature stress. Always opt for UL-listed or ISO-certified parts where available. Double-check compatibility between the pump, relay, and wiring to ensure seamless integration. By meticulously gathering these tools and materials, you’ll streamline the wiring process and build a reliable fuel pump system for your small engine.
Understanding OEM Fuel Pumps: Function, Benefits, and Importance Explained
You may want to see also
Explore related products
Locate Power Source: Identify 12V source, like battery or alternator, for pump connection
The first step in wiring an electric fuel pump to a small engine is pinpointing a reliable 12V power source. Most small engines, such as those found in lawnmowers, generators, or go-karts, already have a battery or alternator capable of supplying the necessary voltage. However, not all batteries or alternators are created equal. A weak or aging battery may not provide consistent power, especially under load, while an alternator’s output can fluctuate with engine RPM. Before proceeding, test the voltage of your chosen source with a multimeter to ensure it delivers a stable 12V. If the battery reads below 11.5V or the alternator output is inconsistent, consider upgrading or adding a secondary power source to avoid pump failure.
When identifying your 12V source, consider the engine’s operational demands. For example, if the engine runs intermittently (like a lawnmower), a battery may suffice, but for continuous operation (like a generator), an alternator is preferable. In some cases, you may need to tap into the vehicle’s existing wiring harness, such as the accessory circuit, which is designed to provide power only when the ignition is on. This prevents draining the battery when the engine is off. Always consult the engine’s wiring diagram to locate the correct circuit, and use a fuse (typically 10–15 amps for fuel pumps) to protect against shorts.
A common mistake is assuming the battery’s positive terminal is the only viable connection point. While it’s a straightforward option, it’s not always the best. For instance, connecting directly to the battery bypasses the ignition switch, meaning the pump will run continuously, even when the engine is off. Instead, wire the pump to a switched 12V source, such as the ignition’s "on" circuit. This ensures the pump operates only when needed, conserving power and reducing wear. If your engine lacks a switched circuit, install a relay to control power delivery based on ignition status.
In scenarios where neither a battery nor alternator is available, such as in custom builds or retrofits, consider adding a standalone 12V power supply. Small gel cell batteries or portable power packs can be integrated, but ensure they’re securely mounted and protected from vibration and fuel spills. Alternatively, a voltage regulator can be installed to stabilize power from an inconsistent alternator. Whichever method you choose, prioritize safety by using insulated wires, heat-shrink tubing, and waterproof connectors, especially in outdoor applications.
Finally, always ground the fuel pump’s negative wire to a clean, unpainted metal surface on the engine block or chassis. Poor grounding is a frequent cause of electrical issues, leading to erratic pump operation or complete failure. Use a multimeter to verify continuity between the ground point and the battery’s negative terminal. If resistance exceeds 0.1 ohms, clean the connection point with sandpaper or a wire brush. By carefully selecting and preparing your 12V source, you’ll ensure reliable fuel delivery and avoid common pitfalls that plague DIY installations.
