Mercedes Mullins

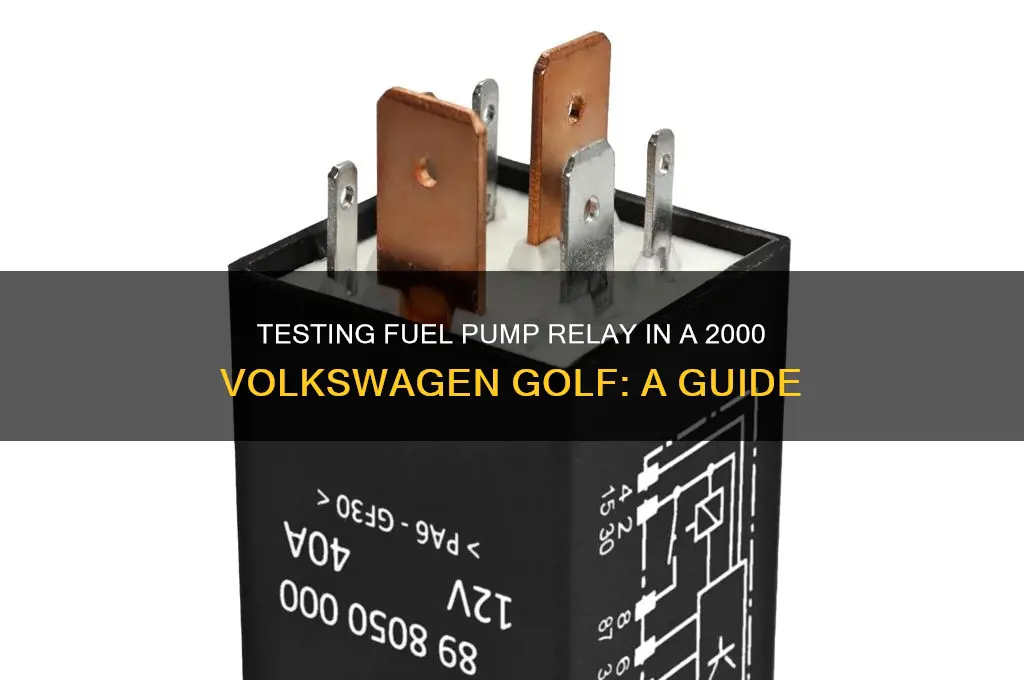

Testing the fuel pump relay on a 2000 Volkswagen Golf is essential for diagnosing fuel system issues, as a faulty relay can cause the engine to stall or fail to start. The fuel pump relay is typically located in the relay panel under the hood or near the fuse box, and its primary function is to control power to the fuel pump. To test it, start by locating the relay and identifying its terminals using the vehicle’s manual. Use a multimeter to check for continuity across the relay’s coil terminals and ensure power is reaching the fuel pump circuit. Swap the fuel pump relay with a similar relay (e.g., the horn relay) to see if the issue persists, as this can help confirm if the relay is faulty. If the problem resolves, replace the fuel pump relay. Always ensure the ignition is off when working with electrical components to avoid accidents.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volkswagen Golf (2000) |
| Component to Test | Fuel Pump Relay |
| Relay Location | Typically found in the fuse box under the hood or near the battery. |
| Relay Identification | Usually labeled as "Fuel Pump" or has a specific relay number (e.g., 194). |
| Tools Required | Multimeter, jumper wires, battery source (if needed). |
| Testing Procedure | 1. Locate and remove the relay. 2. Identify relay pins (30, 87, 85, 86). 3. Use a multimeter to check continuity between pins 30 and 87 (power circuit). 4. Apply power to pin 85 and ground to pin 86 to activate the relay. 5. Verify continuity between pins 30 and 87 again. 6. Listen for the fuel pump humming when the relay is activated. |
| Expected Results | Continuity between pins 30 and 87 when activated; fuel pump should hum. |
| Common Issues | Relay stuck open/closed, corroded pins, or faulty internal contacts. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
| Additional Tips | Swap the fuel pump relay with another identical relay to confirm fault. |
| Related Components to Check | Fuel pump fuse, fuel pump itself, and wiring harness for damage. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay location in the fuse box
- Check Power Supply: Test for battery voltage at the relay’s input terminal
- Inspect Ground Connection: Verify the ground connection for continuity and corrosion
- Swap Relays: Test by swapping with a similar relay (e.g., horn relay)
- Use Multimeter: Measure resistance and voltage across relay terminals for functionality
Locate the Relay: Identify the fuel pump relay location in the fuse box
The fuel pump relay in a 2000 Volkswagen Golf is a critical component, ensuring your engine receives the necessary fuel for operation. Locating this relay is the first step in any diagnostic or testing process, and it’s simpler than you might think. Start by opening the hood and identifying the fuse box, typically located near the battery on the driver’s side. This box houses a variety of relays and fuses, each labeled for easy identification. Consult your vehicle’s manual or a fuse box diagram specific to the 2000 Golf to pinpoint the exact position of the fuel pump relay. This step is crucial, as misidentifying the relay can lead to unnecessary complications.
Once you’ve located the fuse box, take a moment to inspect its layout. The fuel pump relay is often labeled as “FUEL PUMP” or “FP RELAY” on the box’s cover or diagram. If the labels are unclear or missing, refer to a reliable online resource or a repair manual for your model. The relay itself is a small, rectangular component with several pins connecting it to the fuse box. Its position may vary slightly depending on the Golf’s trim level or regional specifications, so cross-referencing with a diagram ensures accuracy. This attention to detail saves time and prevents potential damage from testing the wrong component.
For hands-on clarity, consider this practical tip: use a flashlight to illuminate the fuse box, as its location under the hood can be shadowed. Once identified, gently rock the relay back and forth to ensure it’s securely seated in its slot. A loose relay can cause intermittent fuel pump issues, mimicking symptoms of a faulty component. If the relay feels unstable, reseat it firmly before proceeding with any tests. This simple check can resolve minor problems without the need for further diagnostics.
Comparatively, locating the fuel pump relay in a 2000 Golf is more straightforward than in some newer vehicles, where relays may be integrated into complex modules. Older models like the Golf often have relays grouped in a single, accessible fuse box, making identification a matter of visual inspection and basic research. This accessibility is a boon for DIY enthusiasts, as it reduces the need for specialized tools or advanced knowledge. By contrast, modern vehicles may require scanning tools or professional intervention to locate and test similar components.
In conclusion, identifying the fuel pump relay in a 2000 Golf’s fuse box is a foundational step in troubleshooting fuel system issues. Armed with a diagram, a flashlight, and a methodical approach, you can locate the relay with confidence. This process not only prepares you for testing but also fosters a deeper understanding of your vehicle’s electrical system. Whether you’re a seasoned mechanic or a novice, mastering this step empowers you to address fuel pump concerns efficiently and effectively.
Does My Outboard Have a Fuel Pump? A Quick Guide
You may want to see also
Explore related products
Check Power Supply: Test for battery voltage at the relay’s input terminal
A faulty fuel pump relay can leave you stranded, but before condemning the relay itself, it's crucial to verify the power supply reaching it. The relay acts as a switch, and like any switch, it needs power to function. Testing for battery voltage at the relay's input terminal is a fundamental step in diagnosing fuel pump issues in your 2000 Golf.
Imagine the relay as a gatekeeper; without power at its input, the gate remains closed, preventing the fuel pump from receiving the signal to activate. This simple test isolates the problem, determining whether the issue lies with the relay itself or the power supply leading to it.
A multimeter becomes your trusty tool for this task. Set it to the DC voltage range, typically 20 volts, to accurately measure the battery voltage. Locate the fuel pump relay, often found in the fuse box under the hood. Identify the input terminal, usually marked with a symbol resembling a battery or labeled "IN" or "85" on the relay's casing. With the ignition switched on, carefully touch the multimeter's positive lead to the input terminal and the negative lead to a good ground, such as the engine block. A reading close to your battery voltage (around 12 volts) confirms a healthy power supply to the relay.
Any deviation from the expected voltage indicates a problem upstream. A significantly lower reading suggests a voltage drop due to a faulty wire, loose connection, or corroded terminal. A complete absence of voltage points to a broken wire or a blown fuse in the circuit supplying power to the relay.
In essence, testing for battery voltage at the relay's input terminal is a critical diagnostic step, acting as a compass guiding you towards the root cause of your Golf's fuel pump woes. It's a simple yet powerful technique that can save you time, money, and the frustration of unnecessary part replacements.
Does a Fuel Pump Fail Suddenly or Gradually? Explained
You may want to see also
Explore related products
Inspect Ground Connection: Verify the ground connection for continuity and corrosion
A faulty ground connection can mimic fuel pump relay failure, leading to misdiagnosis and unnecessary part replacements. Before condemning the relay, inspect the ground connection for continuity and corrosion, a critical yet often overlooked step in diagnosing fuel pump issues in a 2000 Volkswagen Golf.
Analytical Perspective:
The ground connection serves as the return path for electrical current, completing the circuit that powers the fuel pump relay. Over time, exposure to moisture, dirt, and road salt can corrode the ground terminal, increasing resistance and disrupting the flow of electricity. This resistance can cause the relay to function intermittently or fail altogether, even if the relay itself is in good condition. Testing continuity ensures the ground path is intact, while inspecting for corrosion identifies physical degradation that might impair performance.
Instructive Steps:
To inspect the ground connection, start by locating the ground terminal, typically found near the fuel pump or on the vehicle’s chassis. Use a digital multimeter set to the continuity or resistance mode. Connect one probe to the ground terminal and the other to a known good ground point, such as the battery negative terminal. A reading of 0 ohms or close to it indicates a solid ground connection. If the reading is high or infinite, the ground path is compromised. Next, visually inspect the terminal for signs of corrosion—green or white deposits, flaking metal, or a rough surface. Clean the terminal with a wire brush and dielectric grease to restore conductivity.
Comparative Insight:
Unlike testing the relay itself, which involves checking for power and switching signals, inspecting the ground connection focuses on the passive yet essential component of the circuit. While a relay test confirms active functionality, a ground inspection ensures the foundation of the electrical system is sound. Neglecting this step can lead to recurring issues, as a poor ground connection will continue to hinder performance even after replacing the relay.
Practical Tips:
For the 2000 Golf, the ground connection is often located near the fuel tank or on the firewall. If cleaning the terminal doesn’t resolve the issue, consider adding an auxiliary ground wire to bypass the corroded connection. Use 12-gauge stranded copper wire and secure it with ring terminals for a reliable connection. Regularly inspect grounds during routine maintenance, especially in regions with harsh winters or high humidity, where corrosion is more likely to occur.
Inspecting the ground connection for continuity and corrosion is a simple yet critical step in diagnosing fuel pump relay issues in a 2000 Golf. By ensuring a solid ground path, you eliminate a common culprit of electrical failures and avoid unnecessary repairs. This step bridges the gap between symptom and cause, providing a clearer path to resolving fuel system problems.
Bypassing Cobalt Fuel Pump Relay & Fuse: A Step-by-Step Guide
You may want to see also
Explore related products
Swap Relays: Test by swapping with a similar relay (e.g., horn relay)
Swapping relays is a straightforward yet effective method to diagnose a faulty fuel pump relay in a 2000 Volkswagen Golf. This technique leverages the fact that many relays in a vehicle share similar designs and pin configurations, allowing you to test functionality by substituting one relay for another. For instance, the horn relay is often a compatible candidate due to its comparable size and electrical specifications. Before proceeding, ensure the vehicle is turned off and the ignition key is removed to prevent accidental activation of systems.
To begin, locate both the fuel pump relay and the horn relay in the fuse box. Typically, the fuse box is found under the dashboard or in the engine bay, depending on the Golf model. Consult the owner’s manual or a repair guide to identify the exact positions of these relays. Once located, carefully pull out the fuel pump relay by gripping it firmly and withdrawing it straight out of its slot. Do the same for the horn relay, ensuring you handle both components with care to avoid damaging the pins.
Swap the fuel pump relay with the horn relay, ensuring they are inserted correctly into each other’s slots. A properly seated relay will click into place without force. After the swap, attempt to start the vehicle. If the fuel pump now operates, indicated by a humming sound from the fuel tank, the original fuel pump relay is likely faulty. Conversely, if the horn sounds when you press the horn button, the horn relay is functioning, but the fuel pump relay issue remains unresolved.
While this method is practical, it has limitations. Swapping relays only confirms whether the relay itself is defective, not the underlying cause of the fuel pump issue. Additionally, avoid leaving the relays swapped for extended periods, as this can lead to incorrect system operation or damage. Always revert the relays to their original positions after testing. This technique is a quick diagnostic tool, but further investigation may be necessary to address root causes such as wiring faults or fuel pump failure.
Bypassing Fuel Pump Relay on a 1988 Chevy Truck: A Guide
You may want to see also
Explore related products
Use Multimeter: Measure resistance and voltage across relay terminals for functionality
A multimeter is an indispensable tool for diagnosing fuel pump relay issues in a 2000 Volkswagen Golf. By measuring resistance and voltage across the relay terminals, you can determine if the relay is functioning correctly or if it needs replacement. This method is precise, cost-effective, and avoids unnecessary part swaps.
Begin by locating the fuel pump relay, typically found in the fuse box under the hood or near the driver’s side dashboard. Consult the vehicle’s manual or a wiring diagram to identify the specific relay and its terminal designations. With the ignition off, disconnect the relay and inspect its terminals for corrosion or damage. Clean them if necessary to ensure accurate readings.
Set your multimeter to the resistance (ohms) setting and measure the resistance across the relay’s coil terminals, usually labeled 85 and 86. A functional relay should show a resistance value between 40 and 120 ohms. If the reading is infinite (open circuit) or zero (short circuit), the relay is defective. Next, switch the multimeter to the voltage setting and reconnect the relay. Turn the ignition to the "on" position and measure voltage across the coil terminals. You should see battery voltage (around 12V), indicating the relay is receiving power.
Proceed to test the relay’s switching function by measuring voltage across the power and ground terminals (typically 30 and 87). With the ignition on, the relay should close, allowing voltage to pass through. If no voltage is detected, the relay’s internal contacts are faulty.
This systematic approach ensures you accurately diagnose the fuel pump relay’s condition, saving time and money. Always prioritize safety by disconnecting the battery before handling electrical components and double-checking your multimeter settings to avoid damage.
Testing Your Toyota Previa's Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump relay in a 2000 Golf is typically located in the relay panel under the dashboard on the driver’s side. It’s often labeled as "J237" or "Fuel Pump Relay" in the relay panel diagram.
You’ll need a multimeter, a 12V test light or jumper wires, and possibly a relay puller. These tools will help you check for power, ground, and proper relay operation.
First, swap the fuel pump relay with another relay of the same type in the panel (e.g., the horn relay). If the fuel pump works, the original relay is faulty. Alternatively, use a multimeter to check for continuity between the relay’s pins when activated.
Common symptoms include the engine not starting, stalling, or difficulty starting. You may also hear no humming noise from the fuel tank when turning the ignition on, indicating the fuel pump isn’t receiving power.
