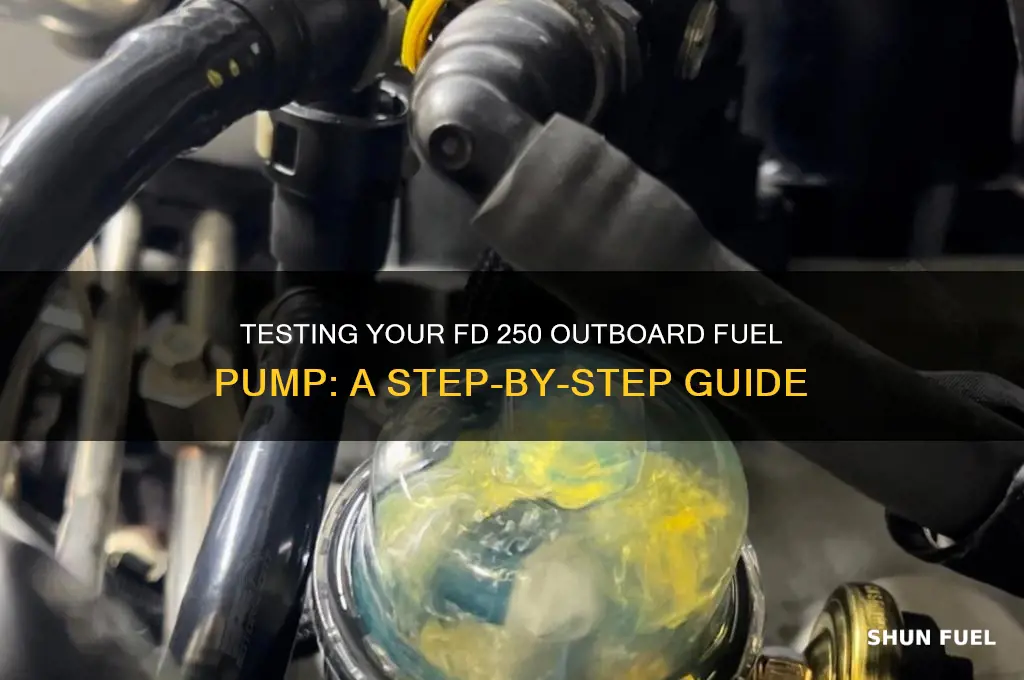

Testing the fuel pump on an FD 250 outboard motor is a critical step in diagnosing fuel delivery issues and ensuring optimal engine performance. To begin, ensure the engine is off and the fuel supply is disconnected to prevent accidents. Start by checking the fuel pump’s electrical connections for corrosion or damage, as poor connections can mimic pump failure. Next, use a multimeter to verify the pump is receiving power when activated. If power is present, connect a fuel pressure gauge to the fuel line and crank the engine to measure pressure; it should match the manufacturer’s specifications. If pressure is insufficient or absent, inspect the pump for leaks or mechanical failure. For a more thorough test, remove the pump and submerge it in a container of fuel, then apply power to observe if it operates correctly. Always refer to the service manual for specific procedures and safety guidelines.
| Characteristics | Values |
|---|---|
| Engine Model | FD 250 Outboard |
| Fuel Pump Location | Typically mounted near the fuel tank or within the engine compartment. |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, wrench, safety gloves. |
| Safety Precautions | Ensure engine is off, disconnect battery, work in a well-ventilated area. |
| Testing Method 1: Electrical Test | 1. Locate fuel pump connector. 2. Use multimeter to check for power (12V) at the connector when the key is turned to the "ON" position. 3. If no power, check fuses and relays. |
| Testing Method 2: Fuel Pressure Test | 1. Connect fuel pressure gauge to the fuel rail. 2. Turn key to "ON" (do not start engine). 3. Check for correct fuel pressure (refer to manual for specs). 4. If pressure is low or nonexistent, inspect fuel pump for faults. |
| Testing Method 3: Listen for Operation | 1. Turn key to "ON." 2. Listen for a humming sound near the fuel tank (indicating pump activation). 3. No sound may indicate a faulty pump. |
| Common Issues | Clogged fuel filter, faulty relay, damaged wiring, worn-out pump. |
| Replacement | If fuel pump fails, replace with OEM or compatible part. |
| Maintenance Tips | Regularly inspect fuel lines, filters, and connections for leaks or damage. |
| Consult Manual | Always refer to the FD 250 outboard manual for specific testing procedures and pressure values. |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure, locate pump
- Visual Inspection: Check for leaks, corrosion, loose connections, damaged wires, or clogged filters
- Electrical Testing: Use multimeter to test voltage, resistance, and continuity at pump terminals
- Fuel Pressure Check: Connect gauge, measure pressure, compare to specs, identify abnormalities
- Operational Test: Listen for pump noise, monitor pressure changes, verify fuel delivery under load
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure, locate pump
Before testing the fuel pump on your FD 250 outboard, proper preparation is critical to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a multimeter, wrenches or sockets (sized to fit your outboard’s hardware), a fuel pressure gauge, safety gloves, and safety goggles. A clean rag and a container for fuel spillage are also essential. These tools not only streamline the process but also minimize the risk of errors or accidents during testing.
Safety must be your top priority. Outboard engines operate in harsh marine environments, and fuel systems pose inherent risks. Work in a well-ventilated area to avoid inhaling fuel vapors, and ensure there are no open flames or sparks nearby. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from potential splashes. Ground yourself by touching a metal surface before handling electrical components to prevent static discharge, which can damage sensitive electronics.
Next, disconnect the battery to eliminate the risk of electrical shock or accidental ignition. Locate the battery terminals and use a wrench or socket to loosen the nut securing the negative cable. Once disconnected, secure the cable away from the terminal to prevent accidental reconnection. This step is non-negotiable—ignoring it could lead to short circuits or personal injury.
Relieving fuel pressure is a crucial step often overlooked. Start by locating the fuel pressure relief valve or Schrader valve, typically found near the fuel rail or on the fuel pump assembly. Depress the valve with a small tool or your gloved finger to release pressure in the system. Listen for a hissing sound, which confirms pressure release. Failure to do this can result in fuel spraying when you disconnect lines, creating a hazardous situation and making the test unnecessarily messy.
Finally, locate the fuel pump, which is usually mounted inside the fuel tank or near the engine compartment on the FD 250 outboard. Consult your owner’s manual or a service diagram if you’re unsure of its exact position. Identifying the pump’s location beforehand ensures you don’t waste time searching during the test. Familiarize yourself with its connections—fuel lines, electrical wires, and mounting hardware—to avoid damaging components during disassembly or testing.
By meticulously following these pre-test steps, you set the stage for a safe, efficient, and accurate fuel pump test. Each action, from tool preparation to pressure relief, is designed to mitigate risks and ensure you can focus on diagnosing the pump’s performance without unnecessary complications.
