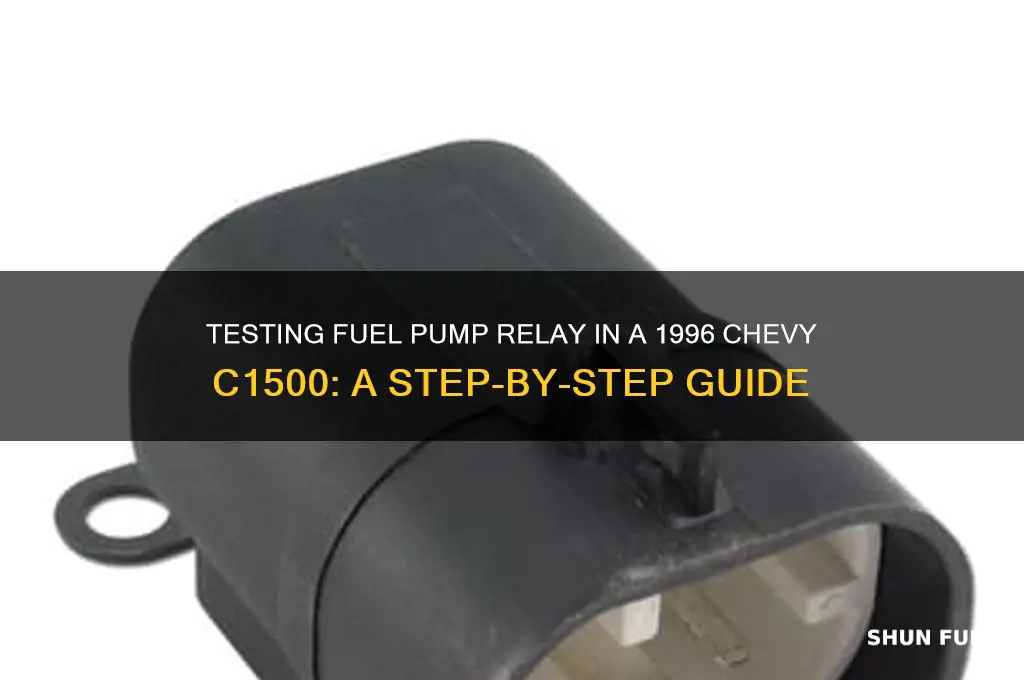

Testing the fuel pump relay on a 1996 Chevy C1500 is essential for diagnosing fuel delivery issues. The fuel pump relay is a critical component that controls power to the fuel pump, ensuring it operates correctly. To test it, start by locating the relay, typically found in the under-hood fuse/relay box. Swap the fuel pump relay with a similar relay in the box, such as the horn relay, to see if the fuel pump activates when the ignition is turned on. If the pump runs, the original relay is likely faulty. Additionally, use a multimeter to check for continuity across the relay’s terminals when activated, ensuring it’s functioning properly. Always consult the vehicle’s manual for specific relay locations and procedures.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1996 Chevrolet C1500 |
| Fuel Pump Relay Location | Under the hood, in the fuse/relay box near the firewall |
| Relay Terminals | Typically 5 pins (30, 87, 85, 86, and 87a) |
| Testing Tools Required | Multimeter, jumper wires, battery source, and a helper (optional) |
| Key Steps for Testing | 1. Locate the relay and identify terminals. 2. Remove the relay. 3. Use a multimeter to check continuity and voltage. 4. Test the relay coil and contacts. 5. Verify power supply to the fuel pump. |
| Common Symptoms of Relay Failure | No fuel pressure, engine cranks but won’t start, or intermittent starting issues |
| Replacement Relay Part Number | AC Delco Part # 20002 (or equivalent) |
| Safety Precautions | Disconnect the battery before testing, avoid sparks near fuel lines |
| Additional Tips | Check the fuel pump fuse and wiring harness for damage or corrosion |
Explore related products
$19.99 $21.99
What You'll Learn
- Locate the Fuel Pump Relay: Identify relay position in under-hood fuse/relay box, consult manual for exact location
- Check Relay for Power: Use multimeter to test input/output terminals for voltage with key on
- Swap Relays Temporarily: Interchange with similar relay (e.g., horn) to verify if issue persists
- Inspect Relay for Damage: Look for burnt pins, melted housing, or corrosion on terminals
- Test Ground Circuit: Ensure relay ground is clean and secure, use multimeter to confirm continuity
Locate the Fuel Pump Relay: Identify relay position in under-hood fuse/relay box, consult manual for exact location
The fuel pump relay in a 1996 Chevy C1500 is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Locating this relay is the first step in diagnosing potential fuel delivery issues. The relay is housed in the under-hood fuse/relay box, a centralized hub for electrical components. While the box’s location is consistent across most vehicles, the exact position of the fuel pump relay within it varies by make and model. For the 96 Chevy C1500, the relay is typically found in the upper-left corner of the box, but this can differ based on trim level or optional equipment. Consulting the vehicle’s manual or a Chilton/Haynes guide is essential to pinpoint its exact location, as misidentifying the relay can lead to incorrect diagnostics or damage.
Analyzing the under-hood fuse/relay box layout reveals a systematic organization designed for accessibility and functionality. Relays are often grouped by their associated systems—ignition, lighting, and fuel delivery—making it easier to narrow down the search. However, the 96 Chevy C1500’s box may lack clear labeling, especially on older models with faded or worn markings. In such cases, the manual becomes indispensable, providing a diagram that correlates relay positions with their functions. For instance, the fuel pump relay is usually labeled as “FP” or “FUEL” in the diagram, though this can vary. Cross-referencing the diagram with the physical box ensures accuracy, particularly when dealing with a vehicle that has been modified or repaired over its lifespan.
A persuasive argument for taking the time to locate the fuel pump relay correctly is the potential cost savings and safety benefits. Misdiagnosing a fuel delivery issue can lead to unnecessary part replacements, such as the fuel pump itself, which is significantly more expensive than a relay. Moreover, a faulty fuel pump relay can cause erratic engine behavior, including stalling or failure to start, posing a safety risk. By consulting the manual and verifying the relay’s position, you eliminate guesswork and focus on the root cause. This approach not only saves time and money but also ensures the vehicle operates reliably, reducing the likelihood of roadside breakdowns or accidents.
Descriptively, the under-hood fuse/relay box of a 96 Chevy C1500 is a rectangular, black plastic enclosure typically located near the battery or firewall. Its lid often features a diagram or label, though these may be obscured by dirt, grease, or age. Once opened, the box reveals rows of fuses and relays, each secured in a specific slot. The fuel pump relay is distinguishable by its size and shape—slightly larger than a fuse, with four or five prongs. Its position, as noted earlier, is best confirmed through the manual, which may also include a color-coded or numbered system for easier identification. Taking a moment to clean the box and its lid can improve visibility, making the process smoother and more efficient.
Instructively, locating the fuel pump relay involves a systematic approach. Start by parking the vehicle on a level surface, engaging the parking brake, and allowing the engine to cool. Open the hood and locate the fuse/relay box, typically secured with a latch or clip. Remove the lid and compare the physical layout to the manual’s diagram, focusing on the “FP” or “FUEL” designation. If the box lacks clear markings, use the diagram’s slot numbers or positions (e.g., “A5” or “R12”) to identify the relay. Once located, gently pull the relay straight out of its slot for testing or replacement. This methodical process ensures accuracy and minimizes the risk of damaging surrounding components.
Comparatively, while modern vehicles often feature digital diagnostics and clearly labeled fuse boxes, older models like the 96 Chevy C1500 rely on analog methods. This makes the manual an invaluable tool, akin to a roadmap for navigating the vehicle’s electrical system. Unlike newer systems, where a scan tool might pinpoint the relay’s location, the 96 C1500 requires a hands-on, visual approach. This highlights the importance of preserving and referencing original documentation, as it bridges the gap between the vehicle’s design and the user’s understanding. By embracing this process, even novice mechanics can confidently locate and address issues with the fuel pump relay.
