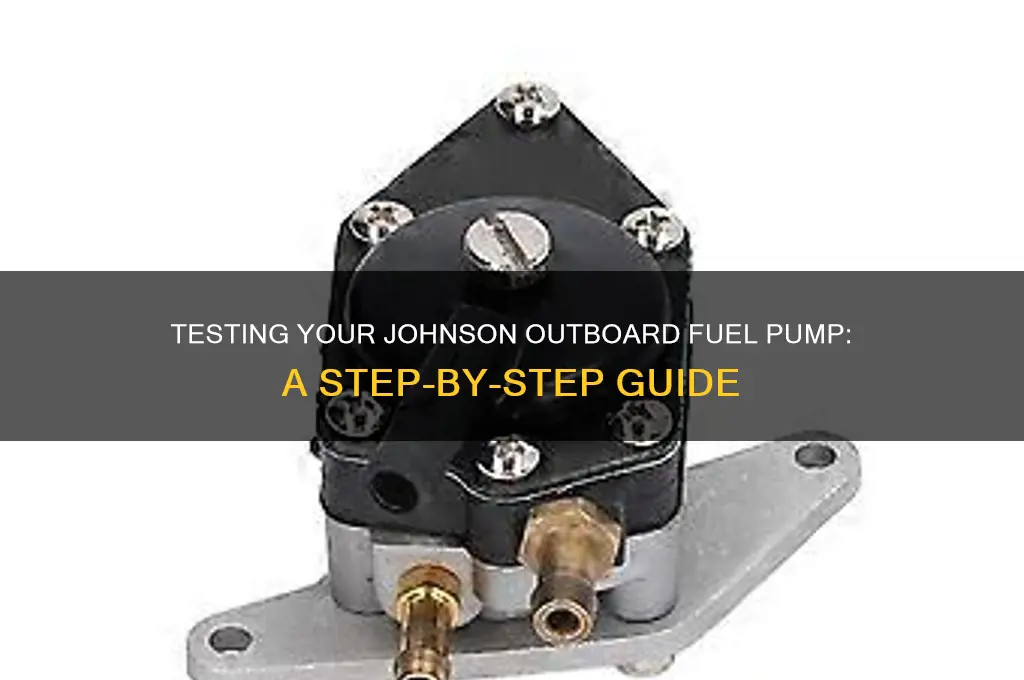

Testing the fuel pump on an outboard Johnson motor is a critical maintenance task to ensure optimal engine performance and reliability. The fuel pump plays a vital role in delivering the correct amount of fuel to the engine, and any malfunction can lead to poor starting, stalling, or reduced power. To test the fuel pump, start by checking for fuel flow at the carburetor or fuel injectors while cranking the engine. If no fuel is present, inspect the fuel lines for clogs or leaks. Next, verify the fuel pump’s mechanical operation by manually pumping the primer bulb, if equipped, or using a pressure gauge to measure fuel pressure. If the pump fails to deliver adequate pressure or flow, it may need to be cleaned, repaired, or replaced. Always consult the Johnson outboard manual for specific testing procedures and safety precautions to ensure accurate diagnosis and maintenance.
| Characteristics | Values |
|---|---|
| Purpose of Testing | Diagnose fuel pump issues in Johnson outboard motors to ensure proper fuel delivery. |
| Tools Required | Multimeter, fuel pressure gauge, hand primer bulb, screwdriver, wrench, safety gloves. |
| Safety Precautions | Work in a well-ventilated area, disconnect the spark plug wires, and avoid open flames. |
| Testing Method 1: Visual Inspection | Check for cracks, leaks, or damage in the fuel pump and lines. |
| Testing Method 2: Manual Operation | Squeeze the primer bulb to check for fuel flow; if no flow, the pump may be faulty. |
| Testing Method 3: Pressure Test | Use a fuel pressure gauge to measure pressure; compare to manufacturer specifications. |
| Testing Method 4: Electrical Test | Use a multimeter to check for voltage at the fuel pump connector when the engine is running. |
| Common Symptoms of Failure | Engine stalling, difficulty starting, poor acceleration, or no fuel delivery. |
| Replacement Considerations | Replace the fuel pump if it fails tests or shows signs of wear. |
| Maintenance Tips | Regularly inspect fuel lines, clean fuel filters, and use fresh fuel to prevent issues. |
| Applicable Models | Johnson outboard motors with mechanical or electric fuel pumps. |
| Reference Sources | Manufacturer manuals, marine repair guides, and online forums. |
Explore related products
What You'll Learn
Symptoms of a Failing Fuel Pump
A sputtering engine under load is often the first clue that your Johnson outboard's fuel pump is on its last legs. This symptom typically manifests when you throttle up, and the engine stumbles or hesitates instead of responding smoothly. The fuel pump, responsible for delivering a consistent flow of fuel to the carburetor or fuel injectors, may be struggling to maintain pressure, leading to an inadequate fuel supply during high-demand situations. If you notice this behavior, it’s a strong indicator that the pump’s internal diaphragm or check valves are worn, allowing air to enter the system or fuel to leak back into the tank.
Another telltale sign is difficulty starting the engine, especially after it has been sitting for a while. A failing fuel pump may not prime the system effectively, leaving air pockets in the fuel lines. This can result in extended cranking times or the need to prime the bulb repeatedly. While a clogged fuel filter or water in the fuel could also cause starting issues, a pump that fails to build and hold pressure will consistently struggle to deliver fuel, making it a prime suspect. Testing the pump’s pressure and volume output with a gauge can confirm whether it’s the culprit.
Unusual noises from the fuel pump area, such as whining or grinding sounds, should not be ignored. These noises often indicate mechanical failure, such as a worn-out motor or damaged internal components. In Johnson outboards, the fuel pump is typically located near the carburetor or fuel injection system, making it relatively easy to inspect. If you hear such noises, immediately shut down the engine to prevent further damage. Continuing to operate with a failing pump can lead to complete fuel starvation, potentially causing the engine to overheat or seize.
A less obvious but equally critical symptom is a sudden drop in engine performance at high speeds or under heavy loads. This occurs when the fuel pump cannot keep up with the engine’s fuel demands, resulting in a lean fuel-air mixture. Over time, this can cause detonation, piston damage, or catalytic converter failure. To diagnose this, monitor the engine’s RPM and fuel pressure simultaneously. If the pressure drops significantly as RPM increases, the pump is likely failing. Replacing it promptly can prevent costly engine repairs down the line.
Finally, a visual inspection of the fuel pump and its connections can reveal external signs of failure, such as fuel leaks or corrosion. Leaks often occur at the pump’s inlet or outlet ports, indicating cracked seals or loose fittings. Corrosion around the pump body or electrical terminals can disrupt power delivery, causing intermittent operation. Regularly checking these areas during routine maintenance can catch issues early. If you spot any leaks or corrosion, disconnect the fuel line and inspect the pump’s internal components for wear or debris. A failing pump should be replaced immediately to ensure reliable engine performance.
Understanding the Functionality of an Electric Fuel Pump in Vehicles
You may want to see also
Explore related products
Tools Needed for Testing the Fuel Pump
Testing the fuel pump on a Johnson outboard motor requires a precise set of tools to ensure accuracy and safety. The first essential tool is a fuel pressure gauge, specifically one compatible with the fuel system of your outboard motor. This gauge will allow you to measure the pressure output of the fuel pump, which should match the manufacturer’s specifications. For Johnson outboards, typical operating pressure ranges between 3 to 5 psi, depending on the model. Ensure the gauge has the correct fittings to connect seamlessly to your fuel line.
Next, you’ll need a multimeter to test the electrical components of the fuel pump. This tool will help you verify if the pump is receiving power and if the internal circuitry is functioning correctly. Set the multimeter to the voltage or resistance setting, depending on the test you’re conducting. For instance, check for 12 volts at the pump’s power connector when the ignition is on. If the multimeter reads zero, the issue may lie in the wiring or the pump’s internal components.
A hand primer bulb is another invaluable tool for this task. By manually pumping fuel through the system, you can isolate whether the issue is with the fuel pump or another part of the fuel delivery system. Attach the primer bulb to the fuel line between the tank and the pump, then squeeze it to force fuel toward the engine. If the engine starts or runs briefly, the fuel pump is likely the culprit. However, if no fuel reaches the engine, the problem may be a clogged fuel line or filter.
Lastly, a catch container is essential for safety and cleanliness. When testing the fuel pump, you’ll need to disconnect the fuel line, which will release fuel. Place the catch container under the disconnection point to prevent spills and potential fire hazards. Opt for a container with a secure lid to store the fuel safely until it can be properly disposed of or reused.
In summary, testing a Johnson outboard fuel pump demands a fuel pressure gauge, multimeter, hand primer bulb, and catch container. Each tool serves a specific purpose, from diagnosing electrical issues to ensuring safe fuel handling. By equipping yourself with these tools, you’ll be well-prepared to troubleshoot and resolve fuel pump problems efficiently.
Testing the Fuel Pump on a John Deere 4020 Tractor
You may want to see also
Explore related products
Step-by-Step Fuel Pressure Testing Procedure
Fuel pressure testing is a critical diagnostic step when troubleshooting an outboard motor like a Johnson, ensuring the fuel pump operates within optimal parameters. Begin by gathering the necessary tools: a fuel pressure gauge, appropriate adapters, and safety gear, including gloves and safety goggles. Disconnect the fuel line at the engine inlet, relieving any residual pressure, and attach the gauge to the fuel line using the correct adapter. This setup allows for an accurate reading of the fuel pump’s performance under real-world conditions.
Once the gauge is securely connected, start the engine and observe the pressure reading. A healthy Johnson outboard fuel pump typically maintains pressure between 28 and 45 PSI, depending on the model and load. If the pressure falls below or exceeds this range, it indicates a potential issue—either a weak pump or a restriction in the fuel system. Note any fluctuations or inconsistencies, as these can signal intermittent problems like a failing check valve or clogged fuel filter.
Next, analyze the results in context. Low pressure often points to a faulty fuel pump, while high pressure may suggest a blocked fuel return line or regulator issue. If the pressure drops significantly under load (e.g., during acceleration), the pump may be unable to meet demand, a common issue in aging or overworked systems. Compare your findings to the manufacturer’s specifications for your specific Johnson model to ensure accuracy.
Finally, address any identified issues systematically. Replace a failing fuel pump promptly to prevent further damage, and inspect the fuel lines and filters for obstructions. Regular maintenance, such as annual fuel system checks, can prevent unexpected failures. By following this step-by-step procedure, you’ll diagnose fuel pump problems efficiently, ensuring your Johnson outboard operates reliably on the water.
Resetting Your Dodge Charger's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Checking Fuel Pump Electrical Connections
Loose or corroded electrical connections are a common culprit behind fuel pump issues in Johnson outboards. Before condemning the pump itself, a thorough inspection of these connections can save time and money. Start by locating the fuel pump's wiring harness, typically found near the pump assembly. Visually inspect the connectors for signs of corrosion, damage, or loose pins. Even a slight discoloration or greenish residue indicates corrosion, which can disrupt the electrical flow.
To clean corroded terminals, disconnect the harness and use a mixture of baking soda and water to neutralize the corrosion. Gently scrub the terminals with a small wire brush or toothbrush, ensuring all residue is removed. Rinse thoroughly with clean water and allow to dry completely before reassembly. For stubborn corrosion, consider using a specialized electrical contact cleaner.
Beyond visual inspection, testing the electrical connections with a multimeter is crucial. Set the multimeter to the continuity or resistance setting and touch the probes to the corresponding terminals on the connector. A reading of zero or near zero indicates a good connection, while a high resistance reading or no reading at all suggests a problem. If the multimeter test reveals an issue, further investigation into the wiring harness or the pump itself may be necessary.
Remember, safety is paramount when working with electrical systems. Always disconnect the battery before performing any electrical work on your outboard motor. Additionally, ensure the engine is cool and the fuel system is depressurized to minimize the risk of fire or injury. By meticulously checking and maintaining the fuel pump's electrical connections, you can ensure reliable performance and prevent potential breakdowns on the water.
