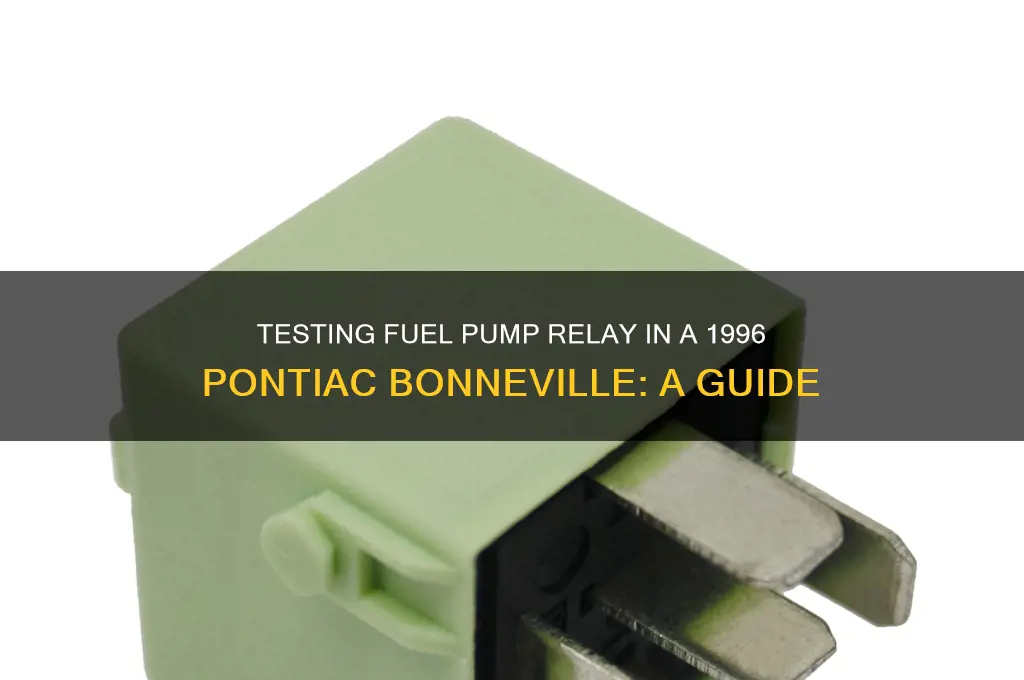

Testing the fuel pump relay on a 1996 Pontiac Bonneville is essential for diagnosing fuel system issues, such as a no-start condition or inconsistent engine performance. The fuel pump relay, located in the underhood fuse/relay box, controls power to the fuel pump, ensuring it operates only when the engine is running or being started. To test it, start by locating the relay and swapping it with a similar one in the same box to see if the issue resolves. If the problem persists, use a multimeter to check for continuity in the relay’s terminals or apply power directly to the fuel pump to verify its functionality. Always consult the vehicle’s manual for specific relay pinouts and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1996 Pontiac Bonneville |
| Component to Test | Fuel Pump Relay |
| Location of Relay | Under the hood, in the fuse/relay box (specific location varies by model) |
| Tools Required | Multimeter, jumper wires, battery source (if needed) |
| Testing Method | 1. Locate the relay and identify its terminals (30, 87, 85, 86). 2. Use a multimeter to check for continuity between terminals 30 and 87 when the relay is activated. 3. Apply power to terminal 85 and ground to terminal 86 to activate the relay. 4. Listen for the fuel pump to prime when the key is turned to the "ON" position. |
| Expected Results | Continuity between terminals 30 and 87 when activated; fuel pump primes. |
| Common Issues | Relay stuck in "open" or "closed" position, corroded terminals, faulty wiring |
| Replacement Relay Part Number | AC Delco Part # D1562G (or equivalent) |
| Safety Precautions | Disconnect battery before testing, work in a well-ventilated area. |
| Additional Tips | Check the fuel pump fuse and wiring harness for damage before testing relay. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay location in the under-hood fuse box
- Check Power Supply: Test for battery voltage at the relay’s power input terminal
- Inspect Ground Connection: Verify a good ground connection at the relay’s ground terminal
- Swap Relays: Test by swapping the fuel pump relay with a similar one in the fuse box
- Use Multimeter: Measure resistance across the relay’s coil terminals to check for continuity
Locate the Relay: Identify the fuel pump relay location in the under-hood fuse box
The 1996 Pontiac Bonneville's fuel pump relay is a critical component in the vehicle's fuel system, and locating it is the first step in diagnosing potential issues. The relay is typically housed in the under-hood fuse box, a centralized hub for various electrical components. To begin, open the hood and secure it in place. The fuse box is usually located near the battery, often on the driver's side, but this can vary depending on the specific model and trim level of your Bonneville.
Analytical Approach: Understanding the layout of the under-hood fuse box is essential for efficient troubleshooting. Most fuse boxes have a diagram on the lid or cover, indicating the position of each relay and fuse. For the 1996 Pontiac Bonneville, the fuel pump relay is often labeled as "FUEL" or "FP" on this diagram. If the diagram is missing or unclear, consult the vehicle's service manual or an online resource specific to your car's make and model. This analytical approach ensures you're targeting the correct component, saving time and reducing the risk of misdiagnosis.
Instructive Steps: To locate the fuel pump relay, follow these steps: (1) Identify the under-hood fuse box, typically a rectangular or square-shaped unit with a removable lid. (2) Remove the lid to expose the fuses and relays. (3) Refer to the diagram on the lid or consult a reliable source to pinpoint the fuel pump relay's position. (4) Once identified, take note of its location for future reference. This systematic approach simplifies the process, especially for those unfamiliar with the Bonneville's under-hood layout.
Practical Tips: When working under the hood, ensure the vehicle is turned off and the keys are removed from the ignition. This precaution prevents accidental activation of electrical components. Additionally, consider using a flashlight to illuminate the fuse box, as some compartments can be poorly lit. If you're unsure about the relay's appearance, know that it typically resembles a small, rectangular box with several pins or terminals. Familiarizing yourself with these details beforehand can streamline the location process.
Comparative Insight: Locating the fuel pump relay in a 1996 Pontiac Bonneville shares similarities with other GM vehicles from the same era. Many models, such as the Chevrolet Lumina or Oldsmobile Cutlass, also house the fuel pump relay in the under-hood fuse box. However, the exact location and labeling may differ. This comparative understanding can be advantageous, especially for mechanics or enthusiasts working on multiple GM vehicles, as it highlights both commonalities and nuances across different models. By recognizing these patterns, you can develop a more efficient approach to relay location and diagnosis.
Big Block vs. Small Block Fuel Pumps: Are They Interchangeable?
You may want to see also
Explore related products
Check Power Supply: Test for battery voltage at the relay’s power input terminal
A faulty fuel pump relay can leave you stranded, but diagnosing the issue doesn't have to be a mystery. One crucial step in testing the fuel pump relay on a 1996 Pontiac Bonneville is verifying the power supply. The relay relies on battery voltage to function, so checking for voltage at its power input terminal is essential. This simple test can quickly narrow down whether the relay itself is the culprit or if the problem lies elsewhere in the circuit.
To begin, locate the fuel pump relay in your Bonneville’s fuse box. Consult your owner’s manual or a repair guide if you’re unsure of its position. Once identified, use a digital multimeter set to the DC voltage range (typically 20V) to test for battery voltage at the relay’s power input terminal. With the ignition in the "ON" position, touch the multimeter’s positive lead to the power input terminal and the negative lead to a good ground. A reading of approximately 12 volts indicates the relay is receiving the necessary power. If no voltage is present, the issue likely lies in the wiring or a blown fuse upstream from the relay.
It’s important to note that this test should be performed with the ignition on but the engine off. This ensures the relay is energized without the added complexity of the fuel pump running. If voltage is present but the fuel pump isn’t operating, the relay itself may be faulty, or there could be an issue with the relay’s output circuit. In such cases, further testing of the relay’s internal components or the wiring to the fuel pump is warranted.
For added precision, compare the voltage reading at the relay’s power input terminal to the battery voltage directly. A significant drop in voltage could indicate high resistance in the wiring or a poor connection. This comparative approach helps isolate whether the power supply issue is localized to the relay or part of a broader electrical problem. Always ensure your multimeter leads are securely connected to avoid inaccurate readings.
In conclusion, testing for battery voltage at the fuel pump relay’s power input terminal is a straightforward yet critical step in diagnosing fuel pump issues on a 1996 Pontiac Bonneville. By confirming the presence of voltage, you can rule out power supply problems and focus on other potential causes. This methodical approach not only saves time but also ensures a more accurate diagnosis, bringing you one step closer to getting your vehicle back on the road.
Step-by-Step Guide to Installing a Mechanical Fuel Pump Easily
You may want to see also
Explore related products
Inspect Ground Connection: Verify a good ground connection at the relay’s ground terminal
A faulty ground connection can mimic symptoms of a failed fuel pump relay, leading to misdiagnosis and unnecessary part replacements. The ground terminal on the relay is the pathway for electrical current to return to the vehicle's chassis, completing the circuit. If this connection is compromised—due to corrosion, loose wiring, or damage—the relay may not function, even if the component itself is intact. This step is often overlooked but is critical in diagnosing fuel pump relay issues on a 1996 Pontiac Bonneville.
To inspect the ground connection, start by locating the fuel pump relay in the underhood fuse/relay box. Consult the vehicle’s manual or a diagram to identify the correct relay and its ground terminal. With the ignition off, remove the relay and visually inspect the ground terminal for signs of corrosion, rust, or debris. Use a wire brush or sandpaper to clean the terminal and mating surface on the relay socket, ensuring a clean metal-to-metal contact. Reinsert the relay and verify the connection is secure by gently tugging on the wiring harness.
For a more thorough test, use a multimeter to measure continuity between the relay’s ground terminal and the vehicle’s chassis. Set the multimeter to the continuity or resistance setting, place one probe on the ground terminal, and the other on a known good ground point, such as an unpainted bolt on the engine block. A reading of 0 ohms or near 0 ohms indicates a solid ground connection. Any significant resistance suggests a problem that needs addressing, such as a broken wire or poor contact.
If the ground connection is confirmed to be faulty, repair or replace the wiring as needed. In some cases, the issue may stem from a corroded ground strap elsewhere in the vehicle, particularly near the fuel tank or engine bay. Tracing the ground circuit and inspecting all related connections can save time and prevent recurring issues. This step, though seemingly minor, can be the difference between a quick fix and a prolonged diagnostic headache.
In summary, verifying a good ground connection at the fuel pump relay’s ground terminal is a straightforward yet essential step in diagnosing relay-related issues on a 1996 Pontiac Bonneville. By combining visual inspection, cleaning, and continuity testing, you can ensure the relay has a reliable pathway to complete its circuit. Neglecting this step risks misdiagnosis, while mastering it equips you to tackle fuel system electrical issues with confidence.
Understanding the Lifespan of Manual Fuel Pumps: Durability and Maintenance Tips
You may want to see also
Explore related products
Swap Relays: Test by swapping the fuel pump relay with a similar one in the fuse box
Swapping relays is a straightforward yet effective method to diagnose a faulty fuel pump relay in a 1996 Pontiac Bonneville. This technique leverages the fact that many relays in the fuse box are interchangeable, allowing you to isolate the problem quickly. Begin by locating the fuel pump relay, typically found in the under-hood fuse box. Consult your vehicle’s manual or a diagram to identify its exact position. Once located, find a relay with the same part number or pin configuration—often the horn or radiator fan relay works as a suitable substitute. Ensure the engine is off and the ignition is in the "off" position before proceeding.
To perform the swap, carefully pull the fuel pump relay straight out of its socket. Insert the substitute relay into the fuel pump relay’s slot, ensuring it clicks securely into place. Next, attempt to start the vehicle. If the engine starts and runs normally, the original fuel pump relay is likely defective. If the issue persists, the problem may lie elsewhere, such as a faulty fuel pump or wiring issue. This method is particularly useful because it eliminates the need for specialized tools or electrical testing knowledge, making it accessible for DIY mechanics.
While swapping relays is a practical approach, it’s essential to exercise caution. Avoid forcing the relay out of its socket, as this can damage the fuse box. Additionally, ensure the substitute relay is truly compatible; using an incorrect relay can cause unintended consequences, such as blowing a fuse or damaging components. Always double-check the part numbers or consult a repair manual to confirm compatibility. This step is crucial, as relays with similar appearances may have different internal configurations.
A key advantage of this method is its speed and simplicity. It allows you to rule out the relay as the culprit in a matter of minutes, saving time compared to more complex diagnostic procedures. However, if the swap doesn’t resolve the issue, further investigation is necessary. Common next steps include testing the fuel pump’s power supply, checking for blown fuses, or inspecting the wiring harness for damage. Combining relay swapping with these additional checks provides a comprehensive approach to diagnosing fuel system issues in your 1996 Pontiac Bonneville.
In conclusion, swapping relays is a valuable technique for testing the fuel pump relay in a 1996 Pontiac Bonneville. Its simplicity and effectiveness make it an ideal first step in troubleshooting fuel system problems. By following these steps carefully and ensuring compatibility, you can quickly determine whether the relay is at fault or if further investigation is needed. This method not only saves time but also empowers you to tackle automotive issues with confidence.
Easy Guide to Installing a 3/8 to 8AN Fuel Pump Adapter
You may want to see also
Explore related products
Use Multimeter: Measure resistance across the relay’s coil terminals to check for continuity
A multimeter is an indispensable tool for diagnosing fuel pump relay issues in a 1996 Pontiac Bonneville. By measuring resistance across the relay’s coil terminals, you can determine if the coil is functioning properly, which is critical for relay operation. This test isolates the coil’s integrity, ensuring it can create the magnetic field necessary to close the relay’s contacts and activate the fuel pump circuit. Without this step, you risk misdiagnosing the relay as faulty when the issue may lie elsewhere, such as with the wiring or the fuel pump itself.
To perform this test, start by locating the fuel pump relay in the underhood fuse/relay box. Consult the owner’s manual or a repair guide for the exact location. With the ignition off, remove the relay and identify the coil terminals, typically labeled as pins 85 and 86. Set your multimeter to the resistance (ohms) setting and touch the probes to these terminals. A healthy relay coil should read between 50 and 120 ohms, depending on the manufacturer’s specifications. If the reading is infinite (open circuit) or near zero (shorted), the coil is defective, and the relay must be replaced.
While this test is straightforward, accuracy depends on proper technique. Ensure the relay is firmly removed from its socket to avoid interference from other circuits. Clean the terminals and multimeter probes to eliminate false readings caused by corrosion or dirt. Additionally, verify the multimeter is functioning correctly by testing it on a known resistor before proceeding. These precautions minimize the risk of misdiagnosis and ensure reliable results.
Comparing this method to other diagnostic techniques highlights its efficiency. Unlike testing the relay’s switching function, which requires applying power and ground, measuring coil resistance is non-invasive and quick. It directly addresses the coil’s condition without engaging the relay’s internal contacts, making it a safer initial step. However, if the coil tests good, further investigation into the relay’s switching ability or external factors may be necessary.
In conclusion, measuring resistance across the fuel pump relay’s coil terminals is a precise and essential step in diagnosing relay issues. It provides clear, actionable data about the coil’s condition, guiding you toward the correct repair. By mastering this technique, you’ll save time and avoid unnecessary part replacements, ensuring your 1996 Pontiac Bonneville’s fuel system operates reliably.
Understanding Fuel Pump Noise: Optimal Sound Levels for Your Vehicle
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the underhood fuse/relay box. Refer to your owner’s manual or the diagram on the box lid to identify the exact relay.
Symptoms include the engine not starting, stalling, or difficulty starting, especially after the engine has been running and is hot. You may also hear no fuel pump hum when turning the key to the "ON" position.
Use a multimeter to check for continuity in the relay’s terminals. Swap the fuel pump relay with another relay of the same type (e.g., A/C compressor relay) and see if the issue persists. If the problem moves, the relay is likely faulty.
Yes, you can temporarily bypass the relay by connecting the fuel pump’s power wire directly to the battery (with a fuse in line). If the pump runs, the relay or its circuit is likely the issue.
You’ll need a multimeter to test for continuity and voltage, a wiring diagram for reference, and possibly a jumper wire to bypass the relay for testing.
