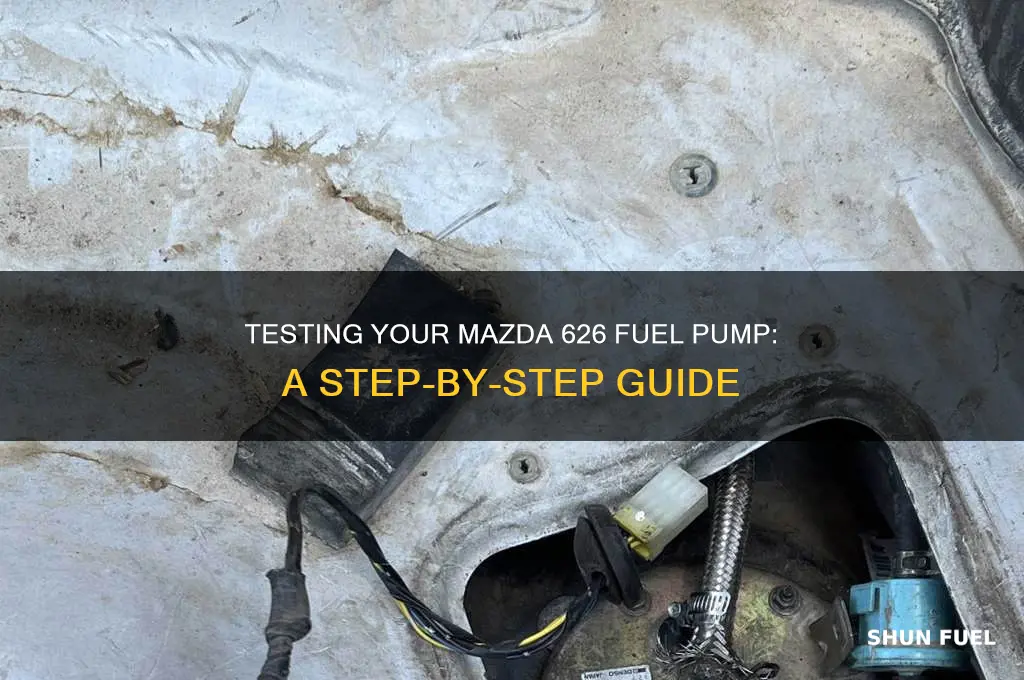

Testing the fuel pump on a Mazda 626 is a crucial diagnostic step to ensure the vehicle’s fuel system is functioning properly. Symptoms such as difficulty starting, stalling, or poor engine performance may indicate a failing fuel pump. To test it, start by checking the fuel pump relay and fuse for any signs of damage or malfunction. Next, use a fuel pressure gauge to measure the pressure at the fuel rail, comparing it to the manufacturer’s specifications. If pressure is insufficient, listen for the fuel pump’s priming sound when turning the ignition to the on position; a lack of noise could suggest the pump is not operating. Additionally, testing the pump’s electrical connections and voltage supply can help pinpoint the issue. Proper testing ensures accurate diagnosis and prevents unnecessary part replacements.
| Characteristics | Values |
|---|---|
| Vehicle Model | Mazda 626 |
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump) |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Testing Method 1: Listen for Operation | Turn the ignition to ON (do not start), listen for a humming sound from the fuel tank for 2-3 seconds |
| Testing Method 2: Check Fuel Pressure | Connect a fuel pressure gauge to the fuel rail, check pressure against Mazda 626 specifications (typically 30-60 PSI) |
| Testing Method 3: Electrical Test | Measure voltage at the fuel pump connector with a multimeter (should read 12V with ignition ON) |
| Testing Method 4: Resistance Test | Disconnect the fuel pump connector, measure resistance across the fuel pump terminals (refer to Mazda 626 manual for spec) |
| Common Issues | Fuel pump not priming, low fuel pressure, no humming sound, electrical faults |
| Replacement Consideration | If fuel pump fails tests, consider replacing the fuel pump assembly |
| Professional Assistance | Consult a mechanic if unsure or if advanced diagnostics are required |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, relieve fuel pressure
- Electrical Testing: Check fuel pump relay, test power and ground connections, verify pump circuit
- Pressure Testing: Use gauge to measure fuel pressure, compare readings to specifications, diagnose issues
- Fuel Pump Noise: Listen for pump operation during ignition, identify abnormal sounds or silence
- Post-Test Analysis: Interpret results, determine pump condition, decide on repair or replacement
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, relieve fuel pressure
Before testing the fuel pump on your Mazda 626, proper preparation is crucial to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a fuel pressure gauge, a wrench or socket set, safety gloves, safety goggles, and a container for fuel spillage. These tools are essential for a smooth and safe testing process. The fuel pressure gauge, in particular, is critical as it will provide a precise reading of the fuel pump’s performance, helping you diagnose whether the pump is functioning within the Mazda 626’s specified range of 30–40 psi.
Safety should never be an afterthought. Fuel systems operate under pressure and contain flammable materials, making them inherently dangerous. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from potential splashes. Ensure the vehicle is parked on a flat, stable surface, away from open flames or sparks. Additionally, work in a well-ventilated area to minimize the risk of inhaling fuel vapors. These precautions are not optional—they are fundamental to preventing accidents during the testing process.
Once safety measures are in place, disconnect the battery to eliminate the risk of electrical shorts or accidental ignition. Locate the negative terminal (usually marked with a "-" sign) and use a wrench to loosen the nut, then carefully remove the cable. This step is often overlooked but is vital for protecting both the vehicle’s electrical system and yourself. After disconnecting the battery, wait at least 10 minutes to allow any residual charge in the system to dissipate before proceeding.
Next, locate the fuel pump, which is typically housed inside the fuel tank. On the Mazda 626, accessing the fuel pump may require removing the rear seat or a dedicated access panel, depending on the model year. Consult your vehicle’s manual for specific instructions. Once located, relieve the fuel pressure by depressurizing the system. This is done by locating the fuel pressure relief valve or by carefully loosening the fuel line at the fuel rail. Be prepared for fuel to spray, which is why the container for spillage is essential. Relieving pressure prevents accidents and ensures accurate testing.
In summary, pre-test preparation is a systematic process that combines tool readiness, safety protocols, and technical steps. By gathering the right tools, prioritizing safety, disconnecting the battery, locating the fuel pump, and relieving fuel pressure, you set the stage for a successful and safe fuel pump test on your Mazda 626. Each step is interconnected, ensuring that you approach the task with confidence and precision.
Understanding the Length of an SBC Fuel Pump Rod
You may want to see also
Explore related products
Electrical Testing: Check fuel pump relay, test power and ground connections, verify pump circuit
The fuel pump relay is a critical component in the Mazda 626's fuel delivery system, acting as a switch that controls power to the fuel pump. A faulty relay can prevent the pump from receiving power, leading to a no-start condition. To test the relay, locate it in the fuse box, typically under the hood. Swap it with a relay of the same type (e.g., another relay with the same part number) to see if the issue resolves. If the engine starts, the original relay is likely defective. For a more precise test, use a multimeter to check for continuity across the relay’s coil terminals when activated. If there’s no continuity, the relay is faulty and needs replacement.
Testing power and ground connections is essential to ensure the fuel pump circuit is receiving the necessary electrical supply. Start by disconnecting the fuel pump connector and using a multimeter to check for 12 volts at the pump’s power wire (typically the pink or red wire) with the ignition on. If voltage is absent, trace the wire back to the fuse box and check the fuse. A blown fuse indicates a short circuit in the wiring. Next, verify the ground connection by checking for continuity between the pump’s ground wire (usually black) and the vehicle chassis. Poor grounding can cause the pump to operate intermittently or not at all. Clean corroded terminals with a wire brush and dielectric grease to ensure a solid connection.
Verifying the pump circuit involves simulating the fuel pump’s operation to isolate electrical issues. With the fuel pump connector disconnected, use a fused jumper wire to apply 12 volts directly to the pump’s power terminal while grounding the other terminal. If the pump runs, the issue lies in the relay, wiring, or control module. If it doesn’t run, the pump itself is likely defective. Be cautious when performing this test, as running the pump dry for more than a few seconds can damage it. Always ensure the fuel tank is at least partially full during testing to prevent pump burnout.
A systematic approach to electrical testing can save time and prevent misdiagnosis. Begin with the relay, as it’s the most common failure point, then proceed to power and ground connections. If both are intact, focus on the pump circuit. Document each step and test result to track progress and identify patterns. For example, if voltage is present at the pump but it doesn’t run, the issue is likely the pump itself. Conversely, if voltage is absent, the problem lies in the wiring or relay. This methodical process ensures no component is overlooked and increases the likelihood of a correct diagnosis.
Fuel Pump PSI for a 1999 Ford Pickup Explained
You may want to see also
Explore related products
Pressure Testing: Use gauge to measure fuel pressure, compare readings to specifications, diagnose issues
Fuel pressure testing is a critical diagnostic step when troubleshooting a Mazda 626's fuel system. A faulty fuel pump can manifest as hard starting, stalling, or poor performance, but symptoms alone aren’t definitive. Pressure testing provides concrete data to confirm or rule out pump issues. By connecting a fuel pressure gauge to the fuel rail, you can measure the system’s pressure at idle and under load, comparing these readings to Mazda’s specifications for the 626. This methodical approach eliminates guesswork, ensuring you address the root cause rather than replacing parts unnecessarily.
To perform a pressure test, start by locating the Schrader valve on the fuel rail, typically near the engine bay’s firewall. Attach a fuel pressure gauge to this valve, ensuring a secure connection to prevent fuel leaks. With the ignition off, relieve pressure in the system by depressing the Schrader valve. Then, start the engine and observe the gauge reading at idle. For a Mazda 626, the fuel pressure should typically fall within 30–40 psi, depending on the model year and engine type. Record this value and compare it to the manufacturer’s specifications found in a repair manual or online resource.
Next, simulate a load condition by revving the engine to around 2,000 RPM while monitoring the gauge. The pressure should remain stable or increase slightly, reflecting the pump’s ability to meet demand. If the pressure drops significantly or fails to meet specifications, this indicates a weak or failing fuel pump. Additionally, check for pressure drop after turning off the engine; a rapid decline suggests a leaking fuel pressure regulator or injector. These observations provide actionable insights into the fuel system’s health.
While pressure testing is straightforward, safety precautions are essential. Always work in a well-ventilated area, avoid open flames, and wear safety goggles to protect against accidental fuel spray. If you’re unsure about the procedure, consult a professional or refer to a detailed guide specific to your Mazda 626 model. Proper execution ensures accurate results, preventing misdiagnosis and unnecessary repairs.
In conclusion, pressure testing is a precise and reliable method to diagnose fuel pump issues in a Mazda 626. By measuring fuel pressure at idle and under load, and comparing these readings to specifications, you can pinpoint problems with confidence. This approach not only saves time and money but also ensures your vehicle’s fuel system operates efficiently and safely. Whether you’re a DIY enthusiast or a seasoned mechanic, mastering this technique is invaluable for maintaining your Mazda 626’s performance.
Step-by-Step Guide to Assembling Delphi FE0420 18315 Fuel Pump
You may want to see also
Explore related products
Fuel Pump Noise: Listen for pump operation during ignition, identify abnormal sounds or silence
One of the simplest yet most effective ways to diagnose fuel pump issues in a Mazda 626 is by listening for its operation during ignition. When you turn the key to the "on" position (but don’t start the engine), the fuel pump should activate briefly, priming the fuel system. This activation produces a faint humming or whirring sound, typically lasting 2-3 seconds, originating from the fuel tank area. If you hear this sound, it’s a good initial indicator that the pump is functioning. However, silence or abnormal noises—such as grinding, whining, or clicking—could signal a failing pump, clogged filter, or electrical issue.
To perform this test effectively, ensure the car is in a quiet environment, as external noise can mask the pump’s sound. Place your ear near the rear passenger side of the vehicle (where the fuel tank is located) or use a mechanic’s stethoscope for clarity. If the pump fails to make any noise, check the fuel pump relay and fuse, as these are common culprits for electrical interruptions. Conversely, if you hear unusual sounds, it may indicate internal pump damage or insufficient lubrication due to low fuel levels. Always verify the fuel tank is at least a quarter full before testing, as running on fumes can strain the pump and distort diagnostic results.
Comparing the sound of a healthy fuel pump to a failing one can be enlightening. A properly functioning pump emits a consistent, low-pitched hum, similar to the sound of a refrigerator compressor. In contrast, a failing pump might produce intermittent clicks (indicating a seized motor), a high-pitched whine (suggesting worn bearings), or a grinding noise (pointing to debris in the system). If you’re unsure, record the sound with a smartphone and compare it to online examples or consult a mechanic for a second opinion.
While listening for fuel pump noise is a quick diagnostic tool, it’s not foolproof. Silence doesn’t always mean the pump is dead; it could be a faulty relay or wiring issue. Similarly, abnormal sounds might stem from other components, like a failing fuel filter or air in the lines. For a comprehensive diagnosis, follow up with additional tests, such as checking fuel pressure or inspecting the pump’s electrical connections. However, as a first step, this auditory test is invaluable for narrowing down potential issues and saving time on more complex diagnostics.
Westinghouse 2200 Generator: Fuel Pump Features and Functionality Explained
You may want to see also
Explore related products
Post-Test Analysis: Interpret results, determine pump condition, decide on repair or replacement
After conducting a fuel pump test on your Mazda 626, the real challenge begins: deciphering the results. A healthy fuel pump should maintain a consistent pressure reading, typically between 30 and 60 psi, depending on the engine's specifications. If the pressure gauge fluctuates or drops significantly during the test, this could indicate a weak or failing pump. For instance, a reading below 20 psi under load might suggest a pump that’s struggling to deliver adequate fuel, especially during high-demand situations like acceleration or climbing.
Interpreting these results requires a keen eye for detail. Compare your findings to the manufacturer’s specifications, which can often be found in the vehicle’s service manual or online resources specific to the Mazda 626. If the pump’s performance deviates from these standards, it’s crucial to assess whether the issue stems from the pump itself or external factors, such as a clogged fuel filter or faulty pressure regulator. A systematic approach, like isolating the pump and testing it independently, can help pinpoint the root cause.
Deciding between repair and replacement hinges on the severity of the issue and the pump’s overall condition. Minor problems, like a worn diaphragm or loose connections, might be resolved with repairs, saving you time and money. However, if the pump is severely damaged, corroded, or has exceeded its typical lifespan (often around 100,000 to 150,000 miles), replacement is usually the more practical option. Consider the cost of parts and labor against the potential for recurring issues—sometimes, investing in a new pump is the more economical long-term solution.
Practical tips can streamline this decision-making process. For example, if the pump is more than a decade old or has been exposed to contaminated fuel, replacement is often advisable. Additionally, consult with a trusted mechanic who can provide a second opinion based on their experience with Mazda 626 models. They might identify nuances in the test results that aren’t immediately apparent, ensuring you make an informed choice.
In conclusion, post-test analysis is a critical step in diagnosing your Mazda 626’s fuel pump health. By carefully interpreting the results, isolating potential causes, and weighing repair versus replacement, you can address the issue effectively. Remember, a well-maintained fuel system not only ensures optimal performance but also prevents more costly problems down the road.
Mastering Mechanical Fuel Pump Adjustment: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Common symptoms of a failing fuel pump include engine sputtering, loss of power, difficulty starting, or stalling. You may also hear a whining noise from the fuel tank area.
You’ll need a fuel pressure gauge, a multimeter, and basic hand tools to access the fuel pump relay and wiring.
Yes, you can test the fuel pump’s electrical connections and relay using a multimeter. However, a fuel pressure test requires accessing the fuel rail, which may involve removing components for easier access.
Connect a fuel pressure gauge to the fuel rail’s Schrader valve, turn the ignition to the "ON" position (without starting the engine), and check if the pressure matches the manufacturer’s specifications. It should hold steady.
If the fuel pump isn’t working, check the fuse, relay, and wiring for faults. If these are intact, the fuel pump itself may be faulty and needs replacement. Consult a professional if unsure.
