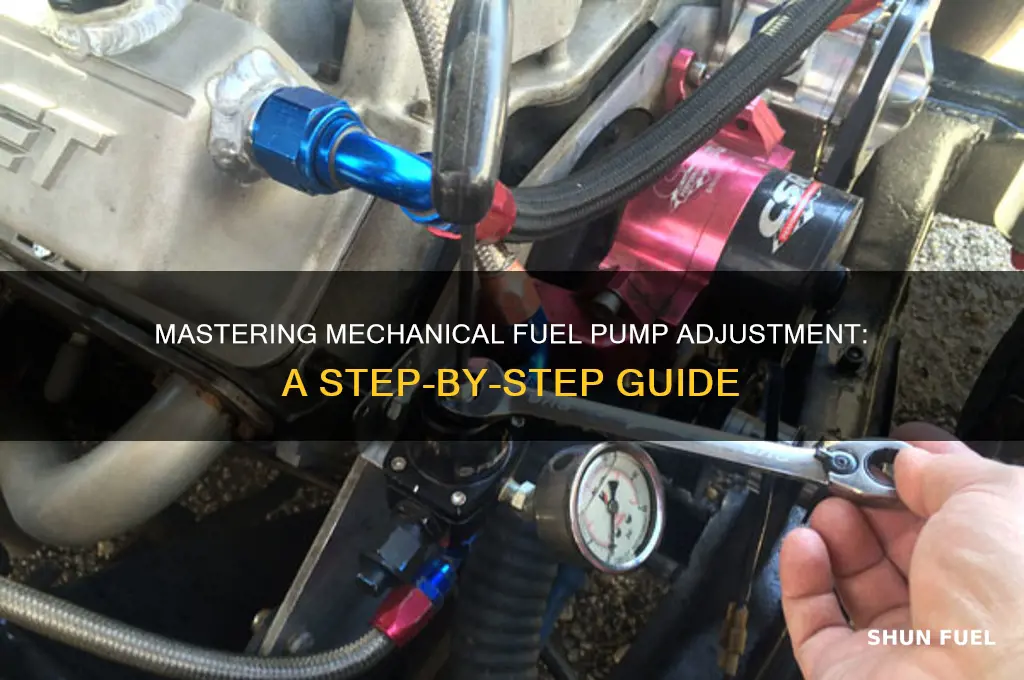

Adjusting a mechanical fuel pump is a critical task for maintaining optimal engine performance in older vehicles or those equipped with carbureted systems. Mechanical fuel pumps operate by creating a vacuum to draw fuel from the tank and deliver it to the carburetor, and over time, they may require adjustment to ensure proper fuel pressure and volume. The process typically involves locating the pump’s eccentric arm or adjusting screw, which controls the pump’s diaphragm movement. By carefully turning the adjustment mechanism, you can fine-tune the pump’s output to match the engine’s fuel demands. It’s essential to consult the vehicle’s manual for specific settings and to test the pump’s performance after adjustments to avoid issues like flooding, lean running, or fuel starvation. Proper adjustment ensures reliable fuel delivery, enhancing both efficiency and drivability.
| Characteristics | Values |
|---|---|
| Purpose of Adjustment | Ensure proper fuel delivery, maintain correct pressure, and prevent engine issues. |
| Tools Required | Wrench, screwdriver, feeler gauge, pressure gauge, and safety gloves. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, and relieve fuel system pressure. |
| Adjustment Type | Eccentric adjustment (most common), pushrod adjustment, or diaphragm adjustment. |
| Eccentric Adjustment Steps | 1. Locate the eccentric arm. 2. Loosen the lock nut. 3. Turn the arm to adjust the pump lever. 4. Tighten the lock nut. |
| Pushrod Adjustment Steps | 1. Remove the pump cover. 2. Adjust the pushrod length using a feeler gauge. 3. Reinstall the cover. |
| Diaphragm Adjustment Steps | 1. Access the diaphragm plate. 2. Adjust the plate screws to change the diaphragm travel. |
| Fuel Pressure Specification | Refer to the vehicle’s manual for the correct pressure range (e.g., 3-6 PSI). |
| Testing After Adjustment | Start the engine and check for smooth operation, proper pressure, and no leaks. |
| Common Symptoms of Misadjustment | Hard starting, engine stalling, rough idle, or fuel leaks. |
| Frequency of Adjustment | Typically not required unless symptoms appear or during major engine work. |
| Professional Assistance | Recommended if unsure or if the pump is inaccessible or complex. |
Explore related products
What You'll Learn
Identify Pump Type and Location
Before attempting any adjustment, pinpointing the exact type and location of your mechanical fuel pump is crucial. Mechanical fuel pumps come in various designs, each with unique adjustment mechanisms. Common types include diaphragm pumps, often found in older carbureted engines, and plunger pumps, more prevalent in diesel applications. Misidentifying the pump type can lead to incorrect adjustments, potentially causing poor engine performance or damage.
Consult your vehicle's manual or online resources specific to your make and model for accurate identification.
Locating the pump is equally important. In most carbureted vehicles, the fuel pump is mounted on the engine block, often near the carburetor. Diesel engines may have the pump integrated into the injection system, requiring more intricate access. Some pumps are driven by the camshaft, while others use an eccentric lobe on the crankshaft. Understanding this drive mechanism is key to accessing the adjustment points without causing collateral damage.
Visual inspection, coupled with knowledge of your engine layout, will guide you to the pump's exact position.
Once you've identified the pump type and location, consider the engine's age and condition. Older pumps may have worn components, making adjustments less effective. In such cases, replacement might be more prudent than adjustment. Additionally, ensure the fuel system is depressurized before proceeding, as working on a pressurized system poses serious safety risks. Always wear safety goggles and gloves, and work in a well-ventilated area to avoid fuel fumes.
For diaphragm pumps, the adjustment typically involves altering the pushrod length or the eccentric's position. Plunger pumps may require adjusting the plunger stroke or the pressure regulator. Each adjustment affects fuel delivery volume and pressure, directly impacting engine performance. Over-adjustment can lead to fuel wastage or engine flooding, while under-adjustment may cause poor acceleration or stalling. Refer to manufacturer specifications for precise adjustment ranges, usually measured in thousandths of an inch or degrees of rotation.
In conclusion, identifying the pump type and location is the foundational step in adjusting a mechanical fuel pump. This process requires a blend of research, visual inspection, and caution. By accurately determining the pump's design and position, you can proceed with confidence, ensuring the adjustment aligns with your engine's needs. Always prioritize safety and consult reliable resources to achieve optimal results.
