Katerina Swanson

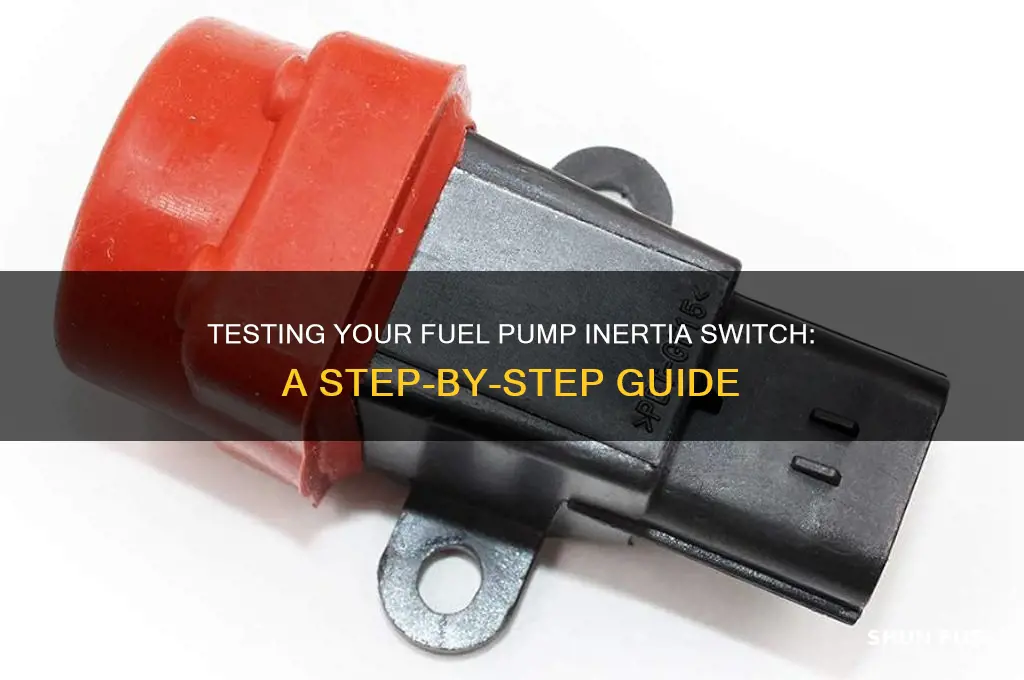

Testing a fuel pump inertia switch is a critical step in diagnosing fuel system issues, particularly in vehicles equipped with this safety feature designed to shut off the fuel pump in the event of a collision. The inertia switch, often located in the trunk, rear cabin, or near the fuel pump, operates on a mechanical trigger that activates when subjected to sudden deceleration or impact. To test it, first locate the switch and ensure it is in the on position, typically indicated by a button that pops up when tripped. Gently press the button to reset it if necessary. Next, simulate a fault by disconnecting the fuel pump relay or fuse, then attempt to start the engine; if the switch is functioning correctly, it should remain engaged. To further test its sensitivity, you can gently tap the switch while monitoring the fuel pump operation, though this should be done cautiously to avoid accidental tripping. Always consult the vehicle’s manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Purpose of Test | To check if the fuel pump inertia switch is functioning correctly. |
| Tools Required | Multimeter, screwdriver, insulated gloves, safety goggles. |
| Location of Inertia Switch | Typically in the trunk, near the fuel tank, or under the dashboard. |
| Switch Mechanism | Resettable switch that trips during a collision to cut off fuel pump power. |
| Testing Method | 1. Locate the switch. 2. Press the reset button (if tripped). 3. Use a multimeter to check continuity. |
| Continuity Test | With the switch reset, there should be continuity (low resistance) between the terminals. |
| Tripped Switch Indication | No continuity (high resistance) between terminals when tripped. |
| Reset Mechanism | Manual reset button that restores continuity when pressed. |
| Safety Precautions | Ensure the vehicle is off, and the fuel system is depressurized. |
| Common Issues | Switch failing to reset, false tripping, or permanent loss of continuity. |
| Replacement Needed If | Switch does not reset or shows no continuity even after resetting. |
| Vehicle Compatibility | Found in most vehicles with fuel injection systems, especially older models. |
| Time Required for Test | 10-15 minutes. |
| Difficulty Level | Beginner to intermediate. |
| Cost of Replacement Switch | Typically $20-$50 depending on the vehicle model. |
Explore related products
$27.89 $30.99
What You'll Learn
- Locate the Inertia Switch: Identify the switch's position in your vehicle, typically near the fuel pump
- Inspect for Tripping: Check if the switch has activated due to impact or accident
- Reset the Switch: Press the button or reset mechanism to restore fuel pump operation
- Test Continuity: Use a multimeter to verify the switch’s electrical connection is intact
- Replace if Faulty: If the switch fails tests, replace it to ensure fuel pump functionality
Locate the Inertia Switch: Identify the switch's position in your vehicle, typically near the fuel pump
The inertia switch, a critical safety feature in many vehicles, is designed to shut off the fuel pump in the event of a collision, reducing the risk of fire. Locating this switch is the first step in testing its functionality. Typically, the inertia switch is positioned near the fuel pump, but its exact location varies by vehicle make and model. Consult your vehicle’s manual or online resources specific to your car to pinpoint its placement. For example, in Ford vehicles, the switch is often found in the trunk or near the driver’s side kick panel, while in Hondas, it may be under the dashboard or in the rear cargo area. Knowing this location saves time and ensures you’re testing the correct component.
Analyzing the placement of the inertia switch reveals its strategic design. Manufacturers position it in areas less likely to be directly impacted in a collision, yet accessible for maintenance. For instance, switches located in the trunk or under the dashboard are shielded from frontal impacts while remaining reachable for inspection. This balance between safety and practicality underscores the importance of understanding your vehicle’s layout. If you’re unsure, online forums or automotive communities can provide model-specific insights, often with photos or diagrams to guide you.
To locate the inertia switch effectively, start by clearing the area around the suspected location. For switches in the trunk, remove spare tires or storage compartments. If it’s under the dashboard, use a flashlight to illuminate hard-to-see areas. Once identified, inspect the switch for signs of damage or corrosion, as these can affect its performance. A common mistake is confusing the inertia switch with other components, such as the fuel pump relay, so verify its appearance against reference images. This careful approach ensures you’re working on the right part.
Persuasively, understanding the inertia switch’s location isn’t just about testing—it’s about preparedness. In emergency situations, knowing where to reset the switch can restore fuel flow and get your vehicle running again. For example, if your car stalls after a minor bump, the inertia switch may have tripped. Locating and resetting it could save you from unnecessary towing costs. This knowledge also empowers you during routine maintenance, allowing you to check the switch’s condition and ensure it functions correctly. It’s a small detail with significant implications for safety and convenience.
Finally, a comparative look at inertia switch locations across different vehicles highlights the need for customization. While some manufacturers place the switch in consistent locations, others vary it based on model year or trim level. For instance, older vehicles may have the switch mounted directly on the fuel pump, while newer models often integrate it into the cabin for easier access. This diversity reinforces the importance of vehicle-specific research. By familiarizing yourself with your car’s unique design, you’ll be better equipped to locate, test, and maintain this vital safety component.
Understanding the BMW i135 Fuel Pump System's Operation and Design
You may want to see also
Explore related products
Inspect for Tripping: Check if the switch has activated due to impact or accident
The fuel pump inertia switch is a safety feature designed to shut off the fuel pump in the event of a collision or sudden impact, preventing potential fuel leaks and fires. However, this very mechanism can leave you stranded if the switch trips inadvertently. To determine if your vehicle’s inertia switch has activated, start by locating it—typically found in the trunk, under the hood, or near the driver’s side kick panel. Refer to your vehicle’s manual for the exact location, as placement varies by make and model. Once located, inspect the switch for a visible "reset" button, which may be recessed or flush when tripped.
A tripped inertia switch often goes unnoticed until the engine stalls or fails to start. To check if it’s the culprit, press the reset button firmly if it’s recessed. You may hear a click as it resets, indicating it was previously activated. If the button was already protruding, the switch likely hasn’t tripped, and the issue may lie elsewhere. After resetting, attempt to start the vehicle. If it starts, the switch was indeed the problem, but monitor for recurring tripping, as this could signal a faulty switch or underlying issue like a loose mounting or excessive vibration.
For vehicles without a visible reset button, testing involves a more hands-on approach. Disconnect the switch’s electrical connector and use a multimeter to check for continuity between the terminals. A tripped switch will show no continuity, while a functioning one will. If the switch is tripped, manually reset it by pressing the internal mechanism (if accessible) or replacing the switch entirely. Always exercise caution when working with electrical components, ensuring the ignition is off to avoid accidental activation of the fuel system.
In cases where the inertia switch trips frequently, investigate potential causes such as rough terrain, improper installation, or a malfunctioning switch. For vehicles driven off-road or in areas with poor road conditions, consider relocating the switch to a more secure position or installing a bypass (though this negates the safety feature). Regularly inspect the switch’s mounting to ensure it’s secure and free from damage. If the issue persists, consult a professional mechanic to diagnose and address the root cause.
Finally, understanding the inertia switch’s role in vehicle safety underscores the importance of routine inspection, especially after an accident or impact. While its activation can be a lifesaver, unnecessary tripping can be frustrating and inconvenient. By familiarizing yourself with its location, function, and reset procedure, you’ll be better equipped to handle this common issue swiftly and confidently, ensuring your vehicle remains reliable and safe on the road.
Mastering Fuel Pump Relay Operation: A Step-by-Step Guide
You may want to see also
Explore related products
Reset the Switch: Press the button or reset mechanism to restore fuel pump operation
The inertia switch is a safety feature designed to shut off the fuel pump in the event of a collision or sudden impact, preventing fuel from spilling and reducing the risk of fire. However, this switch can also trip accidentally due to rough driving conditions or even a hard bump. When this happens, the fuel pump stops operating, causing the engine to stall or fail to start. Resetting the inertia switch is a straightforward process that can quickly restore fuel pump operation and get your vehicle running again.
To reset the inertia switch, locate the switch, which is typically found in the vehicle’s cabin, often near the driver’s feet or under the dashboard. In some vehicles, it may be mounted in the trunk or under the hood, so consult your owner’s manual if you’re unsure. Once located, you’ll notice a button or reset mechanism on the switch. This button is usually recessed to prevent accidental resets and may require a firm press to activate. Press and hold the button for 1–2 seconds, then release it. This action resets the switch, allowing the fuel pump to resume operation. If the switch has tripped due to a genuine impact, ensure the vehicle is in a safe location before attempting a reset.
A practical tip is to test the reset process when the vehicle is stationary and the engine is off. This ensures you’re familiar with the procedure and can act quickly if the switch trips while driving. Keep in mind that repeated tripping of the inertia switch may indicate an underlying issue, such as a faulty switch or persistent rough driving conditions. If the problem persists, consider consulting a mechanic to diagnose and address the root cause.
Resetting the inertia switch is a simple yet critical step in troubleshooting fuel pump issues. It’s a quick fix that can save time and prevent unnecessary repairs. However, always approach the task with caution, especially if the switch has tripped due to an accident. Ensure the vehicle is stable and there are no fuel leaks before attempting a reset. By understanding and correctly resetting the inertia switch, you can maintain the safety and functionality of your vehicle’s fuel system.
Does the Honda GX690 Engine Include a Fuel Pump?
You may want to see also
Explore related products
Test Continuity: Use a multimeter to verify the switch’s electrical connection is intact
A multimeter is your ally when testing the continuity of a fuel pump inertia switch. This handheld device measures electrical current, voltage, and resistance, making it ideal for verifying the integrity of the switch's internal circuit. Before proceeding, ensure the vehicle is turned off and the ignition is in the "Off" position to prevent accidental activation of the fuel pump.
Understanding Continuity:
Continuity refers to the uninterrupted flow of electricity through a circuit. In the context of the inertia switch, continuity indicates that the internal contacts are closed, allowing current to flow to the fuel pump. A break in continuity suggests a faulty switch, potentially caused by a tripped mechanism or internal damage.
Conducting the Test:
- Locate the Inertia Switch: Consult your vehicle's manual to identify the inertia switch's location. It's typically found in the engine bay or trunk, often near the fuel pump relay.
- Access the Switch Terminals: Carefully disconnect the wiring harness from the inertia switch. You'll usually find two terminals: one for power input and one for power output to the fuel pump.
- Set the Multimeter: Turn on your multimeter and set it to the continuity or resistance (ohms) setting. This setting will emit a beep or show a low resistance reading when a complete circuit is detected.
- Test for Continuity: Touch the multimeter probes to the switch terminals. If the switch is functioning correctly, the multimeter will indicate continuity with a beep or a low resistance reading (typically close to 0 ohms). If there's no continuity, the multimeter will remain silent or display a high resistance reading (open circuit).
Interpreting Results:
If the multimeter confirms continuity, the inertia switch is likely functioning properly. However, if there's no continuity, further investigation is necessary. The switch may be tripped, damaged, or faulty. Refer to your vehicle's manual for instructions on resetting a tripped switch or consult a qualified mechanic for diagnosis and repair.
Troubleshooting Fuel Pump Issues: Why Can't You Hear It Kick On?
You may want to see also
Explore related products
Replace if Faulty: If the switch fails tests, replace it to ensure fuel pump functionality
A failed inertia switch can leave you stranded, as it's designed to cut power to the fuel pump in the event of a collision. If your vehicle's fuel pump isn't functioning, and you suspect the inertia switch is the culprit, it's crucial to test it properly. After conducting the necessary tests, such as checking for continuity or resetting the switch, you may find that it fails to respond as expected. In this case, replacing the faulty switch is the most effective solution to restore fuel pump functionality.
From an analytical perspective, the inertia switch is a critical safety component that must operate reliably. If it fails tests, it's likely compromised, either due to physical damage, corrosion, or wear over time. Continuing to use a faulty switch poses risks, as it may not trigger when needed or could fail to reset, leaving your fuel pump inoperative. Replacing the switch ensures that this safety mechanism functions as intended, protecting both the vehicle and its occupants.
When replacing the inertia switch, follow these instructive steps: first, locate the switch, typically found near the fuel pump or in the trunk area, depending on your vehicle. Disconnect the battery to prevent accidental activation. Remove the old switch by unplugging the wiring harness and unscrewing or unclipping it from its mounting. Install the new switch, ensuring it’s securely fastened and the wiring is correctly reconnected. Finally, reconnect the battery and test the switch by attempting to start the vehicle.
Comparatively, while some may consider bypassing the inertia switch as a temporary fix, this approach is unsafe and illegal in many jurisdictions. Bypassing the switch eliminates a critical safety feature, increasing the risk of fuel-related accidents in a collision. Replacing the faulty switch, on the other hand, is a straightforward and cost-effective solution that maintains the vehicle’s safety standards. It’s a small investment compared to the potential consequences of a malfunctioning fuel system.
In a persuasive tone, consider the peace of mind that comes with knowing your vehicle’s safety systems are intact. A faulty inertia switch isn’t just an inconvenience—it’s a liability. By replacing it promptly, you ensure that your fuel pump operates reliably, reducing the risk of unexpected breakdowns or hazardous situations. Don’t gamble with safety; replace the switch if it fails tests, and drive with confidence knowing your vehicle is fully protected.
Sealing Fuel Pump Housing on a 1997 Camaro Z28: DIY Guide
You may want to see also
Frequently asked questions
A fuel pump inertia switch is a safety device that shuts off the fuel pump in the event of a collision or sudden impact to prevent fuel leaks and fires. Testing it ensures it functions correctly and resets properly after activation.
The inertia switch is typically located in the trunk, under the dashboard, or near the fuel pump. Refer to your vehicle’s manual or search online for its specific location in your make and model.
You’ll need a multimeter to check for continuity, a small tool to press the reset button (if applicable), and possibly a flashlight to locate the switch in tight spaces.
First, locate and reset the switch if it’s tripped. Then, use a multimeter to check for continuity between the switch’s terminals. If there’s no continuity, the switch may be faulty and needs replacement. Always consult a professional if unsure.
