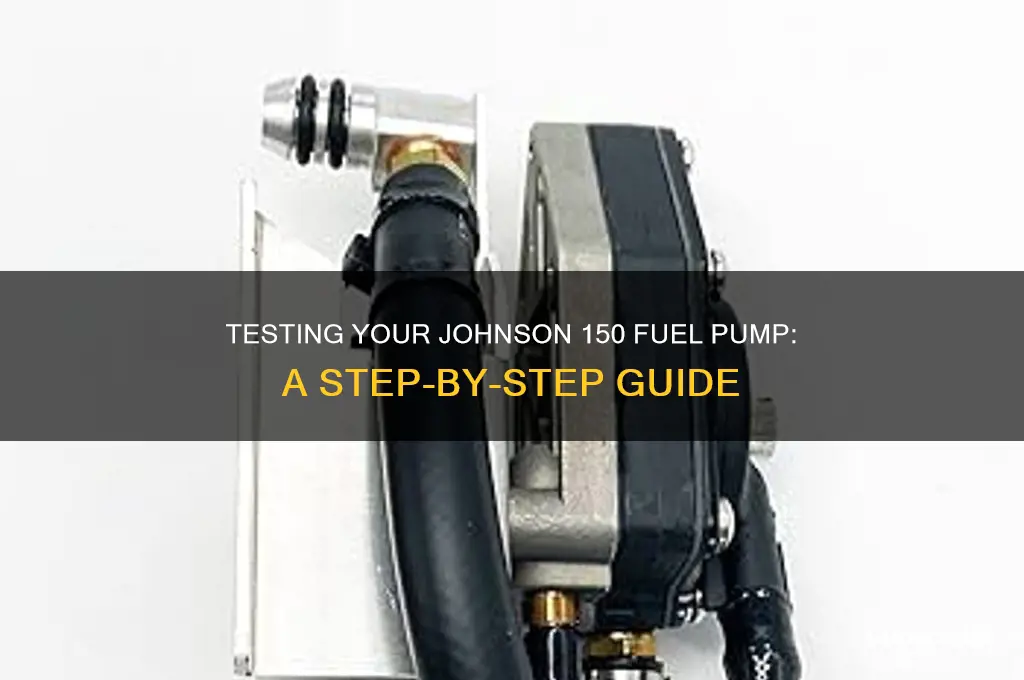

Testing the fuel pump on a Johnson 150 outboard motor is a critical step in diagnosing fuel delivery issues and ensuring optimal engine performance. To begin, ensure the engine is off and the fuel supply is disconnected to prevent accidental starts or fuel spills. Start by checking the fuel pump for visible damage or leaks, then use a multimeter to test the pump’s electrical connections for continuity and proper voltage. Next, disconnect the fuel line and crank the engine to verify fuel flow; if no fuel is delivered, the pump may be faulty. Additionally, a manual pressure test using a gauge can confirm if the pump is maintaining the correct pressure. Always refer to the Johnson 150 service manual for specific procedures and safety guidelines to accurately diagnose and address any fuel pump issues.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Electric or mechanical (depending on Johnson 150 model) |
| Testing Tools Required | Multimeter, fuel pressure gauge, jumper wires, battery, fuel line disconnect tool |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Testing Method (Electric Pump) | 1. Disconnect fuel lines and pump wiring. 2. Connect pump directly to battery. 3. Check for pump operation (whirring sound). 4. Use multimeter to test voltage at pump terminals (12V expected). |
| Testing Method (Mechanical Pump) | 1. Disconnect fuel lines. 2. Crank the engine and observe fuel flow. 3. Check for proper pressure using a fuel pressure gauge. |
| Expected Fuel Pressure | Typically 3-5 PSI (check Johnson 150 manual for exact specs) |
| Common Failure Symptoms | Engine hard to start, stalling, loss of power, no fuel flow |
| Replacement Considerations | Ensure compatibility with Johnson 150 model and fuel system type |
| Maintenance Tips | Regularly inspect fuel lines, filters, and connections for leaks or clogs |
| Professional Assistance | Consult a marine mechanic if testing or replacement is uncertain |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump
- Pressure Testing: Use gauge to check fuel pressure against specifications
- Electrical Check: Test voltage at pump connector with multimeter
- Fuel Flow Test: Disconnect line, crank engine, observe fuel flow
- Post-Test Inspection: Check for leaks, reattach components, verify operation
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump
Before testing the fuel pump on your Johnson 150, proper preparation is critical to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a multimeter, wrench set, safety gloves, safety goggles, and a container for fuel spillage. These tools are essential for diagnosing electrical issues, removing components, and protecting yourself during the process. Without them, you risk incomplete diagnostics or personal injury, turning a straightforward task into a hazardous ordeal.
Safety should never be an afterthought. Fuel systems are inherently dangerous due to their flammable nature and high-pressure components. Work in a well-ventilated area, away from open flames or sparks. Ensure the engine is cool to the touch to prevent burns. Wear nitrile gloves to protect your skin from fuel exposure, and safety goggles to shield your eyes from accidental splashes. A single oversight in safety precautions can lead to severe consequences, making this step as vital as the test itself.
With safety measures in place, disconnect the battery to eliminate the risk of electrical shorts or accidental ignition. Locate the battery terminals and use a wrench to loosen the nut securing the negative cable. Once disconnected, secure the cable away from the terminal to prevent accidental reconnection. This step is often overlooked but is crucial for preventing electrical hazards during testing. It also ensures that the fuel pump remains inactive until you’re ready to test it, providing a controlled environment for diagnostics.
Finally, locate the fuel pump, which is typically mounted near the fuel tank or along the fuel line. Consult your Johnson 150 service manual for the exact location, as designs may vary by model year. Identifying the pump beforehand saves time and frustration, allowing you to focus on the testing process. Once located, inspect the surrounding area for fuel leaks or damaged components. Addressing these issues before testing ensures accurate results and prevents further damage to the fuel system. Proper preparation is the foundation of a successful fuel pump test, transforming a potentially complex task into a manageable procedure.
Mastering Mechanical Fuel Pump Timing: Step-by-Step Advancement Guide
You may want to see also
Explore related products
Pressure Testing: Use gauge to check fuel pressure against specifications
Fuel pressure is a critical metric when diagnosing issues with a Johnson 150 outboard motor’s fuel pump. Deviations from the manufacturer’s specifications can indicate clogs, leaks, or pump failure. To accurately measure this, a fuel pressure gauge is essential. Connect the gauge directly to the fuel rail or use a test port if available, ensuring the system is primed and the engine is running at idle. Compare the reading to the Johnson 150’s specified pressure range, typically found in the service manual. A discrepancy signals a problem requiring further investigation.
Analyzing the pressure reading involves more than just noting the number. Low pressure may suggest a clogged fuel filter, weak pump, or collapsed fuel line, while high pressure could indicate a faulty regulator or restricted return line. For instance, if the gauge reads 20 psi on a system requiring 35–40 psi, the pump is likely underperforming. Conversely, 50 psi on a 40-psi system points to regulator failure. Always cross-reference the reading with symptoms like hard starting or rough idle to narrow down the cause.
Performing a pressure test requires precision and caution. Start by relieving fuel system pressure to prevent accidental spray or injury. Use a gauge rated for marine fuel systems, as automotive gauges may not withstand ethanol-blended fuels. Secure all connections tightly to avoid leaks, and run the engine only long enough to stabilize the reading. If testing at higher RPMs, ensure the gauge can handle the increased pressure without damage. Safety goggles and a fire extinguisher should be on hand as a precaution.
A practical tip for accurate testing is to stabilize the engine temperature before taking a reading, as cold engines can skew results. Allow the motor to idle for 5–10 minutes, then record the pressure. If the gauge fluctuates, inspect for air leaks in the fuel lines or connections. For intermittent issues, monitor pressure during acceleration or under load to identify drops or spikes. Documenting these observations provides valuable data for troubleshooting or sharing with a mechanic.
In conclusion, pressure testing with a gauge is a definitive method to assess a Johnson 150’s fuel pump health. It transforms guesswork into data-driven diagnosis, pinpointing issues that visual inspections or symptom analysis might miss. By adhering to specifications and safety protocols, this test not only identifies current problems but also prevents potential failures, ensuring reliable performance on the water.
Step-by-Step Guide to Testing Your Yamaha Fuel Pump Effectively
You may want to see also
Explore related products
Electrical Check: Test voltage at pump connector with multimeter
A faulty fuel pump can leave you stranded, and diagnosing the issue often starts with a simple electrical check. Testing the voltage at the pump connector with a multimeter is a direct way to determine if the pump is receiving the necessary power to operate. This step is crucial because even if the pump itself is functional, insufficient voltage will prevent it from delivering fuel to the engine. Before diving into the process, ensure your multimeter is set to the DC voltage range, typically marked as "V" with a straight line, and that you’re working in a safe, well-ventilated area with the engine off.
Begin by locating the fuel pump connector, which is usually found near the fuel tank or along the fuel line. Consult your Johnson 150 manual for the exact location if you’re unsure. Once identified, disconnect the connector carefully to access the wires. Most fuel pumps have two primary wires: one for power (usually red or pink) and one for ground (black). With the multimeter leads, touch the positive probe (red) to the power wire and the negative probe (black) to the ground wire. Turn the ignition key to the "on" position but do not start the engine. A healthy fuel pump system should show a voltage reading close to your battery voltage, typically around 12 to 14 volts.
If the multimeter reads zero voltage, the issue likely lies in the wiring or the fuel pump relay. Trace the wiring back from the connector to check for breaks, corrosion, or loose connections. If the wiring appears intact, test the relay by swapping it with a similar one in the fuse box and retesting the voltage. Conversely, if the voltage is significantly lower than expected, the problem could be a weak battery, a poor ground connection, or high resistance in the circuit. Clean the battery terminals and ground points to rule out these possibilities before proceeding.
A common mistake during this test is failing to ensure the ignition is in the correct position. The fuel pump only receives power in the "on" position, so double-check before concluding the pump is faulty. Additionally, always handle electrical components with care to avoid short circuits or damage. If the voltage test confirms adequate power but the pump still doesn’t operate, the pump itself may be defective, and further testing or replacement may be necessary.
In summary, testing the voltage at the fuel pump connector is a straightforward yet critical step in diagnosing fuel delivery issues on a Johnson 150. By using a multimeter to verify power supply, you can narrow down potential causes and avoid unnecessary part replacements. Remember to work methodically, prioritize safety, and consult your manual for model-specific details. This approach not only saves time but also ensures you address the root cause of the problem efficiently.
Fuel Pump Relay Replacement: Optimal Timing and Maintenance Tips
You may want to see also
Explore related products
Fuel Flow Test: Disconnect line, crank engine, observe fuel flow
A fuel flow test is a straightforward yet effective method to assess the performance of your Johnson 150's fuel pump. By disconnecting the fuel line, cranking the engine, and observing the fuel flow, you can quickly identify potential issues such as clogs, weak pumps, or faulty filters. This test is particularly useful when troubleshooting starting problems or poor engine performance, as it provides a clear indication of whether the fuel system is delivering the necessary volume and pressure.
To perform this test, start by locating the fuel line connection near the engine. Use a wrench or pliers to carefully disconnect the line, ensuring you have a container ready to catch any fuel that spills. With the line disconnected, have an assistant crank the engine while you observe the fuel flow. A healthy fuel pump should deliver a steady, forceful stream of fuel. If the flow is weak, intermittent, or non-existent, it may indicate a failing pump, clogged filter, or issue with the fuel tank's venting system.
One practical tip is to measure the fuel flow rate during this test. While there’s no specific dosage value for fuel flow, a general rule of thumb is that the stream should be strong enough to reach at least 12–18 inches horizontally. If the flow falls short, compare it to the manufacturer’s specifications for the Johnson 150, which typically recommends a flow rate of 3–5 gallons per hour (GPH) under cranking conditions. This comparative analysis can help pinpoint whether the issue lies with the pump, lines, or another component.
Caution should be exercised during this test, as working with fuel poses fire and environmental hazards. Ensure the engine is in a well-ventilated area, away from open flames or sparks. Wear protective gloves and eyewear, and clean up any spilled fuel immediately. Additionally, avoid cranking the engine for more than 10–15 seconds at a time to prevent damage to the starter motor. If you’re unsure about any step, consult the Johnson 150 service manual or seek assistance from a professional mechanic.
In conclusion, the fuel flow test is a diagnostic tool that offers immediate insights into your Johnson 150’s fuel delivery system. By systematically disconnecting the line, cranking the engine, and observing the flow, you can isolate problems and take targeted action. Whether you’re a seasoned boater or a DIY enthusiast, mastering this test empowers you to maintain your engine’s reliability and performance, ensuring smooth operation on the water.
Effective Fuel Pump Cleaning: Step-by-Step Guide for Optimal Performance
You may want to see also
Explore related products
Post-Test Inspection: Check for leaks, reattach components, verify operation
After testing your Johnson 150 fuel pump, the post-test inspection is a critical step to ensure everything is in working order and to prevent potential issues down the line. Begin by checking for leaks around the fuel pump, lines, and connections. Even a small leak can lead to fuel wastage, fire hazards, or performance problems. Use a clean rag to wipe down the area and inspect for wet spots or the smell of fuel. If you detect a leak, tighten the connections or replace damaged components before proceeding.
Next, reattach any components that were removed during the testing process, such as fuel lines, clamps, or electrical connectors. Ensure all fittings are secure and properly aligned to avoid future disconnections or leaks. For example, when reattaching fuel lines, use a wrench to tighten hose clamps but avoid over-tightening, as this can damage the lines or seals. Double-check that all electrical connections are snug and free of corrosion, as poor connections can cause intermittent pump operation or failure.
Once all components are reattached, verify the fuel pump’s operation by starting the engine and observing its performance. Listen for unusual noises, such as whining or grinding, which could indicate internal pump damage. Check the fuel pressure gauge (if available) to ensure it reads within the manufacturer’s specifications for the Johnson 150, typically around 30–60 PSI depending on the model. If the engine starts smoothly and idles steadily, the pump is likely functioning correctly.
A practical tip for this stage is to run the engine at various RPMs to ensure consistent fuel delivery. If you notice hesitation, stalling, or a drop in performance, revisit the fuel pump and lines for potential issues. Additionally, inspect the fuel filter for clogs, as a restricted filter can mimic pump failure symptoms. This comprehensive post-test inspection not only confirms the pump’s functionality but also safeguards your engine’s reliability and longevity.
Understanding the Fuel Pump System in a 2005 Cadillac CTS
You may want to see also
Frequently asked questions
To test the fuel pump, first disconnect the fuel line from the engine and place it in a container. Crank the engine and observe if fuel is pumped out. If no fuel is delivered, check for clogs, electrical issues, or a faulty pump.
You’ll need a multimeter to check for power and ground at the pump, a fuel pressure gauge (if applicable), and basic hand tools to access the fuel pump and connections.
Use a multimeter to test the voltage at the fuel pump’s electrical connector. With the key on, you should see battery voltage (typically 12V) at the power wire. If not, check the fuse, relay, and wiring for issues.
Symptoms include difficulty starting, engine stalling, loss of power, or no fuel delivery. If the engine cranks but won’t start, test the fuel pump to ensure it’s functioning properly.
