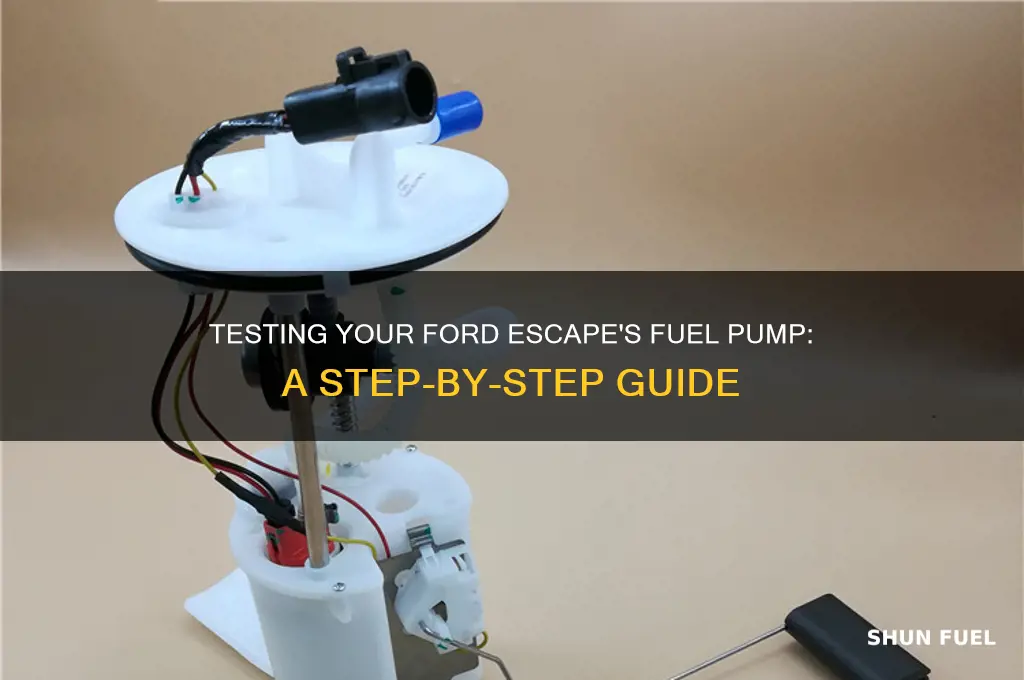

Testing the fuel pump on a Ford Escape is a critical diagnostic step to ensure the vehicle’s fuel system is functioning properly. Symptoms of a failing fuel pump include difficulty starting the engine, stalling, or a noticeable loss of power, especially under acceleration. To test the fuel pump, start by checking the fuel pump relay and fuse for any signs of damage or corrosion. Next, use a fuel pressure gauge to measure the pressure at the fuel rail, comparing it to the manufacturer’s specifications. If pressure is insufficient, listen for the fuel pump’s priming sound when turning the ignition to the on position; a lack of noise may indicate a faulty pump. Additionally, testing the pump’s electrical connections and voltage can help pinpoint whether the issue lies with the pump itself or the wiring. Proper testing ensures accurate diagnosis and prevents unnecessary part replacements.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford Escape |
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump) |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Testing Method 1: Listen for Operation | Turn the ignition to the "ON" position (do not start) and listen for the fuel pump hum (lasts ~2-3 seconds) |
| Testing Method 2: Check Fuel Pressure | Use a fuel pressure gauge to measure pressure at the fuel rail (specifications vary by year and engine) |
| Testing Method 3: Electrical Test | Use a multimeter to check voltage at the fuel pump connector (12V with key in "ON" position) |
| Testing Method 4: Resistance Test | Measure resistance across fuel pump terminals (refer to service manual for specifications) |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, whining noise from fuel tank |
| Replacement Access | Fuel tank must be dropped for pump replacement |
| Estimated Repair Time | 2-4 hours (depending on experience and tools) |
| Professional Recommendation | Consult a certified mechanic if unsure or for complex issues |
