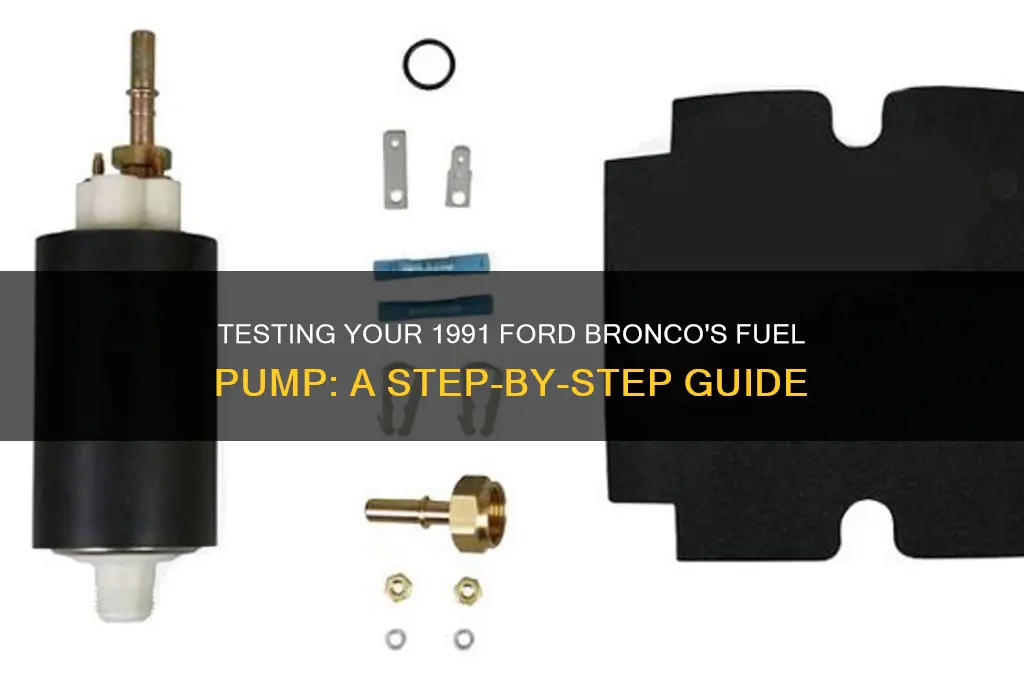

Testing the fuel pump in a 1991 Ford Bronco is a critical step in diagnosing fuel system issues, ensuring your vehicle runs smoothly. To begin, locate the fuel pump, which is typically inside the fuel tank, and disconnect the fuel line and electrical connector. Use a multimeter to check for power at the pump’s connector when the ignition is turned on; if there’s no power, inspect the fuse and relay. Next, connect a fuel pressure gauge to the fuel line and crank the engine to measure pressure, comparing it to the manufacturer’s specifications. If pressure is low or nonexistent, the pump may be faulty. Additionally, listen for the pump’s hum when the key is turned to the on position; a lack of sound could indicate a failed pump. Always exercise caution when working with fuel systems, and consider consulting a repair manual for model-specific details.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1991 Ford Bronco |
| Fuel Pump Location | In-tank (mounted inside the fuel tank) |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, wrench, safety goggles, gloves |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel system pressure |
| Testing Method 1: Listen for Operation | Turn ignition to "ON" (do not start), listen for fuel pump hum (2-3 seconds) |
| Testing Method 2: Check Voltage | Measure voltage at fuel pump connector (should be 12V with ignition ON) |
| Testing Method 3: Fuel Pressure Test | Connect fuel pressure gauge to Schrader valve, check pressure (35-45 PSI for EFI models) |
| Testing Method 4: Resistance Check | Disconnect fuel pump connector, measure resistance (typical range: 1-3 ohms) |
| Common Issues | Faulty fuel pump relay, clogged fuel filter, corroded connectors, failed pump motor |
| Replacement Recommendation | Replace fuel pump if it fails any of the tests or shows inconsistent performance |
| Additional Tips | Check fuel pump fuse and relay, inspect fuel lines for leaks, ensure proper grounding |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, and locate fuel pump
- Pressure Testing: Use gauge to check fuel pump pressure output
- Electrical Check: Test power and ground connections at the pump
- Listen for Operation: Turn key to On and listen for pump hum
- Fuel Flow Test: Disconnect fuel line and check for proper flow
Pre-Test Preparation: Gather tools, ensure safety, and locate fuel pump
Before testing the fuel pump in your 1991 Ford Bronco, proper preparation is crucial to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a fuel pressure gauge, a multimeter, a pair of safety gloves, safety goggles, and a wrench set. These tools will allow you to measure fuel pressure, check electrical connections, and safely handle components. Additionally, prepare a clean container to catch any fuel that may spill during the process. Having everything organized beforehand minimizes the risk of errors and streamlines the testing procedure.
Safety should always be your top priority when working with fuel systems. Park the Bronco on a flat, stable surface and engage the parking brake to prevent movement. Turn off the engine and allow it to cool for at least 30 minutes to reduce the risk of burns or fuel ignition. Disconnect the battery to eliminate the possibility of electrical shorts or accidental starts. Wear safety gloves and goggles to protect against fuel spills and debris. Fuel is highly flammable, so avoid smoking or using open flames near the vehicle during the test.
Locating the fuel pump in a 1991 Bronco is straightforward but requires familiarity with the vehicle’s layout. The fuel pump is mounted inside the fuel tank, which is located beneath the rear passenger side of the vehicle. Accessing the pump involves removing the fuel tank or using an access panel, depending on the model. Refer to your Bronco’s service manual for specific instructions on accessing the fuel pump. Once located, ensure the area around the tank is clean and free of debris to prevent contamination during the testing process.
Before proceeding with the test, verify that the fuel pump relay and fuse are in good condition. These components are typically found in the under-hood fuse box. Use the multimeter to check for continuity in the fuse and ensure the relay clicks when activated. If either component is faulty, replace it before testing the fuel pump to avoid misdiagnosis. This preliminary check ensures that any issues detected during the test are accurately attributed to the fuel pump itself.
In summary, pre-test preparation involves gathering the right tools, prioritizing safety, and accurately locating the fuel pump. By following these steps, you create a safe and efficient environment for testing, reducing the likelihood of errors or accidents. Proper preparation not only ensures a successful test but also protects you and your vehicle throughout the process.
Optimal Fuel Pump Filter Replacement Frequency for Peak Engine Performance
You may want to see also
Explore related products
$20.39 $21.68
Pressure Testing: Use gauge to check fuel pump pressure output
Pressure testing a fuel pump is a critical diagnostic step to ensure your 1991 Bronco’s fuel system is operating within specifications. The fuel pump must deliver a consistent pressure range, typically between 30 and 60 PSI, depending on the engine’s demands. Without proper pressure, the engine may run poorly, stall, or fail to start altogether. To perform this test, you’ll need a fuel pressure gauge compatible with your Bronco’s Schrader valve or fuel line setup. Attach the gauge directly to the fuel rail or use a tee fitting if accessing the pump itself is impractical.
Begin by relieving fuel system pressure to avoid accidents. Locate the Schrader valve on the fuel rail or disconnect the fuel line at the engine bay, ensuring you have a container to catch any spillage. Connect the gauge and start the engine, observing the pressure reading. A healthy fuel pump should maintain steady pressure within the manufacturer’s specified range. If the gauge fluctuates or reads below 30 PSI, suspect a weak pump or clogged fuel filter. Above 60 PSI indicates a potential regulator issue.
Comparing pressure readings at idle and under load provides deeper insight. At idle, the pump should hold steady pressure, while revving the engine should cause a slight increase without exceeding the maximum threshold. If pressure drops significantly under load, the pump may be failing to meet demand. This test also helps differentiate between pump and filter issues—a sudden pressure drop after replacing the filter points to the pump as the culprit.
For accuracy, ensure the gauge is calibrated and the fuel system is free of air pockets. If testing at the fuel rail, verify the regulator is functioning by pinching the return line; pressure should rise momentarily. Always work in a well-ventilated area and avoid open flames or sparks. Pressure testing is a straightforward yet powerful method to diagnose fuel pump issues, saving time and preventing unnecessary part replacements.
In conclusion, pressure testing with a gauge is an essential skill for troubleshooting a 91 Bronco’s fuel pump. It provides concrete data to pinpoint problems, from pump failure to regulator malfunctions. By following these steps and observing pressure behavior, you can confidently diagnose and address fuel system issues, ensuring your Bronco runs smoothly and reliably.
1996 Honda Accord Fuel Pump: Electric or Mechanical?
You may want to see also
Explore related products
Electrical Check: Test power and ground connections at the pump
A faulty fuel pump can leave your 91 Bronco stranded, but before condemning the pump itself, it's crucial to verify the electrical system feeding it. A weak or absent electrical signal is a common culprit for fuel pump failure symptoms.
Understanding the Circuit: Imagine the fuel pump as a thirsty muscle car. It needs a strong, consistent electrical current to flex its power. This current originates from the battery, travels through a fuse, relay, and wiring harness, and finally reaches the pump. Any break or weakness in this chain starves the pump, leading to poor performance or complete shutdown.
The fuel pump circuit in your 91 Bronco is relatively straightforward. Power originates at the battery, passes through a fuse (typically located in the under-hood fuse box), and is then switched on and off by a fuel pump relay. This relay, often found near the fuse box, acts as a high-capacity switch, handling the pump's substantial current draw. From the relay, power travels through dedicated wiring to the pump itself, nestled within the fuel tank.
Testing Power and Ground: To test the electrical connections at the pump, you'll need a multimeter, a tool that measures voltage, current, and resistance. With the ignition in the "on" position (but the engine not running), locate the fuel pump connector. This is usually a multi-pin connector near the fuel tank. Consult your Bronco's service manual for the exact location.
Set your multimeter to the DC voltage setting (typically 20V range). Connect the red (positive) lead to the power wire at the pump connector and the black (negative) lead to a good ground, such as the vehicle's chassis. If the pump is receiving power, you should see a reading close to your battery voltage (around 12.6 volts). If the reading is significantly lower or non-existent, there's a problem in the power delivery system.
Ground Check: A weak or broken ground connection can also cripple the pump. With the multimeter still set to DC voltage, connect the black lead to the ground wire at the pump connector and the red lead to a known good ground point. A reading close to 0 volts indicates a solid ground. Any significant voltage drop suggests a faulty ground connection, which needs to be cleaned, repaired, or replaced.
Troubleshooting Tips: If you find a power or ground issue, systematically work backwards through the circuit. Check fuses for blows, inspect wiring for damage or corrosion, and test the relay for proper operation. Remember, safety first! Always disconnect the battery before working on electrical components, and be mindful of fuel vapors when working near the tank.
Step-by-Step Guide to Removing a 1991 S10 Fuel Pump
You may want to see also
Explore related products
Listen for Operation: Turn key to On and listen for pump hum
One of the simplest yet most effective ways to test the fuel pump in a 1991 Ford Bronco is to listen for its operation. This method relies on your auditory senses to detect the distinctive hum of the fuel pump when the ignition is turned on. The fuel pump in a 91 Bronco is typically located inside the fuel tank and is designed to activate for a few seconds when the key is turned to the "On" position, priming the fuel system for startup. This brief activation is your window to diagnose potential issues without extensive tools or disassembly.
To perform this test, start by ensuring the fuel tank is at least partially full, as an empty tank can make the pump’s operation harder to hear. With the engine off, turn the ignition key to the "On" position but do not start the engine. Listen carefully near the fuel tank area for a low, whirring sound that lasts 2-3 seconds. This hum indicates the fuel pump is functioning and pressurizing the fuel system. If you hear nothing, it could signal a failed pump, a faulty relay, or an issue with the wiring. However, before jumping to conclusions, repeat the test a few times to rule out environmental noise or distractions.
While this method is straightforward, it’s important to note its limitations. The absence of a hum doesn’t always confirm a dead pump, as other factors like a blown fuse or a malfunctioning inertia switch could be at play. Conversely, a faint or irregular hum might suggest the pump is failing or not operating at full capacity. For a more definitive diagnosis, pairing this test with a fuel pressure gauge or voltage checks at the pump’s connector is recommended. Still, as a quick, tool-free initial assessment, listening for the pump’s operation remains a valuable first step.
Practical tips can enhance the accuracy of this test. For instance, use a mechanic’s stethoscope or a length of rubber hose to amplify the sound near the fuel tank, making it easier to detect faint or abnormal noises. Additionally, if the vehicle has been running recently, allow the engine to cool for at least 10 minutes before testing, as residual heat can affect the pump’s behavior. By combining this simple listening test with a keen ear and basic troubleshooting knowledge, you can quickly narrow down potential fuel system issues in your 91 Bronco.
MTM Fuel Pumps Review: Performance, Reliability, and Value Explored
You may want to see also
Explore related products
Fuel Flow Test: Disconnect fuel line and check for proper flow
A clogged fuel filter or a failing fuel pump can starve your 91 Bronco's engine, leading to poor performance or a no-start condition. One of the most straightforward ways to diagnose these issues is by performing a fuel flow test. This test involves disconnecting the fuel line and checking for proper fuel flow, giving you a clear indication of whether the pump is delivering fuel at the correct pressure and volume.
Steps to Perform the Fuel Flow Test:
- Safety First: Before starting, ensure your Bronco is parked on a level surface, the engine is cool, and the ignition is off. Relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing it with a rag to release any residual pressure.
- Locate the Fuel Line: Trace the fuel line from the tank to the engine bay. On a 91 Bronco, the fuel line typically connects to the fuel rail near the engine. Use a wrench or pliers to loosen the fuel line fitting, but be prepared for fuel to spill out. Have a container ready to catch the fuel.
- Disconnect and Test: Once the fitting is loose, disconnect the fuel line and point it into the container. Turn the ignition to the "On" position (but don’t start the engine). The fuel pump should activate, and fuel should flow steadily into the container. Measure the flow rate if possible; a healthy pump should deliver at least 1 gallon (3.8 liters) per minute for a 5.0L V8 or 0.75 gallons (2.8 liters) per minute for a 4.9L inline-six.
- Evaluate the Results: If fuel flows weakly or not at all, the pump may be failing or the filter could be clogged. If flow is strong but the engine still runs poorly, check for issues downstream, such as a faulty fuel pressure regulator or injectors.
Cautions and Tips:
- Always work in a well-ventilated area and avoid open flames or sparks when handling fuel.
- If you’re unsure about disconnecting the fuel line, consult a repair manual or seek professional assistance.
- For a more precise diagnosis, use a fuel pressure gauge to measure the pump’s output directly at the fuel rail.
The fuel flow test is a simple yet effective method to assess your 91 Bronco’s fuel pump health. By disconnecting the fuel line and observing the flow, you can quickly determine if the pump is functioning correctly or if further investigation is needed. This test, combined with other diagnostics, can save you time and money by pinpointing the root cause of fuel delivery issues.
Understanding the Fuel Pump Setup in a 1989 Ford F150
You may want to see also
Frequently asked questions
You can test the fuel pump by listening for it to prime when you turn the ignition to the "On" position (but don’t start the engine). If you hear a humming noise for 2-3 seconds, the pump is likely functioning. Alternatively, check fuel pressure at the Schrader valve on the fuel rail using a gauge.
Common symptoms include difficulty starting the engine, sputtering or stalling, loss of power during acceleration, and a whining noise from the fuel tank. If the pump fails completely, the engine won’t start.
Locate the fuel pump relay in the fuse box, typically under the hood. Swap it with a relay of the same type (e.g., the horn relay) and see if the fuel pump primes. If it works, the relay is faulty. You can also test the relay’s terminals for continuity using a multimeter.
