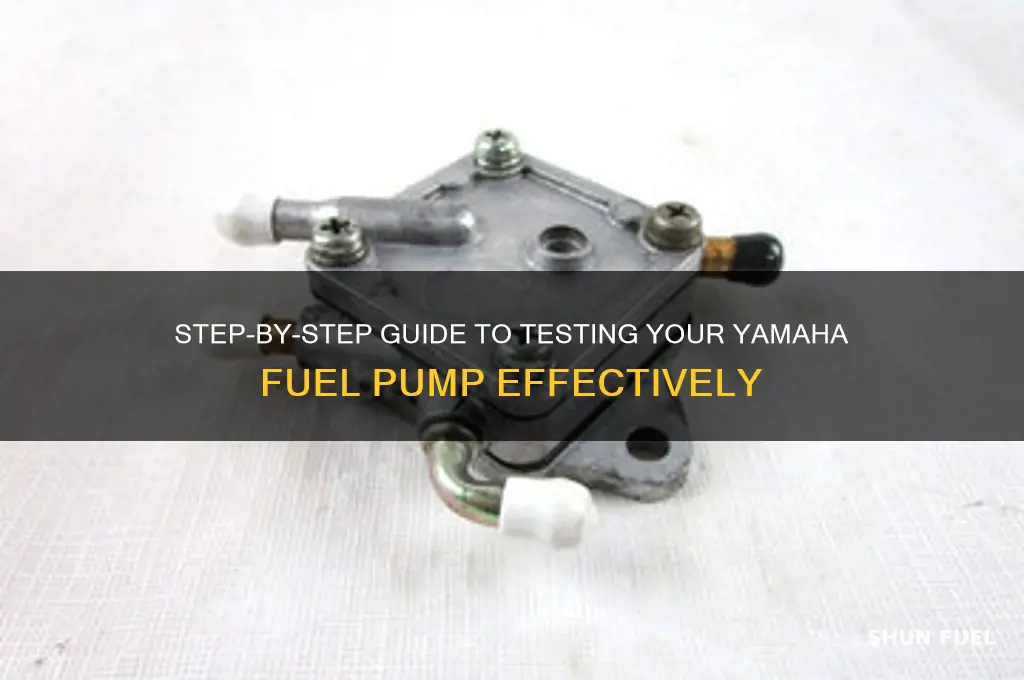

Testing a Yamaha fuel pump is a critical step in diagnosing fuel system issues, ensuring your engine runs efficiently and reliably. Whether you're troubleshooting a motorcycle, boat, or other Yamaha vehicle, the process typically involves checking for proper fuel pressure, flow, and electrical connectivity. Start by disconnecting the fuel line and using a fuel pressure gauge to measure the pump's output against the manufacturer's specifications. Additionally, inspect the pump for leaks, listen for unusual noises during operation, and verify that the electrical connections are secure and free from corrosion. If the pump fails to deliver the required pressure or shows signs of malfunction, it may need to be replaced or repaired to restore optimal performance. Always refer to the Yamaha service manual for model-specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel pressure gauge, Fuel line disconnect tool, Safety gloves, Safety goggles |
| Safety Precautions | Work in a well-ventilated area, Disconnect the battery, Relieve fuel system pressure, Avoid open flames or sparks |
| Testing Method 1: Electrical Test | 1. Locate the fuel pump connector. 2. Disconnect the fuel pump connector. 3. Set the multimeter to the resistance (ohms) setting. 4. Connect the multimeter leads to the fuel pump terminals. 5. Compare the resistance reading to the manufacturer's specifications (typically 1-5 ohms). |
| Testing Method 2: Fuel Pressure Test | 1. Locate the fuel rail Schrader valve. 2. Attach the fuel pressure gauge to the Schrader valve. 3. Turn the ignition to the "ON" position (do not start the engine). 4. Observe the fuel pressure reading and compare it to the manufacturer's specifications (typically 40-60 PSI). |
| Testing Method 3: Fuel Pump Operation Test | 1. Locate the fuel pump relay or fuse. 2. Turn the ignition to the "ON" position. 3. Listen for the fuel pump priming (a humming sound for 2-3 seconds). 4. If no sound is heard, check the fuel pump fuse, relay, and wiring for faults. |
| Common Faults | Low fuel pressure, No fuel pressure, High resistance reading, No fuel pump operation |
| Manufacturer's Specifications | Refer to the Yamaha service manual for specific fuel pump resistance and pressure values for your model. |
| Additional Notes | If the fuel pump fails any of the tests, replacement is recommended. Always consult a qualified mechanic if unsure about the testing process or results. |
Explore related products
$11.99 $13.99
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
- Visual Inspection: Check pump for leaks, corrosion, or damage before testing
- Electrical Testing: Use multimeter to verify power and ground connections at pump
- Pressure Testing: Connect gauge to fuel line, measure pressure against specifications
- Operational Test: Listen for pump hum during ignition key-on cycle
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
Before testing a Yamaha fuel pump, meticulous pre-test preparation is crucial to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets (typically 10mm or 12mm for Yamaha models), safety gloves, safety goggles, and a clean container for fuel. These tools are essential for both the testing process and maintaining a safe working environment. Skipping this step could lead to incomplete diagnostics or unnecessary hazards, such as fuel spills or personal injury.
Safety should always be the top priority when working with fuel systems. Fuel is highly flammable, and even a small spark can lead to a dangerous situation. Ensure the work area is well-ventilated and free of open flames, sparks, or other ignition sources. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from potential splashes. A fire extinguisher should be within arm’s reach as a precautionary measure. Neglecting these safety steps can turn a routine test into a hazardous scenario.
Disconnecting the battery is a critical step often overlooked by novice mechanics. Yamaha fuel pumps operate on electrical systems, and leaving the battery connected increases the risk of accidental activation or short circuits. Use a wrench or socket to loosen the battery terminal nuts, starting with the negative terminal to prevent electrical arcing. Once disconnected, secure the cables away from the battery to avoid accidental reconnection. This simple step not only protects the tester but also prevents damage to the vehicle’s electrical system.
Relieving fuel pressure is the final preparatory step before testing the fuel pump. Failure to do so can result in fuel spraying under high pressure, posing a safety risk and complicating the testing process. Locate the fuel pressure relief valve or Schrader valve (often found on the fuel rail) and attach the fuel pressure gauge. Depress the valve to release pressure, ensuring all fuel is safely directed into the container. For Yamaha models, this process typically takes 1-2 minutes, depending on the system’s pressure. Properly relieving fuel pressure ensures a controlled testing environment and accurate diagnostic results.
By systematically gathering tools, prioritizing safety, disconnecting the battery, and relieving fuel pressure, you set the stage for a successful fuel pump test. Each step is interconnected, contributing to both the safety of the tester and the reliability of the diagnostic outcome. Skipping any of these preparations not only jeopardizes the test but also risks damage to the vehicle or harm to the individual. Approach this phase with precision and care, treating it as the foundation for the entire testing process.
How to Test a Fuel Pump: Step-by-Step Guide for DIY Mechanics
You may want to see also
Explore related products
Visual Inspection: Check pump for leaks, corrosion, or damage before testing
Before testing a Yamaha fuel pump, a thorough visual inspection is crucial. This initial step can reveal issues that might otherwise go unnoticed, potentially saving time and preventing further damage. Start by examining the pump for any signs of leaks, which can manifest as wet spots, stains, or residue around the fuel lines, connections, or the pump body itself. Even a small leak can indicate a compromised seal or crack, so pay close attention to areas where components meet.
Corrosion is another red flag that warrants immediate attention. Look for rust, discoloration, or a powdery residue on metal parts, particularly around electrical connections and mounting points. Corrosion can impair the pump’s efficiency and lead to electrical failures. If corrosion is detected, assess whether it’s superficial or has penetrated deeply enough to affect functionality. In some cases, cleaning and applying a corrosion inhibitor may suffice, but severe corrosion may necessitate replacement.
Physical damage, such as cracks, dents, or warping, can compromise the pump’s structural integrity and performance. Inspect the pump housing, inlet/outlet ports, and mounting brackets for any deformities. Even minor cracks can expand under pressure, leading to catastrophic failure. If damage is evident, evaluate whether it’s repairable or if the pump needs to be replaced. Always refer to Yamaha’s service manual for specific guidelines on acceptable wear limits.
A systematic approach to visual inspection involves working methodically from one end of the pump to the other, using a bright light and, if necessary, a magnifying glass to spot subtle issues. Clean the pump and surrounding area beforehand to ensure nothing is obscured by dirt or debris. Document any findings with notes or photos for future reference, especially if the pump is being serviced as part of a larger system. This step not only aids in diagnosing current problems but also establishes a baseline for future inspections.
Finally, consider the environment in which the pump operates. Exposure to saltwater, extreme temperatures, or harsh chemicals can accelerate wear and damage. For marine applications, inspect the pump more frequently and use protective coatings or materials designed to resist corrosion. By prioritizing this visual inspection, you can identify potential issues early, ensuring the fuel pump operates reliably and prolonging its lifespan.
Does Fuel Pump PSI Stay Consistent Under Load? Explained
You may want to see also
Explore related products
Electrical Testing: Use multimeter to verify power and ground connections at pump
A faulty fuel pump can leave you stranded, and diagnosing the issue often starts with electrical testing. Before condemning the pump itself, verify that it’s receiving the necessary power and ground connections. A multimeter is your essential tool for this task, allowing you to measure voltage, continuity, and resistance at the pump’s electrical terminals. This step-by-step process ensures you’re not overlooking a simple electrical issue before diving into more complex diagnostics.
Begin by locating the fuel pump’s electrical connector, typically found near the tank or inline along the wiring harness. With the key in the "ON" position (but engine off), use the multimeter to test for voltage at the pump’s power wire. Set the multimeter to the DC voltage setting and connect the probes to the power terminal and a known ground (like the battery negative terminal). A healthy system should show battery voltage (typically 12V or slightly less). If no voltage is present, trace the wiring back to the fuse box or relay to identify the break in the circuit.
Next, verify the ground connection. Switch the multimeter to the continuity setting (beep function) and test between the pump’s ground terminal and the vehicle chassis. A solid ground will produce a continuous beep, indicating a low-resistance path. If there’s no continuity, inspect the ground wire for corrosion, damage, or loose connections. Poor grounding can mimic a faulty pump, so this step is critical.
For a more comprehensive test, measure the resistance across the pump’s terminals. Disconnect the pump’s connector and set the multimeter to the ohms setting. Touch the probes to the pump’s power and ground pins. The resistance value should match the manufacturer’s specifications (typically a few ohms). A significantly higher or lower reading suggests an internal pump issue.
Practical tips: Always ensure the vehicle is on a level surface and the ignition is off before accessing the fuel pump. Use a wiring diagram specific to your Yamaha model to identify the correct wires. If you’re unsure about any step, consult a professional to avoid misdiagnosis or damage. By systematically verifying power and ground connections, you’ll either confirm the pump’s electrical integrity or pinpoint the root cause of the issue, saving time and frustration.
1977 CJ5 Jeep Fuel Pump: Fact-Checking the Original Setup
You may want to see also
Explore related products
Pressure Testing: Connect gauge to fuel line, measure pressure against specifications
Pressure testing a Yamaha fuel pump is a critical diagnostic step to ensure it’s delivering the correct fuel flow to the engine. Begin by locating the fuel line connection, typically near the fuel pump or injector rail, and disconnect it carefully to avoid spills or damage. Attach a fuel pressure gauge to the line using an appropriate adapter, ensuring a tight seal to prevent leaks. With the ignition on but the engine off, observe the gauge reading to verify initial pressure, which should align with Yamaha’s specifications for your model—often around 40–60 psi for modern systems. If the pressure is low or non-existent, the pump may be failing.
The process isn’t just about connecting a gauge; it’s about understanding what the numbers mean. For instance, if the pressure reads below spec, check for clogged fuel filters or weak pump performance. Conversely, excessive pressure could indicate a faulty regulator. Always compare your readings to the manufacturer’s guidelines, as deviations can signal issues ranging from worn components to electrical faults. A steady pressure drop over time might suggest a leak in the system, while erratic readings could point to a failing pump diaphragm.
Practical tips can streamline this test. Use a gauge with a bleed valve to release pressure safely after testing, and ensure the fuel system is depressurized before disconnecting any lines. If your Yamaha is carbureted, the pressure range may differ—typically lower, around 3–5 psi. Always work in a well-ventilated area and avoid open flames, as fuel vapors are highly flammable. For accurate results, perform the test with a full fuel tank, as low levels can skew pressure readings.
Comparing pressure testing to other diagnostic methods highlights its efficiency. Unlike visual inspections or electrical tests, it directly measures the pump’s output, providing concrete data. However, it’s not foolproof; a pump may pass this test but still fail under load. For a comprehensive diagnosis, combine pressure testing with a fuel flow test or in-tank pump inspection. This layered approach ensures no issue goes undetected, keeping your Yamaha’s fuel system reliable.
In conclusion, pressure testing is a straightforward yet powerful method to assess a Yamaha fuel pump’s health. By connecting a gauge, measuring pressure, and comparing it to specifications, you can pinpoint problems with precision. Whether you’re a DIY enthusiast or a professional mechanic, mastering this technique saves time and prevents misdiagnoses. Remember, the goal isn’t just to test—it’s to ensure your Yamaha runs smoothly, mile after mile.
Effective Steps to Unclog Your Fuel Pump and Restore Engine Performance
You may want to see also
Explore related products
Operational Test: Listen for pump hum during ignition key-on cycle
One of the simplest yet most effective ways to assess the functionality of a Yamaha fuel pump is by performing an operational test during the ignition key-on cycle. This method relies on your sense of hearing to detect the characteristic hum of the fuel pump, which indicates it’s priming the fuel system. Start by ensuring the fuel tank is at least a quarter full, as insufficient fuel can lead to false negatives. With the ignition key turned to the "on" position (but not starting the engine), place your ear near the fuel tank or use a mechanic’s stethoscope for clarity. A healthy fuel pump should produce a faint but distinct humming sound for 2–3 seconds, signaling it’s pressurizing the system.
The absence of this hum could point to several issues, from a faulty pump to electrical problems in the circuit. However, it’s crucial to differentiate between a silent pump and one that’s simply difficult to hear. Yamaha fuel pumps are designed to operate quietly, so the hum may be subtle, especially in noisy environments. If unsure, repeat the test in a quieter setting or compare it to a known working vehicle. This test is particularly useful as an initial diagnostic step, as it’s non-invasive and requires no specialized tools beyond your ears.
While this method is straightforward, it’s not foolproof. A pump that hums may still fail to deliver adequate fuel pressure, so further testing with a gauge is often necessary. Conversely, some pumps may hum briefly but shut off prematurely due to internal faults. To maximize accuracy, combine this test with visual inspections for leaks or corrosion around the pump and wiring. Additionally, consult the Yamaha service manual for your specific model, as pump operation times can vary (e.g., some models prime for 2 seconds, while others may run longer).
For DIY enthusiasts, this test serves as a quick health check before diving into more complex diagnostics. If the pump fails to hum, check the fuel pump fuse and relay next, as these are common culprits. Keep in mind that modern Yamaha fuel pumps are often located inside the fuel tank, making access challenging without proper tools. In such cases, consider this test as part of a broader troubleshooting strategy rather than a definitive diagnosis. With practice, you’ll learn to distinguish between normal operation and anomalies, saving time and unnecessary part replacements.
Oldsmobile Fuel Pump Access: Is It Under the Seat?
You may want to see also
Frequently asked questions
To test a Yamaha fuel pump, first disconnect the fuel line and place the outlet into a container. Then, connect the pump’s power wires directly to a 12V battery (positive to positive, negative to negative). If the pump is functioning correctly, it should start running and deliver fuel into the container.
Common signs of a failing Yamaha fuel pump include difficulty starting the engine, sputtering or stalling during acceleration, reduced fuel pressure, or no fuel delivery at all. Unusual noises from the pump area can also indicate a problem.
Yes, you can perform a basic test without removing the pump. Use a fuel pressure gauge to check the pressure at the fuel rail while the engine is running. Compare the reading to the manufacturer’s specifications. If the pressure is low or non-existent, the pump may be faulty.
