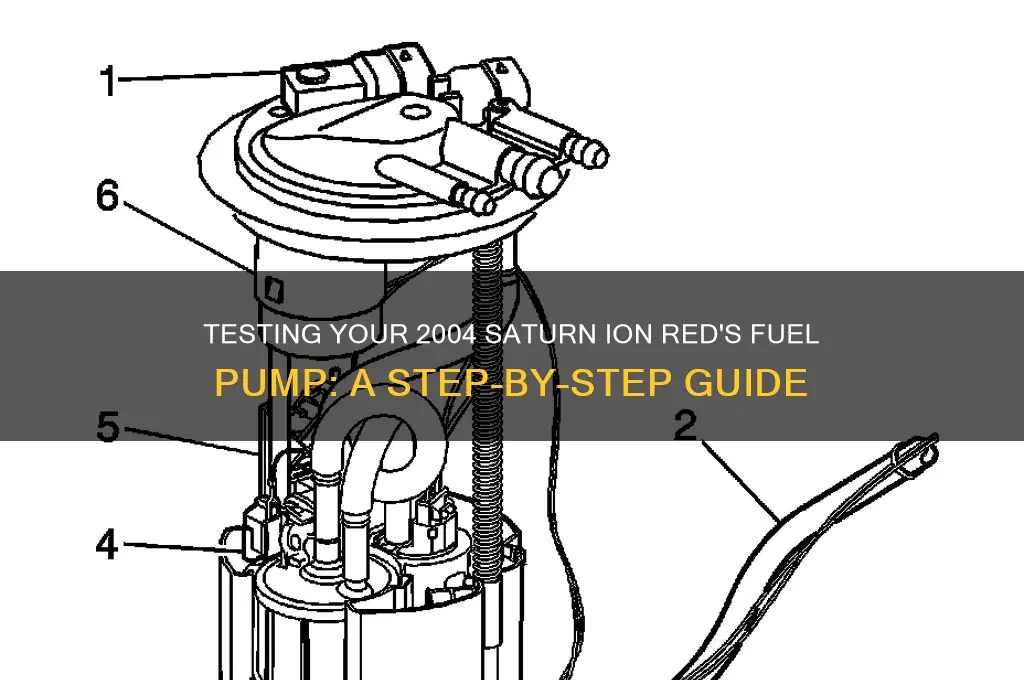

Testing the fuel pump in a 2004 Saturn Ion Red is a crucial diagnostic step if you suspect fuel delivery issues, such as hard starting, stalling, or poor performance. Begin by locating the fuel pump, which is typically housed inside the fuel tank. To test it, you can use a fuel pressure gauge to check for adequate pressure at the fuel rail or listen for the pump's whirring sound when the ignition is turned to the on position. If the pump doesn't activate, check the fuel pump fuse and relay for faults. Additionally, a voltage test at the pump connector can confirm if power is reaching the unit. If all electrical components are functioning, the fuel pump itself may be faulty and require replacement. Always ensure safety precautions, such as relieving fuel system pressure, are followed during the testing process.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2004 Saturn Ion Red |
| Fuel Pump Location | Inside the fuel tank (access through the rear seat or trunk area) |
| Tools Required | Multimeter, screwdriver, fuel pressure gauge (optional), safety equipment |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Testing Method 1: Listen for Operation | Turn the ignition to "ON" (do not start), listen for a humming sound near the fuel tank for 2-3 seconds |
| Testing Method 2: Check for Power | Use a multimeter to test for voltage at the fuel pump connector (12V with ignition on) |
| Testing Method 3: Fuel Pressure Test | Connect a fuel pressure gauge to the fuel rail and check for correct pressure (typically 40-60 PSI) |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, whining noise from fuel tank |
| Replacement Access | Remove the rear seat or trunk panel to access the fuel pump module |
| Estimated Repair Time | 2-4 hours (depending on experience and access to tools) |
| Estimated Cost (DIY) | $150-$300 (fuel pump assembly and tools) |
| Estimated Cost (Professional) | $400-$600 (including labor) |
| Safety Note | Always handle fuel with care and avoid sparks or open flames |
Explore related products
What You'll Learn
Check Fuel Pump Fuse and Relay
A faulty fuel pump can leave you stranded, but before condemning the pump itself, it's crucial to inspect the fuel pump fuse and relay. These components act as the gatekeepers of power to the fuel pump, and their failure is a common culprit behind fuel delivery issues in the 2004 Saturn Ion Red.
Think of them as the on/off switch and the traffic cop for electricity flowing to the pump.
Locating the Fuse and Relay: Your first step is to consult your Saturn Ion's manual to pinpoint the exact location of the fuel pump fuse and relay. Typically, they reside in the under-hood fuse box, often labeled as "FUEL PUMP" or "FP." The fuse will be a small, blade-type component, while the relay is a slightly larger, cube-shaped unit.
Visual Inspection: Before testing, visually inspect both the fuse and relay for signs of damage. A blown fuse will have a broken or melted wire inside, while a faulty relay may show signs of corrosion or burning. If either component appears damaged, replace it before proceeding.
Testing the Fuse: To test the fuse, you'll need a multimeter set to the continuity or resistance setting. Remove the fuse from its slot and touch the multimeter probes to the metal prongs on either end. A good fuse will show continuity (a low resistance reading), while a blown fuse will show an open circuit (infinite resistance).
Testing the Relay: Testing the relay involves a slightly more involved process. You'll need to identify the relay's terminals, typically labeled as 30 (power in), 87 (power out), 85 (ground), and 86 (control). Using a multimeter set to the ohms setting, check for continuity between terminals 30 and 87 when the relay is activated (by applying power to terminal 85). If there's no continuity, the relay is faulty and needs replacement.
Pro Tip: If you're unsure about the relay's operation, swap it with a known good relay of the same type from another circuit. If the fuel pump functions correctly with the swapped relay, the original relay is defective.
Remember, a systematic approach to diagnosing fuel pump issues can save you time and money. By thoroughly checking the fuel pump fuse and relay, you can narrow down the problem and avoid unnecessary repairs.
Does the Honda GX690 Engine Include a Fuel Pump?
You may want to see also
Explore related products
Test Fuel Pressure with Gauge
Testing fuel pressure with a gauge is a critical step in diagnosing a faulty fuel pump in a 2004 Saturn Ion Red. This method provides precise data to determine if the pump is delivering the correct pressure required for optimal engine performance. To begin, locate the fuel pressure test port, typically found on the fuel rail near the engine. Ensure the engine is off and the fuel system is depressurized to avoid accidents. Connect a fuel pressure gauge to the test port using the appropriate adapter, ensuring a secure fit to prevent fuel leaks.
Once the gauge is connected, start the engine and observe the pressure reading. A healthy fuel pump in a 2004 Saturn Ion Red should maintain a pressure between 48 and 55 psi at idle. If the pressure falls below this range, it may indicate a weak pump, clogged fuel filter, or issues with the fuel pressure regulator. Conversely, excessively high pressure could point to a failing regulator or blocked return line. Record the pressure readings at idle and under acceleration to identify inconsistencies.
For a more comprehensive test, perform a fuel pressure drop test. Turn off the engine and monitor the gauge for pressure drop over a 10-minute period. A drop of more than 5 psi suggests a leak in the fuel system or a check valve failure within the pump. This test is particularly useful for diagnosing intermittent fuel delivery issues that may not be apparent during a static pressure check. Always compare your findings to the manufacturer’s specifications for the Saturn Ion Red to ensure accuracy.
When conducting this test, safety is paramount. Work in a well-ventilated area, wear safety goggles, and avoid open flames or sparks due to the flammable nature of gasoline. If you’re unsure about any step, consult a professional or refer to a repair manual specific to your vehicle. Testing fuel pressure with a gauge not only helps pinpoint the root cause of fuel system issues but also saves time and money by avoiding unnecessary part replacements. This method is a reliable way to confirm whether the fuel pump is functioning correctly or if further diagnostics are needed.
Can a Faulty Battery Lead to a Weak Fuel Pump?
You may want to see also
Explore related products
Listen for Pump Hum in Tank
One of the simplest yet most effective ways to test the fuel pump in a 2004 Saturn Ion Red is to listen for the pump’s hum inside the fuel tank. This method requires no specialized tools, just your ears and a basic understanding of the fuel system’s operation. When you turn the ignition to the "on" position (without starting the engine), the fuel pump should activate for approximately 2-3 seconds, priming the system. This activation produces a faint humming or whirring sound, which originates from the tank and can often be heard from inside the vehicle. If the pump is functioning correctly, this sound is a reassuring sign that fuel is being delivered to the engine.
To perform this test effectively, start by ensuring the vehicle is in a quiet environment to minimize external noise interference. Have an assistant turn the ignition key to the "on" position while you listen near the rear of the car, close to the fuel tank. The hum should be distinct but not overly loud—a subtle, mechanical sound that confirms the pump’s operation. If you hear nothing, it could indicate a failed pump, a faulty relay, or an issue with the wiring. However, lack of sound isn’t definitive proof of a bad pump, as other factors like a clogged fuel filter or in-tank issues could also be at play.
A comparative approach can help refine your diagnosis. For instance, if you’ve recently replaced the fuel filter or checked the relay and the issue persists, the pump itself is more likely the culprit. Additionally, comparing the sound to a known working vehicle (if possible) can provide a baseline for what a healthy pump should sound like. Keep in mind that age and wear can affect the pump’s noise level, so a slightly different tone in an older vehicle isn’t necessarily cause for alarm.
While listening for the pump’s hum is a valuable initial test, it’s not foolproof. For a more comprehensive diagnosis, consider pairing this method with a fuel pressure test or voltage check at the pump’s connector. These additional steps can confirm whether the pump is receiving power and delivering adequate pressure. However, as a quick, no-cost diagnostic, the hum test remains a go-to for many DIY mechanics troubleshooting a 2004 Saturn Ion Red’s fuel system.
Electric Fuel Pumps: The Solution to Vapor Lock Issues?
You may want to see also
Explore related products
![ECCPP® Fuel Pump for: Chevy S10 Blazer & GMC S15 Jimmy 98-03, GMC Envoy 98-00, Oldsmobile Bravada 99-01 [4 DOOR MODELS] E3992M 323-01213](https://m.media-amazon.com/images/I/61phqMlJIIL._AC_UY218_.jpg)
Inspect Fuel Pump Connector
The fuel pump connector is a critical junction in your 2004 Saturn Ion's fuel delivery system, acting as the lifeline between the pump and the vehicle's electrical system. A faulty connector can mimic fuel pump failure, leading to misdiagnosis and unnecessary repairs. Before condemning the pump, a thorough inspection of this connector is essential.
Start by locating the fuel pump connector, typically found near the fuel tank. It's a multi-pin plug shrouded in a protective casing. With the ignition off, disconnect the negative battery terminal to prevent accidental short circuits. Carefully detach the connector, examining it for signs of corrosion, melted pins, or loose wires. Corrosion, often appearing as a greenish residue, can disrupt the electrical flow, while melted pins indicate overheating due to high resistance.
A digital multimeter becomes your diagnostic ally here. Set it to the continuity mode and test each pin for proper connectivity. Touch one probe to a pin and the other to its corresponding wire end. A beep or a reading close to zero indicates a good connection. Any open circuit or high resistance reading points to a faulty connector. Additionally, check for voltage at the connector with the key in the "on" position. The specific voltage values can be found in your Saturn Ion's service manual, typically around 12 volts.
A damaged connector demands replacement. Fortunately, this is a relatively inexpensive fix compared to replacing the entire fuel pump. Ensure you source a compatible connector from a reputable supplier and follow proper crimping techniques if repairing individual wires.
Remember, a meticulous inspection of the fuel pump connector can save you time, money, and the hassle of replacing a perfectly functional fuel pump. It's a crucial step in the diagnostic process, allowing you to pinpoint the true culprit behind your Saturn Ion's fuel delivery woes.
Fuel Pump Installation: Gasket Sealer Necessity Explained
You may want to see also
Explore related products
Use Multimeter to Verify Power
A multimeter is an essential tool for diagnosing fuel pump issues in a 2004 Saturn Ion Red, particularly when verifying if the pump is receiving power. Start by locating the fuel pump relay, typically found in the under-hood fuse box. With the multimeter set to the voltage setting, connect the probes to the relay’s power input and ground terminals. Turn the ignition to the "on" position but do not start the engine. A reading of 12 volts indicates the pump is receiving power, narrowing down potential issues to the pump itself or its wiring.
Analyzing the multimeter reading requires attention to detail. If no voltage is detected, the problem likely lies in the fuse, relay, or wiring leading to the pump. Check the fuel pump fuse, usually located in the engine bay fuse box, for continuity using the multimeter’s resistance setting. A blown fuse or open circuit will show infinite resistance, while a good fuse will read close to zero. If the fuse is intact, test the relay by swapping it with a similar one in the fuse box and retesting the voltage.
Persuasive troubleshooting suggests focusing on the wiring harness next if the fuse and relay are functional. Use the multimeter to test for continuity between the relay and the fuel pump connector. Disconnect the connector at the fuel tank and check for power at the pump’s terminals with the ignition on. If power is present at the relay but not the pump, a broken wire or corroded connection is the culprit. Inspect the wiring harness for damage, especially near the fuel tank and where it passes through the body.
Comparatively, testing power with a multimeter is more precise than relying on visual inspections or guesswork. For instance, a fuel pump that hums briefly during the ignition’s "on" position but fails to maintain pressure may still be receiving intermittent power. Use the multimeter to monitor voltage fluctuations while attempting to start the engine. Consistent voltage drop during cranking points to a weak pump or excessive load, while erratic readings suggest wiring issues.
Descriptively, the process involves a systematic approach. Begin with the multimeter’s red lead on the power terminal and the black lead on a solid ground, such as the engine block. Ensure all connections are clean and secure to avoid false readings. If power is confirmed but the pump doesn’t operate, proceed to test the pump’s resistance or activate it directly by applying 12 volts across its terminals. This step-by-step method ensures a thorough diagnosis, saving time and preventing unnecessary part replacements.
Does AutoZone Sell Fuel Pumps? Your Ultimate Guide to Parts Availability
You may want to see also
Frequently asked questions
You can test the fuel pump by listening for its operation. Turn the ignition to the "ON" position (without starting the engine) and listen near the fuel tank for a humming noise, which indicates the pump is running. If no noise is heard, check the fuel pump fuse and relay for faults.
Common symptoms include difficulty starting the engine, sputtering or stalling during acceleration, loss of power, and a whining noise from the fuel tank. If the engine cranks but won’t start, a lack of fuel delivery could be the issue.
Use a fuel pressure gauge to test the fuel rail pressure. Disconnect the fuel pressure test port (usually near the engine), attach the gauge, and turn the ignition to the "ON" position. Compare the reading to the manufacturer’s specifications (typically around 40-60 PSI). Low or no pressure indicates a failing fuel pump.
