Regan Brown
The Honda GX690 is a powerful and widely-used engine known for its reliability and performance in various applications, such as generators, water pumps, and industrial equipment. One common question among users and mechanics is whether the Honda GX690 is equipped with a fuel pump. Understanding the fuel system of this engine is crucial for maintenance, troubleshooting, and ensuring optimal operation. The GX690 typically relies on a gravity-fed fuel system, meaning it does not come with an integrated fuel pump. Instead, it depends on the fuel tank being positioned higher than the carburetor to allow fuel to flow naturally. However, some configurations or aftermarket modifications may include an external fuel pump to enhance fuel delivery, especially in applications requiring consistent performance under varying conditions.
| Characteristics | Values |
|---|---|
| Engine Model | Honda GX690 |
| Fuel Pump Presence | No, the Honda GX690 does not have a built-in fuel pump. |
| Fuel System Type | Gravity-fed fuel system (relies on fuel tank placement above carburetor). |
| Fuel Tank Capacity | 6.1 liters (1.6 gallons) |
| Carburetor Type | Horizontal float-type carburetor |
| Engine Displacement | 688 cm³ (42.0 cu. in.) |
| Power Output | 21.5 HP (16.0 kW) at 3600 RPM |
| Starting System | Recoil start (electric start optional) |
| Oil Alert | Standard feature |
| Application | Designed for heavy-duty applications like pressure washers, generators. |
| Fuel Type | Unleaded gasoline (minimum 86 octane) |
| Fuel Consumption | Varies by application, typically efficient for its class. |
| Compatibility with External Pump | Can be retrofitted with an external fuel pump if needed. |
| Manufacturer Recommendation | Honda advises proper fuel tank positioning for optimal performance. |
Explore related products
$13.98
What You'll Learn
- Fuel System Overview: Understanding the GX690’s fuel delivery mechanism and components
- Fuel Pump Presence: Confirming if the GX690 engine includes a fuel pump
- Carburetor vs. Fuel Injection: Differentiating fuel systems in the GX690 model
- Troubleshooting Fuel Issues: Common problems and fixes related to fuel delivery
- Upgrade Options: Adding a fuel pump to the GX690 for improved performance
Fuel System Overview: Understanding the GX690’s fuel delivery mechanism and components
The Honda GX690 engine, a powerhouse in the small engine category, relies on a carbureted fuel system to deliver optimal performance. Unlike modern fuel-injected systems, the GX690 does not incorporate a mechanical fuel pump. Instead, it utilizes a gravity-fed fuel delivery mechanism, which simplifies maintenance and reduces potential points of failure. This design choice aligns with the engine’s intended applications—such as in pressure washers, generators, and construction equipment—where reliability and ease of service are paramount.
Understanding the components of the GX690’s fuel system is essential for troubleshooting and maintenance. The system consists of a fuel tank, a fuel line, a fuel filter, and a carburetor. The fuel tank, typically mounted above the engine, allows gravity to pull fuel downward through the line. The fuel filter, positioned along the line, traps contaminants before they reach the carburetor, ensuring clean fuel delivery. The carburetor, the heart of the system, mixes air and fuel in the correct ratio for combustion. This setup is straightforward but requires periodic inspection to ensure the fuel line remains unobstructed and the filter is clean.
One critical aspect of maintaining the GX690’s fuel system is preventing fuel contamination. Ethanol-blended fuels, common in many regions, can degrade rubber components over time, leading to leaks or clogs. To mitigate this, use fuel stabilizers when storing the engine for extended periods and replace fuel lines and filters every 1–2 years, depending on usage. Additionally, ensure the fuel tank vent is clear to prevent vacuum locks that can disrupt fuel flow.
For those upgrading or modifying their GX690, adding an auxiliary electric fuel pump can improve performance in applications where the engine operates at extreme angles or under high demand. However, this modification requires careful integration to avoid over-pressurizing the carburetor. Always consult the engine’s manual or a qualified technician before making such changes.
In summary, the GX690’s fuel system is a testament to Honda’s emphasis on simplicity and durability. By understanding its gravity-fed design and key components, users can ensure reliable operation and address issues proactively. Regular maintenance, mindful fuel selection, and cautious modifications are the cornerstones of keeping this robust engine running smoothly.
Understanding Fuel Pump Cracks: Causes, Symptoms, and Prevention Tips
You may want to see also
Explore related products
Fuel Pump Presence: Confirming if the GX690 engine includes a fuel pump
The Honda GX690 engine, a powerhouse in the world of small engines, often leaves users curious about its fuel system. One critical component that frequently comes into question is the fuel pump. To confirm its presence, start by consulting the engine’s manual or specifications sheet. Honda typically provides detailed diagrams and part lists, which will explicitly mention a fuel pump if included. For the GX690, a V-twin engine designed for heavy-duty applications, the fuel delivery system is crucial for optimal performance. If the manual lacks clarity, visually inspect the engine. Look for a small, cylindrical device near the carburetor or fuel line, often connected by hoses or tubing. This is a common location for mechanical fuel pumps in small engines.
Analyzing the GX690’s design reveals that it primarily relies on a gravity-fed fuel system, which is standard for many horizontal-shaft engines. However, some variants or aftermarket modifications may include a fuel pump to enhance fuel delivery, especially in applications requiring consistent power under varying loads. If you’re working with a stock GX690, the absence of a fuel pump is likely intentional, as the engine is engineered to operate efficiently without one. For those considering adding a fuel pump, ensure compatibility with the engine’s carburetor and fuel lines to avoid performance issues or damage.
From a practical standpoint, confirming the presence of a fuel pump involves a combination of research and inspection. Begin by checking online forums or Honda’s official support channels, where users often share insights about specific engine models. If you’re still unsure, disassemble the fuel system carefully, following safety protocols to avoid fuel spills or accidents. Look for components like a diaphragm or electric motor, which are telltale signs of a fuel pump. If none are found, the engine likely operates without one, relying on gravity and venturi effect for fuel delivery.
Comparatively, engines with fuel pumps often exhibit smoother operation under heavy loads or in applications requiring consistent fuel flow, such as pressure washers or generators. The GX690, however, is designed for applications like lawn tractors or construction equipment, where its gravity-fed system suffices. If your use case demands enhanced fuel delivery, consider consulting a mechanic or Honda specialist to discuss the feasibility of adding a fuel pump. Always prioritize the engine’s original design to maintain reliability and warranty coverage.
In conclusion, while the Honda GX690 typically does not include a fuel pump, confirming its presence requires a methodical approach. Combine manual research, visual inspection, and community insights to determine whether your specific engine variant includes one. Understanding the fuel system’s design ensures proper maintenance and performance, whether you’re operating a stock engine or considering modifications. Always approach engine modifications with caution, ensuring they align with the manufacturer’s guidelines to preserve functionality and safety.
Understanding Fuel Pump PSI: Essential Insights for Optimal Vehicle Performance
You may want to see also
Explore related products
Carburetor vs. Fuel Injection: Differentiating fuel systems in the GX690 model
The Honda GX690 engine, a powerhouse in the small engine category, relies on a carburetor for its fuel system, not fuel injection. This distinction is crucial for understanding its performance, maintenance, and suitability for specific applications. Carburetors, while simpler and more cost-effective, mix air and fuel through a venturi system, which can be less precise under varying conditions. Fuel injection, on the other hand, uses electronic controls to deliver a more accurate fuel-air mixture, improving efficiency and power output. The GX690’s carburetor design aligns with its intended use in heavy-duty equipment like generators, water pumps, and pressure washers, where reliability and ease of repair often outweigh the need for advanced fuel management.
To differentiate the two systems in the GX690 context, consider the carburetor’s mechanical nature. It operates without electricity, making it less prone to electronic failures but more susceptible to issues like clogging or improper fuel-air mixing in extreme temperatures. Maintenance involves periodic cleaning, adjusting the idle mixture, and replacing gaskets or jets as needed. For instance, if the engine stalls frequently, check the carburetor bowl for debris or adjust the float level to ensure proper fuel flow. Fuel injection systems, while absent in the GX690, would require sensor diagnostics and software tuning, which are unnecessary complexities for this engine’s design.
From a performance standpoint, the GX690’s carburetor delivers consistent power for its intended applications but lacks the adaptability of fuel injection. For example, at high altitudes or in cold starts, a carbureted engine may require manual adjustments like a choke or primer bulb, whereas fuel injection would automatically compensate. However, the GX690’s carburetor is engineered to handle its 688cc displacement efficiently, providing robust torque for heavy loads without the added weight or cost of fuel injection components.
For owners and operators, understanding this difference impacts troubleshooting and upgrades. If you’re experiencing rough idling or poor fuel efficiency, inspect the carburetor for clogs or misalignment before considering aftermarket modifications. While fuel injection kits exist for some engines, retrofitting the GX690 would be impractical due to its design and intended use. Instead, focus on regular carburetor maintenance, such as using fuel stabilizers during storage and replacing the air filter every 50 hours of operation to ensure optimal performance.
In summary, the GX690’s carburetor system is a deliberate choice by Honda, balancing simplicity, durability, and cost-effectiveness for its target applications. While fuel injection offers advantages in precision and efficiency, it’s unnecessary for the GX690’s role in powering heavy-duty equipment. By mastering carburetor maintenance and understanding its limitations, users can maximize the engine’s lifespan and reliability, ensuring it performs as intended in demanding environments.
Does MaxCare Warranty Cover Fuel Pump Repairs? Find Out Here
You may want to see also
Explore related products
Troubleshooting Fuel Issues: Common problems and fixes related to fuel delivery
The Honda GX690 engine, a powerhouse in its class, relies on a carburetor for fuel delivery, not a fuel pump. This design choice simplifies maintenance but introduces unique troubleshooting challenges. When fuel delivery issues arise, the absence of a pump narrows the diagnostic focus to carburetor-related problems, fuel line obstructions, or tank contamination. Understanding these specifics is crucial for efficient troubleshooting.
One common issue is a clogged carburetor, often caused by ethanol-blended fuel that leaves residue over time. Symptoms include rough idling, stalling, or failure to start. To address this, disassemble the carburetor and clean all jets, passages, and the float bowl with a carburetor cleaner. Pay special attention to the idle and main jets, as these are prone to blockage. Reassemble with new gaskets to ensure an airtight seal, and use a 50:1 fuel stabilizer to prevent future buildup.
Fuel line obstructions are another frequent culprit, particularly in older engines or those exposed to debris. Inspect the line for cracks, kinks, or blockages, and replace it if necessary. Ensure the fuel filter is clean and positioned correctly to trap contaminants. For preventive maintenance, replace the fuel line every 2–3 years and use a high-quality inline filter. If the engine still struggles, check the fuel tank for rust or debris, which can enter the system and cause recurring issues.
Contaminated fuel is a silent killer for small engines like the GX690. Water in the fuel, often from condensation or improperly sealed containers, can lead to phase separation and corrosion. Drain the tank and flush it with fresh fuel, then add a fuel conditioner to remove moisture. Always store fuel in a sealed, ethanol-free container, and use it within 30–60 days to avoid degradation. For long-term storage, stabilize the fuel with a product like STA-BIL to maintain its integrity.
Lastly, improper carburetor adjustment can mimic fuel delivery issues. If the engine runs rich or lean, check the carburetor’s idle mixture screw and throttle plate for correct settings. Adjust the idle screw in quarter-turn increments until the engine runs smoothly at idle. Refer to the Honda GX690 manual for precise specifications, as over-adjustment can cause damage. By systematically addressing these areas, you can restore optimal fuel delivery and keep the engine running reliably.
Understanding Marine Fuel Pumps: Functionality and Operation Explained
You may want to see also
Explore related products

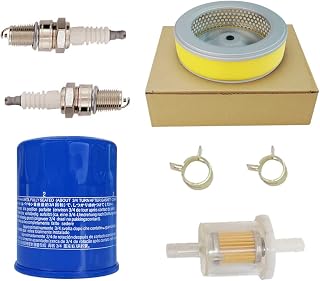

![GENUINE TUNE UP KIT FOR GX630 GX660 GX690 INCLUDE 2 PK GENUINE OIL [08207-10W30] WITH GENUINE [15400-PLM-A02] OIL FILTER AND AIR FILTER REPLACE [17210-Z6L-010] 2 PK ORIGINAL SPARK PLUGS & FUEL FILTER](https://m.media-amazon.com/images/I/61Ck2Jn85tL._AC_UL320_.jpg)
Upgrade Options: Adding a fuel pump to the GX690 for improved performance
The Honda GX690 engine, a powerhouse in the small engine category, relies on a gravity-fed fuel system in its stock configuration. This design works well under normal conditions but can falter under high-demand scenarios, such as when the engine is tilted, operated at high altitudes, or pushed to its performance limits. Adding an electric fuel pump to the GX690 addresses these limitations, ensuring consistent fuel delivery and unlocking the engine’s full potential.
Analyzing the Need for a Fuel Pump Upgrade
The GX690’s gravity-fed system depends on the fuel tank being positioned higher than the carburetor. While efficient for standard applications, this setup struggles when the engine is mounted in non-traditional orientations or operated in environments where fuel flow is compromised. An electric fuel pump eliminates these constraints by actively delivering fuel, maintaining optimal pressure regardless of the engine’s position or external conditions. This upgrade is particularly beneficial for modified GX690s used in racing, heavy-duty equipment, or custom builds where reliability and performance are critical.
Steps to Install a Fuel Pump on the GX690
Installing a fuel pump on the GX690 involves several straightforward steps. First, select a compatible 12V electric fuel pump rated for carbureted engines, such as those from brands like Walbro or Aeromotive. Next, mount the pump inline between the fuel tank and carburetor, ensuring it’s secured away from heat sources. Connect the pump to a switched power source, such as the engine’s ignition circuit, to activate it only when the engine is running. Finally, test the system for leaks and proper fuel flow before operation. Pro tip: Use a fuel filter before and after the pump to prevent debris from clogging the system.
Performance Gains and Practical Considerations
Adding a fuel pump to the GX690 delivers tangible performance improvements. By ensuring a steady fuel supply, the engine can maintain peak power output under load, reducing the risk of lean mixtures or misfires. This upgrade is especially valuable for turbocharged or high-compression builds, where fuel demand exceeds the gravity-fed system’s capabilities. However, it’s essential to balance performance with practicality. A fuel pump increases electrical draw, so ensure your setup includes a robust power source, such as a high-output alternator or auxiliary battery, to avoid draining the system.
Cautions and Maintenance Tips
While a fuel pump enhances performance, improper installation or maintenance can lead to issues. Always use fuel lines rated for ethanol blends to prevent degradation, and inspect connections regularly for leaks. Be mindful of the pump’s duty cycle; continuous operation without adequate cooling can cause overheating. For longevity, install an inline fuel pressure regulator to maintain optimal PSI (typically 3-5 PSI for carbureted engines). Lastly, if the engine is used intermittently, run it periodically to prevent fuel stagnation in the pump, which can lead to internal corrosion or clogs.
Upgrading the GX690 with a fuel pump is a game-changer for enthusiasts seeking reliability and performance beyond the stock setup. Whether you’re building a race kart, powering heavy machinery, or simply future-proofing your engine, this modification ensures consistent fuel delivery in any scenario. While the installation requires careful planning and maintenance, the payoff in terms of engine responsiveness and versatility makes it a worthwhile investment. If your GX690 operates in demanding conditions or pushes the limits of its design, a fuel pump isn’t just an upgrade—it’s a necessity.
Why a Fuel Pump Strainer is Essential for Your Vehicle's Performance
You may want to see also
Frequently asked questions
No, the Honda GX690 engine does not come with a built-in fuel pump. It relies on gravity feed or a pulse pump system for fuel delivery.
Yes, you can install an external fuel pump to a Honda GX690 if your application requires it, such as for high-altitude or remote fuel tank setups.
The Honda GX690 uses a gravity-fed fuel system or a pulse pump (if equipped) to deliver fuel from the tank to the carburetor.
No, none of the standard Honda GX690 models come with a factory-installed fuel pump. All variants rely on gravity or pulse pump systems.
