Testing the fuel pump on a 2002 Volkswagen Passat is a crucial diagnostic step if you suspect fuel delivery issues, such as hard starting, stalling, or poor engine performance. The process typically involves checking for power and ground at the fuel pump connector, listening for the pump’s operation when the ignition is turned on, and measuring fuel pressure using a gauge. Begin by locating the fuel pump, which is usually accessed through the rear seat or trunk, depending on the model. Use a multimeter to verify voltage at the pump’s electrical connector with the key in the on position, ensuring the fuel pump relay is functioning correctly. If power and ground are present but the pump doesn’t run, it may be faulty. Additionally, a fuel pressure test can confirm if the pump is delivering the correct pressure to the engine. Always refer to the vehicle’s service manual for specific details and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Volkswagen Passat |
| Fuel Pump Location | Inside the fuel tank (access via rear seat or trunk) |
| Tools Required | Multimeter, screwdriver, fuel pressure gauge (optional) |
| Safety Precautions | Disconnect battery, relieve fuel system pressure, work in well-ventilated area |
| Testing Method 1: Listen for Operation | Turn ignition to ON (do not start), listen for fuel pump hum (2-3 seconds) |
| Testing Method 2: Check Voltage | Measure voltage at fuel pump connector (should be 12V with ignition ON) |
| Testing Method 3: Fuel Pressure Test | Use fuel pressure gauge to check pressure (spec: 45-55 PSI) |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, whining noise |
| Replacement Access | Remove rear seat or trunk lining to access fuel pump module |
| Diagnostic Trouble Codes (DTCs) | Scan for codes related to fuel pump (e.g., P0087, P0088) |
| Estimated Repair Time | 2-4 hours (depending on access and experience) |
| Estimated Cost | $200-$600 (parts and labor, varies by location) |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, relieve fuel pressure
- Electrical Testing: Check fuel pump relay, test for power at pump connector, verify ground
- Fuel Pressure Test: Connect gauge, measure pressure, compare to specs, check for leaks
- Listen for Operation: Turn key to ON, listen for pump hum, note duration
- Resistance Check: Disconnect pump, measure resistance, compare to manufacturer’s specifications
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, relieve fuel pressure
Before attempting to test the fuel pump on your 2002 Passat, it's crucial to gather the necessary tools and ensure a safe working environment. You'll need a few basic items: a fuel pressure gauge, a wrench or socket set, safety gloves, and safety goggles. These tools will not only facilitate the testing process but also protect you from potential hazards. Always prioritize safety when working with fuel systems, as gasoline is flammable and can be dangerous if mishandled.
Ensuring safety is paramount in this process. Park your vehicle on a level surface, engage the parking brake, and allow the engine to cool down if it has been running. Fuel systems operate under pressure, and attempting to work on a hot engine can lead to burns or fuel spills. Additionally, work in a well-ventilated area to avoid inhaling fuel vapors. If possible, use a drip pan to catch any fuel that may leak during the pressure relief process, minimizing environmental contamination and fire risks.
Once safety measures are in place, disconnect the battery to prevent accidental ignition. Locate the negative terminal on your battery, typically marked with a "-" sign, and use a wrench to loosen the nut securing the cable. Carefully remove the cable and set it aside, ensuring it does not come into contact with the battery terminal. This step is critical to avoid electrical shorts or unintended engine starts while you’re working on the fuel system.
Next, locate the fuel pump, which is typically housed inside the fuel tank. On a 2002 Passat, the fuel tank is located beneath the rear seat or in the trunk area, depending on the model. Accessing the fuel pump may require removing interior panels or the fuel tank itself, so consult your vehicle’s manual for specific instructions. Knowing the exact location will save time and reduce the risk of damaging surrounding components during the testing process.
Before testing the fuel pump, relieve the fuel system pressure to avoid accidental fuel spray or leaks. Start by locating the fuel pressure relief valve or Schrader valve, often found near the fuel rail or on the fuel pump assembly. Attach the fuel pressure gauge to the valve and slowly depress the pin to release the pressure. Listen for a hissing sound, which indicates that pressure is being relieved. Once the gauge reads zero, the system is safe to work on. This step is essential to prevent fuel from spraying out when you disconnect fuel lines or access the pump.
How Motorcycle Carburetors Efficiently Pump Fuel for Optimal Performance
You may want to see also
Explore related products
Electrical Testing: Check fuel pump relay, test for power at pump connector, verify ground

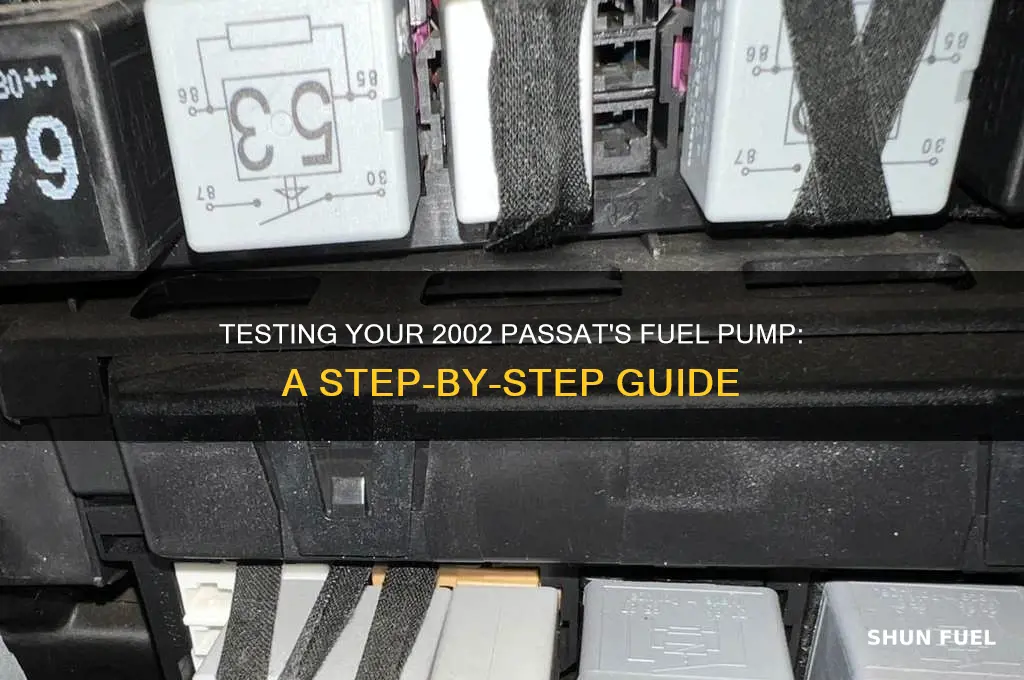

The fuel pump relay is a critical component in the fuel delivery system of a 2002 Passat, acting as a switch that controls power to the fuel pump. A faulty relay can prevent the pump from receiving power, leading to a no-start condition. To test the relay, locate it in the fuse box, typically under the hood or near the battery. Swap it with a relay of similar function, such as the horn relay, to see if the fuel pump activates. If the pump runs with the swapped relay, the original fuel pump relay is likely defective and needs replacement. This simple swap test can save time and pinpoint the issue without specialized tools.
