Testing EFI fuel injectors with a dead battery is a complex process that requires careful preparation and execution. EFI, or Electronic Fuel Injection, is the most widely used fuel injection system in modern cars and light trucks. A dead battery can cause the injectors to malfunction, leading to issues such as rough idling, knocking, poor gas mileage, and even engine failure. To test EFI fuel injectors with a dead battery, one must first ensure safety precautions are in place, such as wearing protective gear and working in a well-ventilated area to avoid gas fumes. The process involves using a test light to check for power and pulse signals from the computer to each injector. Additionally, a listening test can be performed by using a screwdriver to listen for a clicking sound, indicating proper injector function. Leaks and fuel spray patterns can also provide insights into injector performance. It is important to consult the owner's manual and seek professional advice when dealing with complex automotive issues.
| Characteristics | Values |
|---|---|
| Fuel Injector Issues | Poor engine performance or complete failure to run |
| Cause of Issues | Clogged or worn-out injectors, broken internal components |
| Testing EFI Injectors | Use a mechanic's stethoscope or screwdriver to listen for a clicking sound |
| No sound: computer not sending pulse signal or broken solenoid | |
| Smell or see leaks: injector may need replacement due to worn O-ring seals | |
| Use a test light to check for power and pulse signals | |
| No light: check for bad connections or blown fuses | |
| Use a diagnostic scanner (OBD reader) to identify bad injectors | |
| Check for correct flow rate and atomization pattern | |
| EFI injectors won't work with a dead battery |
Explore related products
What You'll Learn
- Use a mechanic's stethoscope to listen for a clicking sound inside the EFI injectors
- Check for leaks by looking for visible signs of leaking gas or smelling gasoline
- Test the wires coming out of the injectors for voltage
- Observe the pattern and atomisation of fuel coming out of the injectors
- Check the injector controlling circuit with a test light
Use a mechanic's stethoscope to listen for a clicking sound inside the EFI injectors
To test EFI fuel injectors with a dead battery, you can use a mechanic's stethoscope to listen for a clicking sound inside the injectors. This method can help you identify any injectors that aren't working properly. Here's a detailed guide on how to do it:
First, put on the necessary safety gear, including work gloves, eye protection, and coveralls or long sleeves, as you will be working with fuel. It is recommended to work outside or in a well-ventilated area to minimize the risk of inhaling gas fumes.
Next, locate the EFI injectors on your vehicle's engine. They are usually positioned on the engine manifold on top of the engine. Start the engine and let it idle. Place the tip of the mechanic's stethoscope, or a long metal screwdriver if you don't have a stethoscope, against one of the EFI injectors.
Now, listen carefully through the earpiece of the stethoscope or by placing your ear against the handle of the screwdriver. If the injector is functioning correctly, you should hear a distinct clicking sound. This sound is produced by the solenoid inside the injector activating and deactivating the injector's valve.
If you don't hear the clicking sound, it could indicate that either the computer is not sending a pulse signal to the injector or that the solenoid has malfunctioned, resulting in a dead injector. Repeat this process for each injector, making note of any that are silent.
Additionally, you can perform a visual and olfactory inspection for leaks. Turn on the engine and let it idle for a few minutes. Look for any visible leaks or drips around the injectors, and shine a flashlight under the hood to get a better view. If you smell gasoline or notice any wet spots, it could indicate a faulty O-ring seal, and the injector may need to be replaced.
While the listening test with a mechanic's stethoscope is a useful initial diagnostic tool, you may also consider using a test light to check for power and pulse signals to the injectors, as well as inspecting the spray pattern and atomization of the fuel injectors. If you suspect a problem with your EFI injectors, it is always a good idea to refer to your vehicle's owner's manual for specific testing and maintenance instructions.
Fuel Injectors: Do Sizes Matter and Vary?
You may want to see also
Explore related products
Check for leaks by looking for visible signs of leaking gas or smelling gasoline
When testing EFI fuel injectors with a dead battery, it is important to take safety precautions. Gas fumes can catch fire, so avoid smoking or open flames during testing. Wear protective gear, such as work gloves, eye protection, and long sleeves, and work outside or in a well-ventilated area.
Now, to check for leaks, turn on the engine and let it idle for a few minutes. Leaning in, use your sense of smell to detect any gasoline odours. Shine a flashlight or a work light under the hood to visually inspect for leaking fuel. If you detect any leaks, it is likely that one or more fuel injectors need to be replaced.
Visible signs of leaking fuel can include an irregular spray pattern, such as a solid, single stream, rather than the expected partially atomized inverted V pattern. This could indicate a faulty injector, which may be due to dirt or a broken internal component.
Additionally, you can perform a listening test. Start the engine and let it idle, then place the tip of a long metal screwdriver against one of the fuel injectors. Put your ear against the handle of the screwdriver to listen for a clicking sound, which indicates a functioning injector. If you don't hear this sound, it could be due to a broken solenoid or a lack of pulse signal from the computer.
It is important to consult your vehicle's owner's manual for specific instructions and to be aware of potential electrical issues when dealing with a dead battery.
Fuel Injector Testing: Local Auto Parts Store's Ability
You may want to see also
Explore related products
Test the wires coming out of the injectors for voltage
To test the wires coming out of the injectors for voltage, you will need a test light. This is an inexpensive but efficient tool that can be used to check for power and pulse signals coming from the computer on each dead injector.
First, locate the two wires going into each injector. Each fuel injector will have a metal clip plugged into it, with two wires coming out. One of these wires is a 12-volt constant that should be continuously receiving power from your vehicle's electrical system. These wires are often grey and black but can be any colour. They will be the only wires coming from each injector.
Next, test each wire for voltage. Take the sharp end of the test light and press it firmly into the rubber coating around each wire, penetrating the metal wiring inside. If you don't get a response from the test light, inspect the power side of the circuit for a bad connection or a blown, short fuse.
It's important to test all the wires, even if you locate one injector with a power issue, as others may have the same problem. Once you've identified an injector with a power issue, make a note of it and continue testing the rest.
Fuel Injector Count for a 2006 Chevy Trailblazer
You may want to see also
Explore related products

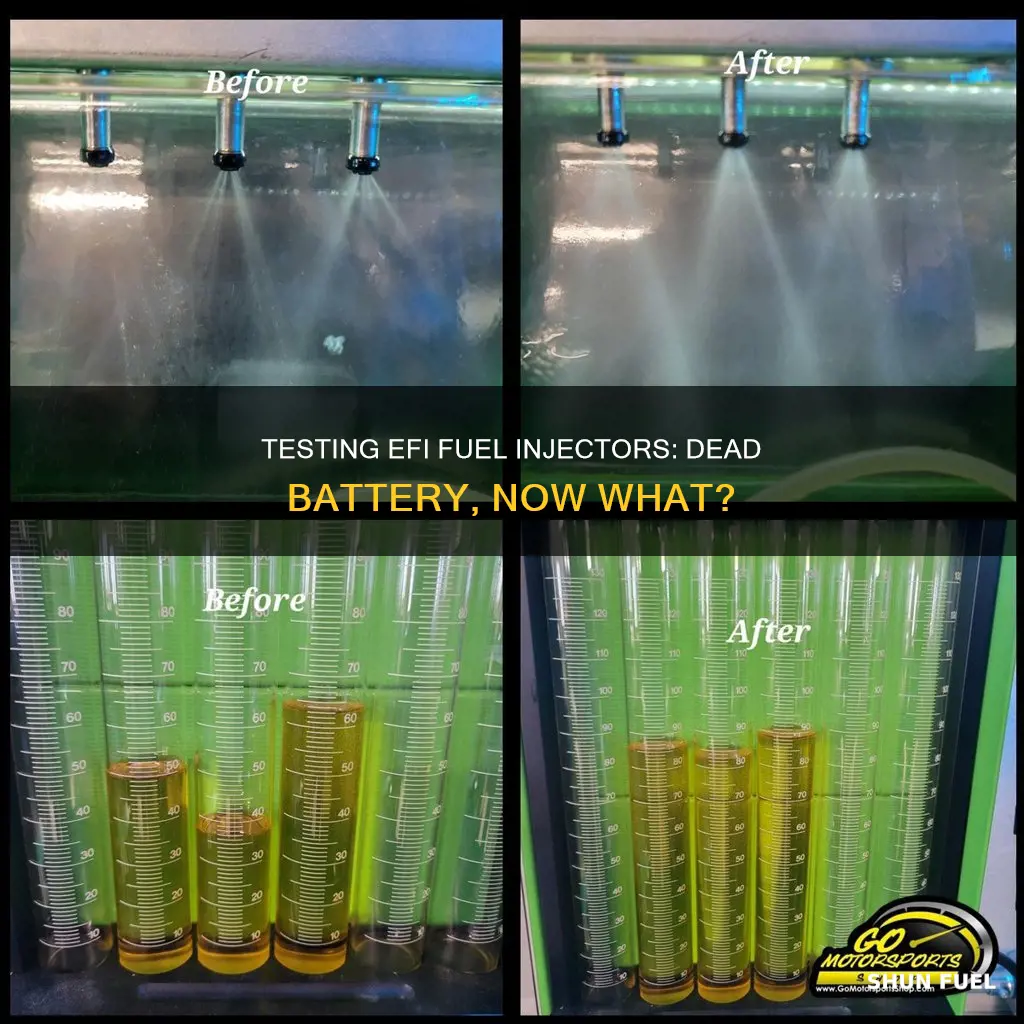

Observe the pattern and atomisation of fuel coming out of the injectors
When testing EFI fuel injectors, observing the pattern and atomisation of the fuel is crucial to determine their condition. Here are some detailed instructions to guide you through this process:
Firstly, set up a measuring device, such as a flask with marked volume graduations, below the injector. Ensure the injector is positioned securely over the flask, with the pump turned on. By doing so, you can accurately assess the flow rate of the fuel.
Next, activate the injector's pulser for a controlled duration, typically around 5 to 10 seconds. During this activation, carefully observe the pattern and atomisation of the fuel. A well-functioning injector should exhibit a uniform, inverted V-shaped spray pattern, indicating proper atomisation. This pattern is important because it ensures optimal mixing of the fuel with air, resulting in even ignition.
If you observe a solid, single spray or an irregular pattern, it suggests that the injector is likely dirty or has a worn-out or broken internal component. In such cases, cleaning the injector with a high-quality fuel system additive or seeking professional cleaning services may be necessary.
Additionally, pay close attention to the flow rate of the fuel. A low flow rate can cause the engine to run hotter and leaner, leading to potential damage. Conversely, a rich mixture can result in washing the cylinder walls, thinning the oil, and causing excess fuel consumption and poor performance. Therefore, evaluating the pattern, atomisation, and flow rate together provides valuable insights into the condition and performance of the EFI fuel injectors.
Removing Fuel Injector Connectors from a PT Cruiser
You may want to see also
Explore related products
Check the injector controlling circuit with a test light
To check the injector controlling circuit with a test light, start by hooking the test light clip to a bare metal bracket or a bolt on the engine. Ensure you are wearing protective gear, including work gloves, eye protection, and coveralls or long sleeves, as fuel can be dangerous.
Next, locate the electrical connector on the fuel injector you want to test. Disconnect this connector and then connect the terminals of the harness connector one at a time to the test light. One of the terminals should illuminate the test light, indicating the injector power source from the computer. If the test light does not turn on, there is likely a problem with the power side of the circuit, such as a bad connection or a blown fuse.
After identifying the power source, connect the fuel injector back to the harness connector. Now, plug the test light clip into the positive side of the battery. Test each wire coming out of the fuel injector for voltage by piercing the rubber coating with the sharp end of the test light to reach the metal wiring. One of the wires should be a 12-volt constant, receiving power from the vehicle's electrical system. Typically, these wires are grey and black, but they can vary in colour.
If you encounter a power issue with one injector, continue testing the others, as the problem may not be isolated. Additionally, follow the wires of the faulty injector to ensure there are no breaks that could interrupt the electrical supply.
Fuel Injectors in 2009 Altima: What You Need to Know
You may want to see also
Frequently asked questions
You will need to jump-start your vehicle to test the fuel injectors. Once the vehicle is running, you can turn the key to the "on" position without starting the engine. This should activate all of the vehicle's electronics. You can then proceed to test the fuel injectors.
You can test the fuel injectors in several ways. One way is to use a test light to check for power and pulse signals coming from the computer on each injector. Another way is to use a mechanic's stethoscope or a long screwdriver to listen for a clicking sound, which indicates that the injector is working. You can also check for leaks by turning on the engine and looking for the smell of gasoline or visible leaks.
A faulty fuel injector can cause problems such as rough idling, knocking, poor gas mileage, and smoky exhaust. If the fuel injector is completely failed, the engine may not run at all.
