Removing fuel injector connectors can be a tricky task, especially when it comes to dealing with the electrical connectors and clips. In this article, we will be discussing the steps and tools required to remove fuel injector connectors specifically on a PT Cruiser, as well as some general tips and tricks to make the process easier. It is important to note that working on fuel injectors can be dangerous, so it is always recommended to seek professional help if you are unsure about any part of the process.

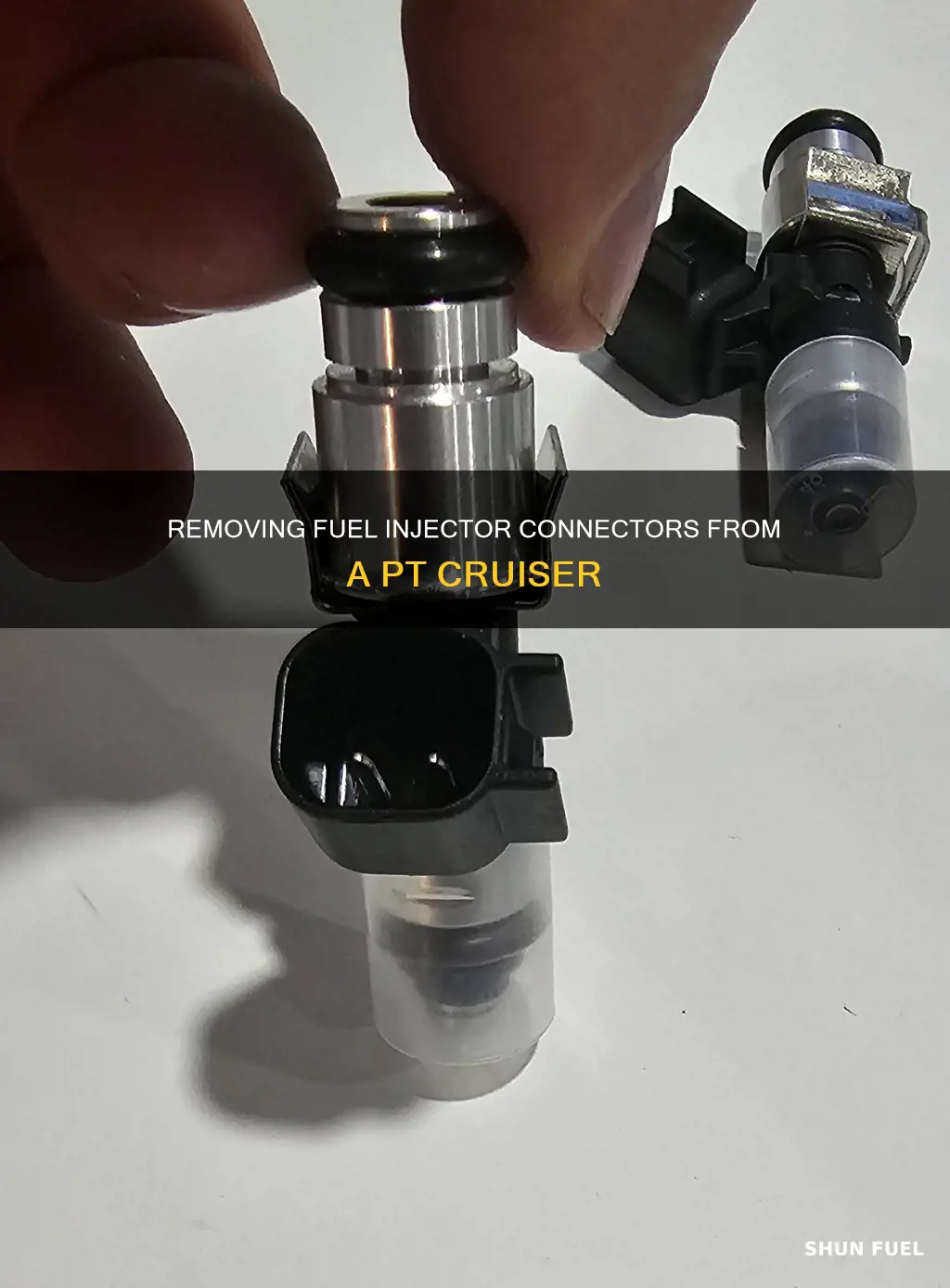

How to remove fuel injector connectors on a PT Cruiser
| Characteristics | Values |
|---|---|
| Tools | Small flathead screwdriver, 90-degree pick, nylon pry tool, drill |
| Steps | Remove the rail and the injectors, pry against the sides, not the retaining clip, wedge the clip out of the groove, disconnect the electrical connectors |
| Tips | Remove the fuel rail first, then the injectors, to make it easier to access the electrical connector |
Explore related products
What You'll Learn
Using a 90-degree pick to remove the connectors
Removing the fuel injector connectors on a PT Cruiser can be a tricky task. It is important to be careful when attempting this, as the connectors are delicate and can be damaged easily.
Using a 90-degree pick is an effective method for removing the connectors. This tool allows you to reach and manipulate the small metal retaining clip that secures the connector in place. The 90-degree angle of the pick is ideal for applying force in the right direction without causing damage.
To begin, locate the metal clip on the connector. It may be a small metal retaining clip or, in some cases, a red locking tab. Once located, carefully insert the 90-degree pick underneath the clip. Gently apply leverage to lift the clip outwards and pull it back outside the groove. It is important to be cautious during this step to avoid breaking the clip. With the clip disengaged, the connector can now be safely removed.
If you are having trouble accessing the clip with the fuel rail in place, it may be necessary to remove the fuel rail first. This will provide you with more space to work and make it easier to manipulate the clip with the 90-degree pick. Remember to work carefully and patiently, as forcing the connectors can lead to breakage.
Installing Fuel Injectors: 1997 Ford Thunderbird Guide
You may want to see also
Explore related products
Removing the fuel rail first for more space
Removing the fuel injectors on a PT Cruiser can be a tricky task, and removing the fuel rail first can indeed give you more space to work with. Here is a step-by-step guide to help you through the process:
First, locate the fuel rail and injectors. The fuel rail is the metal tube that supplies fuel to the injectors, which are the small, cylindrical devices connected to the rail. Before beginning, ensure you have the necessary tools, such as a 90-degree pick or a small screwdriver, to reach the connectors without causing damage.
Once you have located the rail and injectors, place your tool of choice at the base of the injector connector. You will notice a small metal clip that braces the bottom of the connector. This clip must be carefully pried or squeezed to release the connector without causing damage. It is crucial to be gentle during this step, as the plastic components are delicate and can break easily.
By removing the rail first, you will have more room to maneuver and can avoid the risk of breaking the plastic landing that holds the clip in place. With the rail removed, you can now easily access each injector and work on removing their connectors. Gently wiggle and pull the connectors off, ensuring that you do not apply excessive force that could damage the clips or the surrounding components.
Taking your time and working carefully will help ensure that you do not break any parts, and your PT Cruiser's fuel injectors will be successfully disconnected in no time.
Fuel Injector Cleaner: Safe for Mercedes?
You may want to see also
Explore related products
Using a small flathead screwdriver to wedge the connector
To remove the fuel injector connectors on a PT Cruiser, you will need a small flathead screwdriver. This is a delicate task, so it is best to use a screwdriver with a thin tip, such as a jeweller's flathead screwdriver.
Begin by locating the metal clip on the fuel injector connector. This clip must be opened outwards and pulled back outside the groove on both sides. You will notice a raised section that needs to be lifted over so that the clip is held in an inactive state. With your small flathead screwdriver, carefully wedge the connector by positioning the screwdriver under the red lock and between it and the connector body. Gently pry against the sides, being careful not to pry against the retaining clip itself, as this may break.
Once you have successfully wedged the connector and released the red locking tab, you can then unplug the connector. It is important to note that removing the fuel rail first, as suggested by some sources, may provide you with more room to work and make it easier to access the electrical connector. However, this is not necessarily required, and it is possible to remove the connectors without first removing the fuel rail.
How Shell V-Power Fuels Keep Injectors Clean
You may want to see also
Explore related products
Using a nylon pry tool to remove the connectors
To remove the fuel injector connectors on a PT Cruiser, one method is to use a nylon pry tool. This can be an effective way to remove the connectors without damaging the plastic. Firstly, remove the rail and the injectors to give yourself ample room to work with. Then, using the nylon pry tool, carefully wedge it under the red lock and between the retaining clip and the connector body. Pry against the sides, not against the retaining clip, as this may break. With gentle force, the connector should pop off.
The retaining clip is the upside-down U-shaped piece that braces the bottom of the connector. It is important to be careful when prying this off, as the plastic landing that holds the clip in place is necessary. If this breaks, there will be nothing to hold the plug onto the injector.
A nylon pry tool is a good option for removing fuel injector connectors as it is less likely to cause damage than metal tools. However, even with a nylon tool, it is still possible to chip the tool or break the clips, so caution and a gentle touch are required.
Other tools that can be used to remove fuel injector connectors include a small or flathead screwdriver, or a 90-degree pick. These tools can be wedged under the retaining clip to pop it off. It is also possible to squeeze and pull the connector to remove it.
Cleaning Jet Ski Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Drilling a small hole to twist in a screw eye and pull up the lock
Removing the fuel injector connectors on a PT Cruiser can be a challenging task, especially when dealing with the electrical connectors and clips. While there are various methods and tools that can be used, one innovative approach shared by a Chrysler Minivan Forum member involves drilling a small hole to twist in a screw eye and pull up the lock. This method can be a clever solution when other techniques fail or prove too difficult.
- Prepare the Necessary Tools: Before beginning, ensure you have the right tools for the job. You will need a drill, a small drill bit (approximately 1/16" in diameter), a screw eye (a small, threaded eye hook), and a screwdriver or drill driver to twist the screw eye.
- Identify the Locking Tab: Inspect the fuel injector connector and identify the locking tab or lock. It is typically coloured red and located on the electrical connector. This locking tab secures the connector in place.
- Drill a Small Hole: Position the drill bit above the centre of the locking tab. Start the drill slowly and with gentle pressure to maintain control. Drill straight down, creating a small hole through the centre of the locking tab. Ensure the hole is deep enough to accommodate the screw eye.
- Twist in the Screw Eye: Select a screw eye that fits snugly into the drilled hole. Using the screwdriver or drill driver, carefully twist the screw eye into the hole. Ensure it is securely threaded into the locking tab.
- Pull Up on the Screw Eye: Once the screw eye is firmly in place, gently pull up on it. This action will lift the locking tab, releasing the electrical connector. Be careful not to apply excessive force, as the components are delicate.
- Repeat for Remaining Connectors: If there are additional fuel injector connectors that need to be removed, repeat the process for each one. This method has been reported to work effectively on multiple locks.
By drilling a small hole and using a screw eye, you can successfully release the locking tab and remove the fuel injector connectors. This approach can be a handy alternative when other methods prove challenging or unsuccessful. Remember to work carefully and deliberately to avoid any damage to the fuel injector or surrounding components.
Removing Fuel Injectors from Arctic Cat: Step-by-Step Guide
You may want to see also
Frequently asked questions
Removing the rail first will give you ample room to work and wiggle the clips off. You can then remove the injectors with the electrical connector still connected and attack the clips. Use a small, flat-head screwdriver to open the metal clip outwards and pull it back outside the groove on both sides.
You can use a 90-degree pick or a small, flat-head screwdriver to remove the clips. If you are struggling to remove the red locking tab, you can drill a 1/16" hole into the top of the lock, twist in a screw eye, and pull up on it.
Be careful not to pry against the retaining clip, as it may break. Pry against the sides instead. You can also buy new pigtails that have a better design while still using a metal retaining clip.
