Fuel injectors are designed to spray fuel into the cylinders of a vehicle's engine, where it is combined with air and burned by the spark plug to create power. When fuel injectors fail, the engine may run poorly or stop running altogether. While some fuel injector issues require the attention of a professional mechanic, others can be diagnosed at home with simple tools or at a local auto parts store. Testing fuel injectors can be done in several ways, including checking the injector's coil with a multimeter, inspecting the fuel spray on TBI injectors visually, or using a test light to check for power and pulse signals. In addition to testing, fuel injector cleaning services are also offered by some companies to restore performance without the need for replacement.

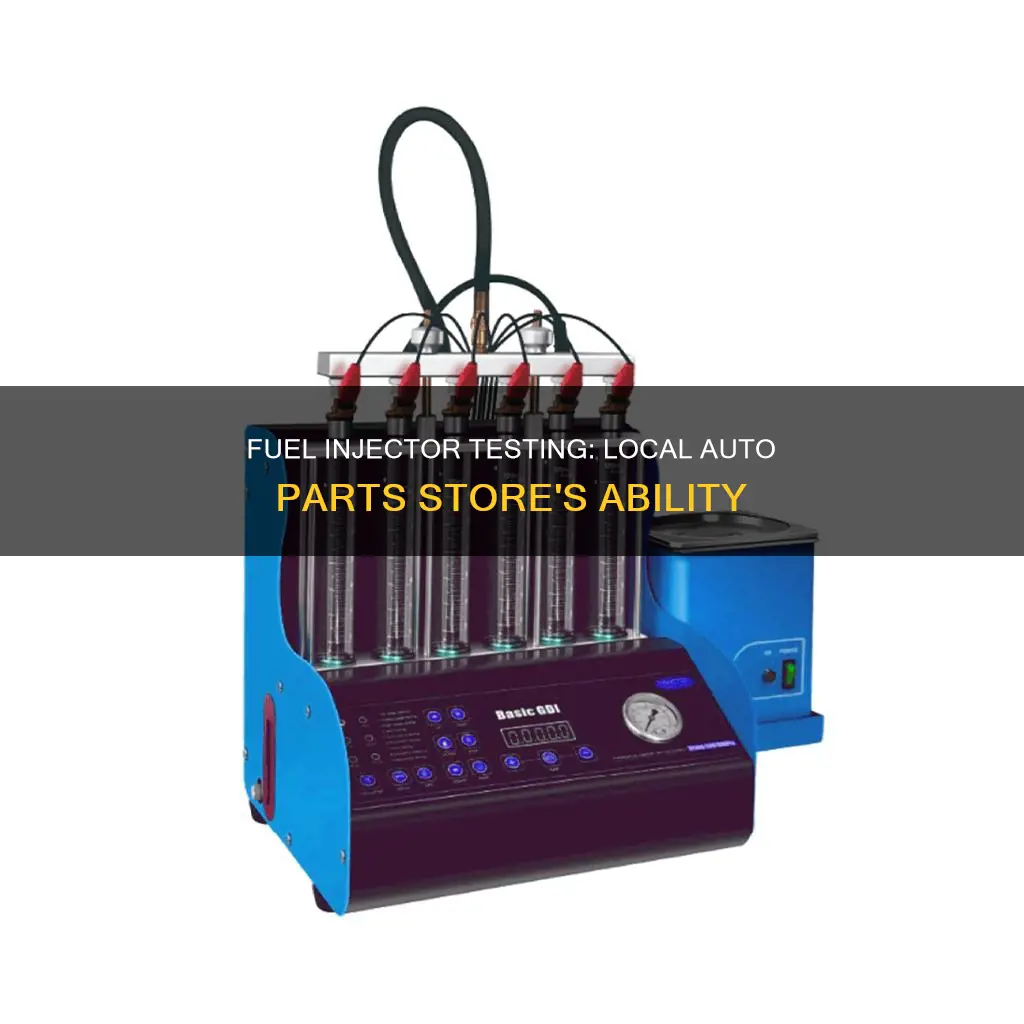

Can a local auto parts store test fuel injectors?
| Characteristics | Values |
|---|---|
| Testing fuel injectors at home | Possible with a fuel pressure test kit or a multimeter |
| Testing fuel injectors at a local auto parts store | Not mentioned; auto parts stores sell fuel injectors and fuel pressure test kits |
| Professional fuel injector testing services | Available at Injector Rx and The Injector Shop |
Explore related products
What You'll Learn
DIY testing methods
Testing your fuel injectors at home is a practical skill that can save you money and keep your vehicle running efficiently. Here are some DIY testing methods to help you diagnose and maintain your vehicle's performance:
Visual Inspection: Start by visually inspecting the fuel injectors for any signs of physical damage, leaks, corrosion, or dirt. Leaks may indicate a sealing issue or a cracked injector, while dirt and corrosion can impact the injector's performance. If you notice any cracks or physical damage, the injector needs to be replaced immediately.
Use of Multimeter: You can use a multimeter to check the electrical components of the fuel injectors. Locate the two wires going into each injector. One of these wires is a 12-volt constant that should continuously receive power. Test each wire for voltage by pressing the sharp end of a test light into the rubber coating around the wire until it contacts the metal wiring. If the injector is functioning correctly, one of the two wires should make the test light turn on.
Fuel Pressure Test: This test helps measure the fuel pressure in the system. First, locate the fuel rail where the injectors are joined. Attach a fuel pressure gauge to the fuel rail's test port. Then, start the engine and compare the gauge reading to your vehicle's manual specifications. Low pressure could indicate a faulty fuel pump, a clogged fuel filter, or an issue with the injectors.
OBDII Scanner: If your vehicle's check engine light is on, you can use an OBDII scanner to check for any errors in the vehicle's computer related to the cylinder or injector. Replacing the injector may solve the problem, but you may also need to have a professional diagnose your vehicle's electronic control unit and fuel system.
Injector Tester: An injector tester is a tool specifically designed to measure the injector's performance. This can help you identify any issues with the fuel injectors that may impact your engine's performance.
Remember to always put on the appropriate safety gear and ensure the engine is off and cooled down before starting any inspection or testing. Regular fuel injection testing and maintenance can help maintain optimal engine performance and longevity.
Fuel Injectors in Chevy Traverse: What You Need to Know
You may want to see also
Explore related products
When to seek professional testing
While there are some DIY methods for testing fuel injectors, there are certain instances where you should seek professional testing.
Firstly, if you are unsure about how to test fuel injectors yourself or feel uncomfortable performing the necessary steps, it is best to consult a professional. Attempting to test or repair fuel injectors without proper knowledge can potentially lead to accidents or further damage to your vehicle.
Secondly, if you have identified that your fuel injectors are not clicking, there may be an issue with the injector itself or the electronic control transmitting to the injector. In such cases, a professional mechanic can perform a diagnostic check on your vehicle's electronic control unit and fuel system to accurately determine the problem.
Additionally, if your vehicle's check engine light is illuminated, it could indicate a faulty fuel injector. While a simple cleaning might resolve the issue, a professional mechanic should be consulted to ensure that there are no underlying problems that could lead to engine failure.
Moreover, if you have performed the basic tests and identified that your injector's coil is partially opened, opened, or shorted, it is advisable to seek professional assistance. A mechanic will have the expertise to address these specific issues and recommend appropriate repairs or replacements.
Lastly, for complex issues beyond the expertise of most home mechanics, professional testing is recommended. This includes situations where you suspect multiple injector failures or where initial DIY methods have not resolved the problem.
Mystery Solved: Marvel Oil's Effect on Fuel Injectors
You may want to see also
Explore related products
Fuel injector cleaning services
Fuel injectors are designed to spray fuel into the cylinders of your engine, where the fuel is mixed with air and burned by the spark plug to generate power. If there is an issue with one of your fuel injectors, your engine may run poorly or even stop working altogether. A faulty fuel injector can cause your check engine light to come on, and if left unattended, it can lead to costly and catastrophic engine failure.
Fuel injectors can become gummed up, clogged, leaking, or dirty over time, and while they can be cleaned multiple times, they will eventually need to be replaced. To avoid costly repairs, it is important to include fuel injector cleaning as part of your vehicle maintenance routine, especially for older engines.
There are several fuel injector cleaning services available, such as Injector Rx, which offers cost-effective cleaning, flow testing, and rebuilding services for fuel injectors in the automotive, motorcycle, and marine industries. Their prices start at $22.00 per manifold injector and $30.00 per direct injector, with an additional charge for expedited services. They use a manufacturer-approved ultrasonic cleaning method to restore fuel injectors to like-new condition and guarantee their work.
Another option is The Injector Shop, which provides a fuel injector flow testing service without cleaning or parts replacement. This service is for standard port top feed injectors and has a standard test pressure of 43.5 PSI/3 bar. Additional charges apply for multi-pressure testing.
While some fuel injector issues may require a professional mechanic's inspection, others can be diagnosed and addressed using DIY methods and simple tools. For example, you can visually inspect the fuel spray on TBI injectors to check for potential issues. If you observe a solid, single spray or irregular pattern, it indicates a dirty injector or a broken internal component. In this case, you can add a high-quality cleaning fuel system additive to the fuel tank or have a garage clean the system.
You can also test the injector's coil by using a multimeter to check for resistance. By referring to the resistance value for the coil inside the injector and setting the multimeter to the appropriate value on the Ohms scale, you can determine if the coil is partially opened, opened, or shorted.
Additionally, AutoZone offers fuel pressure test kits that can help you troubleshoot your fuel pump relay and ensure your fuel injector is working correctly.
Fuel Injector O-Rings: Silverado 1500 Maintenance Guide
You may want to see also
Explore related products
Common issues with fuel injectors
Fuel injectors are designed to spray fuel into the cylinders of your engine, where it is combined with air and compressed in the combustion chamber. When fuel injectors are not working correctly, it can cause several issues, including:
- Engine not starting or misfiring: Fuel injectors spray fuel into the engine, and if they are not working correctly, the engine may not start or may misfire. A misfire will make the motor feel like it is sputtering and send vibrations through the car.
- Poor fuel economy: Well-performing fuel injectors help your vehicle get the gas mileage that manufacturers promote. A dirty or malfunctioning injector may cause a decrease in overall engine performance and fuel economy.
- Check engine light comes on: A flashing or illuminated check engine light could mean a number of different things, one of which is a dirty or malfunctioning fuel injector.
- Rough idling: Rough idling can be caused by an inadequate supply of fuel to the engine, which can be a result of a faulty fuel injector.
- Vibrations: Excessive engine vibration is a common sign of fuel injector failure. This occurs due to the engine misfiring because of a lack of fuel in the cylinder.
- Stalling: Stalling after pressing the accelerator can be caused by a bad fuel injector, which can lead to the engine not getting enough fuel.
- Struggling to accelerate: A bad fuel injector can cause the engine to struggle to accelerate due to an inadequate air-to-fuel ratio.
- Fuel leaks: Fuel leaks can be a sign of a crack in the rubber seals or in the fuel injector itself.
Fuel Injector Issues: Ticking Noise and Bad Performance
You may want to see also
Explore related products
Tools required for testing
To test fuel injectors, you will need a variety of tools, some of which are specialised and others are common hand tools. Here is a list of the tools required for testing fuel injectors:
- Safety Gear: This includes items such as eye protection to shield your eyes from any debris or sparks that may fly during the testing process. It is also recommended to tie back long hair and wear ear protection to block out noise.
- Test Light: A test light is used to check for voltage in the wires connected to the fuel injectors. It helps to identify any power issues with the injectors.
- Multimeter: A multimeter is a device that measures voltage, current, and resistance. It is used to detect any changes in voltage or current during the testing process, helping to identify potential issues with the fuel injectors.
- Ohm Meter: An Ohm meter is used to test the resistance of the fuel injectors. It can help identify faulty injectors that may have high resistance or are not functioning properly.
- Scan Tool: A scan tool, also known as a vehicle support tool, can be used for a fuel injector balance test. It helps to identify any cylinders with high misfire rates and unusual fuel trim numbers, indicating a potential problem with the fuel injector.
- Oscilloscope: An oscilloscope is a device that measures and displays voltage changes over time. By connecting it to the fuel injector's control wire or terminal, a square wave signal should be produced when the injector is energised. The signal's frequency and duty cycle can then be measured to determine if the injector is functioning correctly.
- Test Fixture: A test fixture with the correct size injectors and appropriate fittings is necessary to simulate the actual operating conditions of the fuel injector. It allows you to pressurise the injectors and observe their performance.
- Clamp: A clamp is used to securely hold the fuel injector in place while you attach the test fixture to it. It ensures that the injector remains stable during the testing process.
- Basic Hand Tools: In addition to the specialised tools mentioned above, you may also need common hand tools such as screwdrivers, wrenches, or pliers to remove and install fuel injectors, as well as to access certain components of the vehicle.
- Vehicle Service Manual: The service manual specific to your vehicle can be extremely helpful in locating the fuel injectors and understanding the testing procedures relevant to your particular make and model.
It is important to note that some testing procedures may vary depending on the vehicle and the specific fuel injector design. Always refer to the appropriate service manual and take the necessary safety precautions before conducting any testing or repairs.
Understanding Electronic Fuel Injectors: How Do They Work?
You may want to see also
Frequently asked questions
If your check engine light is on, it could be due to a faulty fuel injector. Other signs include a loss of power when driving uphill, or the engine running badly or not running at all.
Yes, there are DIY methods to test fuel injectors at home. You can visually inspect the fuel spray on TBI injectors, or check the injector's coil with a multimeter. You can also use a test light to check for power and pulse signals from the computer.
Yes, there are several companies that offer fuel injector testing and cleaning services, such as Injector Rx and The Injector Shop. Auto parts stores like AutoZone also sell fuel pressure test kits and fuel injectors.
