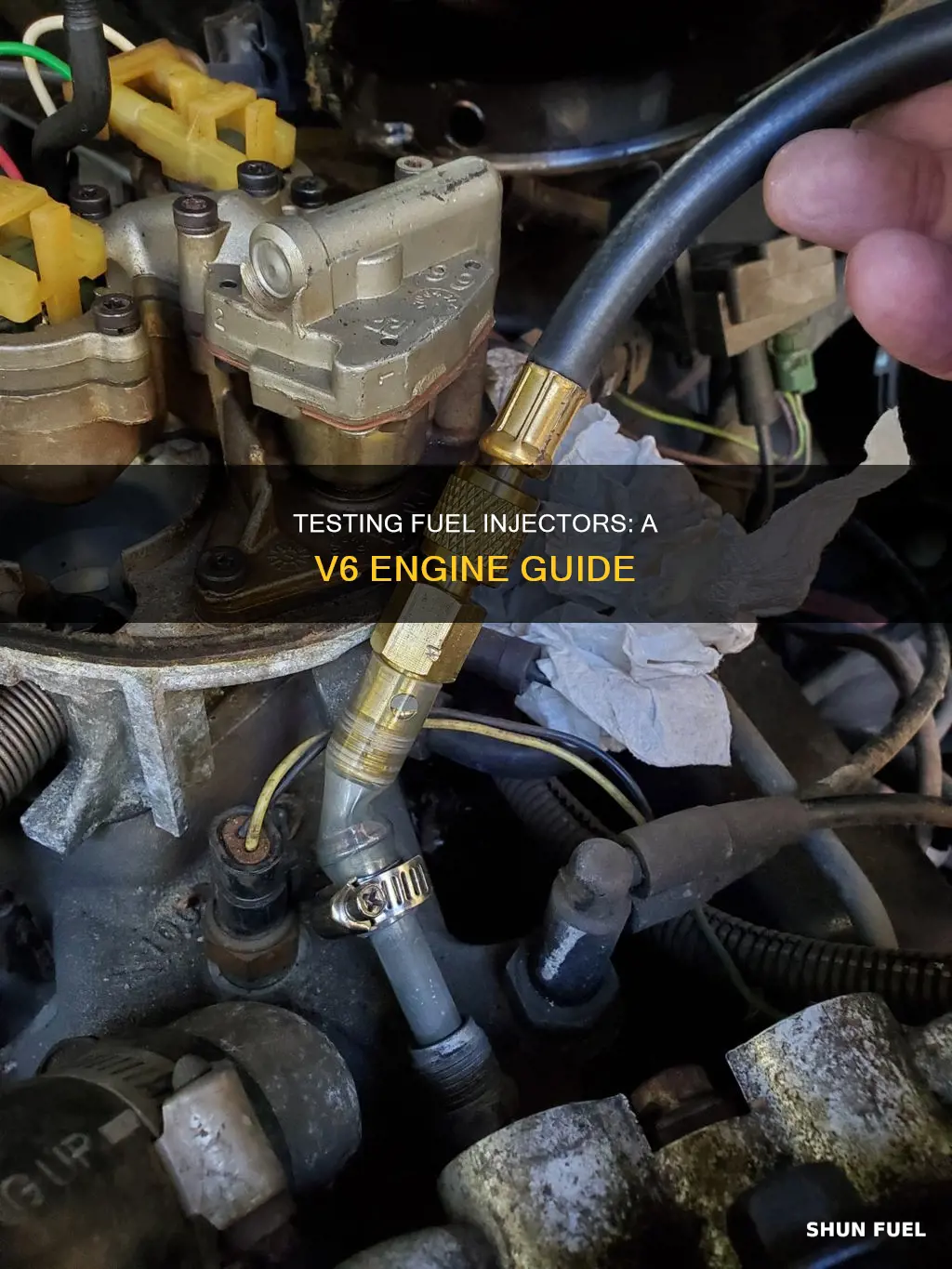

Fuel injectors are critical components of modern vehicles, ensuring the right amount of fuel is delivered to the engine at the right time. They are designed to spray fuel into the cylinders of your engine, where it is combined with air and compressed before being ignited by the spark plug to produce power. When fuel injectors get clogged or malfunction due to dirt, gunk, or carbon buildup, they can cause various issues, such as rough idling, knocking, poor gas mileage, and reduced engine performance. Regular maintenance and testing of fuel injectors are essential to keep your vehicle running smoothly and avoid costly repairs. This article will provide an introduction to testing fuel injectors, specifically for a V6 engine configuration, and outline some common methods and tools used for diagnosis and cleaning.
| Characteristics | Values |
|---|---|
| Fuel injector issues | Wear and tear, dirt, gunk or carbon buildup, clogging, leaking, sensors going bad |
| Fuel injector function | Spray fuel into the cylinders of the engine |
| Fuel injector location | One per cylinder, typically a black plastic housing installed directly above the cylinder |
| Fuel injector testing tools | Long metal rod or screwdriver, test light, multimeter, diagnostic scanner, injector cleaner machine |
| Fuel injector testing methods | Listening for a clicking sound, checking coil resistance, checking voltage, swapping injectors, checking for leaks, testing spray pattern |
Explore related products
What You'll Learn
Using a screwdriver to listen for a clicking sound
Fuel injectors are an important part of your vehicle's engine. They spray fuel into the cylinders, which is then ignited by the spark plugs to power the engine. When fuel injectors go bad or get clogged, they can cause problems like rough idling, knocking, poor gas mileage, and smoky exhaust. If your fuel injectors aren't working correctly, your engine might not get enough fuel, which can lead to engine failure. Therefore, it is essential to regularly test your fuel injectors and address any issues.
One common method for testing fuel injectors is by using a screwdriver to listen for a clicking sound. This method is simple and does not require any additional tools or equipment. Here is a step-by-step guide on how to use a screwdriver to test your fuel injectors:
- Find a long metal screwdriver: Look for a screwdriver that is at least a foot long but not more than two feet in length. The screwdriver should be mostly made of metal, but it's okay if it has a plastic or rubber handle.
- Start the engine and let it idle: Turn on your engine and let it run idle for a few minutes. This will ensure that the engine is running and the fuel injectors are active.
- Place the screwdriver on the fuel injector: Hold the tip of the screwdriver against one of the fuel injectors. The fuel injectors are typically located on the engine manifold, positioned on top of the engine. They usually have black plastic housing installed directly above the cylinder.
- Listen for the clicking sound: With the screwdriver in place, lean in and put your ear on the handle of the screwdriver. You should be able to hear a regular clicking sound as the injector cycles on and off. A clicking sound indicates that the fuel injector is working correctly.
- Compare the sound across all injectors: Repeat the process for each fuel injector and compare the sounds. If you notice any differences in the clicking sound or if one of the injectors is silent, it could indicate a problem with that particular injector. It may need to be cleaned or replaced.
- Check for leaks: In addition to listening for the clicking sound, also check for any leaks on or around the fuel injectors. Leaks can happen if the O-ring seals on the injector wear out. If you smell gasoline or see visible leaks or drips, it's a sign that one or more fuel injectors may need to be replaced.
By using a screwdriver to listen for a clicking sound, you can quickly and easily test your fuel injectors for any potential issues. This method allows you to identify faulty or dirty injectors that may need attention. However, it is important to wear protective gear, such as gloves and eye protection, when working near a running engine. Additionally, ensure that you are working in a well-ventilated area to avoid inhaling fumes.
Fuel Injector Installation: LS1 Edition
You may want to see also
Explore related products
Checking for leaks by smelling for gasoline
First, put on protective gear, including work gloves, eye protection, and long sleeves or coveralls, to safeguard against scrapes, scratches, and fuel contact. It is also advisable to work outdoors or in a well-ventilated area.
Next, start the engine and let it idle for a few minutes. After turning off the engine, carefully lean in and smell the fuel injectors and the surrounding areas of the engine bay. Be cautious not to lean too closely or directly against any hot engine parts. Any noticeable fuel odours may indicate a fuel leak. Older vehicles may produce faint gasoline scents due to normal wear and tear, but excessive smells suggest a potential leak.
Additionally, you can perform a visual inspection by shining a flashlight or work light under the hood to identify any visible leaks or drips on or around the fuel injectors. If you suspect a fuel leak, it is essential to address the issue promptly to prevent further complications and potential fire hazards.
Other methods to test for fuel injector leaks include using a screwdriver to listen for the clicking sound of the injector cycling on and off, checking spark plugs for fuel residue, and utilising an OBD2 scanner for diagnostic insights.
Fuel Injector Issues: Lean Code Culprit?
You may want to see also
Explore related products
Testing the coil for resistance with a multimeter
Testing the coil of a fuel injector for resistance with a multimeter or voltmeter is a simple process. First, ensure the vehicle is turned off and cold, as temperature variances will affect the resistance reading. Disconnect the electrical connector for the fuel injector, and use the multimeter to take a resistance reading. The reading should be between 10 and 18 ohms, or between 11 and 14 ohms according to another source. Repeat this process for each injector, ensuring that all readings are within the range suggested by the manufacturer and consistent across all injectors. If any resistance readings are off, the faulty injector will need to be repaired or replaced.
It is also possible to test the injector signal from the computer using a test light or voltmeter. With the key in the 'on' position, gently probe both sides of the injector wiring connector. One of the wires should react by registering around 12 volts on the meter or illuminating the test light. If neither wire reacts, test the fuel injector fuse in the PDC. If the fuse is functional, a fuel injection wiring diagram is needed to help trace the wire and repair the connection.
Before performing any tests, ensure that you are wearing protective gloves and eyewear, as fuel may be present during testing.
Perkins Fuel Injectors: Cleaning and Maintenance Guide
You may want to see also
Explore related products
Disconnecting the wiring clips to each injector
Disconnecting the wiring clips is an important step in testing your fuel injectors. It is a simple process, but it requires careful attention to ensure you stay safe and don't cause any accidental damage.
Firstly, you should put on protective gear. This includes work gloves to protect your hands, eye protection to shield your eyes from debris and fuel, and long sleeves or coveralls to limit contact with fuel. It is also recommended to work outside or in a well-ventilated area to avoid inhaling fumes.
Now, locate the wiring clips. These will be connected to each injector. The injectors are usually found on the engine manifold, positioned on top of the engine. Once you have located the wiring clips, you can begin to disconnect them.
To disconnect the wiring clips, carefully pull or clip them away from the injectors. Ensure you do this gently to avoid any damage to the wiring or the injectors themselves. It is also important to note that the electrical pulse is transmitted through each of the injectors, so be cautious when disconnecting, and ensure you only disconnect one at a time, testing as you go.
With the wiring clips disconnected, you can begin the testing process. This may involve using a test light or a multimeter to check for power and resistance readings. By reconnecting the wiring clips one by one and testing as you go, you can identify if any of the injectors are faulty and causing issues.
Fuel Injectors: Cleaning Frequency for Optimal Performance
You may want to see also
Explore related products
Using a diagnostic scanner to identify bad fuel injectors
Using a diagnostic scanner is an effective way to identify bad fuel injectors. This method is also called an on-board diagnostics (OBD) test. It involves using a device to read the data stored in your vehicle's computer system, allowing you to spot errors and problems.
There are various OBD scanners available, such as the Foxwell Diagnostics OBD2 scanner and the Ancel X7 OBD II scanner, which are designed to be user-friendly and accessible to both professionals and DIY enthusiasts. These scanners can provide access to trouble codes, real-time data feeds, and diagnostic tests, making it easier to pinpoint problems such as clogged or malfunctioning injectors.
To use an OBD scanner, first ensure that it is compatible with your vehicle model. Then, locate the diagnostic port, typically found beneath the dashboard on the driver's side. Park your vehicle on a flat surface, turn off the engine, and connect the scanner to begin the diagnostic process. Refer to the manufacturer's instructions for specific connection and usage guidelines.
Before performing the diagnostic test, it is important to prepare adequately. Gather all the necessary tools, understand your vehicle's layout, and prioritize safety. Wear protective gear, including work gloves, eye protection, and coveralls, to shield yourself from debris and fuel. It is also recommended to work outside or in a well-ventilated area.
By following these steps and utilizing an OBD scanner, you can effectively identify bad fuel injectors and address any issues related to fuel injection, contributing to improved vehicle maintenance and performance.
Fuel Injectors Failing to Spray: What Could Be Wrong?
You may want to see also
Frequently asked questions
There are several signs that your fuel injectors are faulty, including rough idling, knocking, poor gas mileage, and smoky exhaust. Engine misfires are another common symptom of fuel injector problems.
First, consult your owner's manual for specific fuel injector testing and engine care instructions. You can also perform a listening test by starting the engine and allowing your car to idle. Then, place the tip of a long metal screwdriver against one of the fuel injectors and put your ear on the handle of the screwdriver. A clicking sound indicates a good injector. If you don’t hear anything, the injector may need to be cleaned or replaced.
You can use a fuel system cleaner or carburetor cleaner. Fill a spray bottle with the cleaner and spray the injector. Reinstall the fuel injector and test or drive your car. If the issue persists, visit an auto repair shop for professional cleaning services.
