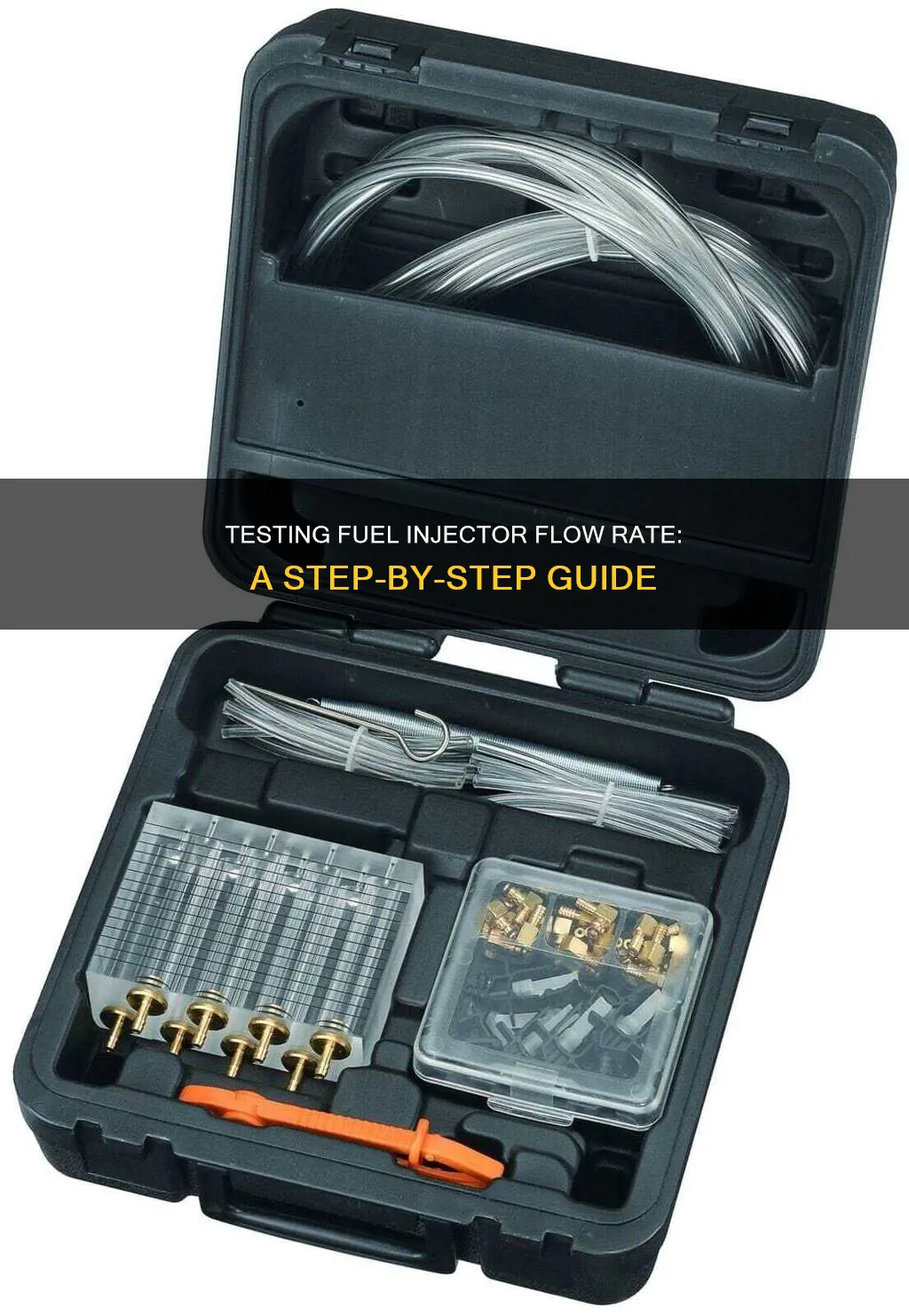

Testing the flow rate of a fuel injector is a critical process, as a low flow rate can cause engine damage. There are several methods for testing fuel injector flow rates, including static and dynamic flow tests. Static flow tests are performed at a specific fuel pressure of 43.5 psi or 3 BAR for 15 seconds, while the injector is held fully open. Dynamic (pulsed) flow tests simulate real-world conditions by testing the injectors at different duty cycles and pulse widths for 30 seconds. During this test, the injector is energised and held open for varying amounts of time, measured in milliseconds. Other tests include leak inspections, ohm testing, spray pattern verification, and pulse operation. Ultrasonic cleaning is also used to remove any particles or dirt that may contaminate the cleaning fluid.
Characteristics and Values of Testing Fuel Injector Flow Rate
| Characteristics | Values |
|---|---|
| Leak Inspection | Fuel injectors are meticulously inspected for leaks on the injector body and output nozzle. |
| Ohm Testing | Test the resistance (in Ohms) across the terminals of the injector connector to verify the condition of the injector coil. |
| Spray Pattern Verification | Evaluate the spray pattern of the injectors during the flow test. |
| Pulse Operation | Test injectors at pulse widths ranging from idle to full-throttle operation. |
| Flow Rate Verification | Measure the volume of gas each injector flows in cc/min at 43.5 psi / 3 bar of fuel pressure. |
| Static Flow Test | Injectors are flow tested for 15 seconds at a specific fuel pressure (43.5 psi or 3 BAR) while held Full Open (static). |
| Dynamic (Pulsed) Flow Test | Injectors are tested for 30 seconds at different duty cycles and pulsed at varied pulse widths to simulate real-world conditions. |
| Ultrasonic Cleaning | Injectors are placed in an ultrasonic cleaning tank and electronically cycled on and off while being cleaned with special detergents. |
| Return Shipping | Customers are responsible for return shipping charges, typically between $18 and $26 for a set of four injectors via USPS Priority Mail. |
Explore related products
Injector cleaning
Step 1: Identify the Need for Cleaning
Firstly, you need to identify if your fuel injectors require cleaning. Signs of dirty and clogged fuel injectors include a rough idle, lack of power, hesitation when accelerating, and a decrease in fuel economy. Your vehicle's check engine light will usually turn on if there is an issue.
Step 2: Choose a Cleaning Method
There are two main methods for cleaning fuel injectors: using a cleaning solution or manually cleaning the injectors. If you opt for a cleaning solution, you can choose between a gas additive injector cleaner or a pressurized canister with a high-powered cleaner. The gas additive option is more affordable and convenient, as you simply pour it into your gas tank. However, the pressurized canister method is more comprehensive, as it involves running the cleaner through the fuel line with the engine running.
Step 3: Prepare the Injectors
If you choose to manually clean the injectors, you will need to remove them from your vehicle's engine. This process varies depending on your vehicle's make and model, so refer to your service manual for detailed instructions. Once the injectors are removed, detach the rubber o-rings from the fuel rail side of the injectors.
Step 4: External Cleaning
Before proceeding with a deep clean, perform an external cleaning of the injectors. Use a special detergent to clean the injector body and output nozzle. This step helps remove any loose dirt or grease. Additionally, inspect the injectors for any leaks, especially at the nozzle, as a leaking injector usually requires a simple cleaning to function properly.
Step 5: Internal Cleaning
For a thorough internal cleaning, attach a rubber hose to the opening of the injectors using hose clamps. Connect one side of an electrical lead to the injectors and the other side to the positive terminal of your vehicle's battery. This setup will create a spark during the cleaning process. Now, pour the cleaning solution into the injectors and allow it to flow through, ensuring that it reaches all internal components. You can also use an ultrasonic cleaning tank for this step, which electronically cycles the injectors on and off while being ultrasonically cleaned with special detergents.
Step 6: Reassemble and Test
After cleaning, reassemble the injectors and perform flow testing to ensure they are functioning correctly. You can do this by testing the injectors' coils for resistance, shorts, and current draw. Additionally, verify the spray pattern and flow rate to ensure they meet the specifications for your vehicle.
Understanding Common Rail Fuel Injectors: How They Work
You may want to see also
Explore related products
Leak inspection
Visual Inspection: Start by visually examining the fuel injectors for any signs of leakage. This includes checking the injector body and the output nozzle for any traces of fuel or moisture. It is important to ensure that the injectors are clean and dry before conducting the inspection.
Leak Down Test: The leak down test is a more comprehensive method to identify leaks. This test is performed at a pressure range of 60 to 80 psi. When the fuel injectors are in the closed position, they should not leak any fuel. Any leakage during this test indicates a faulty injector that requires repair or replacement.
Ultrasonic Cleaning and Inspection: Ultrasonic cleaning is often used to remove any contaminants from the injectors. After cleaning, the injectors are visually reinspected for leaks. This process involves placing the injectors in an ultrasonic cleaning tank with special detergents and electronically cycling them on and off. The ultrasonic waves help break up and dislodge any particles, dirt, or buildup inside the injectors.
Static and Dynamic Testing: Although not directly a leak inspection, static and dynamic flow tests can help identify potential leaks. During these tests, the injectors are flow-tested at specific fuel pressures (typically 43.5 psi or 3 BAR) for a set duration. The injectors are held open (static) or pulsed at different widths (dynamic) to simulate real-world conditions. Any deviations from the expected flow rate or spray pattern could indicate a leak or other issue.
Ohm Testing: Ohm testing involves measuring the resistance, typically in Ohms, across the terminals of the injector connector. While this test primarily evaluates the condition of the injector coil, it can also provide insights into potential leaks. A faulty coil could lead to improper injector operation, resulting in potential leakage.
It is important to follow the manufacturer's guidelines and safety precautions when conducting leak inspections and fuel injector maintenance. Regular inspections and timely repairs ensure the optimal performance of the fuel injectors and the engine as a whole.
Fuel Injector Malfunction: Can It Fix Itself?
You may want to see also
Explore related products
Ohm testing
Resistance measurements can only show gross failures of the coil in the injector. For instance, a short to the adjacent turn will not be noticed with an ohmeter, but it will affect the injector's performance. A more conclusive test is to measure the inductance and coil "Q" with an impedance bridge. An impedance bridge can measure the a.c. impedance of coils and capacitors (reactance and resistance) and will also measure pure resistance.
It is important to note that fuel injectors must have equal specifications for the engine to perform correctly under all operating conditions. Injector coils with the wrong resistance can cause problems such as rough idling, hard cold starting, flooding on hot start, and poor gas mileage.
How PCM Malfunctions Can Cause Open Fuel Injector Circuits
You may want to see also
Explore related products
Pulse operation
To test the pulse operation of a fuel injector, you will need to perform a dynamic flow test. This involves running the injectors for 30 seconds at different duty cycles and pulsing them at various pulse widths to simulate real-world conditions such as idling, acceleration, deceleration, low speed, and high speed.
Firstly, ensure that you are working in a well-ventilated area and are wearing appropriate personal protective equipment, such as gloves and safety glasses. Disconnect the battery and relieve the fuel system pressure to minimize the risk of fuel injection.
To perform the dynamic flow test, set up a pump with a known pressure, for example, 50 psi. Then, use a pulse tool calibrated to pulse the injector at a specific rate, such as 100 Hz. Place a measuring device, such as a flask with graduated markings, underneath the injector to catch the fuel and measure the flow rate. Observe the pattern and atomization of the fuel during the test. The pattern is important because a more atomized fuel will mix better with the air and ignite more evenly.
After the test, compare the flow rate to the manufacturer's specifications. Differences in flow rates between injectors may indicate a clog or malfunction. If the injector is not performing adequately, it should be cleaned and retested. Ultrasonic cleaning is an effective method for removing deposits from the inside of fuel injectors. The injector is disassembled, and its parts are placed in an ultrasonic cleaning solution, where tiny bubbles created by ultrasonic waves agitate and remove contaminants.
Effective Fuel Injector Cleaning Kit Solutions for Your Car
You may want to see also
Explore related products
Flow rate verification
To test the flow rate, the injectors are flow tested for 15 seconds at a specific fuel pressure (43.5 psi or 3 bar) while held fully open, which is known as a static flow test. This is followed by a dynamic (pulsed) flow test, where the injectors are tested for 30 seconds at different duty cycles, simulating real-world conditions such as idling, acceleration, and deceleration. The injectors are pulsed at different pulse widths, and the amount of time they are energised and held open is measured in milliseconds.
After the flow tests, the results are recorded on a data sheet, and any injectors that do not pass the flow test are marked as defective. If the injectors have a low flow rate, it can cause damage to the engine by making it run hotter and leaner. Therefore, it is crucial to verify the flow rate to ensure the injectors are functioning correctly and will not harm the engine.
Some companies offer fuel injector flow testing services, providing accurate performance data without performing any cleaning or parts replacement. These services typically require customers to package and ship their injectors securely, following the provided mailing instructions, and include a completed injector submission form. The cost of such services can vary, with some charging $18.95 per injector, while others offer expedited cleaning and testing services starting at $30.00 per injector.
Flushing Fuel Injectors: A Step-by-Step Guide to Cleaning
You may want to see also
Frequently asked questions
A fuel injector flow rate test determines the flow rate of fuel through the injectors. The flow rate is the volume of gas each injector flows in cc/min at 43.5 psi / 3 bar of fuel pressure.
The fuel injectors are cleaned and then tested for leaks and flow rate. The injectors are flow tested for 15 seconds at a specific fuel pressure of 43.5 psi or 3 BAR while being held open (static). This is followed by a dynamic (pulsed) flow test, where the injectors are tested for 30 seconds at different duty cycles and pulsed at different pulse widths to simulate real-world conditions.
The cost of testing fuel injector flow rate varies depending on the service provider. Some companies offer testing services starting at \$18.95 per injector, while others charge \$18 to \$26 for return shipping a set of four injectors via USPS Priority Mail.
Testing the fuel injector flow rate helps ensure that the injectors are working properly and that the engine is receiving the correct amount of fuel. A low flow rate can cause the engine to run hotter and leaner, leading to potential damage.
