Fuel injectors are essential for a smooth-running engine, but they can get clogged with dirt and carbon deposits over time, leading to issues like rough idling, reduced efficiency, and power loss. Cleaning your fuel injectors can help restore their performance and improve your car's fuel economy. This can be done with a commercial cleaning solution specifically designed for fuel injectors. While it is possible to clean fuel injectors without removing them, this article will focus on the steps to remove and clean your fuel injectors.
Characteristics and Values
| Characteristics | Values |
|---|---|
| How often to clean fuel injectors | Every 12,000-90,000 miles or every 30,000 miles |
| Tools required | Fuel injector cleaner kit, wrench, rags/cloths, protective goggles, gloves |
| Fuel injector location | Usually on top of the engine near the intake valve, closest to the dashboard |
| Fuel injector removal process | Disconnect fuel pump from the fuel injectors, unplug connectors, remove fuel rail, pull out injectors |
| Fuel injector cleaning process | Soak injectors in cleaning solution, use brush for stubborn deposits, reassemble and reconnect wires and fuel pump |
| Fuel injector cleaning kit connection | Attach hose and fitting to fuel port, ensure proper attachment and no exposure to fuel |
| Post-cleaning steps | Reattach pump and injectors, test vehicle for abnormal noises or leaks |
Explore related products
What You'll Learn
Disconnect the fuel pump from the fuel injectors
Disconnecting the fuel pump from the fuel injectors is a necessary step when cleaning or replacing fuel injectors. Here is a detailed guide on how to do this:
First, it is important to ensure your safety. There is a fire hazard when disconnecting the fuel pump from the fuel injectors, as some fuel may leak out. Make sure your workspace is well-ventilated, do not smoke, and keep a fire extinguisher nearby.
Next, remove any necessary parts that may obstruct access to the fuel rail. This may include the air cleaner and intake air hoses. It is important to make a note of the location of any removed parts to facilitate easy reinstallation later. Once you have access to the fuel rail, inspect the surrounding area for any items that may interfere with raising the fuel rail, and remove them.
Now, you can begin the process of disconnecting the fuel pump from the fuel injectors. If your vehicle has a fuel pump relay, you can disconnect it. This is typically located in the front passenger footwell, behind the carpet towards the door, and is often a green connector. Additionally, you may need to remove the electrical connectors on the injectors. To do this, use a small jeweler's flathead screwdriver to open the metal clip outwards and pull it back outside the groove on both sides. With the electrical connectors removed, you can now focus on removing the injectors themselves.

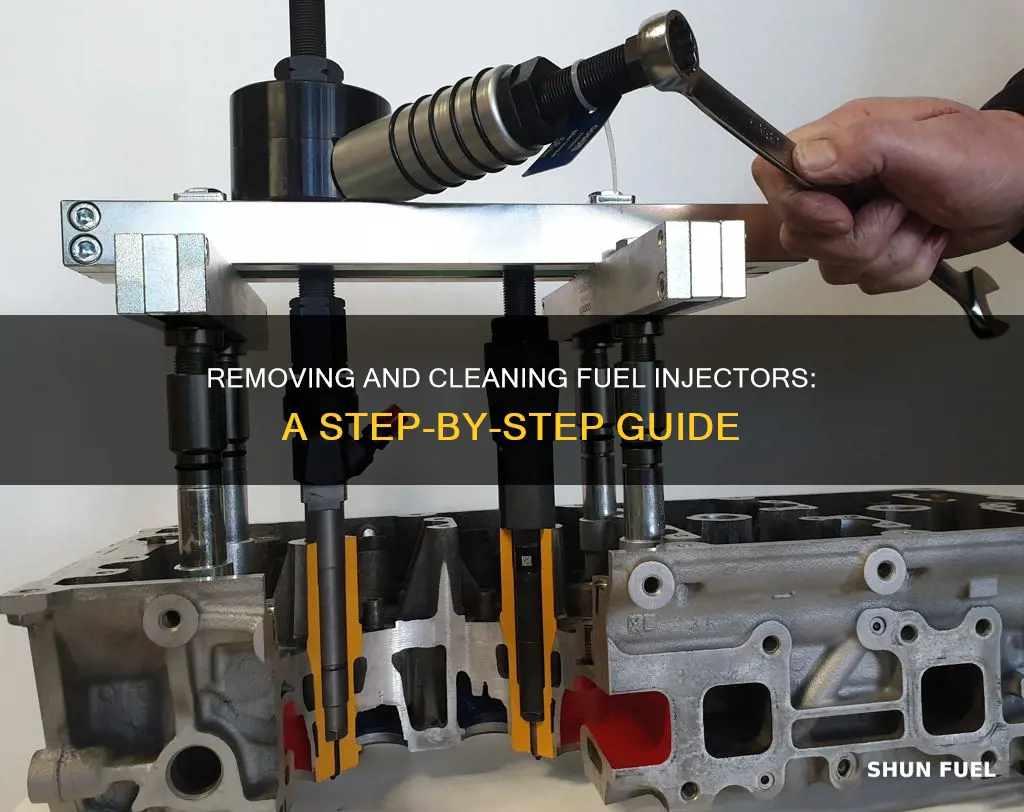

To remove the injectors, first, inspect them for a retainer securing them to the rail. If present, carefully remove the retainer. Then, gently rock the injectors and pull them out of the fuel rail. Be cautious not to angle them more than a few degrees to prevent damaging the rail. With the injectors removed, you have successfully disconnected the fuel pump from the fuel injectors. Remember to clean any debris from the injector nozzle and inspect the O-rings for any damage.
Dirty Fuel Injector: Why It Won't Click
You may want to see also
Explore related products
Use a fuel injector cleaning tool
Fuel injectors can be expensive to replace, so cleaning them is a great option that may fix any problems and restore your vehicle to optimum performance. Before you begin, it is advisable to conduct thorough testing and examination, or have the vehicle diagnosed by a professional, before proceeding to clean the fuel injectors.
If you are sure that the injectors are dirty and need to be cleaned, you can use a fuel injector cleaning tool. These tools work using compressed air to power the tool and distribute the cleaning solution. First, open the regulator valve on the fuel injector cleaner tool, and attach a compressed air hose to the fitting at the top of the cleaner’s container.
Next, adjust the regulator to match the pressure of the vehicle’s fuel system. The pressures must be equal so that when the valve is opened, the cleaning solution flows in the same way as the fuel system normally would. Refer to the vehicle’s service manual if you are unsure of the appropriate fuel pressure.
Once the regulator has been set to the correct pressure, open the shut-off valve and prepare to start the engine. Opening the shut-off valve will allow the cleaner to enter the fuel injector. You can now start the engine.
After cleaning, disconnect the tool from the vehicle and reactivate the fuel pump by reinstalling the fuse or relay. Then, start the vehicle to see if the service was successful. If your fuel injectors have been successfully cleaned, the engine should run smoothly.
Keep Your Fuel Injectors Clean: Tips for Prevention
You may want to see also
Explore related products
Clean the injectors with a brush
To clean the injectors with a brush, you will need a brush designed for cleaning fuel injectors. These are available in kits, which can be purchased online or at automotive shops. The TGR 22-piece Universal Injector Seat Brush Cleaning Kit for Diesel Engines is one such kit.
Before you begin cleaning the injectors, you must first remove them. The location of the fuel rail, which supplies the fuel injectors with fuel, varies between cars, so you may need to refer to your car manual. Once you have located the fuel rail, disconnect the fuel pump from the fuel injectors. Then, remove the fuel rail and the fuel injectors.
Now that the fuel injectors have been removed, you can begin cleaning them with a brush. Soak the injectors in a commercial cleaning solution designed for fuel injectors. These cleaning solutions are formulated to remove carbon deposits that block the injectors. After soaking, use a brush to scrub away any remaining deposits.
Finally, once the fuel injectors are clean and dry, you can reinstall them. Make sure to reconnect all the wires and the fuel pump, and ensure that everything is tightened properly.
Fuel Injector Replacement: Step-by-Step Guide for DIY Mechanics
You may want to see also
Explore related products
Reinstall the fuel injectors
Reinstalling the fuel injectors is a delicate process, and it is important to be cautious and refer to your vehicle's manual for specific instructions. Here is a step-by-step guide on how to reinstall the fuel injectors:
Prepare the Vehicle
Before beginning the reinstallation, ensure your vehicle is prepared by following these steps:
- Allow your vehicle to cool down for at least 30-45 minutes, especially if it has been driven recently. This is crucial for safety, as fuel injectors fire fuel into the engine's cylinders, and removing them from a running vehicle can cause a fire.
- Disconnect the battery to avoid any accidents.
- Put on safety gear, including gloves and safety glasses. Fuel can irritate your skin, and it is important to protect your eyes from any debris or fuel.
Inspect the Fuel Injectors
It is important to ensure that your fuel injectors are in good condition and ready for installation:
- Check that the new fuel injectors are the correct specification for your vehicle.
- Inspect the injectors for any damage and ensure that the O-rings are intact and properly lubricated. O-rings are crucial for creating a good seal and preventing fuel leaks.
Follow these steps to carefully reinstall the fuel injectors:
- Slide the new fuel injectors into their slots on the fuel rail. Ensure that the end with the clips is inserted into the fuel rail, with the gas-dipped side facing the engine's intake manifold.
- Line up the injectors with the corresponding holes on the engine. Raise the fuel rail and carefully slide the injectors into their slots.
- Reinstall all connectors, clips, and brackets that hold the fuel rail in place. Ensure that the fuel injectors are secure and properly seated.
- Reattach the fuel rail by pressing it down gently but firmly. Ensure that the injectors are seated correctly in the engine.
- Reinstall the bolts to secure the fuel rail. Tighten the bolts evenly in an X pattern, following the manufacturer's specifications using a torque wrench.
- Reconnect the electrical connectors to each injector, ensuring they click into place.
- Double-check all connections and seals before moving on.
Final Steps
After reinstalling the fuel injectors, there are a few final steps to complete:
- Reinstall any other parts that were removed to access the fuel rail, such as the air filter box, intake plenum, or engine covers.
- Turn the key on and check for leaks. Ensure that all connections are secure and there are no signs of fuel leakage.
- Start the engine and observe its performance. Ensure that the fuel injectors are functioning correctly and there are no unusual noises or issues.
Remember, these are general guidelines, and the specific process may vary depending on your vehicle's make and model. Always refer to the service instructions or your owner's manual for detailed information.
Outlander Fuel Injector: How to Remove and Replace
You may want to see also
Explore related products
Test the engine
Once you have cleaned your fuel injectors, it is important to test the engine to ensure that the cleaning has been effective and that your fuel injectors are functioning properly. Here is a step-by-step guide to testing your engine:
Locate the Fuel Injectors:
Refer to your vehicle's service manual to identify the location of the fuel injectors. Typically, there is one fuel injector for each cylinder, and they are usually found on the intake manifold, connected by a fuel rail.
Start the Engine:
With the engine running, place a thin metal rod or screwdriver on one of the fuel injectors. Lean in close and listen for an audible clicking sound. This clicking indicates that the fuel injector is functioning correctly. Repeat this process for each fuel injector in your vehicle.
Check for Leaks:
Turn on the engine and let it idle for a few minutes. Shine a flashlight under the hood and inspect for any visible leaks or drips. Leaks can occur if the O-ring seals on the fuel injector wear out. If you notice any leaks, the fuel injector may need to be replaced.
Smell for Gasoline:
In addition to visual inspection, use your sense of smell to detect any gasoline leaks. With the engine idling, lean in and smell for the presence of gasoline around the fuel injectors. If you detect the odour of gasoline, it could indicate a leak.
Inspect the Spray Pattern:
For TBI (Throttle Body Injection) injectors, you can visually inspect the fuel spray pattern. It is normal to observe an inverted V-shaped spray pattern. However, if you notice a solid, single spray or an irregular pattern, it could indicate a dirty injector or a broken internal component.
Test EFI Injectors:
For EFI (Electronic Fuel Injection) injectors, the structure is more complicated, and it is challenging to access the fuel spray for inspection. In this case, you may need to use specialised tools to test the injectors, such as a test light to check the power source and pulse signal.
Dynamic (Pulsed) Flow Test:
This test simulates real-world driving conditions by running the injectors at different duty cycles and pulse widths. The injectors are tested at different pulse widths, such as 3 ms, 6 ms, and 12 ms. This test ensures that the injectors perform effectively during idling, acceleration, deceleration, and various speeds.
Record Results:
After performing the various tests, it is important to record the results. Note down the findings for each fuel injector, including any issues detected. This information will be useful for further troubleshooting or repairs.
Fuel Injector Maintenance: A Comprehensive Guide to Inspection
You may want to see also
Frequently asked questions
Most mechanics recommend cleaning your injectors every 30,000 miles, but suggestions vary from yearly/12,000 miles to up to 90,000 miles.
Signs of clogged injectors include rough idling, decreased fuel efficiency, stalling or stumbling when the vehicle is under load, and engine misfires.
You will need a fuel injector cleaner kit, a wrench, rags or cloths, and protective goggles and gloves.
Park your vehicle in a well-ventilated area, away from direct sunlight or any open flame. Disconnect the fuel pump from the fuel injectors and brace the fuel pump. Hang the cleaning tool from your bonnet using the hook and connect the outlet pipe of the tool to your fuel rail. Remove the cap from the fuel tank to prevent pressure buildup and turn the vehicle on to let the cleaning fluid into your injectors.
Soak the injectors in a commercial cleaning solution and use a brush to clean any stubborn deposits.
