Testing the fuel pump on a 1996 Pace Arrow motorhome requires a systematic approach to ensure accurate diagnosis. Begin by checking the fuel pump fuse and relay for any signs of damage or corrosion, as these components are common failure points. Next, verify that the fuel pump is receiving power by using a multimeter to test the voltage at the pump’s electrical connector. If power is present, listen for the pump’s hum when the ignition is turned on; a lack of noise may indicate a faulty pump. To further test functionality, measure fuel pressure using a gauge at the fuel rail, comparing the reading to the manufacturer’s specifications. If pressure is insufficient, inspect the fuel filter and lines for clogs or leaks. Finally, if all other components check out, the fuel pump itself may need replacement. Always consult the vehicle’s manual or a professional mechanic for specific guidance tailored to your Pace Arrow model.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Typically located near the fuel tank or along the fuel line. |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, wrench, safety goggles. |
| Testing Method 1: Electrical Test | Check for power at the fuel pump connector using a multimeter. |
| Testing Method 2: Fuel Pressure Test | Use a fuel pressure gauge to measure pressure at the fuel rail. |
| Expected Fuel Pressure | Typically 35-45 PSI (check vehicle manual for exact specifications). |
| Fuel Pump Relay | Test the fuel pump relay for proper operation. |
| Fuel Pump Fuse | Inspect the fuel pump fuse for continuity or damage. |
| Listen for Fuel Pump Operation | Turn the ignition to "ON" and listen for the fuel pump hum (1-2 sec). |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and disconnect battery if necessary. |
| Common Symptoms of Failure | Engine cranks but won’t start, sputtering, loss of power, no fuel flow. |
| Replacement Considerations | If testing confirms failure, replace the fuel pump with a compatible unit. |
Explore related products
What You'll Learn
- Pre-Test Checks: Inspect fuel pump for damage, ensure power connections are secure, and check fuel lines
- Pressure Testing: Use a gauge to verify pump output matches manufacturer specifications under load conditions
- Electrical Testing: Test voltage supply, ground connections, and relay functionality to confirm electrical integrity
- Fuel Flow Test: Measure fuel delivery rate to ensure it meets required gallons per hour (GPH)
- Symptoms Diagnosis: Identify common issues like whining noises, engine sputtering, or no-start conditions
Pre-Test Checks: Inspect fuel pump for damage, ensure power connections are secure, and check fuel lines
Before testing the fuel pump on your 1996 Pace Arrow, a thorough pre-test inspection can save time and prevent misdiagnosis. Start by examining the fuel pump itself for visible damage, such as cracks, leaks, or corrosion. Even minor damage can compromise performance, so replace the pump if any issues are detected. Use a bright light and a magnifying glass if necessary to ensure no detail is overlooked. This initial inspection sets the foundation for accurate testing and avoids unnecessary troubleshooting later.
Next, verify the integrity of the power connections to the fuel pump. Loose or corroded connections can mimic pump failure by interrupting power supply. Disconnect the wiring harness and inspect the terminals for signs of corrosion, burning, or looseness. Clean the terminals with electrical contact cleaner and a wire brush if needed, then securely reconnect them. Ensure the wiring harness is firmly seated and test the connection with a multimeter to confirm continuity. Proper power delivery is critical for an accurate diagnosis.
Equally important is the condition of the fuel lines leading to and from the pump. Inspect the lines for cracks, leaks, or signs of degradation, especially in areas exposed to heat or vibration. Pinch points or kinks in the lines can restrict fuel flow, leading to symptoms that mimic pump failure. Replace any damaged lines and ensure all fittings are tight. Running a pressure test on the fuel lines can further confirm their integrity, though this step is optional if no visible issues are found.
By systematically inspecting the fuel pump, power connections, and fuel lines, you eliminate common variables that could skew test results. This methodical approach not only ensures a more accurate diagnosis but also prevents unnecessary part replacements. Treat these pre-test checks as a diagnostic ritual, as they provide critical insights into the fuel system’s overall health before proceeding with more complex testing procedures.
Testing a 5-Prong Fuel Pump Relay: Step-by-Step Guide
You may want to see also
Explore related products
Pressure Testing: Use a gauge to verify pump output matches manufacturer specifications under load conditions

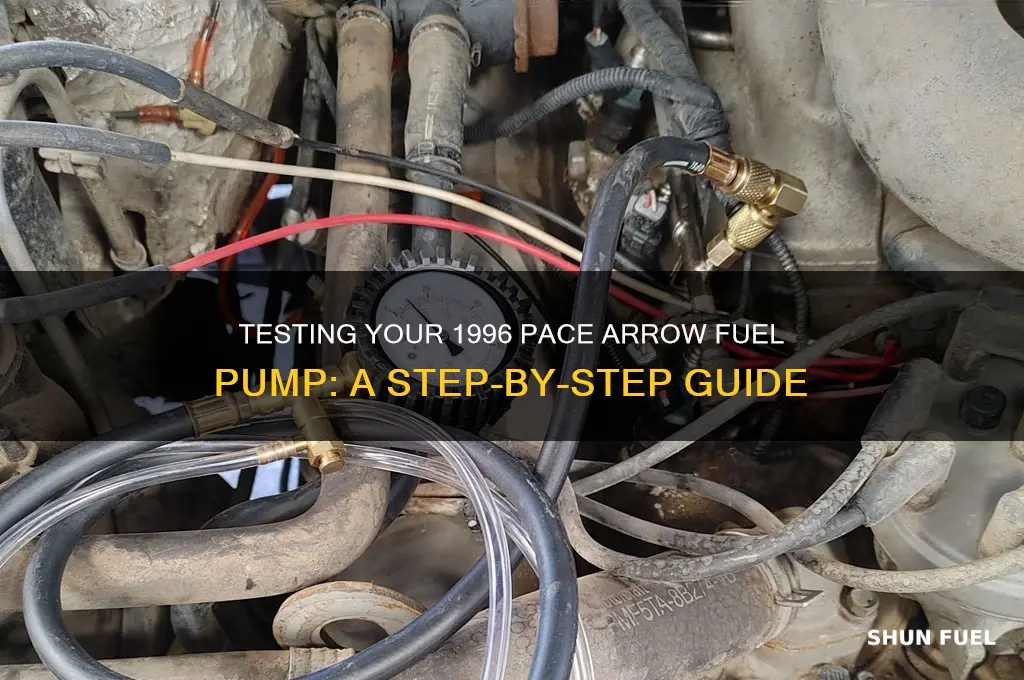

Pressure testing is a critical step in diagnosing fuel pump issues, especially for a 1996 Pace Arrow, where performance under load conditions directly impacts engine reliability. Begin by sourcing a fuel pressure gauge compatible with your vehicle’s fuel system—typically a gauge rated for 0–100 psi for gasoline engines. Connect the gauge inline between the fuel pump outlet and the fuel rail, ensuring all fittings are secure to prevent leaks. With the engine running at operating temperature, observe the pressure reading while simulating load conditions, such as idling, cruising, and acceleration. Compare these readings to the manufacturer’s specifications, usually found in the vehicle’s service manual or online resources specific to the 1996 Pace Arrow. A deviation of more than ±5 psi under load may indicate a failing fuel pump or clogged fuel filter, requiring further investigation.
Analyzing the results of a pressure test requires attention to detail and context. For instance, if the pressure drops significantly during acceleration, the fuel pump may be struggling to maintain output under demand, a common issue in older vehicles like the 1996 Pace Arrow. Conversely, consistently high pressure could signal a faulty regulator or restricted return line. Cross-reference your findings with symptoms such as hesitation, stalling, or poor fuel economy to pinpoint the root cause. Remember, pressure testing alone doesn’t diagnose all fuel system issues—it’s a diagnostic tool that works best in conjunction with other tests, like volume testing or electrical checks.
To perform a pressure test effectively, follow these steps: First, relieve fuel system pressure by disconnecting the fuel pump fuse or relay and running the engine until it stalls. Next, locate the Schrader valve on the fuel rail or use a tee fitting to install the gauge. Start the engine and allow it to reach normal operating temperature, then record baseline pressure at idle. Gradually increase throttle input while monitoring the gauge, noting any fluctuations or inconsistencies. Finally, compare your data to the manufacturer’s specifications, ensuring the pump delivers the required pressure across all load conditions. If discrepancies arise, inspect the fuel pump, filter, and lines for obstructions or wear before replacing components.
Practical tips can enhance the accuracy and safety of your pressure test. Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Use a quality gauge with a durable hose to prevent leaks or inaccurate readings. If your 1996 Pace Arrow has a returnless fuel system, ensure the gauge is compatible to avoid damaging the sensor. For vehicles with high-pressure systems, such as those with direct injection, consult a professional or specialized manual to avoid injury or equipment damage. Lastly, document your findings for future reference, as fuel pump issues can recur due to age or wear.
In conclusion, pressure testing is a precise and revealing method to assess the health of a 1996 Pace Arrow’s fuel pump. By verifying output under load conditions and comparing it to manufacturer specifications, you can diagnose issues with confidence and avoid unnecessary replacements. While the process requires specific tools and attention to detail, the insights gained are invaluable for maintaining engine performance and longevity. Whether you’re a DIY enthusiast or a professional mechanic, mastering this technique ensures your Pace Arrow remains reliable on the road.
Avoid Aftermarket Volvo Penta Fuel Pumps: Risks and Better Alternatives
You may want to see also
Explore related products
Electrical Testing: Test voltage supply, ground connections, and relay functionality to confirm electrical integrity
Electrical integrity is the backbone of a fuel pump’s operation, and testing voltage supply, ground connections, and relay functionality ensures the system isn’t sabotaged by unseen faults. Start by verifying the voltage supply at the pump’s connector. With the ignition on, use a multimeter to check for 12 volts at the fuel pump’s power wire (typically the pink or red wire). If voltage is absent, trace the wiring back to the fuse box and relay, as a broken wire or blown fuse could be the culprit. This step isolates whether the issue is electrical or mechanical, saving time and frustration.
Ground connections are equally critical, as a poor ground can mimic a failed pump. Disconnect the fuel pump’s ground wire (usually black) and clean both the wire terminal and grounding point with a wire brush to remove corrosion. Reconnect and retest the pump’s operation. If the pump still fails, use the multimeter to test continuity between the ground wire and the vehicle’s chassis. A reading of infinity indicates an open circuit, meaning the ground path is compromised. Repair or replace the ground wire to restore functionality.
Relay functionality is often overlooked but is a common failure point. Locate the fuel pump relay in the fuse box (consult the owner’s manual if unsure) and swap it with a relay of the same type, such as the A/C compressor relay. If the pump activates, the original relay is faulty. To test the relay directly, apply 12 volts to the coil terminals and check for continuity across the contacts using a multimeter. If the contacts fail to close, replace the relay. This diagnostic step ensures the pump is receiving the signal it needs to operate.
Practical tips: Always work with the ignition off when handling wiring to avoid short circuits. Label wires before disconnecting them to prevent confusion. If testing reveals no electrical faults, proceed to mechanical diagnostics, such as checking fuel pressure or inspecting the pump for physical damage. By systematically verifying voltage, ground, and relay function, you eliminate electrical variables and narrow down the root cause of the fuel pump issue.
Bypassing the Fuel Pump on a 1995 Dodge Dakota: A DIY Guide
You may want to see also
Explore related products
Fuel Flow Test: Measure fuel delivery rate to ensure it meets required gallons per hour (GPH)
A fuel flow test is a critical diagnostic procedure to verify that your 1996 Pace Arrow’s fuel pump is delivering fuel at the correct rate, measured in gallons per hour (GPH). This test directly assesses the pump’s ability to meet the engine’s demands under operating conditions, ensuring optimal performance and preventing issues like stalling or poor acceleration. Without accurate fuel delivery, even a functional pump can compromise your vehicle’s efficiency and reliability.
To perform this test, you’ll need a fuel pressure gauge, a container to catch fuel, and a stopwatch. Begin by relieving the fuel system pressure and disconnecting the fuel line at the pump outlet. Attach the gauge and container, then start the engine and allow fuel to flow for a precise interval—typically 10 to 15 seconds. Multiply the collected volume by 4 to calculate the GPH rate. Compare this value to the manufacturer’s specifications for your 1996 Pace Arrow, which usually ranges between 30 to 60 GPH, depending on the engine size and model.
Several factors can skew your results, so proceed with caution. Ensure the fuel tank is at least half full to maintain consistent pressure, and avoid testing in extreme temperatures, as heat or cold can affect fuel viscosity and flow. Additionally, inspect the fuel filter and lines for clogs or leaks before testing, as these issues can mimic pump failure. If the GPH falls short of the required rate, the pump may be worn or malfunctioning, necessitating further inspection or replacement.
The fuel flow test is not just a troubleshooting tool but also a preventive measure. Regularly monitoring fuel delivery can help identify declining pump performance before it leads to costly breakdowns. For older vehicles like the 1996 Pace Arrow, this test is particularly valuable, as age-related wear can gradually reduce pump efficiency. By staying proactive, you can maintain peak engine performance and extend the lifespan of your fuel system components.
How Long Does a Jeep Fuel Pump Typically Last?
You may want to see also
Explore related products
Symptoms Diagnosis: Identify common issues like whining noises, engine sputtering, or no-start conditions
A failing fuel pump often announces its demise through a symphony of symptoms, each a clue to its deteriorating performance. Whining noises from the fuel tank, especially during acceleration or when the fuel level is low, are a telltale sign. This high-pitched sound occurs as the pump’s internal components wear out, struggling to maintain pressure. If you hear this, it’s not just an annoyance—it’s a warning that the pump may soon fail entirely.
Engine sputtering is another red flag, particularly under load or at high speeds. When the fuel pump weakens, it delivers inconsistent fuel pressure, causing the engine to misfire or hesitate. This symptom is often mistaken for ignition issues, but if it worsens during hard acceleration or when climbing hills, the fuel pump is likely the culprit. To isolate the problem, monitor whether the sputtering coincides with the whining noise or occurs when the fuel tank is nearly empty, as a failing pump struggles most under these conditions.
No-start conditions are the most severe symptom, often leaving drivers stranded. If the engine cranks but won’t start, check for fuel delivery by listening for the pump’s priming hum when the key is turned to the "on" position. Silence or a weak hum indicates a pump that’s either dead or on its last legs. In such cases, use a fuel pressure gauge to test the pump’s output against the manufacturer’s specifications (typically 30–60 psi for a 1996 Pace Arrow). A reading outside this range confirms the pump’s failure.
While these symptoms point to a failing fuel pump, they can also overlap with other issues like clogged fuel filters or faulty injectors. To narrow the diagnosis, inspect the fuel filter for clogs and ensure the injectors are firing properly. If these components check out, the pump is the likely offender. Replacing it promptly prevents further damage to the engine and ensures reliable performance.
In summary, diagnosing a failing fuel pump in a 1996 Pace Arrow requires attentiveness to specific symptoms: whining noises, engine sputtering, and no-start conditions. By correlating these signs with fuel pressure tests and ruling out other potential causes, you can accurately identify the problem and take corrective action. Ignoring these symptoms risks not only inconvenience but also costly engine damage, making timely diagnosis and repair essential.
Choosing the Right GPH Fuel Pump for Your Vehicle's Performance Needs
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include engine sputtering, loss of power, difficulty starting, or a whining noise from the fuel tank. Testing the pump’s pressure and flow can confirm if it’s faulty.
You’ll need a fuel pressure gauge, a multimeter to check voltage, and a fuel line disconnect tool. Safety gear, such as gloves and safety glasses, is also recommended.
Yes, you can test the pump’s electrical connections and pressure using a multimeter and fuel pressure gauge while it’s still installed. However, removing it may be necessary for a thorough inspection.
The fuel pressure specification varies depending on the engine, but it typically ranges between 30-60 PSI. Refer to your vehicle’s manual or a repair guide for the exact value.
Use a multimeter to test for voltage at the pump’s connector. With the key in the "on" position, you should see battery voltage at the pump’s power wire. If not, check the fuse and relay.
