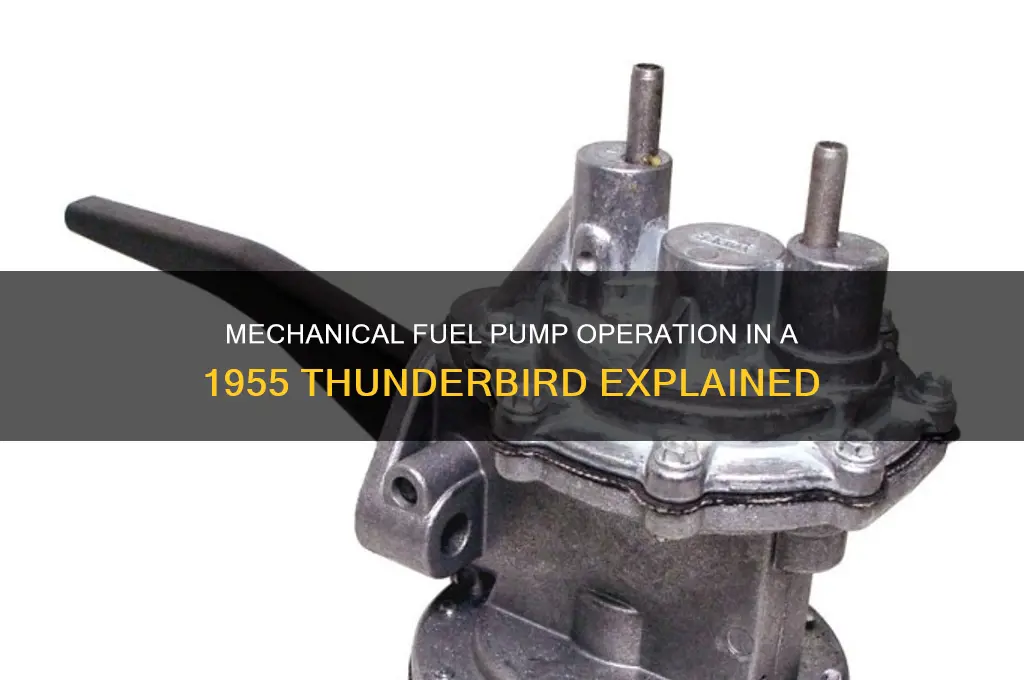

The mechanical fuel pump in a 1955 Thunderbird plays a crucial role in delivering fuel from the tank to the carburetor, ensuring the engine runs smoothly. Driven by the camshaft via an eccentric lobe, the pump operates in sync with the engine's rotation, creating a consistent flow of fuel. Its diaphragm-based design uses a lever and rocker arm to alternately create vacuum and pressure, drawing fuel into the pump and then pushing it through the fuel line. This system, typical of classic V8 engines like the Thunderbird's, relies on mechanical simplicity and reliability, making it a key component in maintaining the vehicle's iconic performance and drivability.
Explore related products
What You'll Learn
- Pump Diaphragm Operation: Diaphragm flexes, creating vacuum to draw fuel, then pressure to deliver it
- Camshaft Drive Mechanism: Eccentric cam lobe activates pump lever for diaphragm movement
- Fuel Inlet & Outlet: One-way valves ensure fuel flows in and out efficiently
- Pressure Regulation: Mechanical regulator controls fuel pressure to prevent engine overload
- Mounting & Alignment: Proper pump alignment ensures smooth operation and minimizes wear
Pump Diaphragm Operation: Diaphragm flexes, creating vacuum to draw fuel, then pressure to deliver it
The 1955 Thunderbird's mechanical fuel pump relies on a diaphragm's rhythmic flexing to ensure a steady fuel supply. This diaphragm, typically made of a durable, flexible material like nitrile rubber, is the heart of the pump's operation. As the engine's camshaft rotates, a lobe on the camshaft presses against the diaphragm, causing it to flex inward. This inward flex creates a vacuum within the pump chamber, drawing fuel from the tank through the inlet valve. Think of it like a muscular lung inhaling, pulling fuel into its chamber.
This simple yet effective mechanism eliminates the need for complex electrical systems, making it a reliable and robust solution for the era.
The diaphragm's flexing isn't a one-way street. After drawing fuel in, the camshaft lobe rotates away, allowing the diaphragm to spring back to its original position. This outward flex compresses the fuel within the chamber, creating pressure. This pressure forces the fuel past the outlet valve and into the carburetor, where it's mixed with air for combustion. Imagine squeezing a balloon filled with water – the pressure forces the water out through a narrow opening. This push-pull action of the diaphragm ensures a continuous flow of fuel, vital for the Thunderbird's powerful V8 engine.
The precise timing of this flexing is crucial, synchronized with the engine's firing order to deliver fuel at the exact moment each cylinder needs it.
While the diaphragm's operation seems straightforward, its effectiveness depends on several factors. Diaphragm material must withstand the constant flexing and fuel exposure without cracking or deteriorating. Nitrile rubber, with its resistance to fuel and oil, is a common choice. Additionally, the diaphragm's thickness and flexibility are carefully engineered to balance fuel flow and durability. A diaphragm too thin might tear, while one too thick could restrict fuel flow. Regular inspection and replacement of the diaphragm are essential maintenance tasks to ensure optimal pump performance and prevent fuel delivery issues.
A worn diaphragm can lead to a weak fuel flow, causing engine hesitation or stalling, especially under load.
