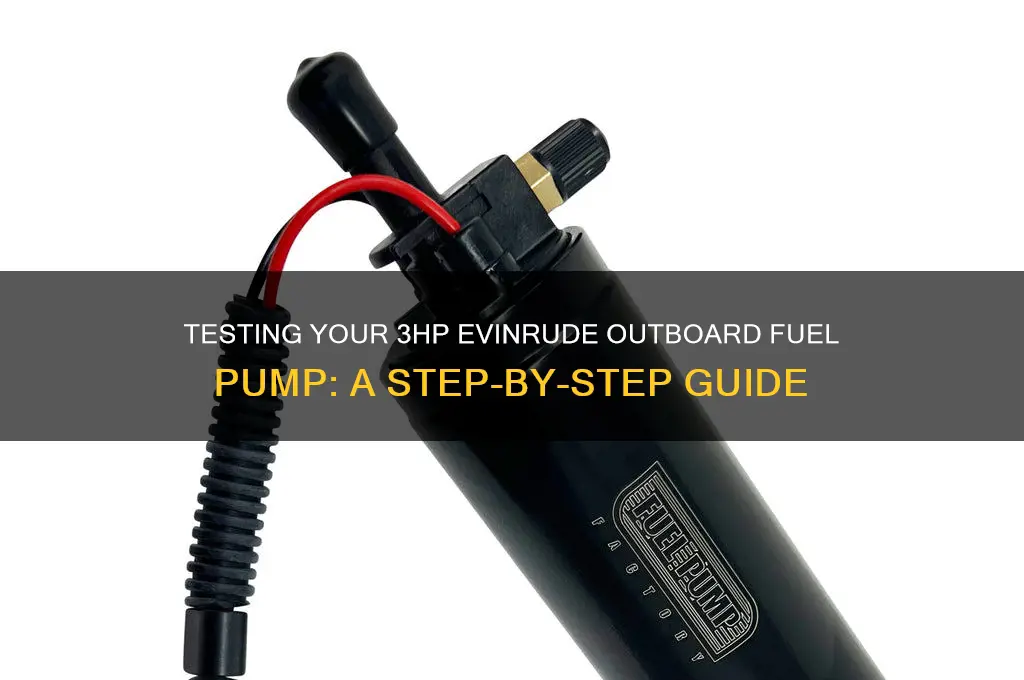

Testing a 3hp Evinrude outboard fuel pump is essential to ensure your engine runs efficiently and reliably. The process involves checking for proper fuel flow, identifying leaks, and verifying the pump’s ability to maintain consistent pressure. Begin by disconnecting the fuel line from the carburetor and cranking the engine to observe fuel delivery. If no fuel is expelled, inspect the pump for clogs or damage. Additionally, use a pressure gauge to test the pump’s output against the manufacturer’s specifications. Regular testing helps prevent engine stalling and ensures optimal performance, especially during extended use. Always refer to the Evinrude service manual for model-specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Outboard Model | Evinrude 3HP |
| Fuel Pump Type | Diaphragm or Pulsing (depending on model year) |
| Testing Tools Required | Fuel pressure gauge, hand primer bulb, screwdriver, clean container |
| Fuel Pump Location | Typically mounted on the engine block near the carburetor |
| Testing Procedure | 1. Disconnect fuel line from carburetor. 2. Attach pressure gauge or use primer bulb to test pump operation. 3. Check for consistent fuel flow or pressure. 4. Inspect diaphragm for cracks or damage. |
| Expected Fuel Pressure | Varies by model; consult manual for specific values |
| Common Failure Symptoms | Engine stalls, difficulty starting, inconsistent idle |
| Replacement Interval | Replace if damaged or not functioning properly |
| Maintenance Tips | Regularly inspect fuel lines for leaks or clogs |
| Safety Precautions | Ensure engine is off and cool before testing |
| Compatibility | Specific to Evinrude 3HP models; check part numbers for accuracy |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, safety gear, and fresh fuel for accurate testing conditions
- Visual Inspection: Check for cracks, leaks, or damage in the fuel pump assembly
- Pressure Testing: Use a gauge to verify pump output matches Evinrude specifications
- Flow Rate Check: Ensure fuel delivery is consistent and meets the 3HP engine requirements
- Post-Test Analysis: Diagnose issues, replace faulty parts, and reassemble the fuel pump system
Pre-Test Preparation: Gather tools, safety gear, and fresh fuel for accurate testing conditions
Before testing your 3hp Evinrude outboard fuel pump, ensure you have the right tools and materials to create a safe and controlled environment. Start by gathering a few essential items: a clean container for fuel, a fuel pressure gauge (if applicable), a multimeter for electrical checks, and basic hand tools like wrenches and screwdrivers. These tools will allow you to inspect connections, measure pressure, and troubleshoot electrical issues effectively. Having everything organized beforehand streamlines the process and minimizes the risk of errors.
Safety should never be an afterthought. Outboard fuel systems involve flammable materials and electrical components, so equip yourself with protective gear. Wear nitrile gloves to avoid skin contact with fuel, safety goggles to protect your eyes from splashes, and a fire extinguisher nearby as a precaution. Ensure the testing area is well-ventilated to prevent fuel vapor buildup, which can ignite under the right conditions. These precautions are not just recommendations—they are critical to preventing accidents.
Fresh fuel is a cornerstone of accurate testing. Stale or contaminated fuel can skew results, leading to misdiagnosis of pump issues. Use clean, ethanol-free gasoline if possible, as ethanol can attract moisture and degrade over time. If your fuel has been sitting for more than 30 days, replace it. Measure out a small, controlled amount for testing—typically 1–2 gallons—to avoid waste and maintain precision. Proper fuel quality ensures the test reflects the pump’s true performance, not external factors.
Finally, consider the environmental conditions. Test the fuel pump in a stable, dry location away from open flames or sparks. If outdoors, choose a calm day to prevent debris from contaminating the fuel system. Temperature matters too: fuel pumps operate optimally in moderate conditions, so avoid testing in extreme heat or cold. By controlling these variables, you create a reliable baseline for diagnosing the pump’s functionality. Preparation is the foundation of a successful test—don’t skip it.
John Deere 314 Fuel Pump: Does It Exist and How It Works
You may want to see also
Explore related products
Visual Inspection: Check for cracks, leaks, or damage in the fuel pump assembly
A thorough visual inspection is the first line of defense in diagnosing fuel pump issues on a 3hp Evinrude outboard. Begin by locating the fuel pump assembly, typically situated near the carburetor or fuel tank connection. With the engine off and cooled, carefully examine the entire assembly for any signs of distress. Cracks, even hairline fractures, can compromise the pump's integrity, leading to fuel leaks or reduced performance. Pay close attention to areas where different components join, as these are common stress points.
Leaks are another telltale sign of a failing fuel pump. Look for fuel stains, wet spots, or residue around the pump body, hoses, and connections. Even small leaks can escalate quickly, posing safety risks and affecting engine operation. Remember, fuel is highly flammable, so any leak, no matter how minor, warrants immediate attention.
Damage to the fuel pump assembly can manifest in various ways. Inspect for bent or broken components, such as the pump diaphragm, check valves, or mounting brackets. A damaged diaphragm, for instance, may appear warped or torn, indicating a need for replacement. Similarly, check valves should move freely and seal tightly; any stiffness or leakage suggests potential failure.
When conducting this visual inspection, consider the following practical tips. Use a bright light source to illuminate hard-to-see areas, and a magnifying glass can help identify subtle cracks. Clean the assembly beforehand to remove dirt and debris that might obscure your view. If you notice any issues, document them with notes or photos for future reference or professional consultation.
In summary, a meticulous visual inspection is a critical step in testing a 3hp Evinrude outboard fuel pump. By identifying cracks, leaks, or damage early on, you can prevent more extensive problems and ensure the engine's reliable operation. This simple yet effective method empowers you to take proactive measures, potentially saving time and money on repairs.
Piper Warrior Fuel System: Does It Rely on a Fuel Pump?
You may want to see also
Explore related products
$17.99
Pressure Testing: Use a gauge to verify pump output matches Evinrude specifications
Pressure testing is a critical step in diagnosing and maintaining your 3hp Evinrude outboard fuel pump, ensuring it operates within the manufacturer’s specifications. Begin by disconnecting the fuel line from the carburetor and attaching a pressure gauge to the pump outlet. Evinrude’s specifications for a 3hp outboard typically require the fuel pump to deliver between 2.5 and 3.5 psi (pounds per square inch) at idle and maintain consistent pressure under load. If the gauge reads outside this range, the pump may be worn or clogged, necessitating further inspection or replacement.
To perform the test accurately, ensure the fuel tank is at least half full and the engine is primed. Start the engine and let it idle, observing the gauge readings. Fluctuations or a failure to reach the specified pressure indicate potential issues, such as a weak diaphragm or blocked fuel lines. For a more precise diagnosis, compare the readings at idle and under throttle to identify inconsistencies. This methodical approach not only verifies pump functionality but also highlights areas requiring attention before they escalate into performance problems.
One practical tip is to use a gauge with a range of 0–10 psi for optimal accuracy. Avoid gauges with higher ranges, as they may lack the sensitivity needed to detect minor deviations. Additionally, clean the fuel pump inlet and outlet before testing to eliminate external variables that could skew results. If the pump fails the pressure test, disassemble it to inspect the diaphragm and valves for wear or debris. Replacing these components is often more cost-effective than replacing the entire pump, especially on smaller outboards like the 3hp model.
Comparing pressure testing to other diagnostic methods, such as visual inspection or flow testing, reveals its superiority in pinpointing internal pump issues. While visual checks can identify external damage, and flow testing measures volume, pressure testing directly assesses the pump’s ability to meet operational demands. This makes it an indispensable tool for both troubleshooting and routine maintenance. By adhering to Evinrude’s specifications, you ensure the fuel system delivers the correct fuel volume at the right pressure, optimizing engine performance and longevity.
In conclusion, pressure testing with a gauge is a straightforward yet powerful technique for evaluating your 3hp Evinrude outboard fuel pump. It provides actionable data, allowing you to address issues before they affect engine operation. With the right tools and a clear understanding of Evinrude’s specifications, this method becomes an essential part of your maintenance toolkit, ensuring your outboard remains reliable season after season.
Fuel Pump Regulator: Essential or Optional for Your Vehicle?
You may want to see also
Explore related products
Flow Rate Check: Ensure fuel delivery is consistent and meets the 3HP engine requirements
A critical aspect of testing a 3HP Evinrude outboard fuel pump is verifying that the flow rate meets the engine's requirements. This ensures consistent fuel delivery, which is essential for optimal performance and longevity. To begin, disconnect the fuel line from the carburetor and place the end into a graduated container. Run the pump for a precise duration, such as 30 seconds, and measure the volume of fuel dispensed. Compare this value to the manufacturer's specifications, typically around 0.5 to 0.75 gallons per hour (GPH) for a 3HP engine. If the flow rate falls short, inspect the pump for clogs, leaks, or worn components that may impede performance.
Analyzing the flow rate provides insight into the pump's efficiency and potential issues. A flow rate significantly below the recommended range may indicate a restricted fuel filter, clogged fuel lines, or a failing pump diaphragm. Conversely, an excessively high flow rate could suggest a malfunctioning check valve or improper pump calibration. It's crucial to address these discrepancies promptly, as inadequate fuel delivery can lead to engine stalling, while excessive flow may cause fuel overflow and potential safety hazards. Regular flow rate checks, especially after extended periods of disuse or exposure to ethanol-blended fuels, can help identify problems before they escalate.
To perform a flow rate check accurately, follow these steps: First, ensure the fuel tank is at least half full and free of debris. Disconnect the fuel line at the carburetor, taking care not to spill fuel. Hold the line over a clean, calibrated container and operate the pump using the primer bulb or by cranking the engine. Time the test precisely, using a stopwatch to measure the exact duration. Record the fuel volume dispensed and calculate the flow rate in GPH. For example, if 0.25 ounces are collected in 30 seconds, the flow rate is 0.5 GPH (0.25 ounces × 2 = 0.5 GPH). Compare this value to the manufacturer's guidelines to determine if the pump is functioning correctly.
Practical tips can enhance the effectiveness of your flow rate check. Always use a clean, dry container to prevent contamination of the fuel measurement. If the pump is electric, ensure the battery is fully charged to avoid inaccurate results due to low voltage. For manual pumps, maintain a consistent priming rhythm to achieve a steady flow. After testing, reassemble the fuel lines securely and check for leaks. If the flow rate is unsatisfactory, consider replacing the fuel filter or consulting a marine mechanic for further diagnosis. Regular maintenance, including flow rate checks, is key to keeping your 3HP Evinrude outboard running smoothly.
In conclusion, the flow rate check is a vital diagnostic tool for assessing the health of a 3HP Evinrude outboard fuel pump. By measuring fuel delivery against manufacturer specifications, you can identify issues early and take corrective action. This simple yet effective test ensures your engine receives the consistent fuel supply it needs for reliable operation. Incorporate flow rate checks into your routine maintenance schedule to maximize performance and extend the life of your outboard motor.
Choosing the Right LPH Fuel Pump for 600 FWHP Builds
You may want to see also
Explore related products
Post-Test Analysis: Diagnose issues, replace faulty parts, and reassemble the fuel pump system
After testing your 3hp Evinrude outboard fuel pump, the real work begins: deciphering the results and taking action. A failed test doesn't necessarily mean a complete pump replacement. Often, the culprit lies in specific components that can be diagnosed and replaced, saving you time and money.
Let's delve into the post-test analysis, a crucial phase where you transform data into actionable solutions.
Diagnosis: Pinpointing the Problem
Imagine your fuel pump as a symphony orchestra. Each component, from the diaphragm to the check valves, plays a vital role. A faulty test result is like a discordant note, signaling a problem within the ensemble. Analyze the test results meticulously. Did the pump fail to build pressure? This could indicate a torn diaphragm or a clogged inlet filter. Was there insufficient fuel flow? Suspect a malfunctioning check valve or a restricted fuel line. Consult your Evinrude manual or online resources for specific troubleshooting guides based on your test findings.
Remember, accurate diagnosis is key to a successful repair.
Replacement: Precision is Paramount
Once the culprit is identified, it's time for surgery. Replacing faulty parts requires precision and attention to detail. Gather the necessary tools and replacement components, ensuring they are genuine Evinrude parts for optimal performance and longevity. Follow the manufacturer's instructions meticulously during disassembly and reassembly. Pay close attention to torque specifications and proper sealing of gaskets to prevent leaks.
Reassembly: Bringing Harmony Back
With the faulty component replaced, it's time to reunite the orchestra. Reassemble the fuel pump system, ensuring each component is securely fastened and aligned correctly. Double-check all connections for tightness and inspect for any signs of damage or wear. A single loose connection can disrupt the entire system.
Final Notes: Testing and Tuning
Before declaring victory, retest the fuel pump. This crucial step confirms the repair's success and ensures your outboard is ready to hit the water. If the pump passes the test, congratulations! You've successfully diagnosed, repaired, and restored your 3hp Evinrude's fuel delivery system. Remember, regular maintenance and proactive testing are essential to keeping your outboard running smoothly for seasons to come.
Dual Gas Tanks: Do They Require Two Fuel Pumps?
You may want to see also
Frequently asked questions
To test the fuel pump, disconnect the fuel line from the carburetor, place the end in a container, and pull the starter cord. If fuel flows steadily, the pump is functioning correctly.
You’ll need a container to catch fuel, a wrench or pliers to disconnect the fuel line, and possibly a multimeter if testing electrical components.
Yes, you can test it in place by disconnecting the fuel line and checking for fuel flow when the engine is cranked or the starter cord is pulled.
Common signs include difficulty starting the engine, sputtering during operation, or no fuel flow when testing the pump.
