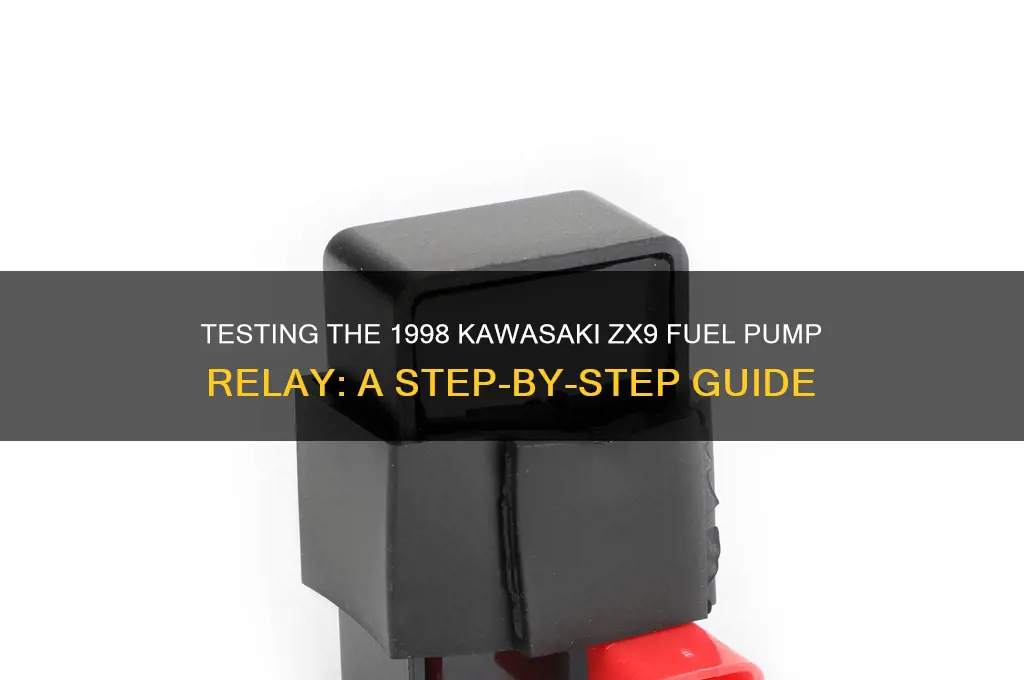

Testing the fuel pump relay on a 1998 Kawasaki ZX9 is a critical step in diagnosing fuel delivery issues, as a faulty relay can prevent the fuel pump from operating correctly. To begin, locate the relay, typically found in the fuse box or under the seat, and consult the service manual for its exact position. With the ignition off, disconnect the relay and inspect it for signs of damage or corrosion. Using a multimeter, test the relay’s continuity and resistance across its terminals to ensure it functions properly. Additionally, perform an in-circuit test by activating the fuel pump and checking for voltage at the relay’s output terminal. If the relay fails any of these tests, replace it with a known-good unit to confirm whether it’s the source of the problem. This systematic approach ensures accurate diagnosis and efficient troubleshooting.
| Characteristics | Values |
|---|---|
| Relay Location | Typically found near the fuel tank or under the seat. |
| Tools Required | Multimeter, screwdriver, jumper wires. |
| Testing Procedure | 1. Disconnect the relay connector. 2. Set multimeter to ohms setting. 3. Test the relay coil pins for continuity. 4. Test the switch pins for continuity when activated. |
| Relay Coil Resistance | Typically between 50-150 ohms (check service manual for exact value). |
| Switch Pin Continuity | Closed circuit when relay is activated, open circuit when deactivated. |
| Power Supply Check | Ensure power is reaching the relay (usually 12V). |
| Ground Check | Verify the relay has a good ground connection. |
| Activation Method | Turn the ignition on to activate the relay. |
| Common Symptoms of Failure | No fuel pump operation, engine cranks but doesn't start, intermittent starting issues. |
| Replacement Relay | Use OEM or compatible relay with the same pin configuration. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the 1998 Kawasaki ZX9's fuse box
- Visual Inspection: Check for corrosion, damage, or loose connections on the relay terminals
- Multimeter Testing: Use a multimeter to test continuity and resistance across relay pins
- Power Supply Check: Verify power supply to the relay using a test light or multimeter
- Swap Relay: Test functionality by swapping the relay with a known working one from the same model
Locate the Relay: Identify the fuel pump relay's position in the 1998 Kawasaki ZX9's fuse box
The 1998 Kawasaki ZX9's fuel pump relay is a critical component for ensuring your motorcycle's engine receives the necessary fuel. Locating this relay is the first step in diagnosing any potential issues with your fuel system. The relay is typically housed within the fuse box, a centralized hub for various electrical components. To begin, consult your ZX9's service manual for a diagram of the fuse box layout. This will provide a visual reference to pinpoint the fuel pump relay's exact position.
Identifying the Relay: The fuel pump relay in the 1998 ZX9 is often a small, rectangular component with a series of pins or terminals. It might be labeled as "FUEL PUMP" or "FP" on the fuse box cover or in the manual. If the labeling is unclear, look for a relay with a similar shape and size to other relays in the box, but with a higher amperage rating, typically around 20-30 amps, as the fuel pump requires more power.
Practical Tip: If you're unsure about the relay's appearance, compare it with images of fuel pump relays from similar Kawasaki models or consult online forums dedicated to ZX9 maintenance.
Accessing the Fuse Box: The fuse box in the 1998 Kawasaki ZX9 is usually located under the seat or in the tail section of the motorcycle. To access it, you'll need to remove the seat, which often involves unscrewing a few bolts or releasing a latch mechanism. Once the seat is removed, the fuse box should be visible, often covered by a protective lid. Gently pry open the lid to reveal the array of fuses and relays.
Caution and Precision: When handling the fuse box, be cautious not to touch any live electrical components with metal tools or your fingers. It's advisable to disconnect the battery before proceeding to minimize the risk of electrical shocks or short circuits. Use a non-conductive tool, like a plastic pry bar, to open the fuse box lid and handle the relays. Precision is key here; avoid applying excessive force to prevent damaging the delicate components.
Takeaway: Locating the fuel pump relay in the 1998 Kawasaki ZX9's fuse box is a straightforward process with the right guidance. By referring to the service manual, understanding the relay's characteristics, and carefully accessing the fuse box, you can efficiently identify the component. This initial step is crucial for further testing and troubleshooting, ensuring your ZX9's fuel system operates optimally. Remember, a systematic approach and attention to detail are essential when working with motorcycle electrical systems.
