If you're experiencing issues with your 2008 Chevy Cobalt, such as hesitation when driving or a strong fuel smell, you may need to remove and clean or replace the fuel injectors. This can be done at a shop or by following a detailed guide and using the right tools. The process involves relieving fuel system pressure, removing the coolant overflow pipe, disconnecting the fuel supply pipe, and unfastening the mounting studs on the fuel rail. It's important to check for leaks after reinstalling the new fuel injectors to ensure safety.

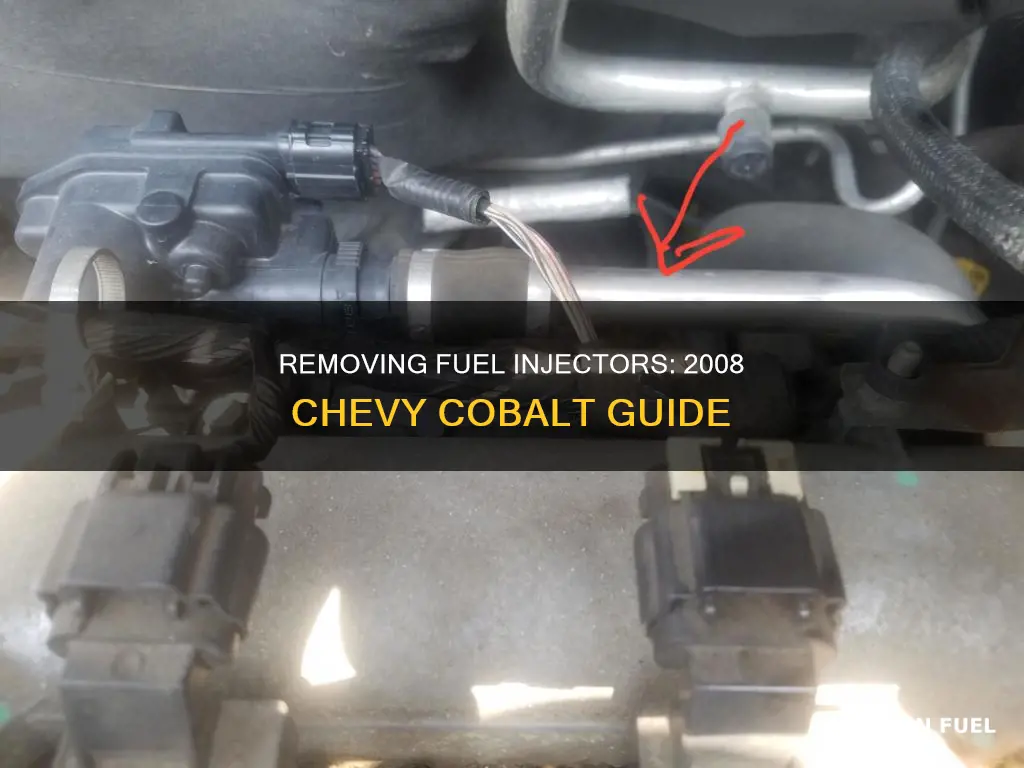

2008 Chevy Cobalt Fuel Injector Removal Guide
| Characteristics | Values |
|---|---|
| Engine Sizes | 2.0 L S/C LSJI4, 2.0 L Turbo LNFI4, 2.2 L L61I4, 2.2 L LAPI4, 2.4 L LE5I4 |
| Tools | Socket Wrench, Back-up Wrench, Torque Wrench |
| Steps | 1. Disconnect the negative battery cable. 2. Relieve the fuel system pressure. 3. Remove the coolant overflow pipe. 4. Disconnect the fuel supply pipe from the fuel rail. 5. Unfasten the mounting studs on the fuel rail. 6. Remove the fuel rail. 7. Remove the injectors. |
| Cleaning | Injectors can be cleaned with Mystery Oil and Seafoam added to the fuel. |
| Notes | Ensure the fuel pressure is checked before removing the injectors. |
Explore related products
What You'll Learn
Check fuel pressure and clean injectors with Mystery Oil and Seafoam
To check the fuel pressure and clean the fuel injectors of your 2008 Chevy Cobalt with Mystery Oil and Seafoam, you'll need to perform the following steps:
Begin by locating the fuel rail and the fuel injectors. This will require raising the vehicle and safely supporting it on jack stands. Once you have accessed the fuel rail and injectors, you will need a fuel pressure gauge to check the fuel pressure. Connect the gauge to the fuel pressure tester hose, and then attach the tester hose to the fuel line quick-connect fitting. Start the engine and observe the fuel pressure gauge. The pressure should be within the specified range for your vehicle. If it is not, you may need to adjust the fuel pressure regulator or replace the fuel pump.
Next, you will add the Mystery Oil and Seafoam to the fuel system. With the engine off, pour a small amount of Mystery Oil into each fuel injector nozzle. Mystery Oil is a solvent that helps clean and lubricate the fuel injectors, and it can help dissolve any carbon deposits or buildup. Let the Mystery Oil sit for several minutes to allow it to work. Then, pour Seafoam into the fuel tank. Seafoam is a fuel additive that helps clean the fuel system, and it will be drawn into the fuel injectors as the engine runs.
Start the engine and allow it to idle for several minutes. As the engine runs, the Seafoam will circulate through the fuel system, cleaning the injectors, intake valves, and combustion chamber. You may notice some smoke and a slight hesitation in the engine as the Seafoam works to remove deposits. This is normal. Let the engine run until it reaches operating temperature, and then take the car for a drive. During your drive, the vehicle will burn off any remaining Seafoam and Mystery Oil, and you should notice improved engine performance and responsiveness.
Finally, after you've driven the vehicle and allowed the Seafoam and Mystery Oil to burn off, recheck the fuel pressure to ensure that it is still within the specified range. If the fuel pressure has dropped or is still not within specifications, further diagnostics and repairs may be necessary. Cleaning the fuel injectors and maintaining proper fuel pressure are crucial for optimal engine performance and fuel efficiency. Regular maintenance and the use of fuel additives can help prevent future issues and keep your Chevy Cobalt running smoothly.
Fuel Injectors in Mercedes C240: What You Need to Know
You may want to see also
Explore related products
Remove the fuel rail and disconnect the fuel supply pipe
To remove the fuel rail and disconnect the fuel supply pipe, you will need to relieve the fuel system pressure. This can be done by disconnecting the negative battery cable with a socket wrench and then briefly running the engine.
Next, remove the coolant overflow pipe and disconnect the fuel supply pipe from the fuel rail with a back-up wrench. Now, unfasten the mounting studs on the fuel rail with a socket wrench and pull out the rail.
At this point, you can push in the new rail, bolt it back in, and reconnect the fuel supply pipe. Remember to torque the bolts on the fuel supply pipe to 10 ft. lbs.
After installation, a leak check is essential. Turn the ignition on for 2 seconds, off for 10 seconds, and then start the engine to check for fuel leaks.
Sea Foam Treatment: Clogged Fuel Injectors or Smooth Sailing?
You may want to see also
Explore related products
Unfasten the mounting studs on the fuel rail
To unfasten the mounting studs on the fuel rail of a 2008 Chevy Cobalt, you will need a socket wrench. This is the tool recommended by most sources for this task.
Firstly, disconnect the negative battery cable with a socket wrench and relieve the fuel system pressure. You can do this by briefly running the engine with the fuel pump fuse out. Next, remove the coolant overflow pipe and disconnect the fuel supply pipe from the fuel rail with a back-up wrench.
Now, you are ready to unfasten the mounting studs on the fuel rail. Once these are unfastened, you can remove the bolts holding in the rail and the electrical connection going to the pressure sensor on the end. Pull out the rail and push in the new rail.
To install the new fuel injectors, simply reverse the removal procedure. Lubricate the new injector O-rings with clean engine oil. Use a torque wrench to tighten the fuel rail studs to 89 in-lbs. and torque the bolts on the fuel supply pipe to 10 ft-lbs. Torque the bolt for the coolant overflow pipe to 71 in-lbs. Turn the ignition on for 2 seconds, off for 10 seconds, and start the engine to check for fuel leaks.
Extending Fuel Injector Lifespan: Tips for Enhanced Durability
You may want to see also
Explore related products
Install the new fuel injectors and lubricate the new injector O-rings
To install the new fuel injectors, reverse the removal procedure. First, push in the new rail, then bolt it back in and connect the electrical connection to the pressure sensor at the end. Reconnect the fuel pipe between the rail and the HPFP. Reinstall the IM and the fuel supply pipe to the fuel rail.
Before installing the new fuel injectors, lubricate the new injector O-rings with clean engine oil. The O-rings should be included with the new injector, but it is worth checking that they are present and intact before installation.
Use a torque wrench to tighten the fuel rail studs to 89 in. lbs. and torque the bolts on the fuel supply pipe to 10 ft. lbs. Torque the bolt for the coolant overflow pipe to 71 in. lbs.
Turn the ignition on for 2 seconds, off for 10 seconds, and start the engine to check for fuel leaks. If there are no leaks, no further action is necessary.
Cleaning Your Range Rover's Fuel Injector: A Step-by-Step Guide
You may want to see also
Explore related products
Check for fuel leaks by turning the ignition on and off
After installing the new fuel injectors, turn the ignition on for two seconds, then turn it off for ten seconds. Finally, start the engine to check for fuel leaks. If there are no leaks, no further action is required.
Before installing a new fuel injector, you must relieve the fuel system pressure. This can be done by disconnecting the negative battery cable with a socket wrench, then briefly running the engine with the fuel pump fuse out.
Fuel injectors are a part of the fuel injection system, which allows fuel to enter the engine. This process is controlled by the car's computer, which uses various sensors to determine how much fuel to allow into the engine. Faults in the fuel injection system can cause rough idling, loss of power, or misfiring.
Fuel injectors should not leak fuel into the intake manifold when the car is off. If you notice any fuel odour around your car, a leaking fuel injector may be the cause. If an externally leaking injector is suspected, do not start the car as it may pose a fire hazard.
Lacquer Thinner: Effective Fuel Injector Cleaning Solution?
You may want to see also
Frequently asked questions
If you are not getting enough fuel when driving and your foot is not easing off the accelerator, your injectors may be going bad. You can check your fuel pressure with a fuel pressure gauge, which you can borrow from most parts stores.
First, let the car sit overnight or remove the fuel pump module and start the car and let it die. Then, remove the IM, the pipe supplying fuel to the fuel rail from the HPFP, the bolts holding in the rail, and the electrical connection going to the pressure sensor on the end. Pull out the rail, push in the new rail, and bolt it back in. Reconnect the electrical connection to the pressure sensor and the fuel pipe between the rail and the HPFP. Reinstall the IM.
Install the new fuel injectors by reversing the removal procedure. Lubricate the new injector O-rings with clean engine oil. Use a torque wrench to tighten the fuel rail studs to 89 in. lbs. and torque the bolts on the fuel supply pipe to 10 ft. lbs. Torque the bolt for the coolant overflow pipe to 71 in. lbs.
Turn the ignition on for 2 seconds, off for 10 seconds, and start the engine to check for fuel leaks.
