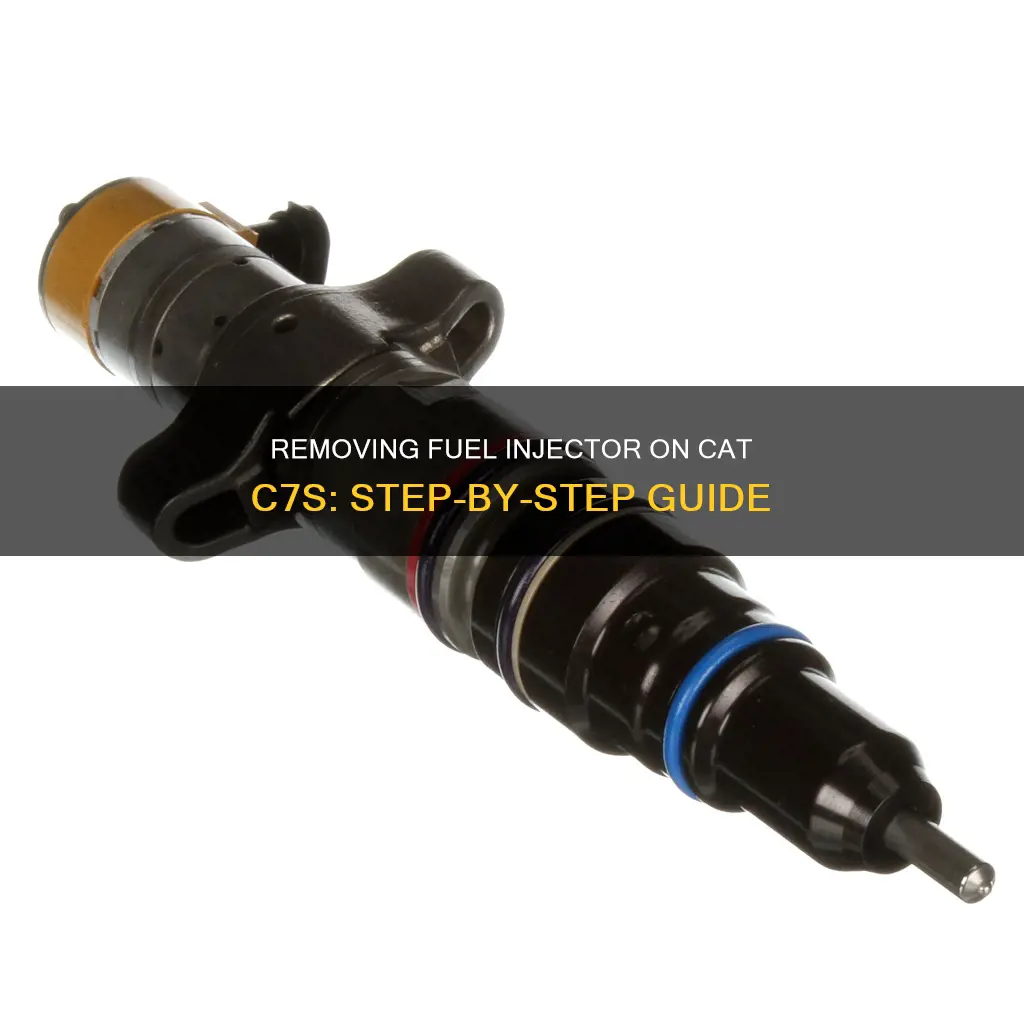

The Cat C7 engine is a powerful and popular engine used in a variety of vehicles, from motorhomes to heavy equipment. However, one common issue that owners of these engines may encounter is the need to remove and replace the fuel injectors due to problems with cylinders not firing. While it is possible to remove and replace the fuel injectors on a Cat C7 engine yourself, it is important to exercise caution and follow the correct procedure to avoid damaging the engine. In this article, we will provide a step-by-step guide on how to safely and effectively remove and replace the fuel injectors on a Cat C7 engine.
Explore related products
What You'll Learn
A specialised tool for injector removal is available
Alternatively, a heavy slide hammer can be used to remove the injectors. This method involves spraying an ATF/Acetone mix on the injector and letting it sit. Then, tap the injector with a mallet lightly and cover it with a packing blanket. Finally, crank the engine over with the starter.
Another approach is to use a jack screw to remove the injectors. This method involves removing the two bolts before pulling out the injector. It is important to ensure that both bolts are removed before attempting to remove the injector to avoid any damage.
Some people have also shared a creative technique they have used to remove the injectors. This involves using a long 1/4 bolt (around 4 inches) and a 1/4 nut. The bolt is put through where the injector bolt was on the exhaust side, and the nut is screwed on the bottom. A tire iron pry tool with a 1/4 notch cut out is then used to pry the injector out. This method can be tricky, but with practice, it becomes easier.
Fuel Injectors: Plastic vs Metal — What's in Your Engine?
You may want to see also
Explore related products
Alternatively, use a long 1/4 bolt and nut
To remove the fuel injector on a Cat C7 engine, an alternative method to using the specialised tool is to use a long 1/4 bolt and nut. This method is described by a user on a forum who has experience working with the Cat C7 engine.
Firstly, they recommend using a bolt that is around 4 inches long and a 1/4 nut. Place the bolt through where the injector bolt was on the exhaust side and screw the nut on the bottom. This step can be tricky, but the user assures that the process becomes easier with practice.
Next, use a tire iron pry tool with a 1/4 inch notch cut out of it. Place the bolt through the notch and pry it off of a small piece of 2 by 4 wood. Ensure that nothing you are prying on will break and give it a quick, sharp movement. The injectors should then pop right out.
Before attempting removal, it is important to vacuum out the cylinder to make it as dry as possible. This is to prevent hydro-bending a rod, which can occur if there is too much fuel and oil left in the cylinder. It is also recommended to drain the oil and fuel beforehand, using the plugs at the front and rear of the head.
Additionally, the user suggests inspecting for any metal shavings in the injector ports. If these are present, it is a sign that the HEUI pump is failing, which can damage all the injectors.
Fuel Injector Installation: Push-in Process Simplified
You may want to see also
Explore related products
Use a tire iron pry tool to remove the injector
To remove a fuel injector from a Cat C7 engine, you can use a tire iron pry tool. This method is recommended by a user who has 19 years of experience as a field service technician for CAT.
First, get a long 1/4 bolt (around 4 inches) and a 1/4 nut. Put the bolt through where the injector bolt was on the exhaust side and screw the nut on the bottom. This can be tricky, but once you do a couple, it's not too bad.
Then, use the tire iron pry tool. If you haven't cut a 1/4 notch out of it already, do so now. Stick the bolt through that notch and pry off a small piece of 2x4. Just make sure nothing you are prying on will break and give it a quick pry with the pry bar. The injectors usually pop right out.
It is worth noting that there are special tools designed for injector removal, with part numbers 152-1057 and 274-9198. However, some users have found these to be very useless.
Additionally, you can try using a heavy slide hammer. Bolt a slide hammer into the fuel injection hold-down bracket. You can also spray with an ATF/Acetone mix, let it sit, tap the injector with a mallet lightly, throw a packing blanket over it, and crank the engine over with the starter.
Cleaning Snowmobile Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Vacuum the cylinder and place the new injector
To replace a fuel injector on a CAT C7 engine, you'll first want to vacuum out the cylinder so it's as dry as possible. This is important because, as one user points out, if you don't get as much of the fuel and oil out of the cylinder as possible, you risk hydro-bending a rod.
There are plugs at the front and rear of the head to drain oil and fuel before you begin. You can also remove the pressure relief valve at the back of the head and run the engine for several revolutions to flush out any dirt.
Once the cylinder is dry, you can place the new injector, seating it slowly and carefully, alternating sides a little at a time.
Before you start the engine, you should hand-turn the engine over four to eight revolutions. This will ensure that any excess liquid gets squeezed out of the ring gap.
Then, you can plug it back in and fire it up!
Cleaning Fuel Injectors: Bench Method for Optimal Performance
You may want to see also
Explore related products
Drain oil and fuel before attempting to start the engine
It is important to drain oil and fuel before attempting to start the engine. This is because the Cat C7 engine uses very high pressure, and if there is a fuel or oil leak, it can cause significant damage.
Firstly, make sure you have a hand priming pump to purge air from the fuel system. The fuel path goes from the tank through a primary filter, into a transfer pump, then into a secondary canister filter with a hand primer, and finally into the engine head and injector rail. If you don't have a hand priming pump, it can be challenging to get the air out of the fuel system.
Next, check for any signs of leaks in the fuel system. This could be indicated by low fuel pressure, which can prevent the engine from firing. Measure the fuel pressure with a pressure gauge that reads up to at least 3000 PSI, ideally 4000 PSI. If there is a significant difference between the voltage of a faulty machine and a functioning one, it could be due to a lack of pressure caused by a failing HEUI pump.
Additionally, the HEUI system relies on good, clean engine oil to actuate the injectors. Check the oil for any signs of contamination or leaks. If there is an oil PSI leak or increase, it can drive the issue of injectors not firing.
By draining the oil and fuel and performing these checks, you can help ensure that there are no leaks or contamination issues that could cause damage when attempting to start the engine.
Fuel Injector Cost: What's the Price Range?
You may want to see also
Frequently asked questions
There are a few methods to remove the fuel injector on a Cat C7. One method is to use a specialised tool with the part numbers 152-1057 and 274-9198. However, some people find this tool ineffective. An alternative method is to use a 4-inch 1/4 bolt with a 1/4 nut, which you can put through where the injector bolt was on the exhaust side. Then, screw the nut on the bottom and use a tyre iron pry tool to pop the injector out.
No, you do not need any special tools to remove the fuel injector.
Before removing the fuel injector, make sure you remove as much fuel and oil from the cylinder as possible to prevent hydro-bending a rod. You can do this by draining the oil and fuel from the plugs at the front and rear of the head.
After removing the fuel injector, it is important to inspect the injector ports for any metal shavings. If there are metal shavings, this indicates that the HEUI pump is failing, which will damage all injectors.
To reinstall the fuel injector, first, vacuum out the cylinder to make it as dry as possible. Then, place the new injector and slowly/carefully seat it down, alternating sides a little at a time. Finally, plug it back in and start the engine.
